| EPC-T32855A-00Y0E | ||
| Rear I/O Interface | I/O port | 1 (Full height; 185L x 111.15W x 16.1H mm); AIMB-285 support PCIe x4 |
| Thermal Solution | Thermal Solution | 2x chassis fan (4cm/23.8CFM each) |
| Processor | Compatible Motherboard | AIMB-285G2-00A1E |
| Processor | CPU | i5-7500 |
| Processor | BIOS | AMI EFI 128Mbit |
| Memory | Socket | 2 x 260 Pin DDR4 SO-DIMM |
| Memory | Technology | DDR4 2133MHz SO-DIMM |
| Memory | Max. Capacity | 32GB (16GB per SODIMM) |
| Graphics | Chipset | Intel HD Graphics |
| Storage | mSATA | 1 (Full-size mini-PCIe) |
| Storage | 2.5" Drive Bay | 2 x 2.5” SATA HDD Bay (Max Height 7mm) |
| Ethernet | Controller | LAN1/ LAN2: Realtek RTL8111G |
| Ethernet | Connector | 2 (RJ-45) |
| Audio | Chipset | Realtek ALC892, High Definition Audio (HD) |
| Expansion | Mini PCIe | 1+1 (Full-size, Half-size); 1 (PCIe x4) |

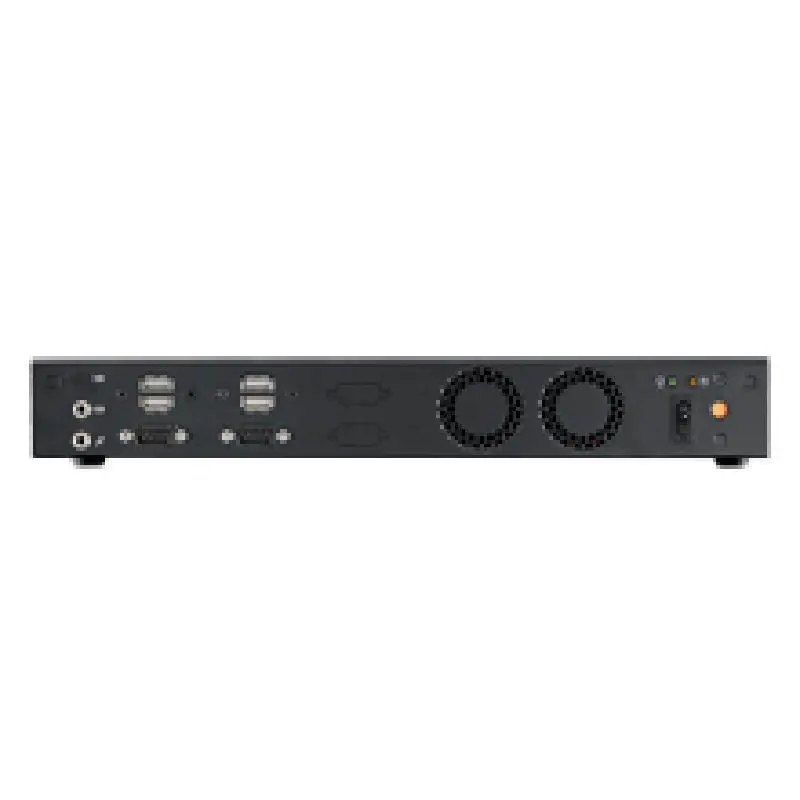

| Front I/O Interface | Antenna | up to 2 |
| Front I/O Interface | Audio | 2 (Line-Out, Mic-In) |
| Front I/O Interface | COM | 2 COM |
| Front I/O Interface | USB | 4 (USB2.0) |

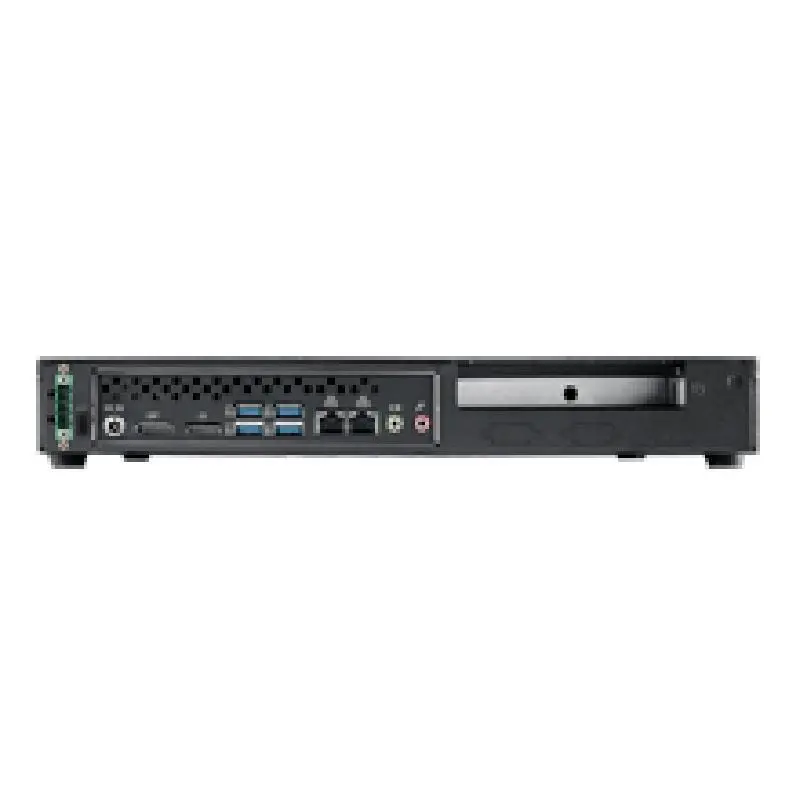

| Rear I/O Interface | DP++ | 1 |
| Rear I/O Interface | HDMI / DisplayPort* | 1/0 |
| Rear I/O Interface | COM | 0 |
| Rear I/O Interface | USB | 4 (USB3.0) |
| Rear I/O Interface | VGA | 0 |
| Rear I/O Interface | Audio | 2 (Line-out, Mic-In) |
| Rear I/O Interface | Antenna | up to 2 |
| Rear I/O Interface | Ethernet | 2 |
| Rear I/O Interface | Power Input | 12V DC-in Jack |
| Miscellaneous | LED Indicators | 2 (Power LED, HDD LED) |
| Miscellaneous | Control | 1 (Power switch); 1(Reset switch) |
| Power Requirement | Power Consumption | Base on motherboard |
| Power Requirement | Voltage | 12V DC-in |
| Environment | Humidity | 10 ~ 85% @ 40° C, non-condensing |
| Environment | Non-Operational Temperature | -20 ~ 60° C (-4 ~ 140° F) |
| Environment | Operating Temperature | 0 ~ 45° C (32 ~ 113° F)(w/o Expansion Card module) |
| Environment | Vibration Resistance | 1 Grms (HDD x 1); 3 Grms (SSD x 1) |
| Weight (kg) | Weight (kg) | 3.68 |
| Dimensions | Dimensions (W x H x D) | 330 x 44 x 270 mm |
Advantech EPC-T3285 Intel® 6th/7th Generation Desktop Core™ i3/i5/i7 1U THIN embedded PC
