| EPC-T42865A-00Y0E | EPC-T4286SA-EUY2E | EPC-T42865A-08Y02 | ||
| Thermal Solution | Thermal Solution | FAN | FAN | FAN |
| Processor | Compatible Motherboard | AIMB-286 | AIMB-286 | AIMB-286 |
| Processor | CPU | Intel® 8th Gen. Core i Processor i5-8500T | Intel® 8th Gen. Core i Processor i5-8500T | Intel® 8th Gen. Core i Processor i5-8500T |
| Processor | BIOS | AMI EFI 128Mbit | AMI EFI 128Mbit | AMI EFI 128Mbit |
| Memory | Socket | 2 x 260 Pin DDR4 SO-DIMM | 2 x 260 Pin DDR4 SO-DIMM | 2 x 260 Pin DDR4 SO-DIMM |
| Memory | Technology | DDR4 2133MHz SO-DIMM | DDR4 2133MHz SO-DIMM | DDR4 2133MHz SO-DIMM |
| Memory | Max. Capacity | 64GB (up to 32GB per SO-DIMM) | 64GB (up to 32GB per SO-DIMM) | 4 GB |
| Storage | M.2 | B key for SSD (Type: 2242, 3042mm) | B key for SSD (Type: 2242, 3042mm) | 64GB |
| Storage | 2.5" Drive Bay | 1 x 2.5” SATA HDD Bay (Max Height 7mm) | 1 x 2.5” SATA HDD Bay (Max Height 7mm) | 1 x 2.5” SATA HDD Bay (Max Height 7mm) |
| Graphics | Chipset | Intel HD Graphics | Intel HD Graphics | Intel HD Graphics |
| Ethernet | Controller | LAN1/ LAN2: Realtek RTL8111G | LAN1/ LAN2: Realtek RTL8111G | LAN1/Lan2: Realtek RTL8111H; LAN3: Intel i210AT |
| Ethernet | Connector | 2 x RJ-45 | 2 x RJ-45 | 3 (RJ-45) |
| Ethernet | Interface | 10/100/1000 Mbps | 10/100/1000 Mbps | 10/100/1000 Mbps |
| Audio | Chipset | Realtek ALC892, High Definition Audio (HD) | Realtek ALC892, High Definition Audio (HD) | Realtek ALC892, High Definition Audio (HD) |
| Expansion | M.2 | 1 x B key for SSD and 3G/4G (Type: 2242/3042mm); 1 x E key for wireless (Type: 2230mm) | 1 x B key for SSD and 3G/4G (Type: 2242/3042mm); 1 x E key for wireless (Type: 2230mm) | 1 x M.2 2230 E key for WIFI module |

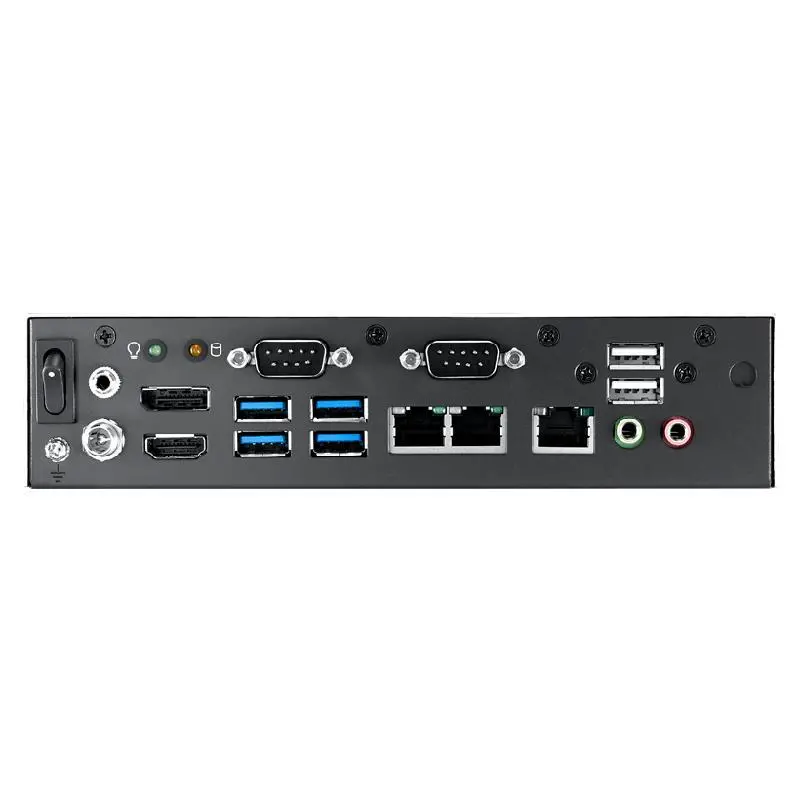

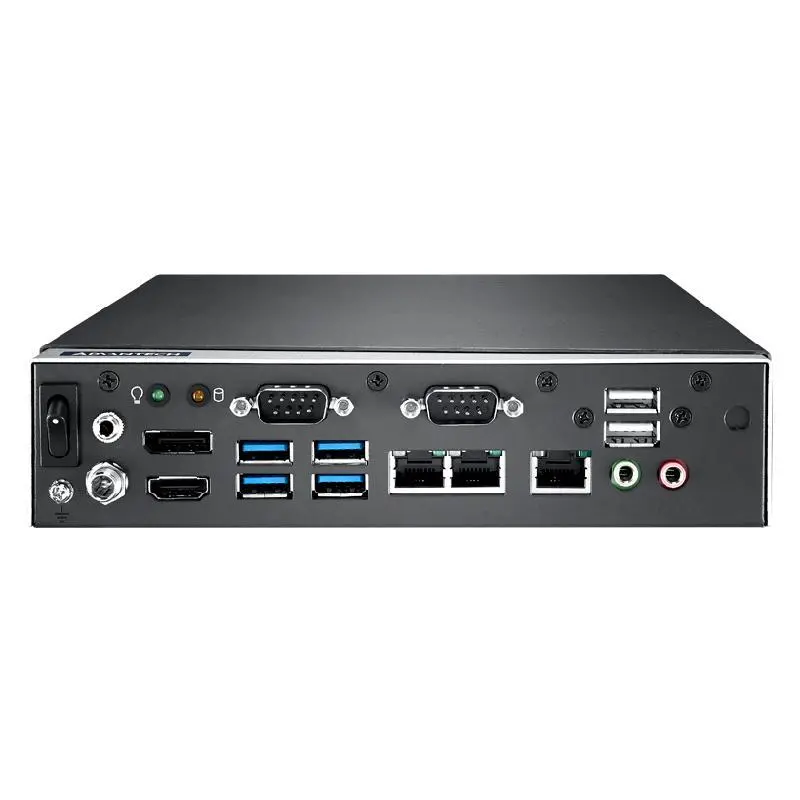

| Front I/O Interface | Audio | 2 (reserved, Line-Out, Mic-In) | 2 (reserved, Line-Out, Mic-In) | 2 (reserved, Line-Out, Mic-In) |
| Front I/O Interface | DP | 1 | 1 | 1 |
| Front I/O Interface | HDMI | 1 | 1 | 1 |
| Front I/O Interface | COM | 2 COM | 0 | 2 COM |
| Front I/O Interface | USB | 4 USB 3.0, 2 USB 2.0 | 4x USB 3.0, 4x USB 2.0 | 4 USB 3.0, 2 USB 2.0 |
| Front I/O Interface | DC Jack | 1 | 1 | 1 |
| Front I/O Interface | POWER INPUT | 1 (DC Jack) | 1 (DC Jack) | 1 (DC Jack) |

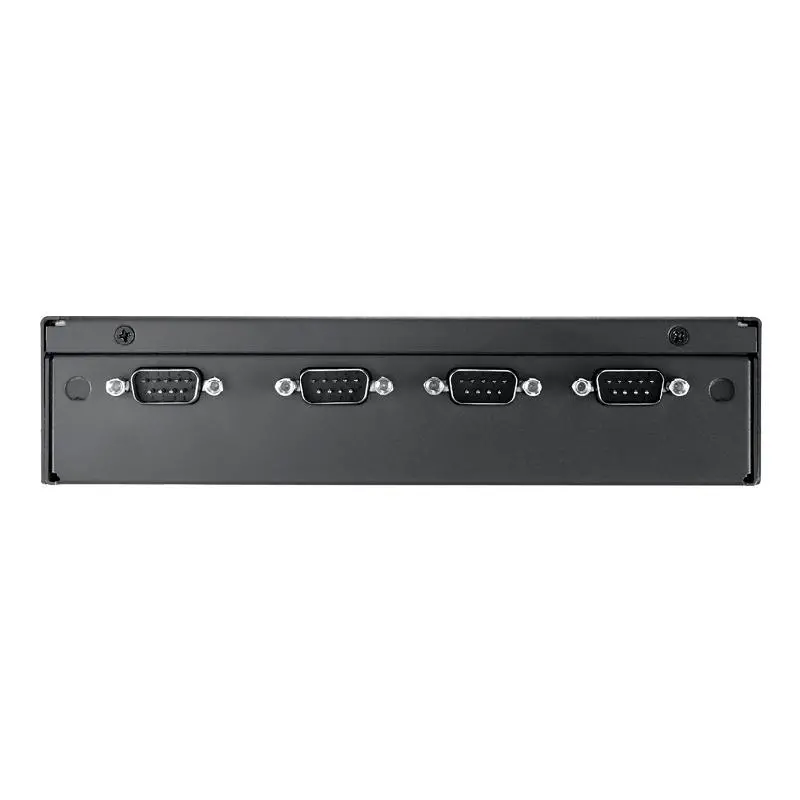

| Rear I/O Interface | COM | 0 | 0 | 4 COM |
| Rear I/O Interface | Antenna | 2 (reserved ) | 2 (reserved ) | 2 (reserved ) |
| Miscellaneous | LED Indicators | 2 (Power LED, HDD LED) | 2 (Power LED, HDD LED) | 2 (Power LED, HDD LED) |
| Miscellaneous | Control | 1 (Power Switch); 1 (Remote Power Jack) | 1 (Power Switch); 1 (Remote Power Jack) | 1 (Power Switch); 1 (Remote Power Jack) |
| Power Requirement | Voltage | 12V DC-in | 12V DC-in | 12V DC-in |
| Power Requirement | Power Consumption | Based on full system configuration | Based on full system configuration | Based on full system configuration |
| Environment | Humidity | 10 ~ 95% @ 40° C, non-condensing | 10 ~ 95% @ 40° C, non-condensing | 10 ~ 95% @ 40° C, non-condensing |
| Environment | Non-Operational Temperature | -20 ~ 60° C (-4 ~ 140° F) | -20 ~ 60° C (-4 ~ 140° F) | -20 ~ 60° C (-4 ~ 140° F) |
| Environment | Operating Temperature | 0 ~ 50 °C (HDD SPEC: 0~ 65 °C with 0.7m/s air flow) | 0 ~ 50 °C (HDD SPEC: 0~ 65 °C with 0.7m/s air flow) | 0 ~ 50 °C (HDD SPEC: 0~ 65 °C with 0.7m/s air flow) |
| Weight (kg) | Weight (kg) | 2.1 Kg | 2.1 Kg | 2.1 Kg |
| Environment | Vibration Resistance | 0.5G (Slim 2.5" HDD) / 3G (2.5" SSD/ M.2 storage) | 0.5G (Slim 2.5" HDD) / 3G (2.5" SSD/ M.2 storage) | 3 Grms (SSD x 1) |
| Dimensions | Dimensions (W x H x D) | 188 x 44.2 x 188 mm (7.4" x 1.74" x 7.4") | 188 x 44.2 x 188 mm (7.4" x 1.74" x 7.4") | 188 x 44.2 x 188 mm (7.4" x 1.74" x 7.4") |
| Embedded OS | OS Support | Optional | Optional | Win 10 (64-bit) inside |

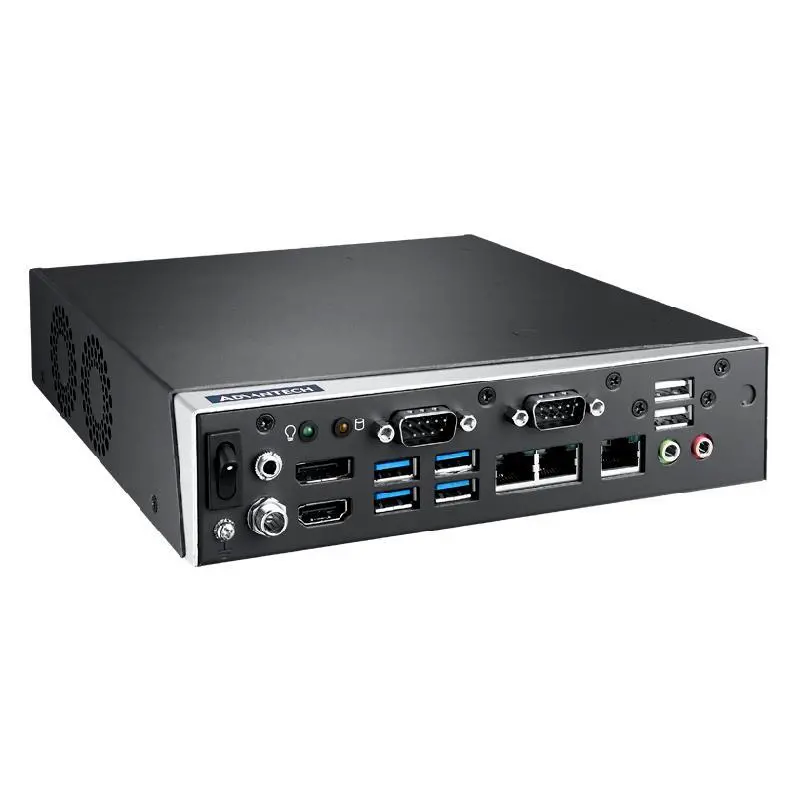

Advantech EPC-T4286 THIN 1U Compact size with Intel 8th/9th Gen. system
