| EPC-T4218ZW-00Y0E | EPC-T4218JW-00Y0E | ||
| Thermal Solution | Thermal Solution | FANLESS | FANLESS |
| Processor | CPU | Intel AtomTM x6413E | Intel Celeron J6412 |
| Processor | BIOS | AMI 256 Mbit SPI | AMI 256 Mbit SPI |
| Memory | Socket | 2 x 260 Pin DDR4 SO-DIMM for Dual Channel | 2 x 260 Pin DDR4 SO-DIMM for Dual Channel |
| Memory | Technology | 2 x 32GB DDR4 3200MHz SDRAM | 2 x 32GB DDR4 3200MHz SDRAM |
| Memory | Max. Capacity | 64GB (up to 32GB per DIMM) | 64GB (up to 32GB per DIMM) |
| Storage | M.2 | 1 x M.2 B key (type 2242 or 2280) | 1 x M.2 B key (type 2242 or 2280) |
| Storage | 2.5" Drive Bay | 1 (support 2.5" SSD, max 7.5 mm height) | 1 (support 2.5" SSD, max 7.5 mm height) |
| Graphics | Chipset | Intel® UHD Graphics for 10th Gen Intel® Processors | Intel® UHD Graphics for 10th Gen Intel® Processors |
| Ethernet | Controller | LAN1/ LAN2: Realtek RTL8111H | LAN1/ LAN2: Realtek RTL8111H |
| Ethernet | Connector | 2 (RJ-45) | 2 (RJ-45) |
| Ethernet | Interface | 10/100/1000 Mbps | 10/100/1000 Mbps |
| Audio | Chipset | Realtek ALC888S, High Definition Audio (HD) | Realtek ALC888S, High Definition Audio (HD) |
| Expansion | M.2 | 1 x E key for wireless module (Type: 2230)1 x B key for storage and LTE module, only support PCIex1 signal (Type: 2242 or 2280) | 1 x E key for wireless module (Type: 2230)1 x B key for storage and LTE module, only support PCIex1 signal (Type: 2242 or 2280) |

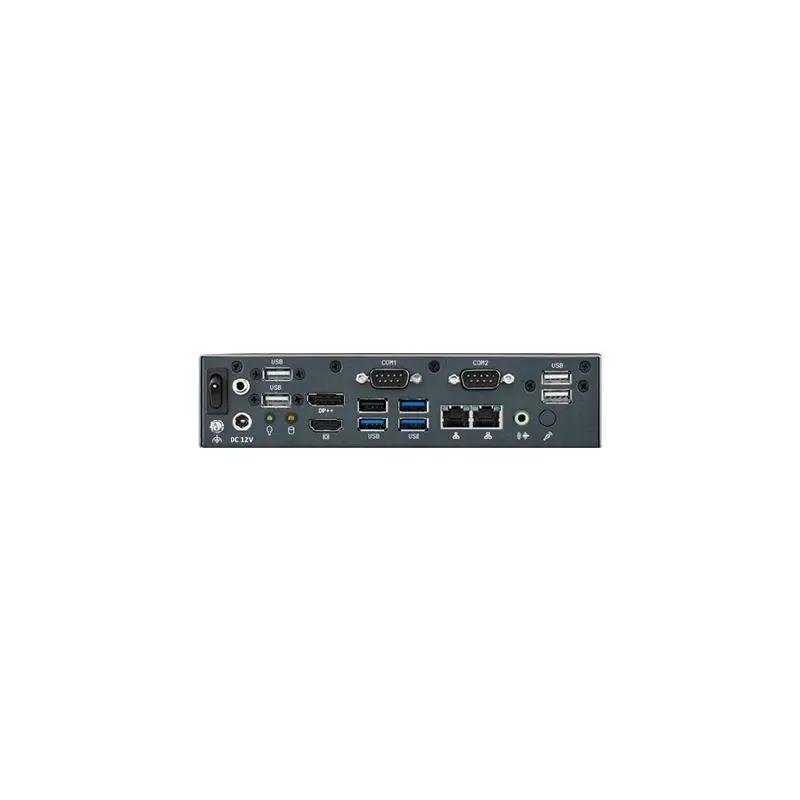

| Front I/O Interface | Audio | 1 (Line-Out) | 1 (Line-Out) |
| Front I/O Interface | DP | 1 | 1 |
| Front I/O Interface | HDMI | 1 | 1 |
| Front I/O Interface | COM | 2 COM | 2 COM |
| Front I/O Interface | USB | 3x USB 3.0, 5x USB 2.0 | 3x USB 3.0, 5x USB 2.0 |
| Front I/O Interface | DC Jack | 1 | 1 |
| Front I/O Interface | Power Button | 1 x power button; 1 x remote Power Jack | 1 x power button; 1 x remote Power Jack |

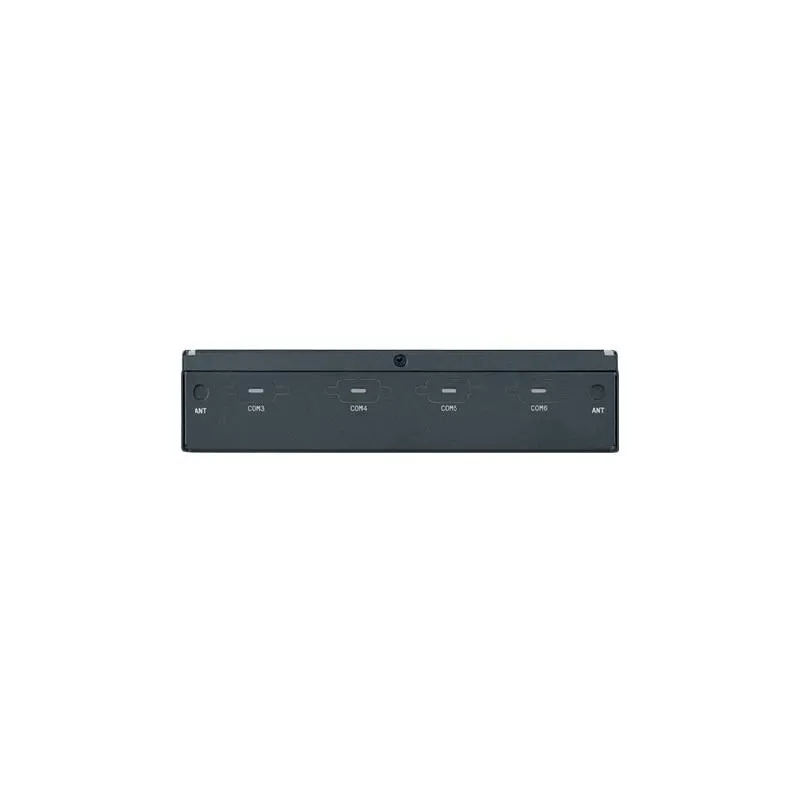

| Rear I/O Interface | COM | 4 (RS-232 with D-SUB ; Optional) | 4 (RS-232 with D-SUB ; Optional) |
| Rear I/O Interface | Antenna | 2 (reserved ) | 2 (reserved ) |
| Miscellaneous | LED Indicators | 2 (Power LED, HDD LED) | 2 (Power LED, HDD LED) |
| Power Requirement | Voltage | 12V DC-in | 12V DC-in |
| Power Requirement | Power Consumption | 25.4W (with CPU x6413E, 32GB RAM, 256GB SSD) | 25.4W (with CPU x6413E, 32GB RAM, 256GB SSD) |
| Environment | Humidity | 10 ~ 95% @ 40° C, non-condensing | 10 ~ 95% @ 40° C, non-condensing |
| Environment | Non-Operational Temperature | -20 ~ 60° C (-4 ~ 140° F) | -20 ~ 60° C (-4 ~ 140° F) |
| Environment | Operating Temperature | -0 ~ 50 °C (HDD SPEC: 0~ 65 °C) | 0 ~ 45° C (32 ~ 113° F)(w/o Expansion Card) |
| Weight (kg) | Weight (kg) | 2.12 Kg | 2.12 Kg |
| Environment | Vibration Resistance | 3G (2.5" SSD/ M.2 storage) | 3G (2.5" SSD/ M.2 storage) |
| Dimensions | Dimensions (W x H x D) | 188 x 44.2 x 188 mm (7.4" x 1.74" x 7.4") | 188 x 44.2 x 188 mm (7.4" x 1.74" x 7.4") |
| Embedded OS | OS Support | Win10/Ubuntu | Win10/Ubuntu |

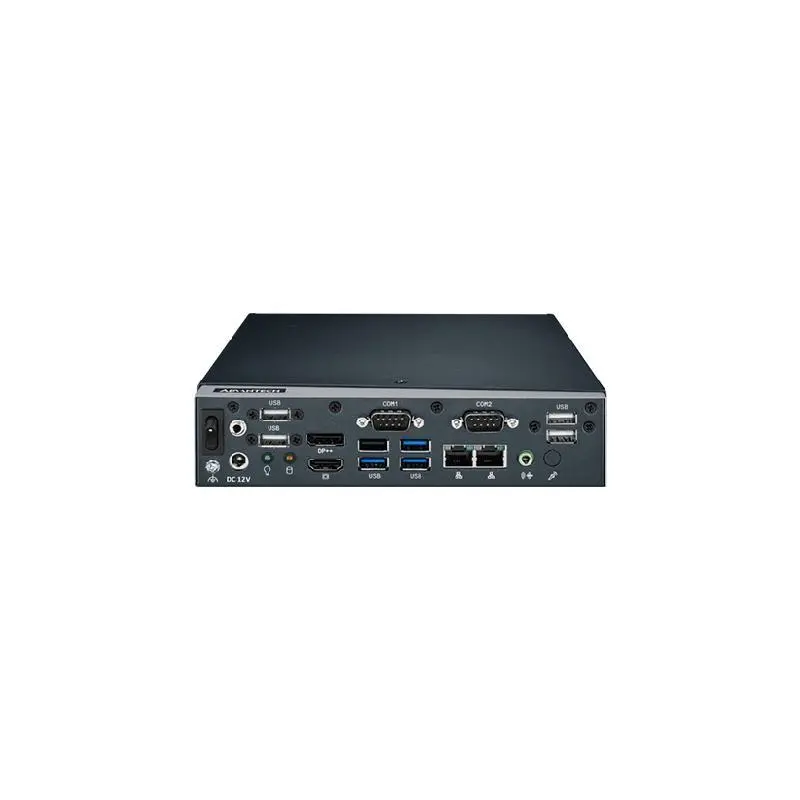

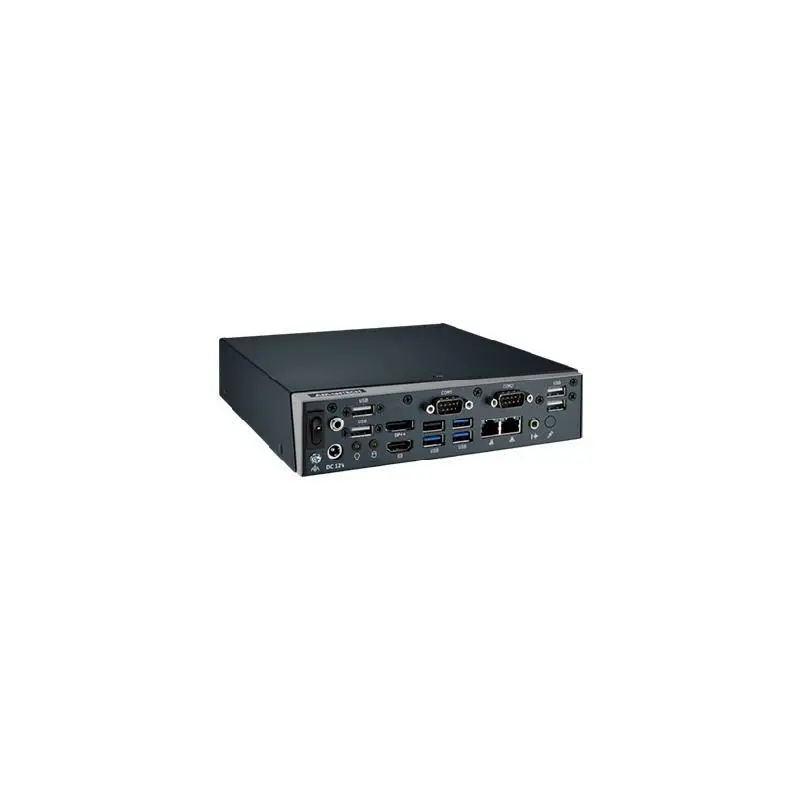

Advantech EPC-T4218 THIN 1U Compact size with Intel J6412 and x6413E fanless system
