| EPC-U32337B-00Y1E | EPC-U32335B-00Y1E | EPC-U32333B-00Y1E | EPC-U3233CB-00Y1E | ||
| Processor | CPU | Intel® Core™ i7-8665UE | Intel® Core™ i5-8365UE | Intel® Core™ i3-8145UE | Celeron 4305UE |
| Memory | Technology | DDR4 2400MHz SO-DIMM | DDR4 2400MHz SO-DIMM | DDR4 2400MHz SO-DIMM | DDR4 2400MHz SO-DIMM |
| Memory | Max. Capacity | 16GB (up to 16GB per SO-DIMM) | 16GB (up to 16GB per SO-DIMM) | 16GB (up to 16GB per SO-DIMM) | 16GB (up to 16GB per SO-DIMM) |
| I/O | COM Port | 4 (2 x RS-232, 2 x RS-232/422/485, selected by BIOS) | 4 (2 x RS-232, 2 x RS-232/422/485, selected by BIOS) | 4 (2 x RS-232, 2 x RS-232/422/485, selected by BIOS) | 4 (2 x RS-232, 2 x RS-232/422/485, selected by BIOS) |
| Ethernet | Controller | 2 GbE | 2 GbE | 2 GbE | 2 GbE |
| I/O | USB3.0 | 2 | 2 | 2 | 2 |
| Display | HDMI | 2 | 2 | 2 | 2 |
| Audio | CODEC | Realtek ALC888S, High Definition Audio (HD) | Realtek ALC888S, High Definition Audio (HD) | Realtek ALC888S, High Definition Audio (HD) | Realtek ALC888S, High Definition Audio (HD) |
| I/O | Audio | 1x Line-out | 1x Line-out | 1x Line-out | 1x Line-out |
| I/O | USB2.0 | 2 | 2 | 2 | 2 |
| Expansion | M.2 | 1x B key (2242/3042mm) + 1x E key (2230mm) + 1x M key (2280mm) | 1x B key (2242/3042mm) + 1x E key (2230mm) + 1x M key (2280mm) | 1x B key (2242/3042mm) + 1x E key (2230mm) + 1x M key (2280mm) | 1x B key (2242/3042mm) + 1x E key (2230mm) + 1x M key (2280mm) |
| General | Input Voltage | 12~24V Vdc+/-10% | 12~24V Vdc+/-10% | 12~24V Vdc+/-10% | 12~24V Vdc+/-10% |
| Environment | Operating Temperature | 0 ~ 50° C with 0.7m/s air flow | 0 ~ 50° C with 0.7m/s air flow | 0 ~ 50° C with 0.7m/s air flow | 0 ~ 50° C with 0.7m/s air flow |
| Environment | Humidity | 90% @ 40° C, non-condensing | 90% @ 40° C, non-condensing | 90% @ 40° C, non-condensing | 90% @ 40° C, non-condensing |
| Certification | EMC | CE, FCC | CE, FCC | CE, FCC | CE, FCC |
| Certification | Safety Certifications | CB, UL, CCC, BSMI | CB, UL, CCC, BSMI | CB, UL, CCC, BSMI | CB, UL, CCC, BSMI |
| Operating System | Windows 10 | V | V | V | V |
| Operating System | Ubuntu | V | V | V | V |
| Mechanical | Mounting | Desk/Wall Mounting (Standard), VESA & DIN-Rail Mounting Kit (Optional) | Desk/Wall Mounting (Standard), VESA & DIN-Rail Mounting Kit (Optional) | Desk/Wall Mounting (Standard), VESA & DIN-Rail Mounting Kit (Optional) | Desk/Wall Mounting (Standard), VESA & DIN-Rail Mounting Kit (Optional) |

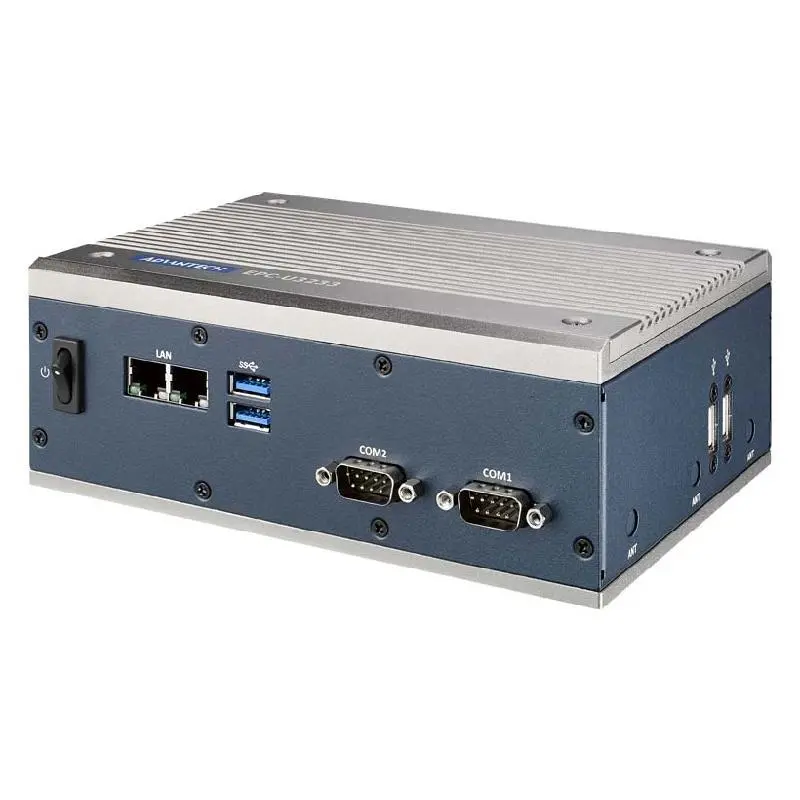

Advantech EPC-U3233 Intel® Whiskey Lake Core-i Series Palm-sized Fanless Embedded PC
