| EPC-U2117E3W-03Y10 | EPC-U2117E3W-03Y2W | ||
| Processor | CPU | Atom X5-E3930 | Atom X5-E3930 |
| Memory | Max. Capacity | Max. up to 8GB, Built In 4GB Memory | Max. up to 8GB, Built In 4GB Memory |
| Display | HDMI / DisplayPort* | HDMI 3840 x 2160 @ 30Hz/ DP1.2a (4096 x 2160 @ 60Hz) | HDMI 3840 x 2160 @ 30Hz/ DP1.2a (4096 x 2160 @ 60Hz) |
| Ethernet | Controller | 2 GbE | 2 GbE |
| I/O | COM Port | 2 (1 X RS-232 (BOM option to MDB), 1 X ccTalk (BOM option to RS/422/485)) | 2 (1 X RS-232 (BOM option to MDB), 1 X ccTalk (BOM option to RS/422/485)) |
| I/O | USB3.0 | 4 | 4 |
| Storage | 2.5" HDD/SSD | 1 x 2.5" SATA drive bay | 1 x 2.5" SATA drive bay |
| I/O | CANBus | 1.25 mm, 3-pin, Male type Wafer Box | 1.25 mm, 3-pin, Male type Wafer Box |
| I/O | Audio | 1 audio connector with Line-out, Mic-in, Line-in phone jacks | 1 audio connector with Line-out, Mic-in, Line-in phone jacks |
| Audio | CODEC | Realtek ALC888S, High Definition Audio (HD) | Realtek ALC888S, High Definition Audio (HD) |
| Expansion | Slots | 1 M.2 (E key), 1 Full-size MiniPCIe | 1 M.2 (E key), 1 Full-size MiniPCIe |
| General | Input Voltage | 12~24V Vdc+/-10% | 12~24V Vdc+/-10% |
| Certifications | EMC | CE, FCC Class B, CCC, BSMI | CE, FCC Class B, CCC, BSMI |
| Operating System | Windows 10 | V | V |
| Operating System | Ubuntu | V | V |
| Environment | Humidity | 90% @ 40° C, non-condensing | 90% @ 40° C, non-condensing |
| Environment | Operating Temperature | With extended temperature peripherals: -20 ~ 60° C (-4 ~ 140° F) with 0.7m/s air flow; With 2.5-inch hard disk 0 ~ 45° C (32 ~ 112° F) with 0.7m/s air flow | With extended temperature peripherals: -20 ~ 60° C (-4 ~ 140° F) with 0.7m/s air flow; With 2.5-inch hard disk 0 ~ 45° C (32 ~ 112° F) with 0.7m/s air flow |
| Environment | Shock During Operation | With mSATA/SSD: 30G, IEC 60068-2-27, half sine, 11 ms duration | With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration |
| Environment | Storage Temperature | -40 ~ 85° C (-40~185° F) | -40 ~ 85° C (-40~185° F) |
| Environment | Vibration During Operation | With mSATA/SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis | With mSATA/SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| Mechanical | Mounting | Desk/Wall Mounting (Standard), VESA & DIN-Rail Mounting Kit (Optional) | Desk/Wall Mounting (Standard), VESA & DIN-Rail Mounting Kit (Optional) |

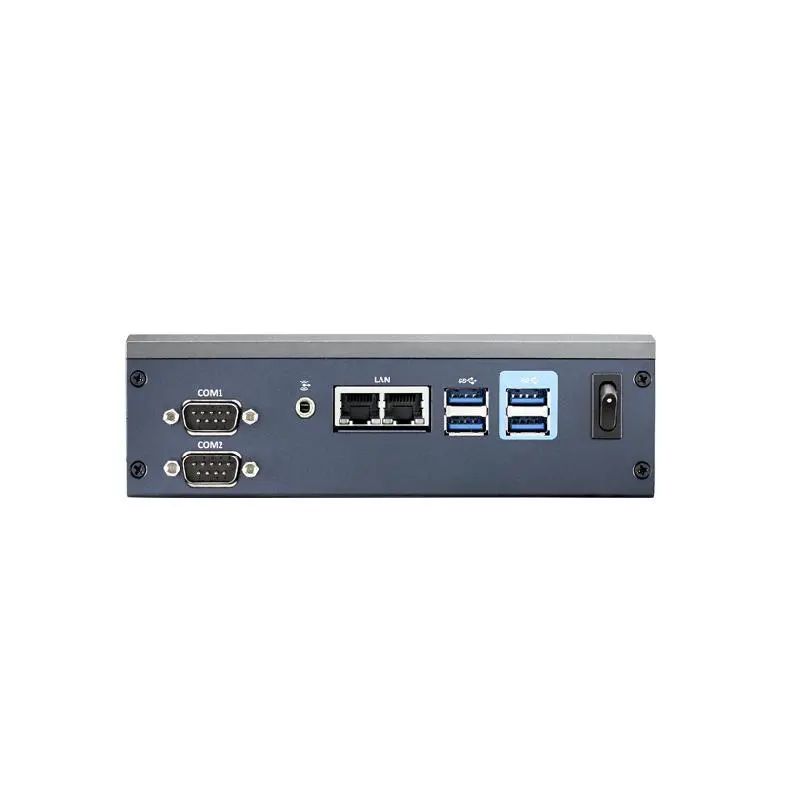

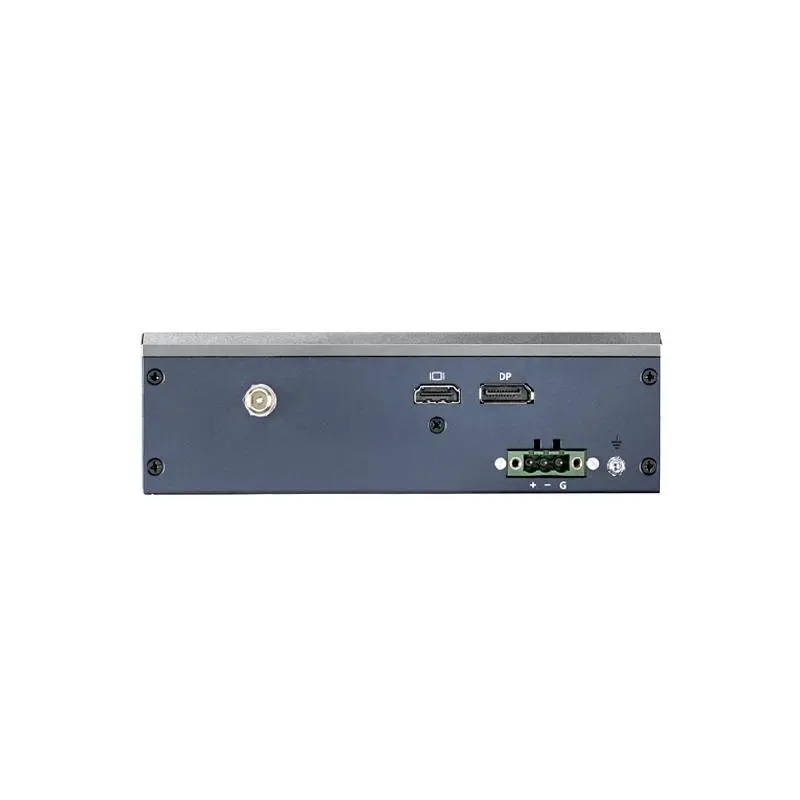

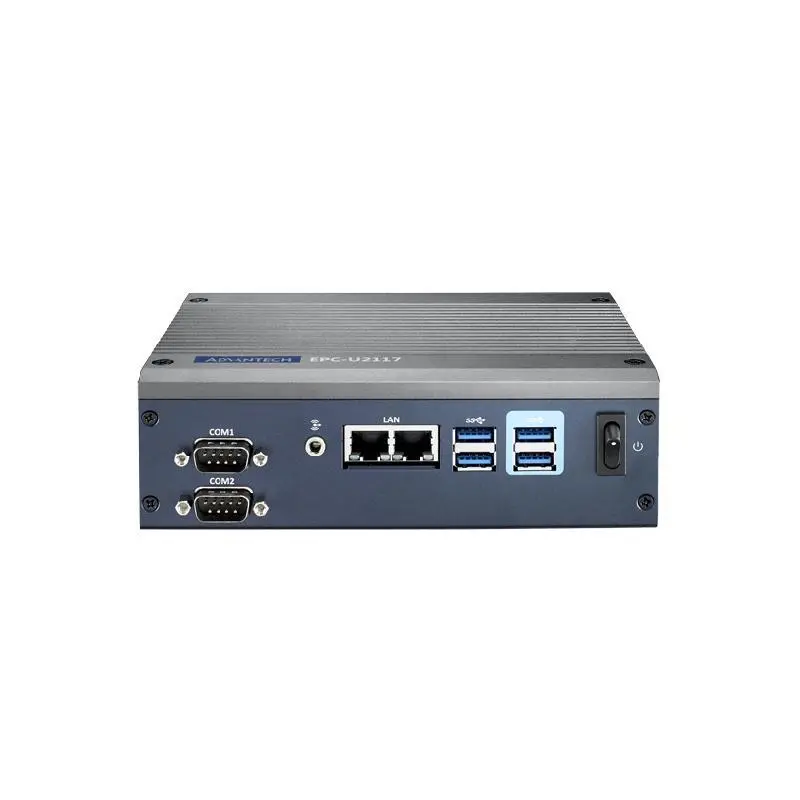

Advantech EPC-U2117 Intel® Apollo Lake E3900 Series Palm-sized Fanless Embedded PC
