| EPC-S101AQ-S0A1 | EPC-S101CD-S6A1 | EPC-S101CQ-S6A1 | ||
| Processor | CPU | Intel Atom E8000 | Intel Celeron N3060 | Intel Celeron N3160 |
| Processor | Core Number | 2 | 2 | 4 |
| Processor | Frequency | 1.04 GHz | 1.6 GHz | 1.6 GHz |
| Processor | Max Turbo Frequency | 2 GHz | 2.48 GHz | 2.24 GHz |
| Processor | L2 Cache | 2 MB | 2 MB | 2 MB |
| Processor | BIOS | AMI UEFI BIOS at 64 Mb | AMI UEFI BIOS at 64 Mb | AMI UEFI BIOS at 64 Mb |
| Memory | Technology | DDR3L 1600MHz 2GB | DDR3L 1600MHz 2GB | DDR3L 1600MHz 2GB |
| Memory | Max. Capacity | up to 8 GB | up to 8 GB | up to 8 GB |
| Memory | Socket | 1 x 204-pin SODIMM | 1 x 204-pin SODIMM | 1 x 204-pin SODIMM |
| Display | Controller | Intel Gen8 LP | Intel Gen8 LP | Intel Gen8 LP |
| Display | Graphic Engine | DirectX11.1, OpenGL4.2, OpenCL1.2 (OpenCL not for Win7), HW Decode: H.265/HEVC @ level 5, H.264 @ Level 5.2, MPEG2, MVC, VC-1, WMV9, JPEG, VP8. HW Encode: H.264 @ Level 5.1, MVC, JPEG | DirectX11.1, OpenGL4.2, OpenCL1.2 (OpenCL not for Win7), HW Decode: H.265/HEVC @ level 5, H.264 @ Level 5.2, MPEG2, MVC, VC-1, WMV9, JPEG, VP8. HW Encode: H.264 @ Level 5.1, MVC, JPEG | DirectX11.1, OpenGL4.2, OpenCL1.2 (OpenCL not for Win7), HW Decode: H.265/HEVC @ level 5, H.264 @ Level 5.2, MPEG2, MVC, VC-1, WMV9, JPEG, VP8. HW Encode: H.264 @ Level 5.1, MVC, JPEG |
| Display | VGA | 1920 x 1200 at 60Hz | 1920 x 1200 at 60Hz | 1920 x 1200 at 60Hz |
| Display | HDMI | HDMI 1.4b up to 2560x1600 at 60Hz | HDMI 1.4b up to 2560x1600 at 60Hz | HDMI 1.4b up to 2560x1600 at 60Hz |
| Display | Dual Display | VGA + HDMI | VGA + HDMI | VGA + HDMI |
| Ethernet | LAN1 | 10/100/1000 Mbps RTL8111E GbE | 10/100/1000 Mbps RTL8111E GbE | 10/100/1000 Mbps RTL8111E GbE |
| Ethernet | LAN2 | 10/100/1000 Mbps RTL8111E GbE | 10/100/1000 Mbps RTL8111E GbE | 10/100/1000 Mbps RTL8111E GbE |
| Audio | Interface | Realtek ALC892, High Definition Audio. Line-out,Mic-in,Line-in | Realtek ALC892, High Definition Audio. Line-out,Mic-in,Line-in | Realtek ALC892, High Definition Audio. Line-out,Mic-in,Line-in |
| Expansion | Mini PCIe #1 | 1 x Full-size Mini PCIe w/ SIM | 1 x Full-size Mini PCIe w/ SIM | 1 x Full-size Mini PCIe w/ SIM |
| Expansion | Mini PCIe #2 | 1 x Full-size Mini PCIe (default support mSATA) | 1 x Full-size Mini PCIe (default support mSATA) | 1 x Full-size Mini PCIe (default support mSATA) |
| Storage | 2.5" Drive Bay | Option | Option | Option |
| Storage | mSATA | 1 | 1 | 1 |
| Other | Watchdog Timer | 255 levels timer interval, setup by software | 255 levels timer interval, setup by software | 255 levels timer interval, setup by software |

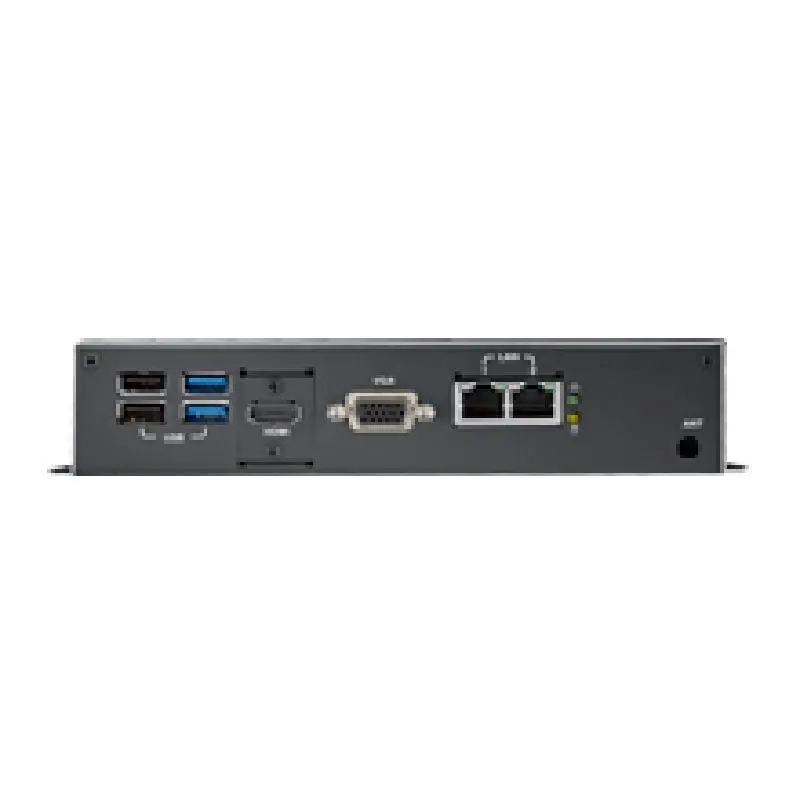

| Front I/O Openings | USB | 4 (2 x USB2.0, 2 x USB 3.0) | 4 (2 x USB2.0, 2 x USB 3.0) | 4 (2 x USB2.0, 2 x USB 3.0) |
| Front I/O Openings | RJ45 | 2 | 2 | 2 |
| Front I/O Openings | VGA | 1 | 1 | 1 |
| Front I/O Openings | HDMI/DP | 1 HDMI | 1 HDMI | 1 HDMI |
| Front I/O Openings | Antenna | 1 | 1 | 1 |

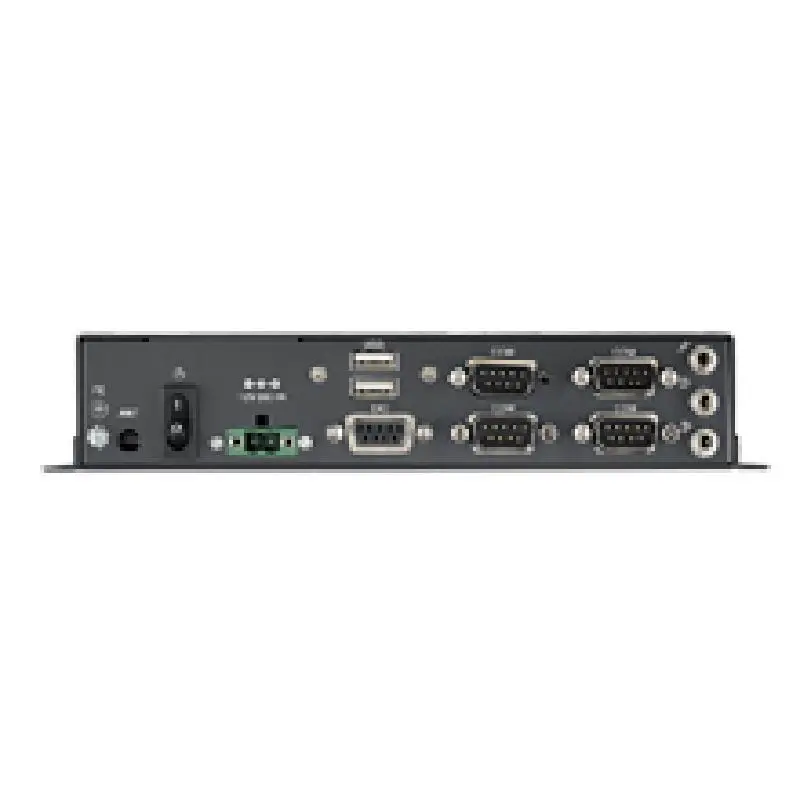

| Rear I/O Openings | COM | 4 (2 x RS232, 2 x RS232/422/485) | 4 (2 x RS232, 2 x RS232/422/485) | 4 (2 x RS232, 2 x RS232/422/485) |
| Rear I/O Openings | USB | 2 (2 x USB2.0) | 2 (2 x USB2.0) | 2 (2 x USB2.0) |
| Rear I/O Openings | Audio | 1(Mic-in, Line-out, Line-in) | 1(Mic-in, Line-out, Line-in) | 1(Mic-in, Line-out, Line-in) |
| Rear I/O Openings | DIO | 1 | 1 | 1 |
| Rear I/O Openings | Antenna | 1 | 1 | 1 |
| Miscellaneous | Circular Cutouts | 1 | 1 | 1 |
| Miscellaneous | LED Indicators | Power, HDD | Power, HDD | Power, HDD |
| Miscellaneous | Control | Power switch | Power switch | Power switch |
| Power | Power Type | AT | AT | AT |
| Power | Input Voltage | 12 VDC | 12 VDC | 12 VDC |
| Power | Connector Type | 2-Pole Phoenix DC plug in | 2-Pole Phoenix DC plug in | 2-Pole Phoenix DC plug in |
| Environment | Operational Temperature | 0 ~ 50° C (32 ~ 122° F) w/ 0.7m/s airflow | 0 ~ 50° C (32 ~ 122° F) w/ 0.7m/s airflow | 0 ~ 50° C (32 ~ 122° F) w/ 0.7m/s airflow |
| Environment | Non-Operational Temperature | -40 ~ 85° C (-40 ~ 185° F) | -40 ~ 85° C (-40 ~ 185° F) | -40 ~ 85° C (-40 ~ 185° F) |
| Environment | Relative Humidity | 40° C @ 95%, Non-Condensing, operating; 60° C @ 95%, Non-Condensing, non-operating | 40° C @ 95%, Non-Condensing, operating; 60° C @ 95%, Non-Condensing, non-operating | 40° C @ 95%, Non-Condensing, operating; 60° C @ 95%, Non-Condensing, non-operating |
| Environment | Vibration During Operation | With mSATA/SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis | With mSATA/SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis | With mSATA/SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| Environment | Shock During Operation | With mSATA/SSD: 30G, IEC 60068-2-27, half sine, 11 ms duration | With mSATA/SSD: 30G, IEC 60068-2-27, half sine, 11 ms duration | With mSATA/SSD: 30G, IEC 60068-2-27, half sine, 11 ms duration |
| Physical | Mounting | Desk/Wall-mounting, VESA mounting, Din rail mounting standoff reserved | Desk/Wall-mounting, VESA mounting, Din rail mounting standoff reserved | Desk/Wall-mounting, VESA mounting, Din rail mounting standoff reserved |
| Physical | Dimension (mm) | System dimension : 188 x 39 x 150 mm | System dimension : 188 x 39 x 150 mm | System dimension : 188 x 39 x 150 mm |
| Physical | Weight | 0.95 kg (2.09 lb) | 0.95 kg (2.09 lb) | 0.95 kg (2.09 lb) |
| Certification | EMC | CE, FCC Class B | CE, FCC Class B | CE, FCC Class B |
| Certification | Safety Certifications | CB, UL, CCC, BSMI | CB, UL, CCC, BSMI | CB, UL, CCC, BSMI |

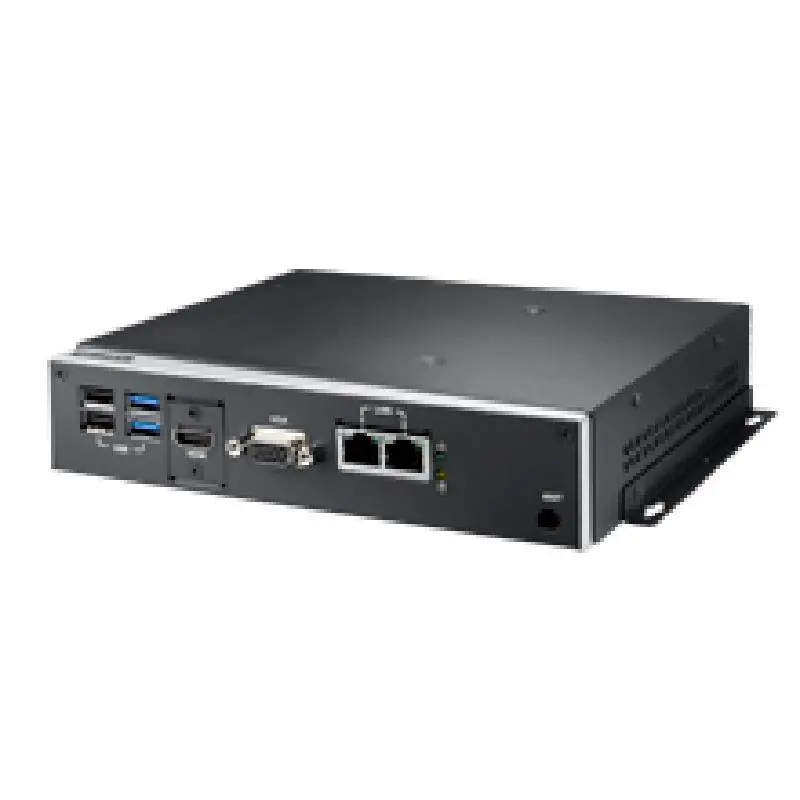

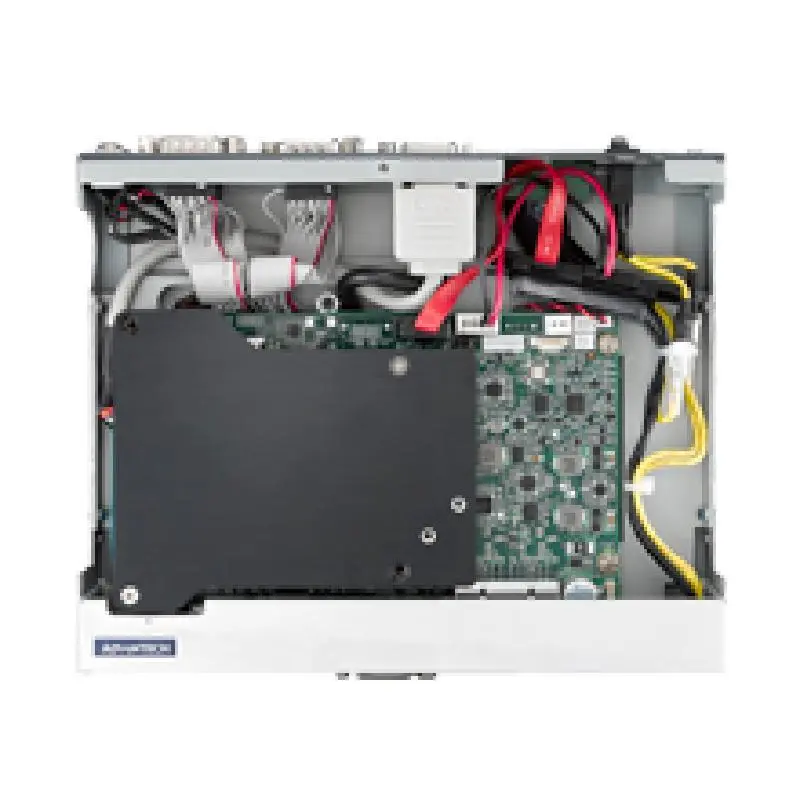

Advantech EPC-S101 Embedded 3.5 SBC system for PCM-9310
