| EPC-C301C7-S7A1 | EPC-C301C5-S6A1 | ||
| Processor | CPU | Intel® Core™ i7-8665UE | Intel® Core™ i5-8365UE |
| Processor | Max Turbo Frequency | 4.4 GHz | 4.1 GHz |
| Processor | Frequency | 1.7 GHz | 1.6 GHz |
| Processor | Thread | 8 | 8 |
| Processor | Core Number | 4 | 4 |
| Processor | LLC | 8MB | 6MB |
| Processor | CPU TDP | 15W | 15W |
| Processor | BIOS | AMI UEFI 256 Mbit | AMI UEFI 256 Mbit |
| Memory | Technology | DDR4 2400MHz SO-DIMM | DDR4 2400MHz SO-DIMM |
| Memory | Max. Capacity | Max. up to 32 GB (16 GB per SODIMM) | Max. up to 32 GB (16 GB per SODIMM) |
| Memory | Socket | 2 x 260 Pin DDR4 SO-DIMM | 2 x 260 Pin DDR4 SO-DIMM |
| Display | Controller | Integrated Intel® UHD Graphics 620 | Integrated Intel® UHD Graphics 620 |
| Display | Graphic Engine | DirectX 12.0, OpenGL 4.3, OpenCL 2.0, HW Decode: MPEG2, H.264 (L5.2), VC-1, WMV9, VP8, JPEG/MJPEG, H.265 (HEVC), MVC | DirectX 12.0, OpenGL 4.3, OpenCL 2.0, HW Decode: MPEG2, H.264 (L5.2), VC-1, WMV9, VP8, JPEG/MJPEG, H.265 (HEVC), MVC |
| Display | DP/HDMI | DP 1.2 (up to 4096x2304 @ 60Hz), HDMI 1.4 (up to 4096x2160 @30Hz) | DP 1.2 (up to 4096x2304 @ 60Hz), HDMI 1.4 (up to 4096x2160 @30Hz) |
| Ethernet | Speed | 10/100/1000 Mbps | 10/100/1000 Mbps |
| Audio | Chipset | Realtek ALC888S, High Definition Audio (HD) | Realtek ALC888S, High Definition Audio (HD) |
| Expansion | M.2 | 1x E-Key (Type:2230), 1x M-key (Type:2280), 1x B-key (Type:3042) | 1x E-Key (Type:2230), 1x M-key (Type:2280), 1x B-key (Type:3042) |
| Expansion | Mini PCIe | 1 x Full size Mini-PCIe | 1 x Full size Mini-PCIe |

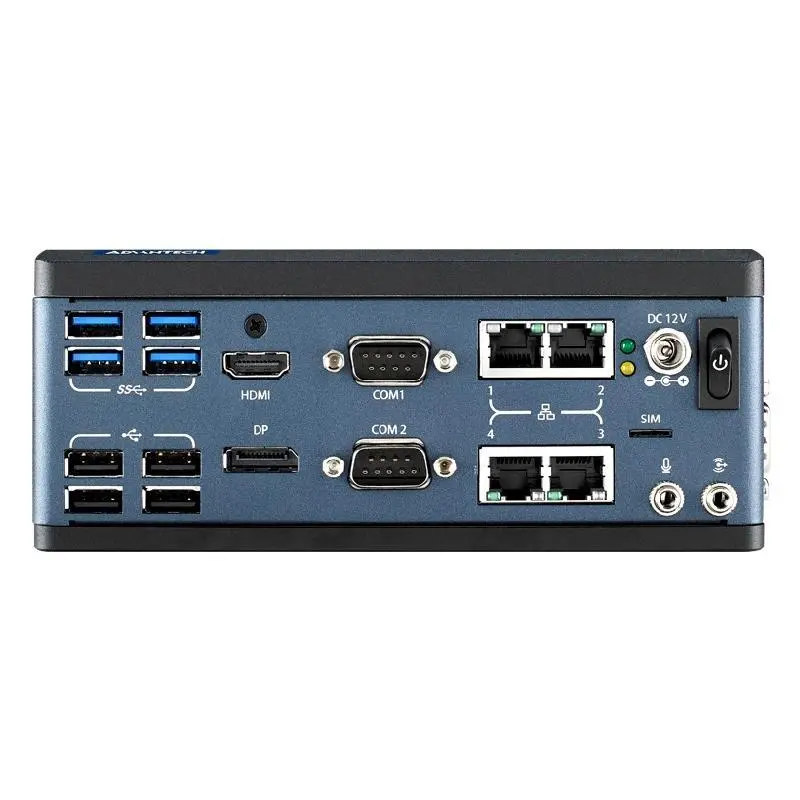

| Front I/O Interface | HDMI | 1 | 1 |
| Front I/O Interface | DP | 1 | 1 |
| Front I/O Interface | USB | 4x USB 3.0, 4x USB 2.0 | 4x USB 3.0, 4x USB 2.0 |
| Front I/O Interface | RJ-45 | 4 | 4 |
| Front I/O Interface | COM | 2x RS-232/422/485 | 2x RS-232/422/485 |
| Front I/O Interface | Audio | 2 (Line-Out, Mic-In) | 2 (Line-Out, Mic-In) |
| Front I/O Interface | DC Jack | 1 | 1 |
| Front I/O Interface | SIM Card | 1x Nano SIM | 1x Nano SIM |
| Front I/O Interface | Power Button | 1 | 1 |
| Miscellaneous | LED Indicators | 2 (Power LED, HDD LED) | 2 (Power LED, HDD LED) |

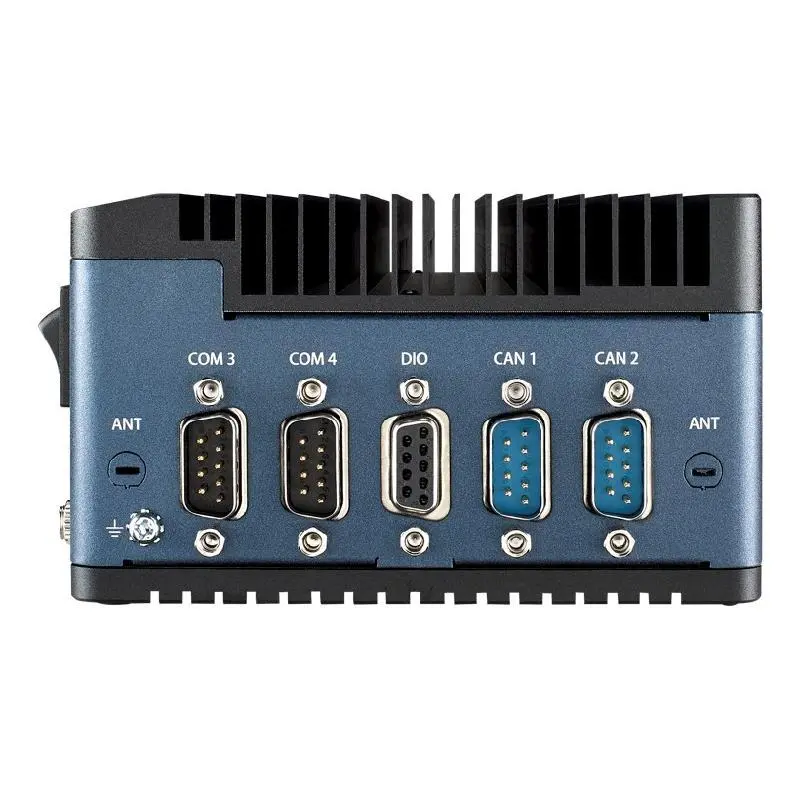

| Side I/O Interface | COM | 2 (1 x RS-232/422/485, 1 x RS-232) | 2 (1 x RS-232/422/485, 1 x RS-232) |
| Side I/O Interface | DIO | 1 | 1 |
| Side I/O Interface | CAN Bus | 2 (Support CAN 2.0B at 1Mb/s) | 2 (Support CAN 2.0B at 1Mb/s) |
| Side I/O Interface | Antenna | 4 | 4 |
| Power | Input Voltage | 12 VDC | 12 VDC |
| Power | Connector Type | Lockable DC Jack | Lockable DC Jack |
| Environment | Operational Temperature | With extended temperature peripherals: -20 ~ 60 °C (-4 ~ 140 °F) with 0.7m/s air flow without VEGA 330/ -20 ~ 50 °C with VEGA 330 | With extended temperature peripherals: -20 ~ 60 °C (-4 ~ 140 °F) with 0.7m/s air flow without VEGA 330/ -20 ~ 50 °C with VEGA 330 |
| Environment | Non-Operational Temperature | -40 ~ 85° C (-40 ~ 185° F) | -40 ~ 85° C (-40 ~ 185° F) |
| Environment | Relative Humidity | 40 °C @ 95%, Non-Condensing | 40 °C @ 95%, Non-Condensing |

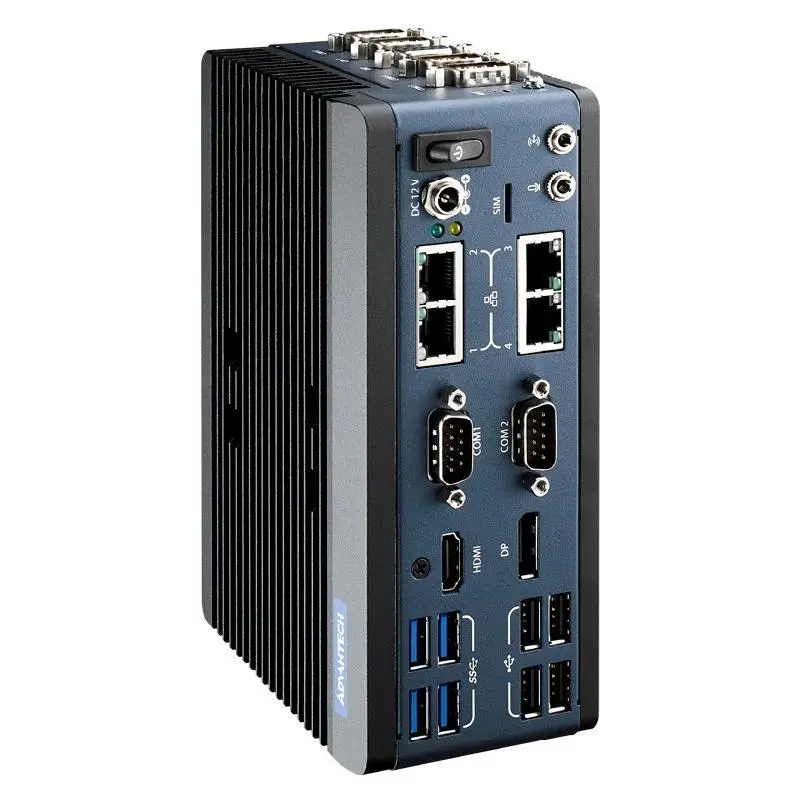

| Physical | Mounting | Desk/ Wall Mount/ DIN Rail | Desk/ Wall Mount/ DIN Rail |
| Physical | Dimensions (W x H x D) | 170 x 118 x 70 mm | 170 x 118 x 70 mm |
| Regulation | EMC | CE/FCC Class B, CCC, BSMI | CE/FCC Class B, CCC, BSMI |
| Regulation | Safety | CB, UL, CCC, BSMI | CB, UL, CCC, BSMI |
| Operating System | Ubuntu | V | V |

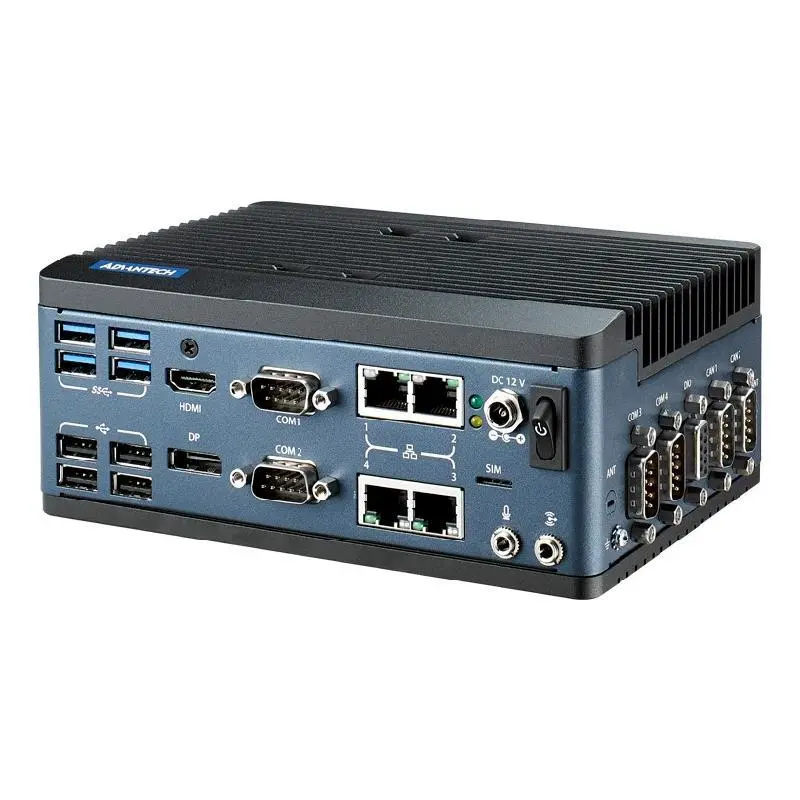

Advantech EPC-C301 Intel® 8th. Gen. Core i7/i5 Processor Fanless Embedded System
