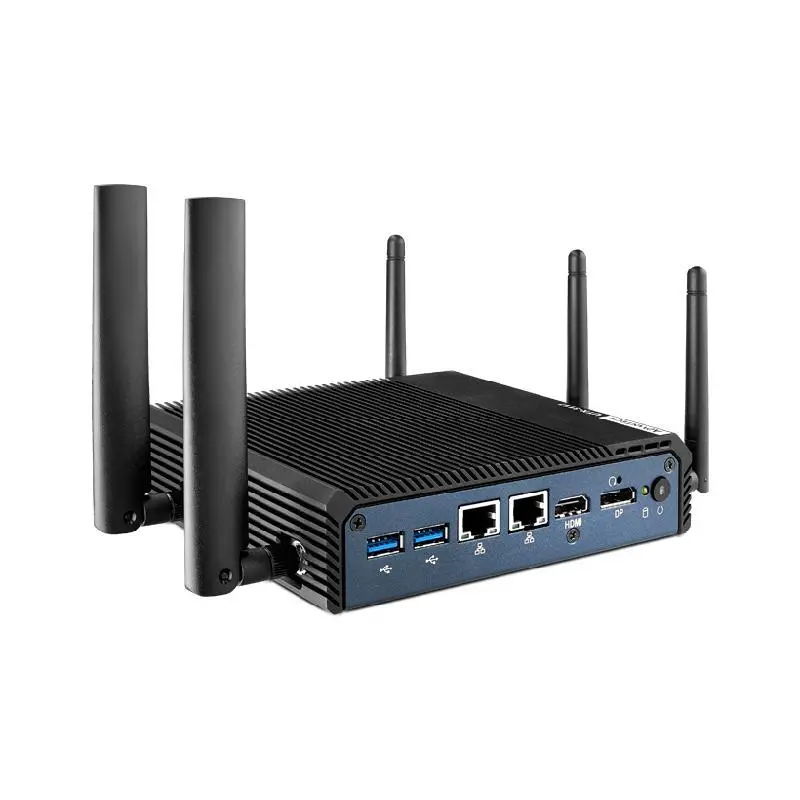

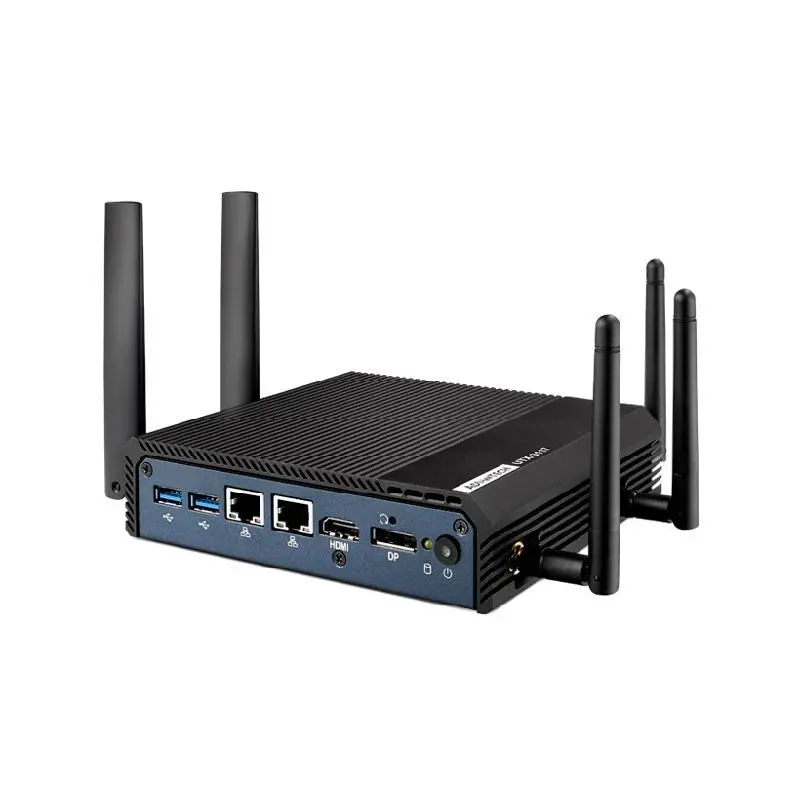

Advantech UTX-3117 Intel® Atom® E3900/Celeron® N3350/Pentium® N4200 series fanless IoT gateway

    Intel® Apollo Lake E3900 series & N series Processor

    Palm-size form factor: 128 (L) x 152 (W) x 37 mm(H)

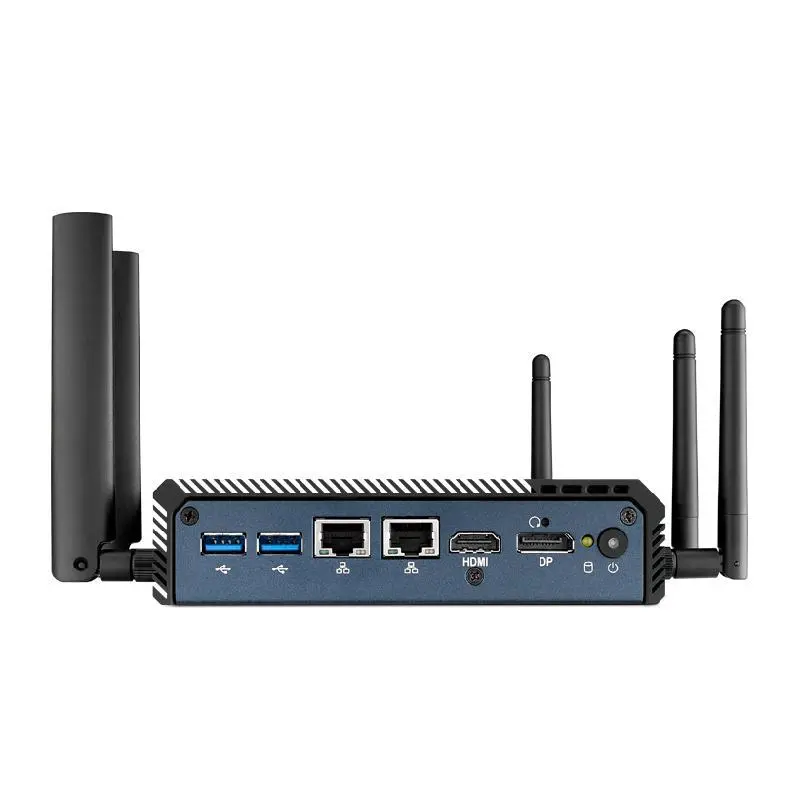

    Supports 2 x COM port, 1 x HDMI, 1 x Display Port, 2 x USB3.0, TPM and DCIN 12~24V

    Built-in 1x M.2 expansion slot (i.e.: Wi-Fi module), 1 x Half size Mini PCIe expansion slot (i.e.: Zigbee, module or mSATA) and 1 x Full size Mini PCIeexpansion slot (i.e.: 3G/LTE module) with 5Antennas

    Supports 1x 2.5" HDD or SSD storage

    Wide operating temperature -20 ~ 60 °C support (With E3900 Series SoC)

    IoT SW integration: WISE-PaaS IoT software platform, AWS Greengrass, Microsoft IoT Edge

    Support OS: Windows 10, Linux OS

    Support SUSI, WISE-DeviceOn and Edge AI Suite.

UTX-3117FS-S6A1N UTX-3117FS-S6A2N
Memory Max. Capacity 8 GB/8 GB per SO-DIMM 8 GB/8 GB per SO-DIMM
Physical Characteristics Weight 1.2 kg 1.2 kg
Certifications EMC CE, FCC class B CE, FCC class B
Drive Bay 2.5" HDD 1*2.5" HDD 1*2.5" HDD
Embedded OS Support Win 10 IoT Enterprise Win 10 IoT Enterprise
Environment Humidity 90% @ 40° C, non-condensing 90% @ 40° C, non-condensing
Environment Operating Temperature 0 ~ 55° C 0 ~ 55° C
Environment Shock During Operation With mSATA/SSD: 30G, IEC 60068-2-27, half sine, 11 ms duration With mSATA/SSD: 30G, IEC 60068-2-27, half sine, 11 ms duration
Environment Storage Temperature -40 ~ 85° C (-40~185° F) -40 ~ 85° C (-40~185° F)
Environment Vibration During Operation With mSATA/SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis With mSATA/SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
General Input Voltage 12 to 24 VDC+/-5% 12 to 24 VDC+/-5%
I/O Audio 1 audio connector with Line-out, Mic-in, Line-in phone jacks 1 audio connector with Line-out, Mic-in, Line-in phone jacks
I/O USB3.0 2 2
I/O Interface SIM slot (Internal) 1 1
Mechanical Mounting DIN-Rail/Wall/VESA Mounting Kits (Optional) DIN-Rail/Wall/VESA Mounting Kits (Optional)
Processor CPU Intel® Pentium® N4200 1.1/2.5GHz (Turbo), 6W (4C/1866) Intel Celeron N3350
Display HDMI / DisplayPort* HDMI 3840 x 2160 @ 30Hz/ DP1.2a (4096 x 2160 @ 60Hz) HDMI 3840 x 2160 @ 30Hz/ DP1.2a (4096 x 2160 @ 60Hz)
Audio CODEC Realtek ALC892, High Definition Audio (HD) Realtek ALC892, High Definition Audio (HD)
Ethernet Controller GbE1: Intel I210AT; GbE2:Realtek 8111G GbE1: Intel I210AT; GbE2:Realtek 8111G
Expansion Slots 1 M.2 (B key), 1 full-size MiniPCIe & 1 half-size MiniPCIe 1 M.2 (B key), 1 full-size MiniPCIe & 1 half-size MiniPCIe

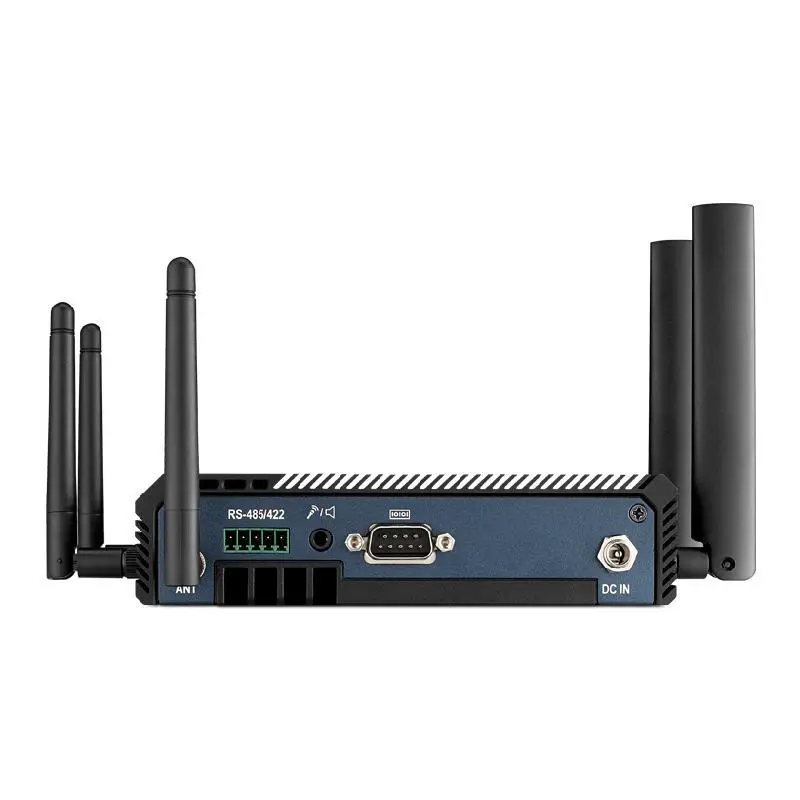

I/O COM Port 1x RS-232 & 1x RS-422/485 1x RS-232 & 1x RS-422/485
Operating System Windows 10 V V
Operating System Ubuntu V V
