| MIO-2363AW-P1A1 | MIO-2363AW-P2A1 | MIO-2363AW-P3A1 | ||
| Processor | Core Number | 2 | 4 | 4 |
| Processor | Max Turbo Frequency | 3.0GHz | 3.0GHz | 3.0GHz |
| Processor | Frequency | 1.3 GHz | 1.5 GHz | 2.0 GHz |
| Processor | CPU TDP | 6W | 9W | 12W |
| Processor | Chipset | Integrated in SOC | Integrated in SOC | Integrated in SOC |
| Processor | BIOS | AMI UEFI 256 Mbit | AMI UEFI 256 Mbit | AMI UEFI 256 Mbit |
| Memory | Technology | LPDDR4 3200 MHz | LPDDR4 3200 MHz | LPDDR4 3733Mbit |
| Memory | Max. Capacity | 4GB | 4GB | 8GB |
| Memory | Channel/ Socket | Dual Channel / On Board Memory | Dual Channel / On Board Memory | Dual Channel / On Board Memory |
| Memory | ECC Support | Yes | Yes | Yes |
| Graphics | Max. Frequency | 750MHz | 750MHz | 750MHz |
| Graphics | Base Frequency | 350 MHz | 500MHz | 500MHz |
| Display | LCD | LVDS: Dual channel 18/24-bit, up to 1920 x 1080 | LVDS: Dual channel 18/24-bit, up to 1920 x 1080 | LVDS: Dual channel 18/24-bit, up to 1920 x 1080 |
| Display | HDMI | Up to 3840 x 2160 at 30Hz | Up to 3840 x 2160 at 30Hz | Up to 3840 x 2160 at 30Hz |
| Display | Multiple Display | Dual: HDMI+ LVDS | Dual: HDMI+ LVDS | Dual: HDMI+ LVDS |
| Ethernet | Controller | 2 x RJ-45, LAN1: Intel i210, LAN2: Intel i210 | 2 x RJ-45, LAN1: Intel i210, LAN2: Intel i210 | 2 x RJ-45, LAN1: Intel i210, LAN2: Intel i210 |
| Ethernet | Speed | 10/100/1000 Mbps | 10/100/1000 Mbps | 10/100/1000 Mbps |
| Rear I/O | Ethernet | 2 | 2 | 2 |
| Rear I/O | HDMI / DisplayPort* | 1 | 1 | 1 |
| Rear I/O | USB 3.2 | 2 | 2 | 2 |
| Internal I/O | USB | 2 x USB 2.0 | 2 x USB 2.0 | 2 x USB 2.0 |
| Internal I/O | GPIO | 8-bit general purpose input/output | 8-bit general purpose input/output | 8-bit general purpose input/output |
| Serial Bus | I2 C Bus | Yes | Yes | Yes |
| Expansion | M.2 | 1 x B key (Type: 2242, 3042mm) + 1 x E key (Type: 2230mm) | 1 x B key (Type: 2242, 3042mm) + 1 x E key (Type: 2230mm) | 1 x B key (Type: 2242, 3042mm) + 1 x E key (Type: 2230mm) |
| Power | Power Supply Voltage | Vin: 12VDC~24VDC | Vin: 12VDC~24VDC | Vin: 12VDC~24VDC |
| Power | Power Type | AT/ ATX | AT/ ATX | AT/ ATX |
| Environment | Operational Temperature | -40~85C (-40~185° F) | -40~85C (-40~185° F) | -40~85C (-40~185° F) |
| Environment | Non-Operational Temperature | -40 ~ 85° C (-40 ~ 185° F) | -40 ~ 85° C (-40 ~ 185° F) | -40 ~ 85° C (-40 ~ 185° F) |
| Environment | Humidity | 40° C @ 95% RH Non-Condensing | 40C at 95% RH Non-Condensing | 40C at 95% RH Non-Condensing |
| Environment | Vibration Resistance | 3.5 Grms | 3.5 Grms | 3.5 Grms |
| Certification | Electromagnetic | CE, FCC | CE, FCC | CE, FCC |
| Mechanical | Dimensions | 100 x 72 mm | 100 x 72 mm | 100 x 72 mm |
| Operating System | Ubuntu | V | V | V |

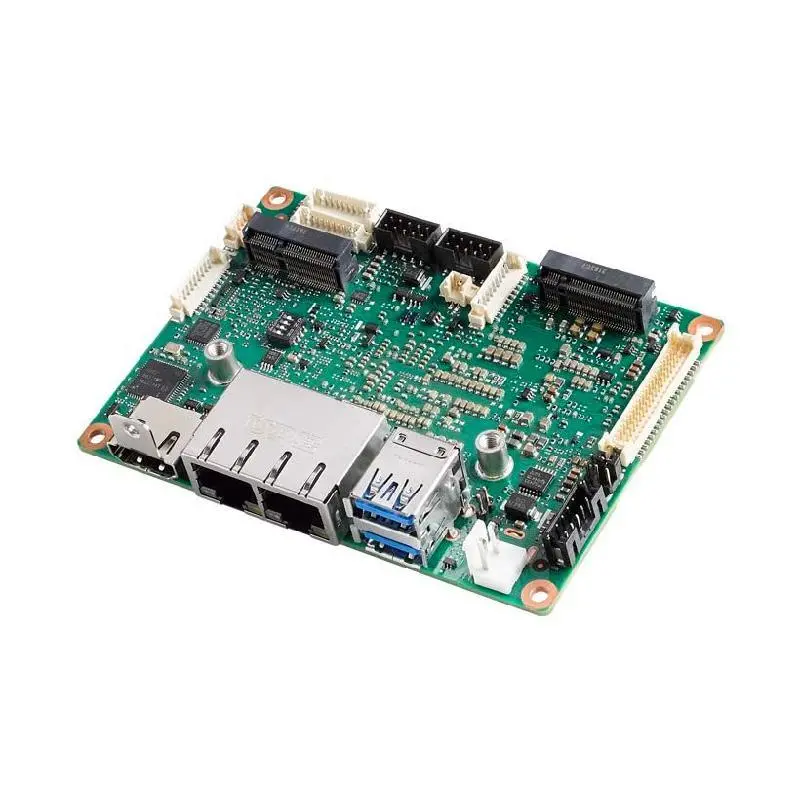

Advantech MIO-2363 Intel Atom x6000E Series PICO-ITX SBC
