| MIO-2364C3-P8A1 | MIO-2364N-P6A1 | MIO-2364A-P2A1 | ||
| Processor | Core Number | 8 | 4 | 2 |
| Processor | Max Turbo Frequency | 3.7 GHz | 3.6GHz | 3.1 GHz |
| Processor | CPU TDP | 15W | 12W | 6W |
| Processor | Chipset | Integrated in SOC | Integrated in SOC | Integrated in SOC |
| Processor | BIOS | AMI UEFI 256 Mbit | AMI UEFI 256 Mbit | AMI UEFI 256 Mbit |
| Memory | Technology | DDR5 4800 MHz | DDR5 4800 MHz | DDR5 4800 MHz |
| Memory | Max. Capacity | 16GB (up to 16GB per SO-DIMM) | 16GB (up to 16GB per SO-DIMM) | 16GB (up to 16GB per SO-DIMM) |
| Memory | Channel/ Socket | Single Channel / 1 Socket | Single Channel / 1 Socket | Single Channel / 1 Socket |
| Memory | ECC Support | No | No | No |
| Graphics | Max. Frequency | 1.25 GHz | 1.20 GHz | 1 GHz |
| Display | LCD | LVDS: Dual channel 18/24-bit, up to 1920 x 1080 | LVDS: Dual channel 18/24-bit, up to 1920 x 1080 | LVDS: Dual channel 18/24-bit, up to 1920 x 1080 |
| Display | HDMI | Up to 3840 x 2160 at 30Hz | Up to 3840 x 2160 at 30Hz | Up to 3840 x 2160 at 30Hz |
| Ethernet | Controller | Intel® I226 | Intel® I226 | Intel® I226 |
| Ethernet | Speed | 10/100/1000/2500 Mbps | 10/100/1000/2500 Mbps | 10/100/1000/2500 Mbps |
| Rear I/O | Ethernet | 1 | 1 | 1 |
| Rear I/O | HDMI | 1 | 1 | 1 |
| Rear I/O | USB 3.2 | 2 | 2 | 2 |
| Internal I/O | SATA | 1 x SATA GenIII 6.0 Gbps | 1 x SATA GenIII 6.0 Gbps | 1 x SATA GenIII 6.0 Gbps |
| Internal I/O | USB2.0 | 2 | 2 | 2 |
| Internal I/O | SMBus | 1 | 1 | 1 |
| Internal I/O | I2C | 1 (Share with SMBus) | 1 (Share with SMBus) | 1 (Share with SMBus) |
| Internal I/O | Serial | 2 x RS-232/422/485 | 2 x RS-232/422/485 | 2 x RS-232/422/485 |
| Internal I/O | GPIO | 8-bit general purpose input/output | 8-bit general purpose input/output | 8-bit general purpose input/output |
| Internal I/O | Audio | Realtek ALC888s, Line-in/Line-out/MIC | Realtek ALC888s, Line-in/Line-out/MIC | Realtek ALC888s, Line-in/Line-out/MIC |
| Internal I/O | Inverter | 5V/12V, 2A | 5V/12V, 2A | 5V/12V, 2A |
| Internal I/O | Front Panel Control | Power LED, HD LED, Reset, Power Switch, Case Open, Buzzer | Power LED, HD LED, Reset, Power Switch, Case Open, Buzzer | Power LED, HD LED, Reset, Power Switch, Case Open, Buzzer |
| Internal I/O | FAN | 1 x 4-Wire Smart Fan, [email protected] | 1 x 4-Wire Smart Fan, [email protected] | 1 x 4-Wire Smart Fan, [email protected] |
| Security | TPM | fTPM support by Intel® Platform Trust Technology | fTPM support by Intel® Platform Trust Technology | fTPM support by Intel® Platform Trust Technology |
| Expansion | M.2 E-Key | 1 x E-Key 2230 | 1 x E-Key 2230 | 1 x E-Key 2230 |
| Expansion | M.2 B-Key | 1 x B-Key 2242/3042/3052 with Nano-SIM | 1 x B-Key 2242/3042/3052 with Nano-SIM | 1 x B-Key 2242/3042/3052 with Nano-SIM |
| Power | Power Supply Voltage | 12 VDC, ± 10% | 12 VDC, ± 10% | 12 VDC, ± 10% |
| Power | Connector | ATX 2pin | ATX 2pin | ATX 2pin |
| Power | Power Management | AT, ATX | AT, ATX | AT, ATX |
| Environment | Operating Temperature | 0 ~ 60℃ (32 ~ 140℉) w/ 0.7m/s airflow | 0 ~ 60℃ (32 ~ 140℉) w/ 0.7m/s airflow | 0 ~ 60℃ (32 ~ 140℉) w/ 0.7m/s airflow |
| Environment | Storage Temperature | - 40 ~ 85° C (-40 ~185° F) | - 40 ~ 85° C (-40 ~185° F) | - 40 ~ 85° C (-40 ~185° F) |
| Environment | Relative Humidity | 40 °C @ 95%, Non-Condensing | 40 °C @ 95%, Non-Condensing | 40 °C @ 95%, Non-Condensing |
| Environment | Vibration Resistance | 3.5 Grms | 3.5 Grms | 3.5 Grms |
| Certification | Electromagnetic | CE, FCC | CE, FCC | CE, FCC |
| Mechanical | Dimensions | 100 x 72 mm | 100 x 72 mm | 100 x 72 mm |
| Mechanical | Weight | 75g | 75g | 75g |

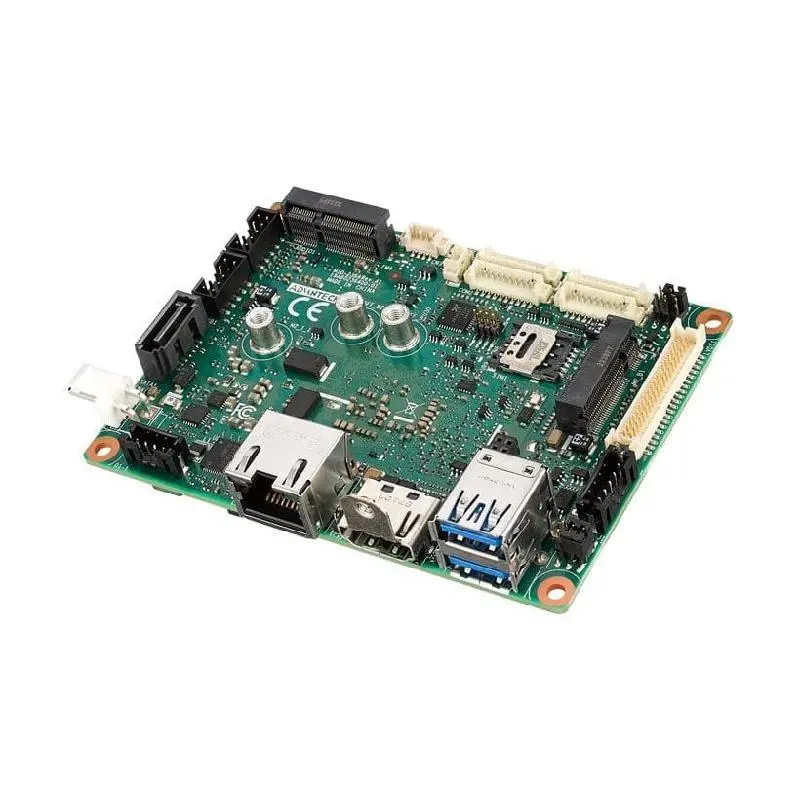

Advantech MIO-2364 Intel® Core™ i3-N305 Processor, Intel® Processor N-series, and Intel Atom® Processor x7000E Series Pico-ITX SBC
