PCM-9563NF-S1A2 | PCM-9563NF-S2A2 | PCM-9563N-S1A2 | ||
Processor | CPU | Intel Celeron N3350 | Intel Pentium N4200 | Intel Celeron N3350 |
Processor | Core Number | 2 | 4 | 2 |
Processor | Frequency | 1.1 GHz | 1.1 GHz | 1.1 GHz |
Processor | L2 Cache | 2 MB | 2 MB | 2 MB |
Processor | BIOS | AMI 64 Mbit | AMI 64 Mbit | AMI 64 Mbit |
Memory | Technology | DDR3L 1867MHz | DDR3L 1867MHz | DDR3L 1867MHz |
Memory | Max. Capacity | 8 GB | 8 GB | 8 GB |
Memory | Socket | 1 x 204-pin SO-DIMM | 1 x 204-pin SO-DIMM | 1 x 204-pin SO-DIMM |
Display | VRAM | Optimized Shared Memory Architecture up to 224 MB system memory | Optimized Shared Memory Architecture up to 224 MB system memory | Optimized Shared Memory Architecture up to 224 MB system memory |
Display | Graphic Engine | Gen-9Low Power; 18 Execution Units54K Codec Decode& Encode for HEVC4, H.264, VP8, SVC, MVC | Gen-9Low Power; 18 Execution Units54K Codec Decode& Encode for HEVC4, H.264, VP8, SVC, MVC | Gen-9Low Power; 18 Execution Units54K Codec Decode& Encode for HEVC4, H.264, VP8, SVC, MVC |
Display | DP/HDMI | DP 1.2a (1920x1200@60Hz), HDMI 1.4b(1920x1200@30Hz) | DP 1.2a (1920x1200@60Hz), HDMI 1.4b(1920x1200@30Hz) | DP 1.2a (1920x1200@60Hz), HDMI 1.4b(1920x1200@30Hz) |
Display | eDP* | v1.4 (1920x1200@ 60Hz) | v1.4 (1920x1200@ 60Hz) | v1.4 (1920x1200@ 60Hz) |
Display | LVDS | Single channel 48-bit LVDS up to 1920 x 1200 | Single channel 48-bit LVDS up to 1920 x 1200 | Single channel 48-bit LVDS up to 1920 x 1200 |
Display | VGA | Up to 1920 x 1200 | Up to 1920 x 1200 | Up to 1920 x 1200 |
Display | Multiple Display | VGA+ LVDS/eDP*+ HDMI*/DP* | VGA+ LVDS/eDP*+ HDMI*/DP* | VGA+ LVDS/eDP*+ HDMI*/DP* |
Ethernet | Interface | Up to 3 (the 3th GbE by request) | Up to 3 (the 3th GbE by request) | Up to 3 (the 3th GbE by request) |
Ethernet | Controller | Intel i210 | Intel i210 | Intel i210 |
Ethernet | Connector | Box Header | Box Header | Box Header |
Audio | Chipset | Realtek ALC888S, High Definition Audio (HD), Line-in, Line out, Mic-in | Realtek ALC888S, High Definition Audio (HD), Line-in, Line out, Mic-in | Realtek ALC888S, High Definition Audio (HD), Line-in, Line out, Mic-in |
Audio | Amplifier | Max 2.2W/ch Stereo into a 3O Load | Max 2.2W/ch Stereo into a 3O Load | Max 2.2W/ch Stereo into a 3O Load |
Watchdog Timer | Output | System reset | System reset | System reset |
Watchdog Timer | Interval | Watchdog timer: monitor the system status before OS is ready (programmable 10ms, disable, 1s, 60s) | Watchdog timer: monitor the system status before OS is ready (programmable 10ms, disable, 1s, 60s) | Watchdog timer: monitor the system status before OS is ready (programmable 10ms, disable, 1s, 60s) |
Storage | SATA | 2 x SATAIII (Max. Data Transfer Rate up to 6.0 Gb/s) | 2 x SATAIII (Max. Data Transfer Rate up to 6.0 Gb/s) | 1 x full size mSATA |
Storage | Floppy | 1 (Optinal, shared with LPT) | 1 (Optinal, shared with LPT) | 1 x SATAIII (max data transfer rate 6.0 Gb/s) |
Storage | Others | SPI Flash 64 Mbit | SPI Flash 64 Mbit | 1 (Shared with LPT) |
Internal I/O | HDMI | Support by request | Support by request | SPI Flash 64 Mbit |
Internal I/O | DP | Support by request | Support by request | Support by request |
Internal I/O | LVDS | 1 x 48bit LVDS | 1 x 48bit LVDS | Support by request |
Internal I/O | Serial | 4 x RS-232 (Transfer rate up to 1 Mbit/s), 2 x RS-422/485 | 4 x RS-232 (Transfer rate up to 1 Mbit/s), 2 x RS-422/485 | 1 x 48bit LVDS |
Internal I/O | Ethernet | Up to 3 GbE (the 3th GbE by request) | Up to 3 GbE (the 3th GbE by request) | 4 x RS-232 (Transfer rate up to 1 Mbit/s), 2 x RS-422/485 |
Internal I/O | PS/2 KB/Mouse | 1 | 1 | Up to 3 GbE (the 3th GbE by request) |
Internal I/O | VGA | 1 | 1 | 1 |
Internal I/O | eDP | Support by request | Support by request | 1 |
Internal I/O | Reset Button | 1 | 1 | Support by request |
Internal I/O | USB | 6 x USB2.0 + 2 x USB3.0 | 6 x USB2.0 + 2 x USB3.0 | 1 |
Internal I/O | Parallel (LPT) | 1 | 1 | 6 x USB2.0 + 2 x USB3.0 |
Internal I/O | GPIO | 16-bit GPIO | 16-bit GPIO | 1 |
Internal I/O | SMBus | 1 | 1 | 16-bit GPIO |
Internal I/O | I2C | 1 | 1 | 1 |
Expansion | PCI-104 | 1 | 1 | 1 |
Expansion | Mini PCIe | 1 x full size Mini PCIe with SIM holder | 1 x full size Mini PCIe with SIM holder | 1 |
Expansion | PCI | 1 | 1 | 1 x full size Mini PCIe with SIM holder |
Expansion | mSATA | 1 | 1 | 1 |
Expansion | M.2 | 1 x E key | 1 x E key | 1 |
Power | Power Type | AT / ATX (Both AT/ATX can support ACPI) | AT / ATX (Both AT/ATX can support ACPI) | 1 x E key |
Power | Power Supply Voltage | ATX: 12V ±10%, 5VSB ±5%; AT: 12V ±10% only | ATX: 12V ±10%, 5VSB ±5%; AT: 12V ±10% only | AT / ATX (Both AT/ATX can support ACPI) |
Power | Power Consumption (Typical) | 0.48 @ 12V (5.76W) | 0.44A @ 12V (5.28W) | ATX: 12V ±10%, 5VSB ±5%; AT: 12V ±10% only |
Power | Power Consumption (Max) | 1.36 @ 12V (16.32W) | 1.32 @ 12V (15.84W) | 0.48 @ 12V (5.76W) |
Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) | 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) | 1.36 @ 12V (16.32W) |
Environment | Non-Operational Temperature | -40° C ~ 85° C and 60° C @ 95% RH non-condensing | -40° C ~ 85° C and 60° C @ 95% RH non-condensing | 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) |
Physical | Dimension (mm) | 203 x 146 mm (8" x 5.75") | 203 x 146 mm (8" x 5.75") | -40° C ~ 85° C and 60° C @ 95% RH non-condensing |
Physical | Weight | 0.7 kg (1.54 lb) (with heatsink) | 0.7 kg (1.54 lb) (with heatsink) | 203 x 146 mm (8" x 5.75") |
Physical | Total Height | 29mm | 29mm | 0.7 kg (1.54 lb) (with heatsink) |
Physical | Total Height | 29mm |

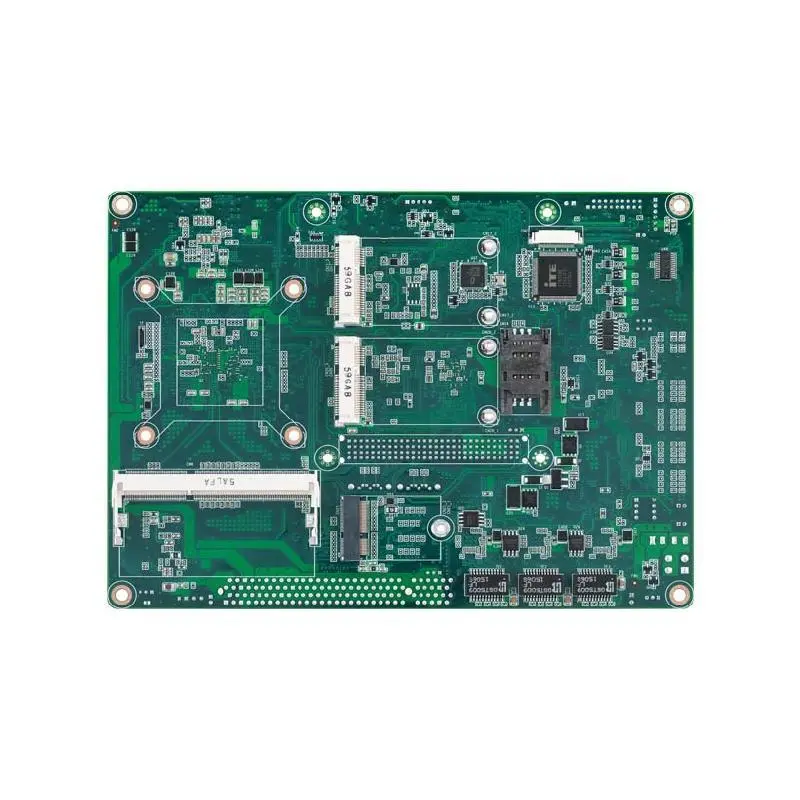

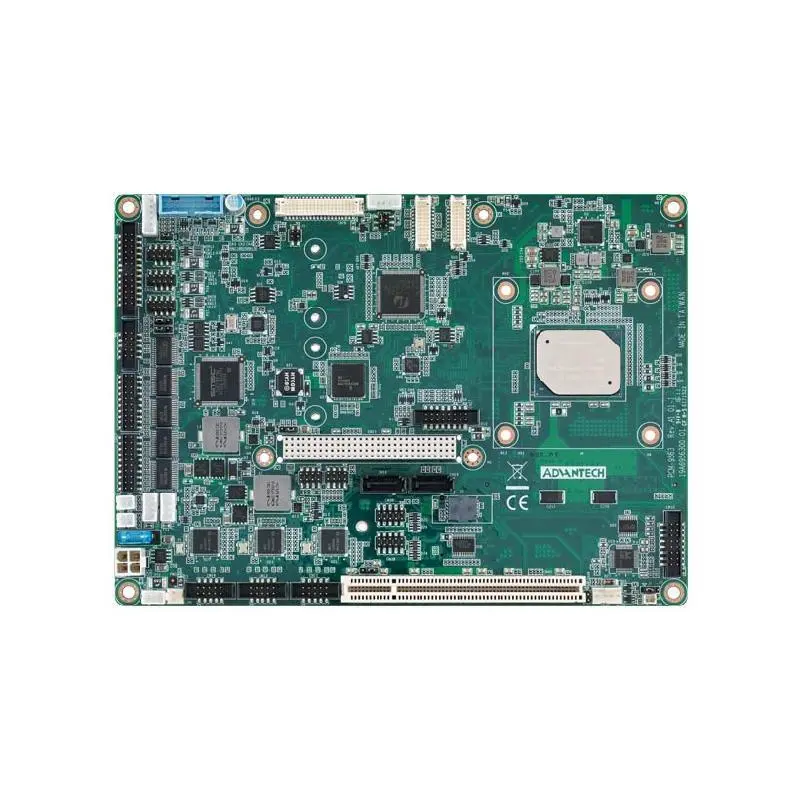

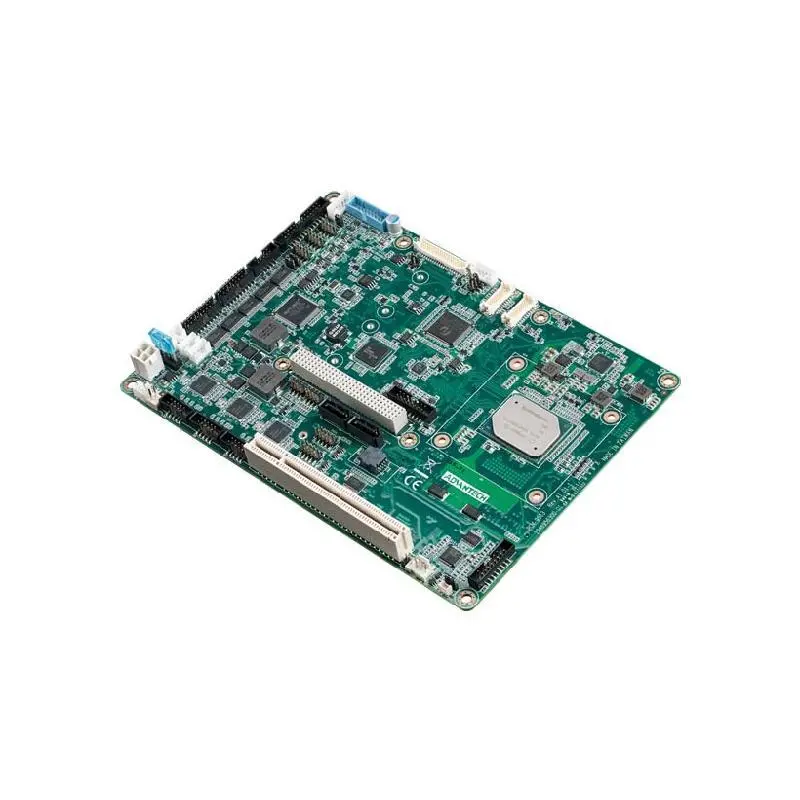

Advantech PCM-9563 Intel® Pentium N4200 Celeron N3350 5.25" EBX
