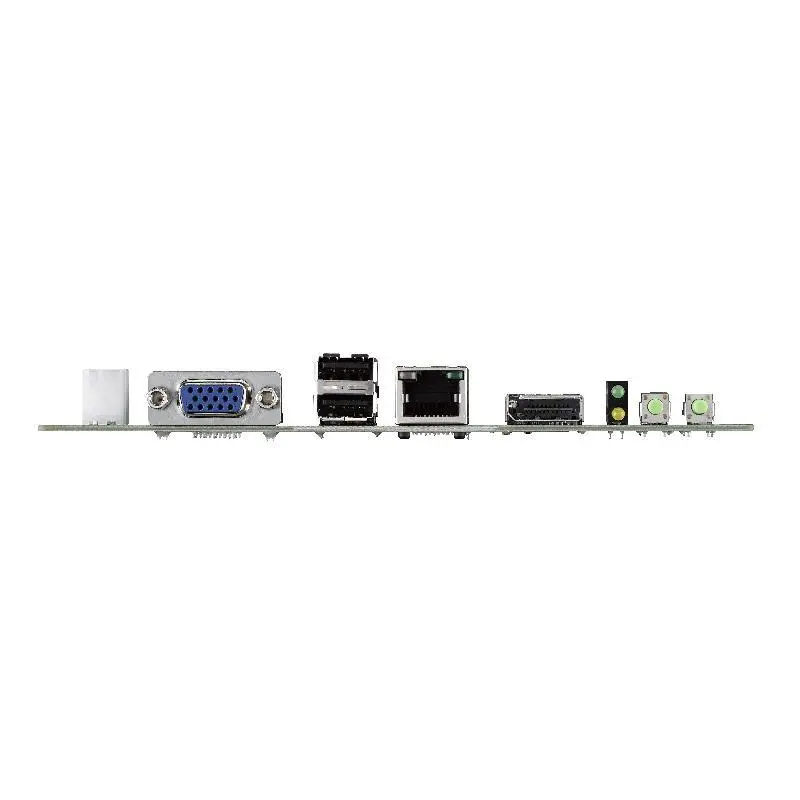

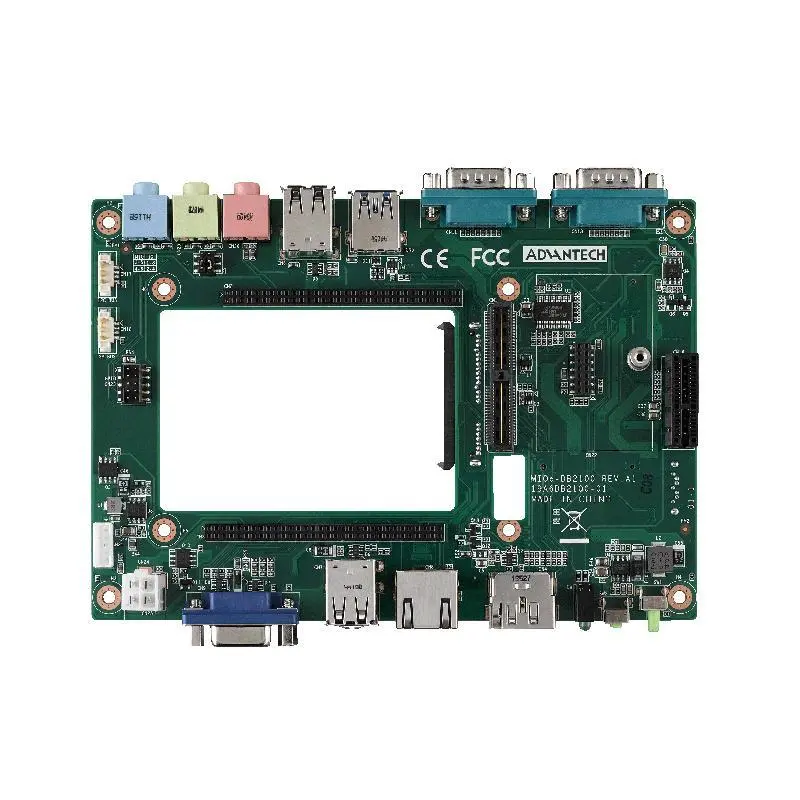

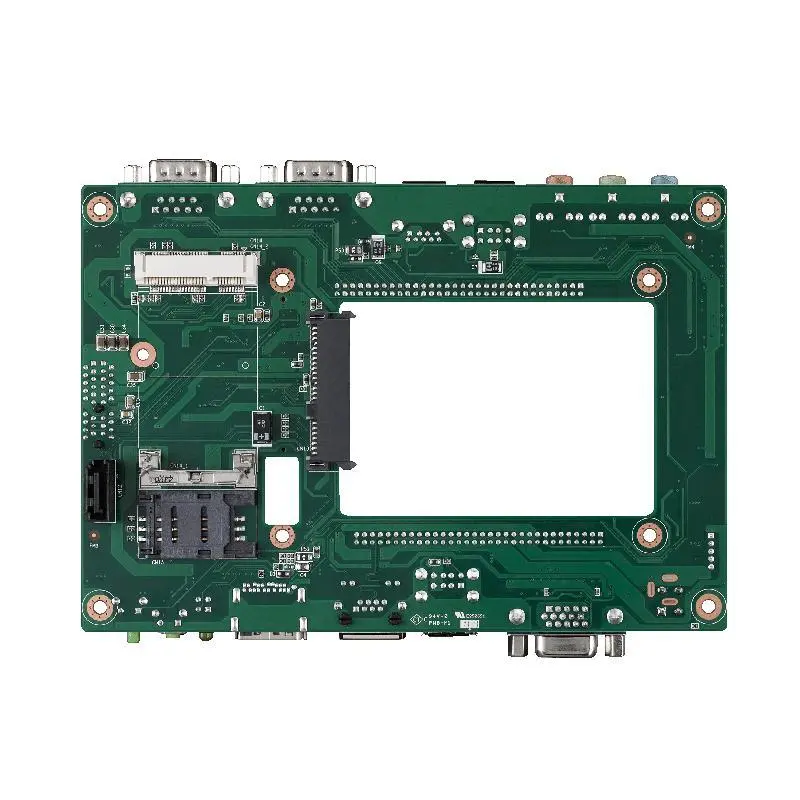

Advantech MIOE-DB2100 Evaluation Board for MIO-3260

Complete and flexible interface for verification

Expedite customer’s carrier board development

All circuit design follows MI/O extension design guide

Uses standard EPIC form factor

Interface: 1 x DP, 1 x PCIe, 1 x miniPCIe, 1 x SIM holder, 1 x USB3.0,4 x USB 2.0, 1 x LPC, 1 x SMBus, 1 x I2C, 1 x HD Audio Line in,1 x HD Audio Line out, 1 x HD Audio Mic in, 1 x SATA with power, 8-bit GPIO,PWR/HDD LED, PWR/Reset Button, Inverter, +12V Power in
