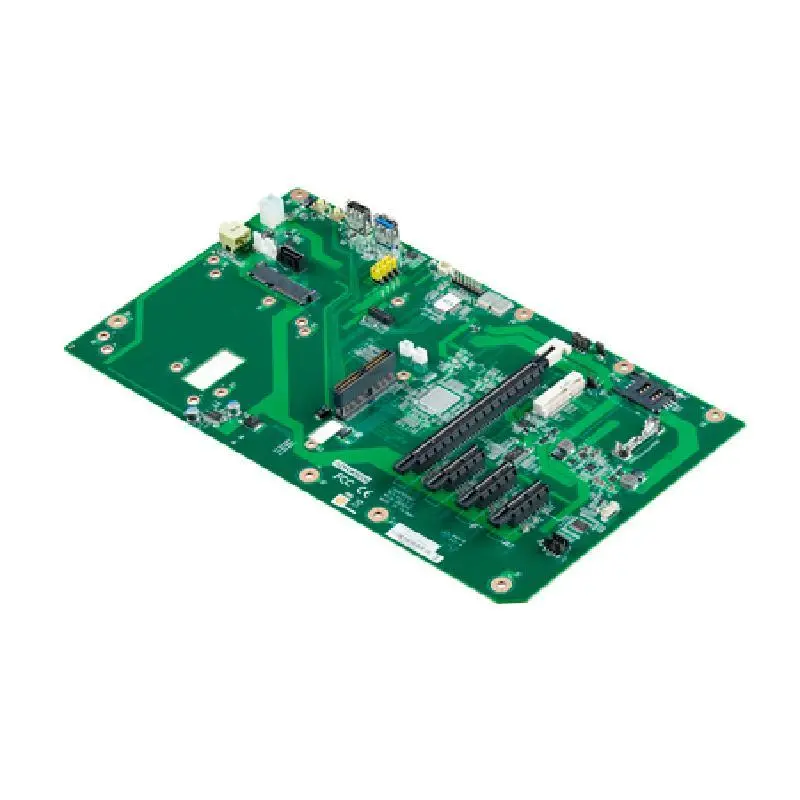

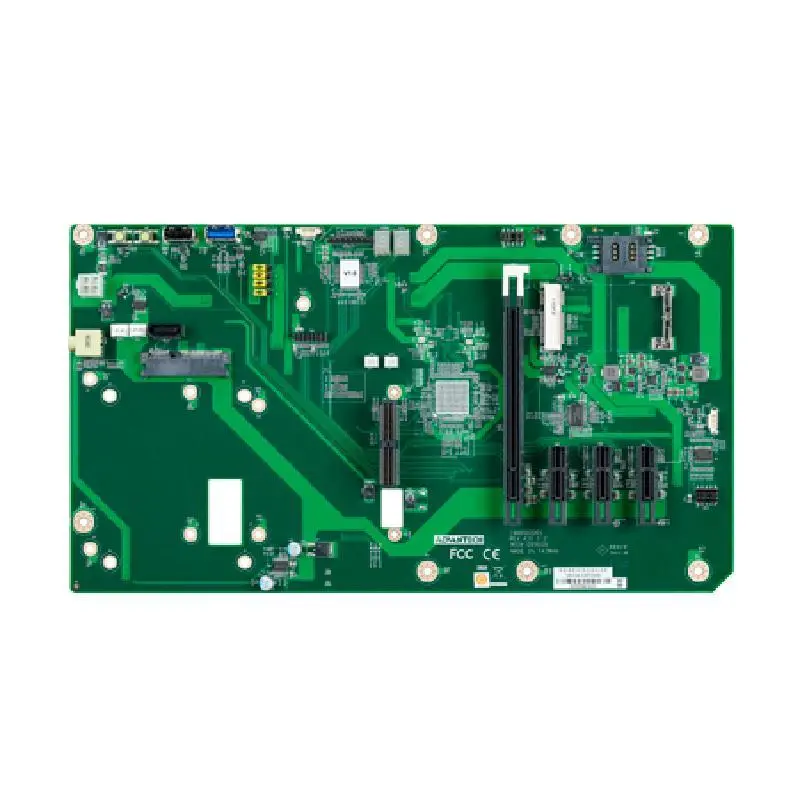

Advantech MIOe-DB5000 MIOe Evaluation Board for MI/O-Compact and MI/O-Ultra SBC

Supports both of MI/O-Compact SBC and MI/O-Ultra SBC

All Circuit Design Follow MI/O Extension Design Guide

Mechanical Design for Various Application

Complete and Flexible Interface for Verification

Use Standard ATX Form Factor

Interfaces: 3 PCIe x1, 1 x DP, 1 x miniPCIe, 1 x SIM, 1 x USB 3.0, 1 x USB 2.0, 1 x LPC, 1 x SMBus, 1 x LineOut with amplifier, 1 x SATA with power, 2 x System FAN, +12V power input
