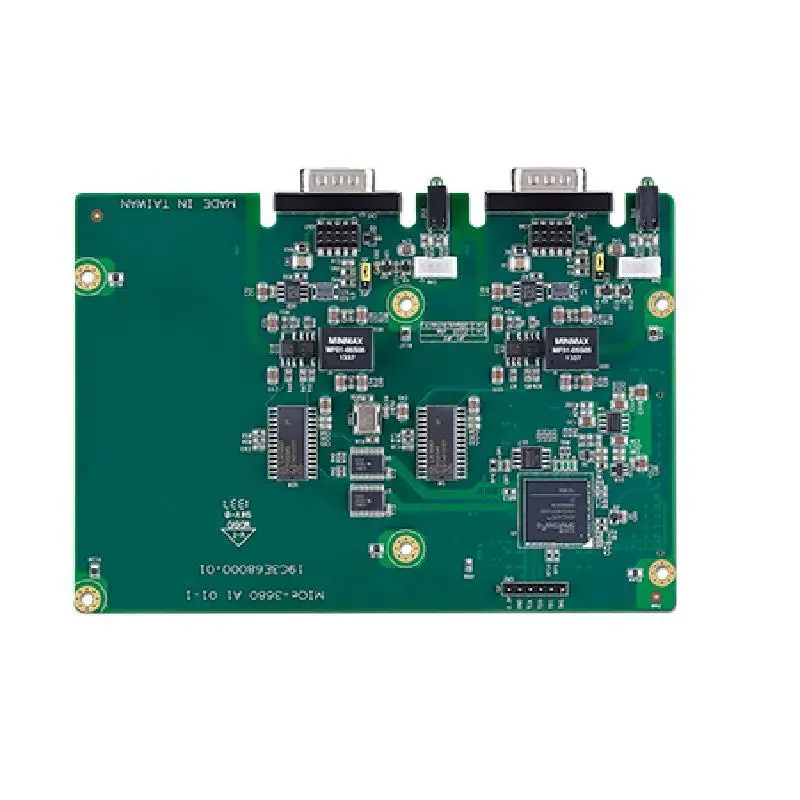

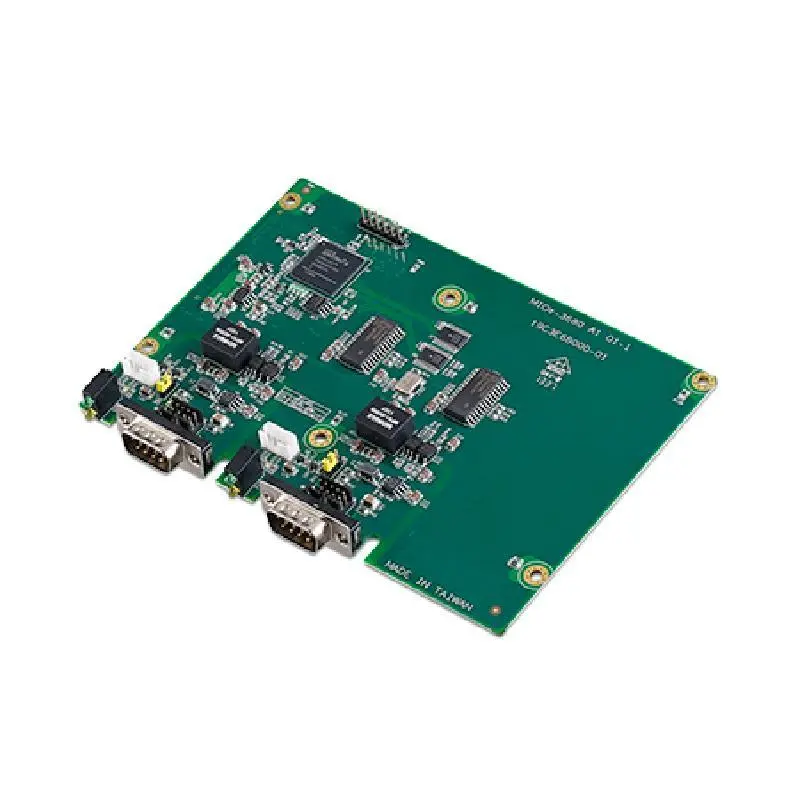

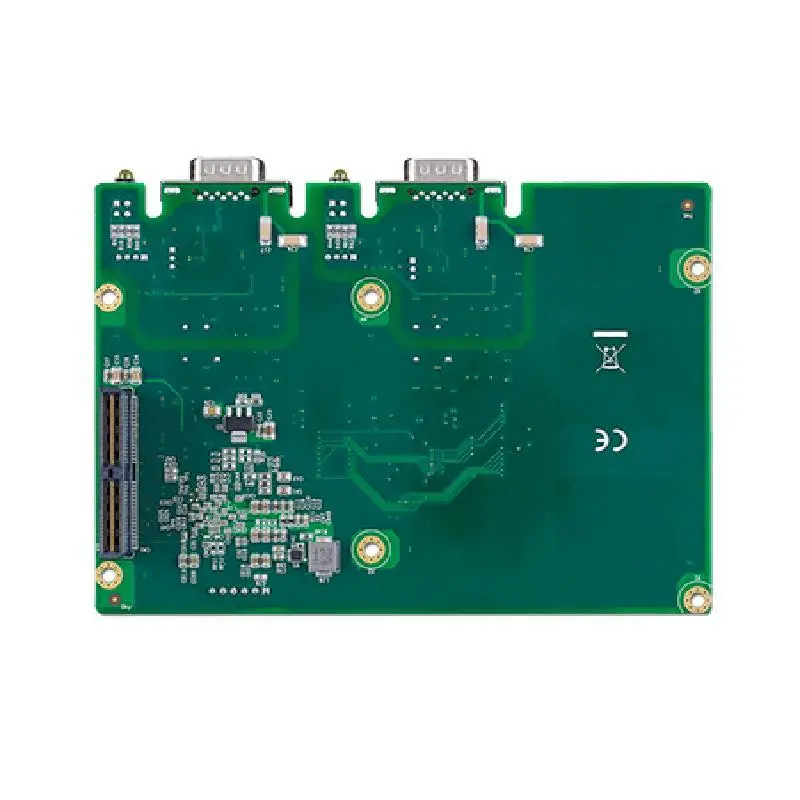

Advantech MIOe-3680 2-Port CAN-Bus MIOe Module with Isolation Protection

Operates two separate CAN networks at the same time

High speed transmission up to 1 Mbps

16 MHz CAN controller frequency

Optical isolation protection of 2,500 VDC ensures system reliability

I/O address automatically assigned by PCI PnP

LED indicates Transmit/Receive status on each port

Windows DLL library and examples included

Supports Windows CE5/CE6/XP/7 driver and utility

Supports Linux 2.4.xx / 2.6.xx; QNX 6.3x/6.4.x/6.5.x Intel x86 hardware platform

2-Port CAN-Bus MIOe Module with Isolation Protection

		MIOE-3680-AE
General	Bus Interface	MI/O Extension
General	Ports	2
Environment	Dimensions	102 x 145 mm
Connector	N/A	Dual DB9 male connectors
Communications	Communication Controller	NXP SJA-1000
Communications	CAN Transceiver	NXP TJA1051T
Communications	Signal Support	CAN_H, CAN_L
Communications	CAN Frequency	16MHz
Communications	Speed	Up to 1 Mbps programmable transfer rate
Protection	Isolation Protection	2.25KV isolation on LAN and power
Power Consumption	Typical	5 V @ 400 mA
Environment	Temperature (Operating)	-40 ~ 85° C (-40 ~ 185°F)
