| MIOE-PWR1-00A1E | ||
| General | Connector type | Input: Phoenix 2pin;Output: ATX 2x2pin |
| General | Input Voltage | 12 to 24 VDC+/-5% |
| General | Output Current | Max. 5A |
| General | Output Voltage | 12V+/-10% |
| General | Protection | OVP, OCP, Anti-reverse |
| Mechanical and Environmental | Dimensions (L x W) | 90 x 53 mm (3.5" x 2.1") |
| Mechanical and Environmental | Operating Humidity | 0% ~ 90% relative humidity, non-condensing |
| Mechanical and Environmental | Operating Temperature | 0 ~ 60° C (32 ~ 140° F) |
| Mechanical and Environmental | Weight | 0.084 kg (0.185 lb) |

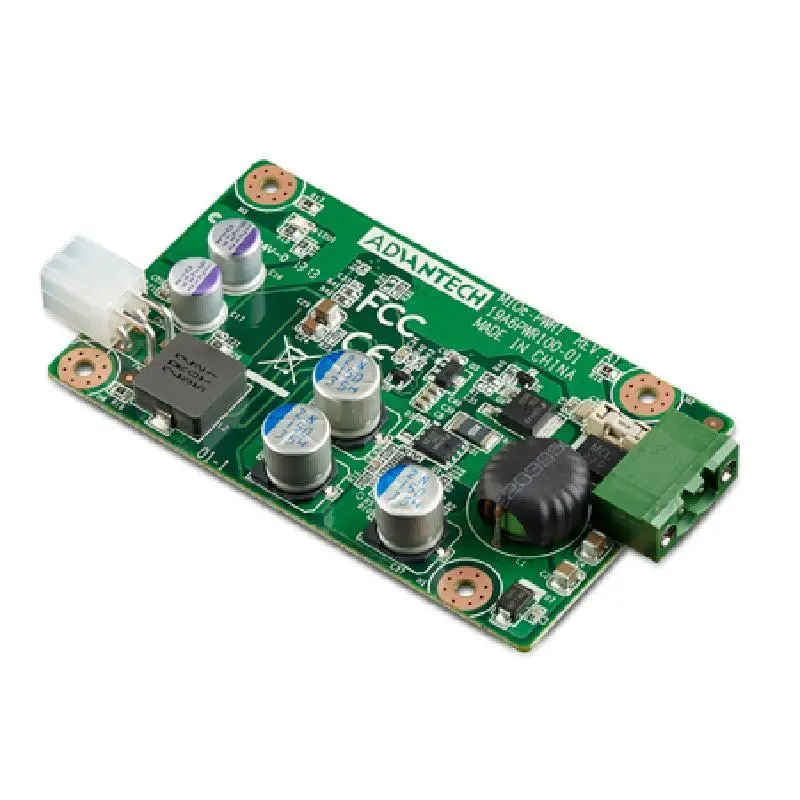

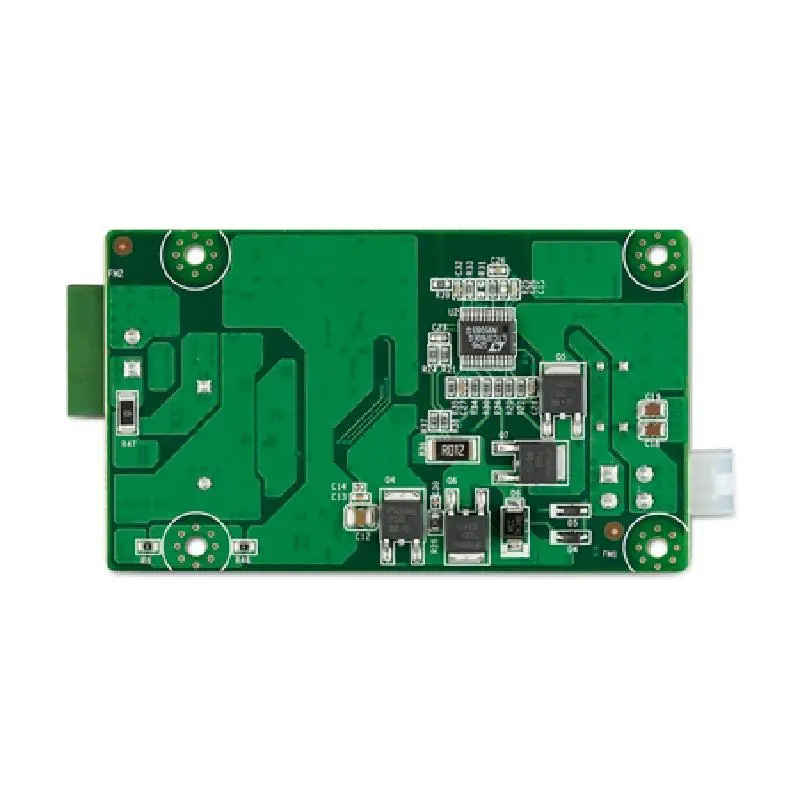

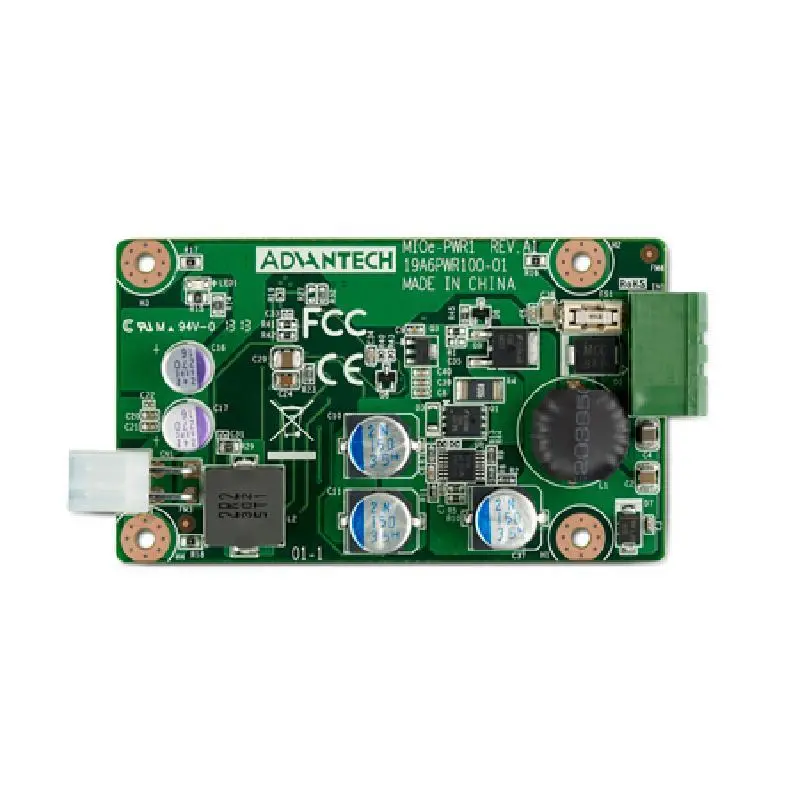

Advantech MIOe-PWR1 12-24V DC to DC Power Module MI/O-Chassis compliant
