| MIOE-PWR2-00A1E | ||
| General | Input Voltage | 9 to 36 VDC |
| General | Output Voltage | 12V+/-10% |
| General | Output Current | Max. 5A |
| General | Protection | OVP, OCP, Anti-reverse |
| General | Connector type | Input: Phoenix 2pin; Output: 4pin 2.54mm Wafer |
| Mechanical and Environmental | Dimensions (L x W) | 102 x 53 mm (4" x 2.1") |
| Mechanical and Environmental | Operating Temperature | 0 ~ 60° C (32 ~ 140° F) |
| Mechanical and Environmental | Weight | 0.115 kg (0.253 lb) |
| Mechanical and Environmental | Operating Humidity | 10~95% R.H. @ 40C, 95% R.H. non-condensing |

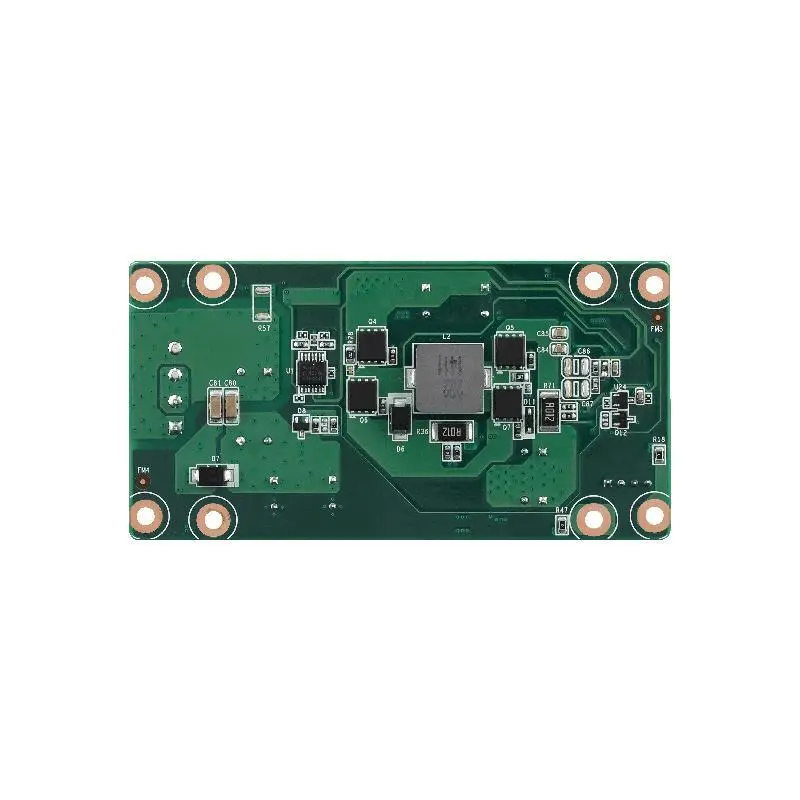

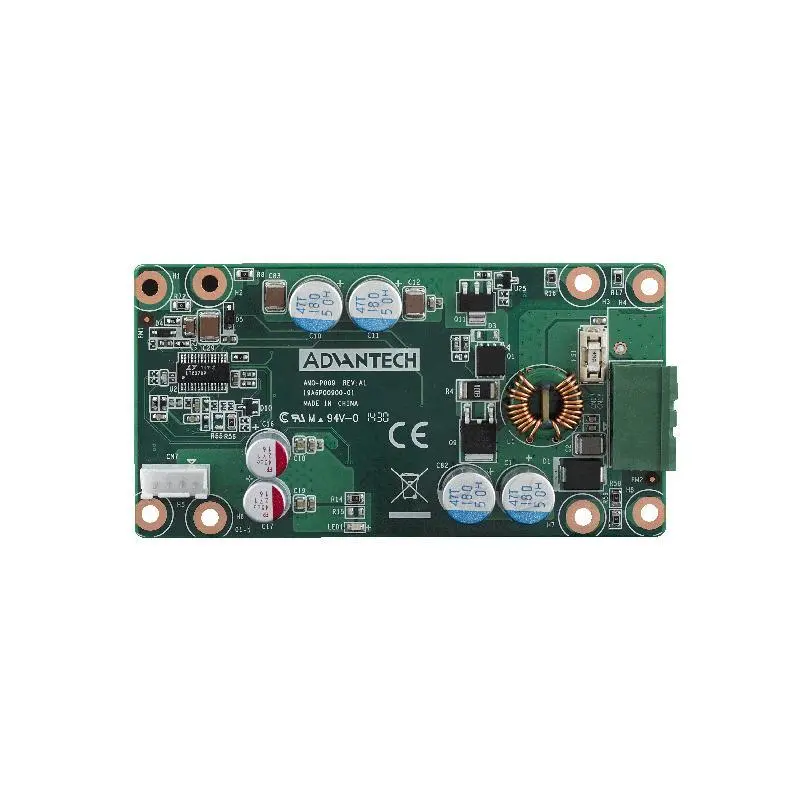

Advantech MIOE-PWR2 9-36V DC to DC Power Module MI/O-Chassis compliant
