| TS-206-U6A1E | ||
| Ethernet | LAN1 | 10/100/1000 Mbps Intel i219 GbE, support Wake On Lan |
| Ethernet | LAN2 | 10/100/1000 Mbps Intel I210 GbE, support Wake on LAN |
| Memory | Technology | DDR3L 1600 MHz |
| Memory | Max. Capacity | 16 GB |
| Memory | Socket | 2x 204-pin SO-DIMM |
| Graphics | HDMI | HDMI 1.4a for HD video playback, 4096 x 2160 @ 24Hz |
| Graphics | VGA | 1920x1200@ 60Hz |
| I/O Interface | Serial Port | N/A |
| I/O Interface | USB Interface | 2 x USB 2.0 & 2 x USB3.0 |
| I/O Interface | GPIO | 6 x DI & 2 x DO w/ 3KV isolation Input Voltage: 0 to 30 VDC, Output Current: Max. 500 mA per channel On-state Voltage: 24 VDC nominal, open collector to 30 VDC |
| I/O Interface | Power over Ethernet | 4 x 10/100 Mbps - 4ports full-load, IEEE802.3af Class 2 (7Watt) - 2ports full-load, IEEE802.3af Class 3 (15.4Watt) |
| I/O Interface | Optional COM or CANBus | 2 x DB9 connectors for RS-232/422/485 signal (Default) or CANBus 2.0A/B (Module option) |
| Expansion | Mini PCIe #1 | Full-size Mini PCIe, support mSATA |
| Expansion | Mini PCIe #2 | Full-size Mini PCIe w/SIM holder |
| Expansion | Mini PCIe #3 | Full-size Mini PCIe w/SIM holders, support WWAN module. (USB interface) |
| Expansion | Mini PCIe #4 | Full-size Mini PCIe w/SIM holders, support WWAN module. (USB interface) |
| Processor | Frequency | 2.6 GHz |
| Processor | CPU | 6th Gen. Intel® Core™ i7-6600U |
| Processor | L3 Cache | 4 MB |
| Processor | BIOS | AMI UEFI 128 Mbit |
| Others | Watchdog timer | 255 levels timer interval, setup by software |
| Storage | mSATA | Laverage MiniPCIe #1 slot |
| Storage | 2.5" Drive Bay | 1 x removable 2.5" drive bay (Max 9.5mm height) |
| Software Support | Microsoft Windows | Windows 10 (Windows 7 for 6th Gen CPU only) |
| Software Support | Linux | Support by project |
| Display | Processor Graphics | DurectX 12, DirectX 11.3, OpenGL 4.4, and OpenCL 2.1, Full AVC/VC1/MPEG2 HW Decode |
| Other | TPM | TPM2.0 (Infineon SLB9665) |

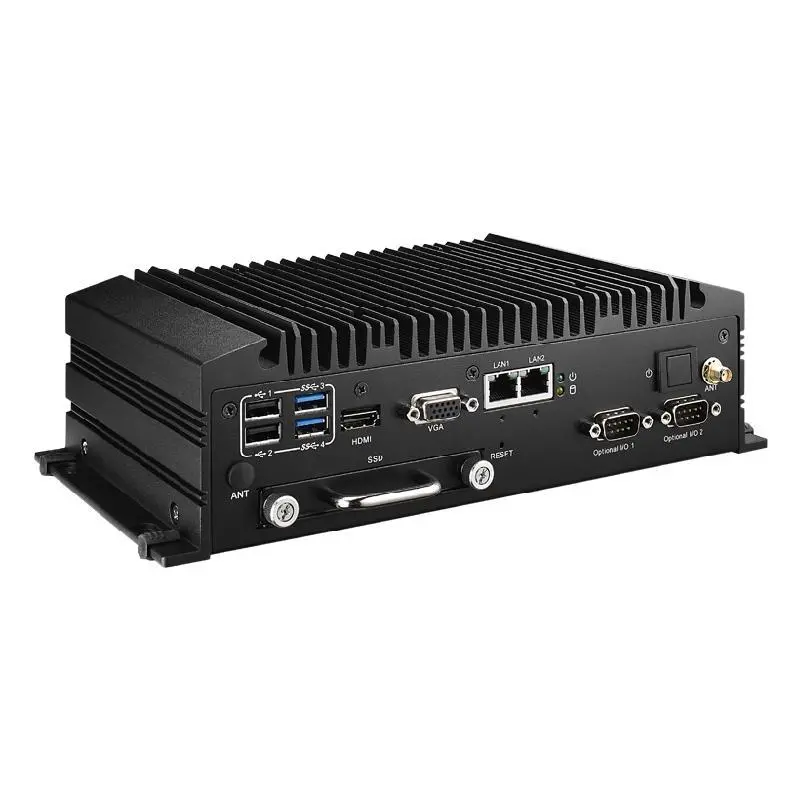

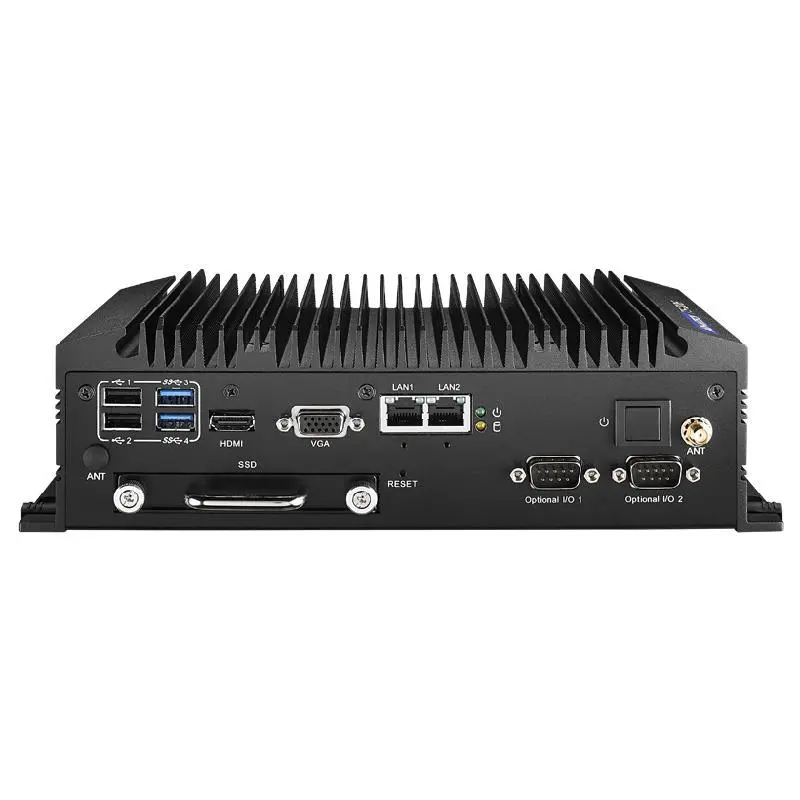

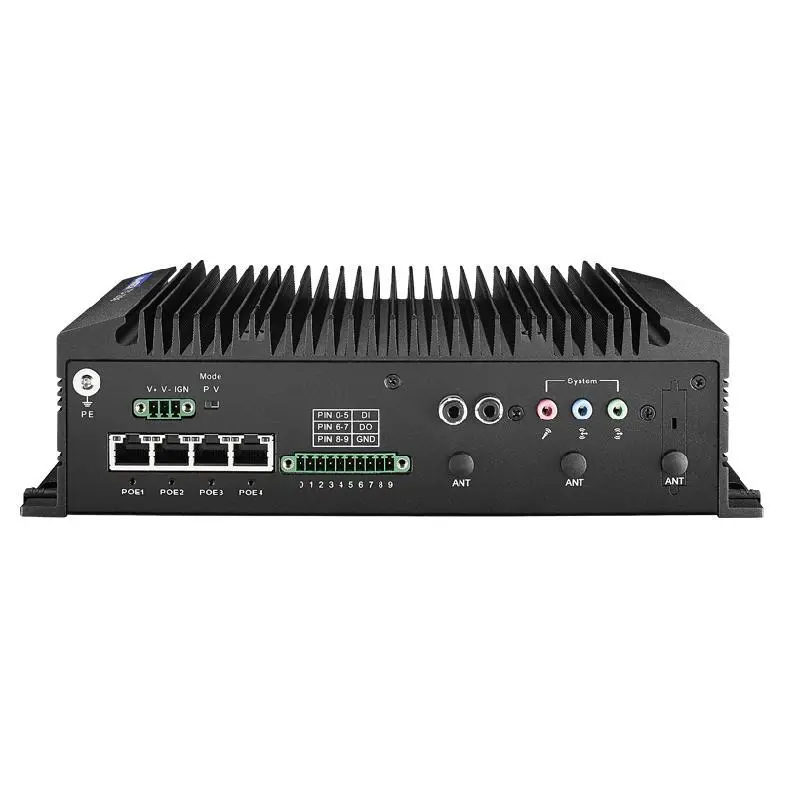

Advantech TS-206 In-Vehicle Full HD NVR w/4 PoE Ports 6th Gen. Intel® Core i7 6600U / Core i5 6300U SoC Fanless Box PC
