| ARK-2250S-S9A1E | ||
| Ethernet | LAN1 | 10/100/1000 Mbps Intel i219 GbE, support Wake On Lan |
| Ethernet | LAN2 | 10/100/1000 Mbps Intel I210 GbE, support Wake on LAN |
| I/O | GPIO | 8-bit Programmable DIO |
| I/O | CANBus | Optional |
| I/O | USB | 3 x USB3.0 Type A |
| Memory | Technology | DDR4 2133MHz |
| Memory | Max. Capacity | 32 GB |
| Memory | Socket | 2 x 260 pin SO-DIMM |
| Graphics | Graphic Engine | DirectX 11.3, OGL 4.4, OCL 2.1, Encode: H.264, MPEG2/4, VC1, WMV9, Decode: H.264, MPEG2, EHVC: H.265 |
| Graphics | HDMI | HDMI 1.4a for HD video playback, 1080P at 60Hz |
| Graphics | VGA | Up to 1920 x 1200 at 60 Hz |
| Graphics | Chipset | QM170 |
| Graphics | Dual Display | VGA + HDMI (Std.) or Dual HDMI (by project) |
| Audio | Main System | Realtek ALC888S, High Definition Audio. Line-out,Mic-in,Line-in |
| I/O Interface | Serial Port | 3 x RS-232/422/485 port with auto flow control |
| Environment | Vibration During Operation | IEC 60721-3-5 5M3, MIL-STD-810G Method 514.6 |
| Environment | Shock During Operation | IEC 60721-3-5 5M3, MIL-STD-810G Method 516.6 |
| Environment | Relative Humidity | 95% @ 40° C (non-condensing) |
| Certification | EMC | CE, FCC Class B, CCC, BSMI |
| Certification | Safety Certifications | CB, UL, CCC, BSMI |
| Expansion | Mini PCIe | #1, Full-size Mini PCIe (SATA/PCIe/USB) w/external SIM socket, #2, Full-size Mini PCIe (PCIe/USB) w/external SIM socket, #3, M.2 2230 E key |
| Processor | Frequency | 1.9 GHz |
| Processor | Core Number | 4 |
| Processor | CPU | Intel i5-6442EQ QC SoC |
| Processor | L2 Cache | 6 MB |
| Processor | BIOS | AMI EFI |
| Mechanical | Construction | Aluminum housing |
| Mechanical | Mounting | Wall mounting kit |
| Mechanical | Dimensions | 260 x 73 x 160.2mm |
| Mechanical | Weight | 3.2 Kg |
| Storage | mSATA | 1 x full size mSATA socket (Mini PCIe #1) |
| Storage | 2.5" HDD/SSD | 1 x 2.5" SATA drive bay |
| Software Support | Microsoft Windows | Windows 10, Windows 8.1, WES7, Windows 7 |
| Software Support | Linux | Support by project |
| Environment | Operational Temperature | -20 ~ 70 °C (-4 ~ 158 °F) with 0.7m/s air flow |
| Environment | Storage Temperature | -40 ~ 85° C (-40 ~ 185° F) |
| Other | TPM | TPM2.0 (Infineon SLB9665) |
| Power | Power Type | ATX |
| Power | Input Voltage | 12 ~ 24 VDC |

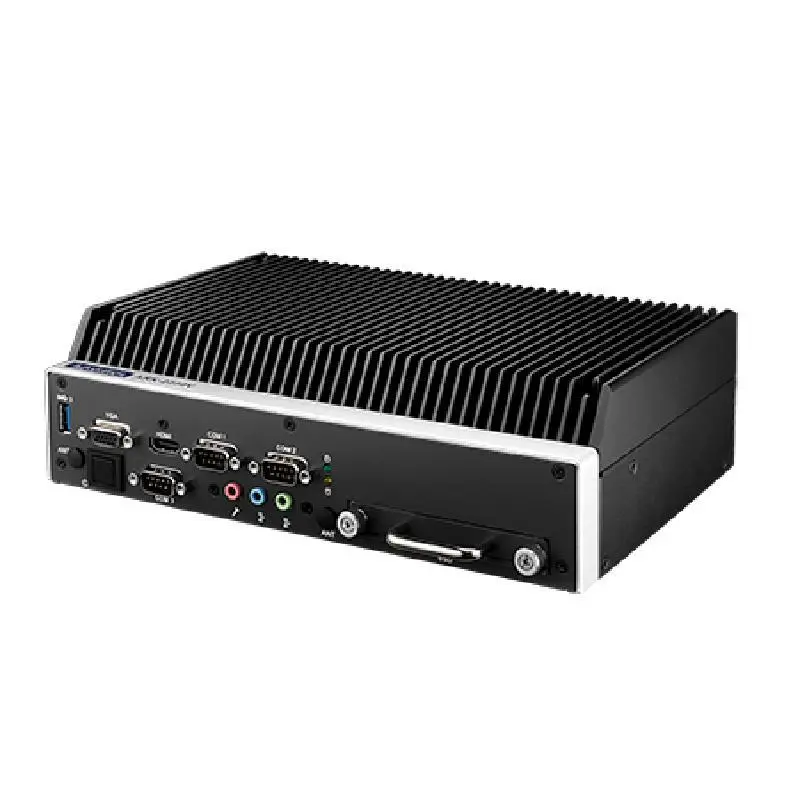

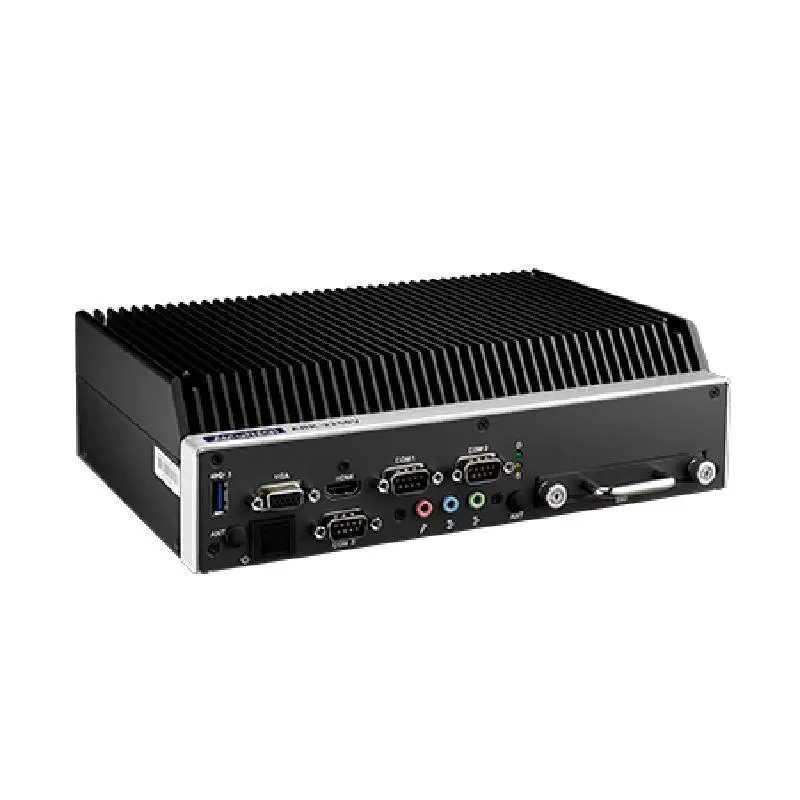

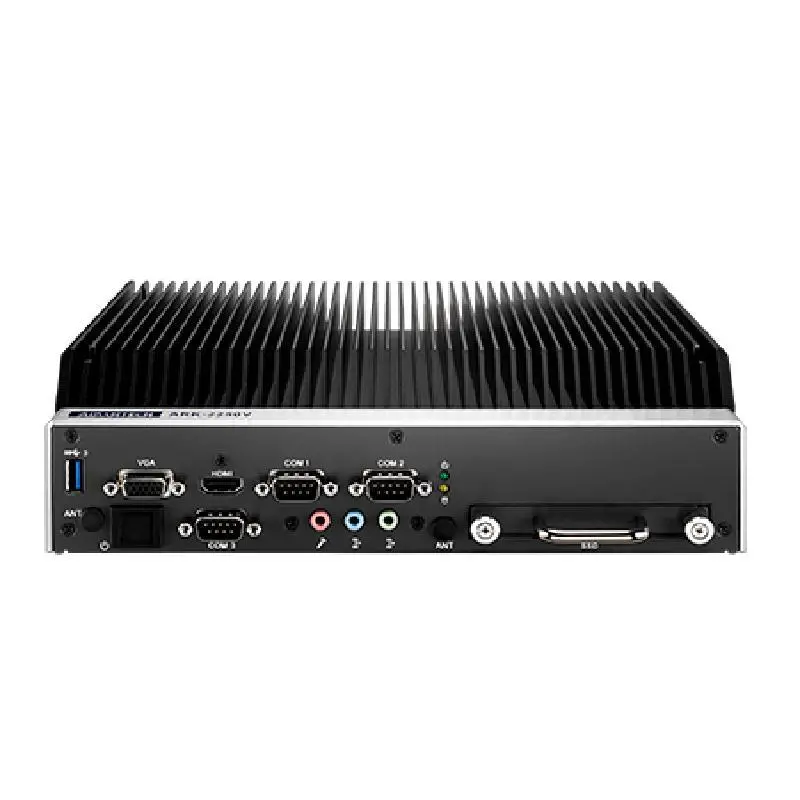

Advantech ARK-2250S 6th Gen Intel Core i7-6822EQ QC/i5-6442EQ QC Rugged FullHD NVR
