| ARK-1125H-S0A1 | ARK-1125H-S0A1U | ||
| Processor | CPU | Intel® Processor N200 | Intel® Processor N200 |
| Processor | Core Number | 4 | 4 |
| Processor | Frequency | 1.0GHz, Max Turbo Frequency up to 3.7GHz | 1.0GHz, Max Turbo Frequency up to 3.7GHz |
| Processor | BIOS | AMI EFI 256 Mbit | AMI EFI 256 Mbit |
| Memory | Technology | DDR5 up to 4800MHz | DDR5 up to 4800MHz |
| Memory | Max. Capacity | 16 GB | 16 GB |
| Memory | Socket | 1 x 262-pin SO-DIMM | 1 x 262-pin SO-DIMM |
| Memory | ECC Support | No | No |
| Graphics | HDMI | 2 | 2 |
| Graphics | Dual Display | Yes, HDMI + HDMI , both display support 4K2K resolution | Yes, HDMI + HDMI , both display support 4K2K resolution |
| Ethernet | Controller | 2 | 2 |
| Ethernet | LAN1 | 10/100/1000/2500 Mbps Intel i226 GbE, support Wake On LAN | 10/100/1000/2500 Mbps Intel i226 GbE, support Wake On LAN |
| Ethernet | LAN2 | 10/100/1000/2500 Mbps Intel i226 GbE, support Wake On LAN | 10/100/1000/2500 Mbps Intel i226 GbE, support Wake On LAN |
| Audio | Main System | Realtek ALC888S, High Definition Audio, Line-out, Mic-in | Realtek ALC888S, High Definition Audio, Line-out, Mic-in |
| I/O Interface | Serial Port | 2 x RS-232/422/485 port with auto flow control | 2 x RS-232/422/485 port with auto flow control |
| I/O Interface | USB Interface | 2 x USB 3.2, 2 x USB 2.0 | 2 x USB 3.2, 2 x USB 2.0 |
| I/O Interface | GPIO | 8-bit | 8-bit |
| Expansion | M.2 | 2x, including 1x M.2 2230E key, 1x M.2 2280 B key with nano SIM holder | 2x, including 1x M.2 2230E key, 1x M.2 2280 B key with nano SIM holder |
| Others | Watchdog timer | 255 levels timer interval, setup by software | 255 levels timer interval, setup by software |
| Others | TPM | TPM 2.0 built in | TPM 2.0 built in |
| Storage | SATA and PCIe/NVMe | 2x, including 1x M.2 2230 E key (PCIe x1) and 1x M.2 2280 B key (PCIe x1) | 2x, including 1x M.2 2230 E key (PCIe x1) and 1x M.2 2280 B key (PCIe x1) |
| Expansion | CAN Bus | 2 | 2 |
| Software Support | Microsoft Windows | Windows 10 | Windows 10 |
| Software Support | Linux | Ubuntu 22.04 | Ubuntu 22.04 |
| Power | Power Type | AT/ATX | AT/ATX |
| Power | Input Voltage | 12 VDC power input | 12 VDC power input |
| Power | Power Adaptor | Input: 100-240Vac, Output 12Vdc, 60W | Input: 100-240Vac, Output 12Vdc, 60W |
| Power Consumption | Max. | 29.18W | 29.18W |
| Power Consumption | Typical | 10.54W | 10.54W |
| Mechanical | Construction | Aluminum housing | Aluminum housing |
| Mechanical | Dimensions | 133 x 46.4 x 94.2mm (5.24" x 1.83" x 3.71") | 133 x 46.4 x 94.2mm (5.24" x 1.83" x 3.71") |
| Mechanical | Mounting | DIN-rail/Wall Mount | DIN-rail/Wall Mount |
| Mechanical | Weight | 0.7 kg (1.55 lb) | 0.7 kg (1.55 lb) |
| Environment | Relative Humidity | 95% @ 40° C (non-condensing) | 95% @ 40° C (non-condensing) |
| Environment | Operating Temperature | With extended temperature peripherals: -30 ~ 60 °C (-22 ~ 140 °F) with 0.7m/s air flow | With extended temperature peripherals: -30 ~ 60 °C (-22 ~ 140 °F) with 0.7m/s air flow |
| Environment | Storage Temperature | - 40 ~ 85° C (-40 ~185° F) | - 40 ~ 85° C (-40 ~185° F) |
| Environment | Vibration During Operation | 3 Grms, IEC60068-2-64, random, 5~500 Hz, 1hr/axis | 3 Grms, IEC60068-2-64, random, 5~500 Hz, 1hr/axis |
| Environment | Shock During Operation | 30G, IEC60068-2-27, half sine, 11m duration | 30G, IEC60068-2-27, half sine, 11m duration |
| Certification | EMC | CE, FCC, CCC, BSMI | CE, FCC, CCC, BSMI |
| Certification | Safety Certifications | CB, UL, CCC, BSMI | CB, UL, CCC, BSMI |

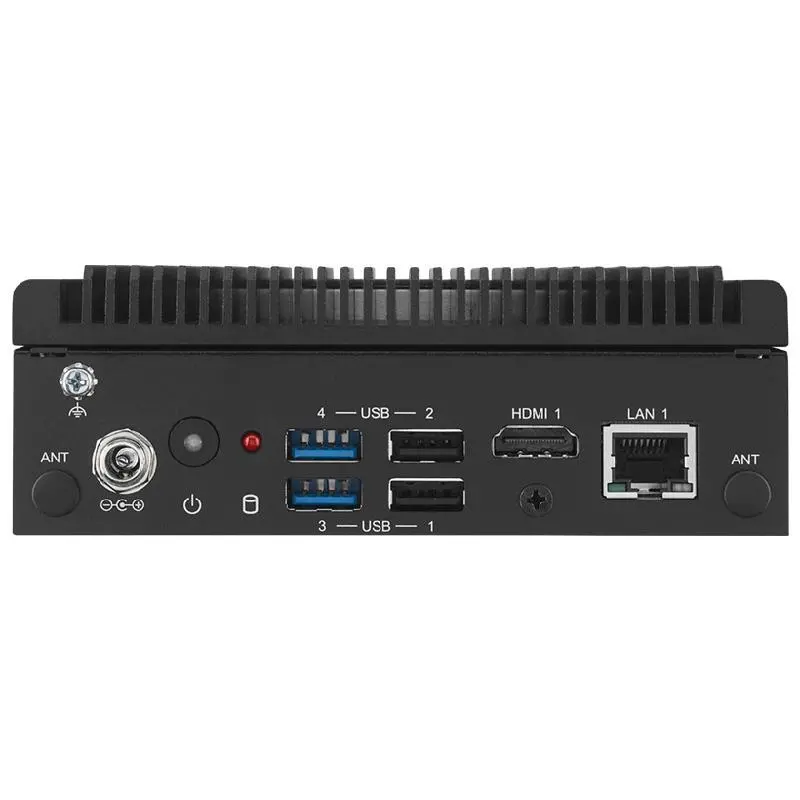

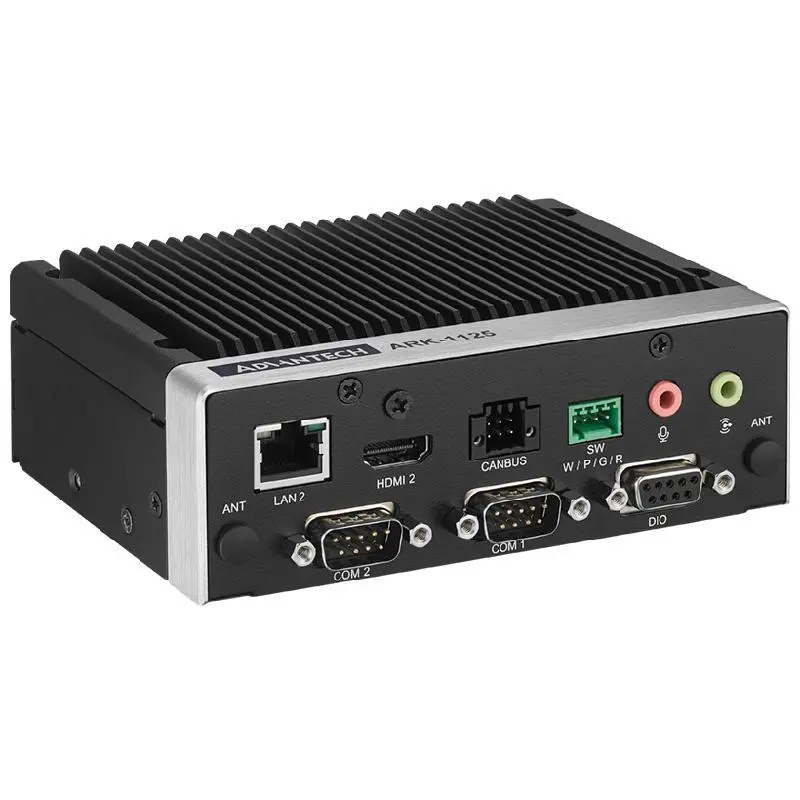

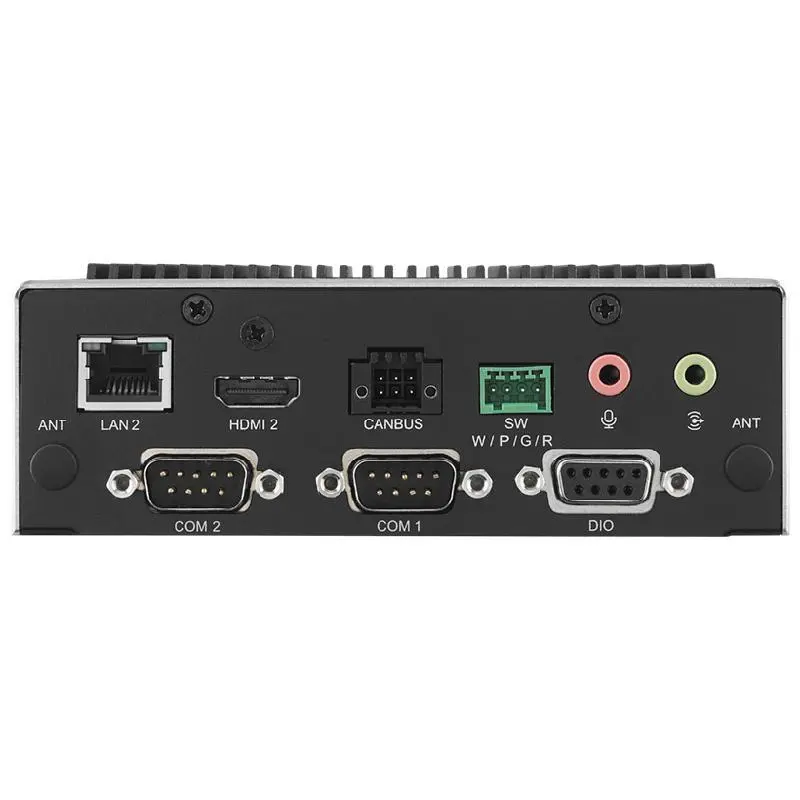

Advantech ARK-1125H Intel® Processor N200 QC SoC with Dual HDMI, Dual GbE, Dual Serial Ports, Dual CANBus, Remote Switch, USB x4
