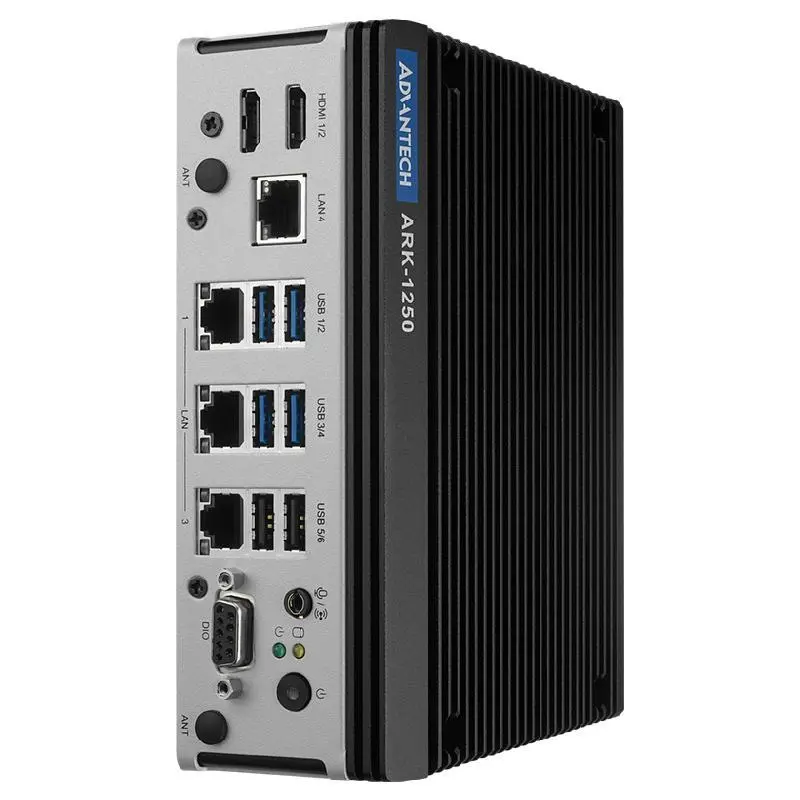

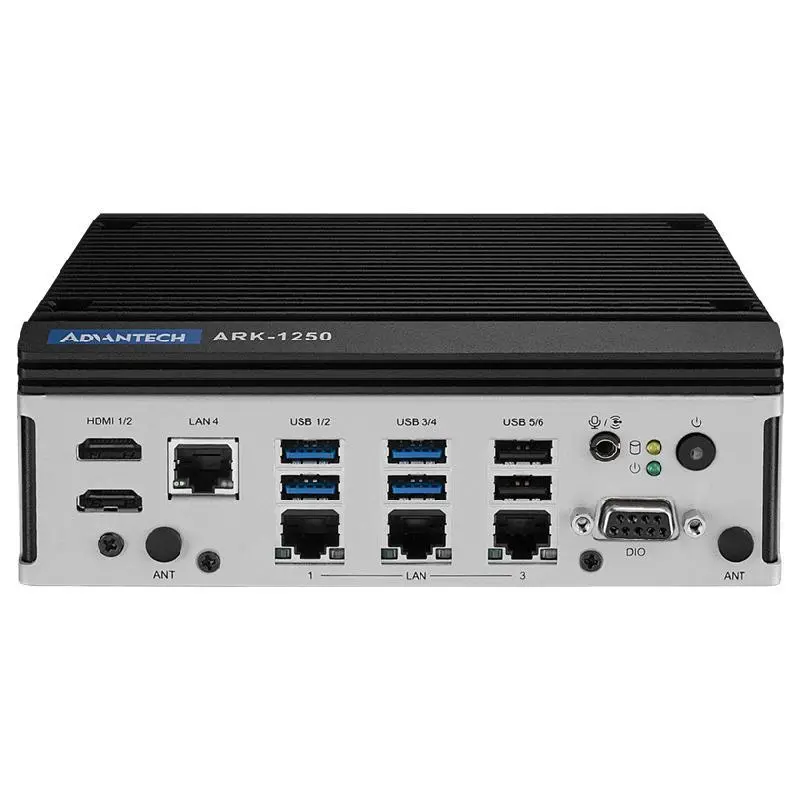

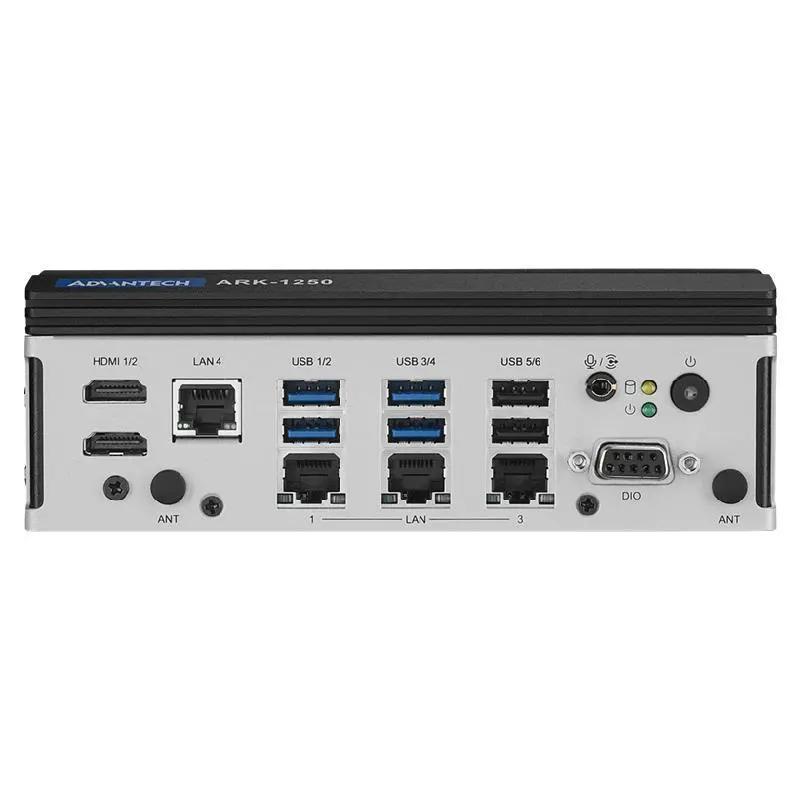

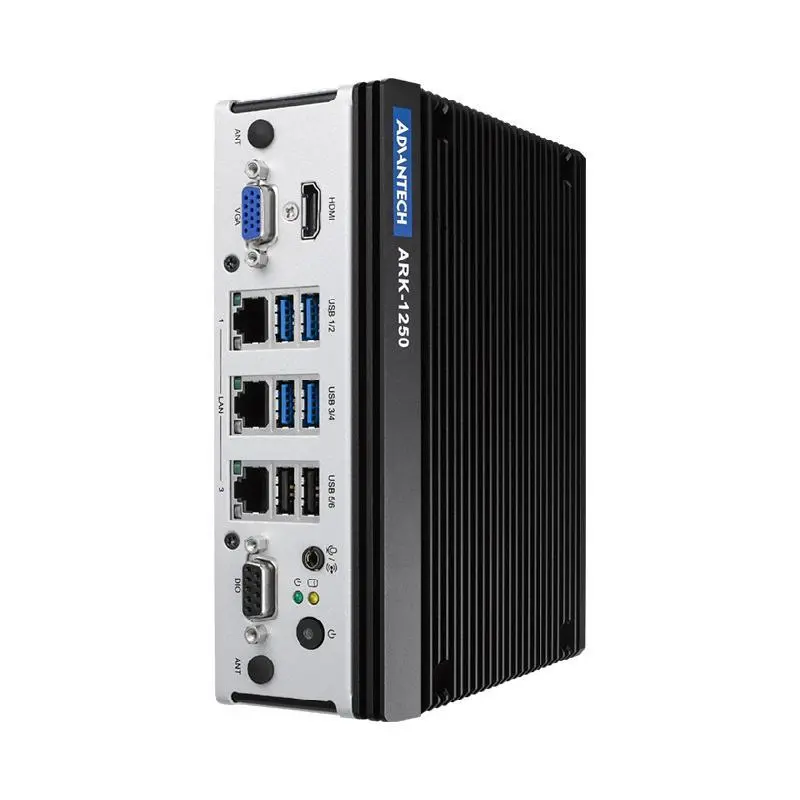

Advantech ARK-1250L Intel® 11th gen Core™ i processor with Triple LAN/ Quadruple COM Din-Rail Fanless Box PC

    Intel 11th Gen. Core i5/i3

    DIN-Rail system with essential I/O ports on front-side bezel

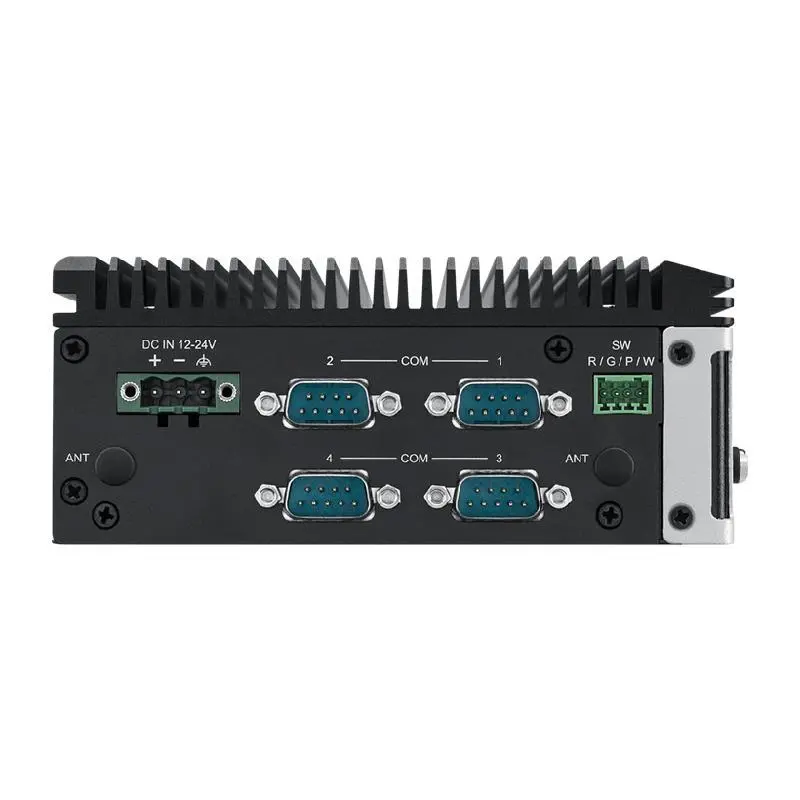

    3 x Intel GbE, 4x RS-232/422/485

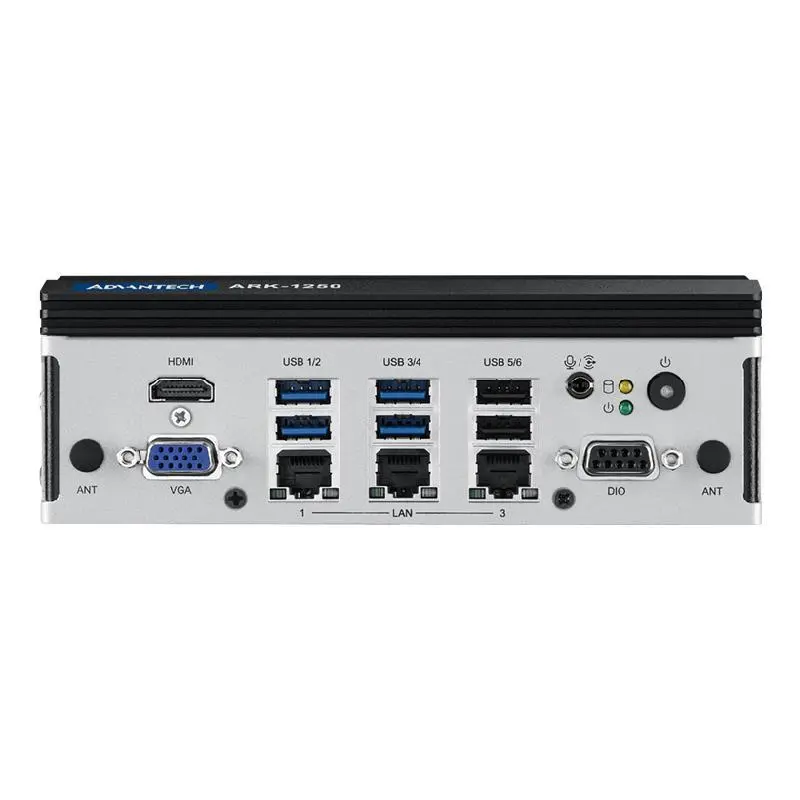

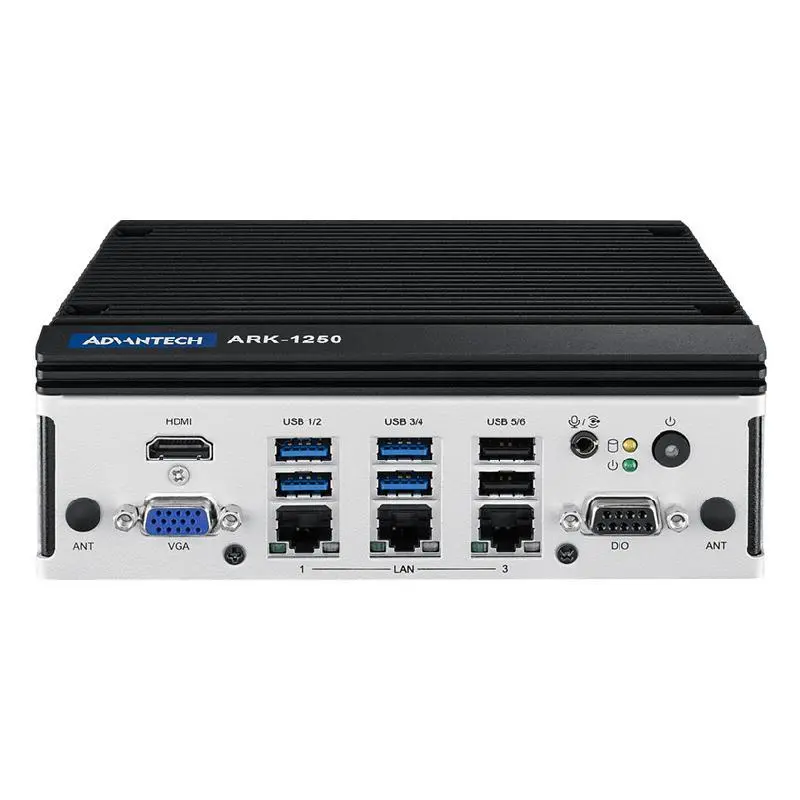

    3 x USB 3.2 and 3 x USB 2.0, dual independent displays with one 4K HDMI and one VGA

    3 Expansion: M.2 E-Key 2230, M.2 B-Key 2280, 1 x Full-size mSATA share with mPCIe slot

    mSATA and 1 x 2.5" SATA storage device

    12V ~ 24V wide range power input

    -40 ~ 60 °C extended operating temperature

    WISE-DeviceOn supported for quick AI deployment at scale

ARK-1250L-U2A1 ARK-1250L-S5A1 ARK-1250L-U2A1U ARK-1250L-S5A1U ARK-1250L-S5A2
Processor CPU Intel Core i3-1115G4E Intel Core i5-1145G7E Intel Core i3-1115G4E Intel Core i5-1145G7E Intel Core i5-1145G7E
Processor Core Number 2 4 2 4 4
Processor Frequency 2.2GHz 1.5GHz 2.2GHz 1.5GHz 1.5GHz
Processor BIOS AMI EFI 256 Mbit AMI EFI 256 Mbit AMI EFI 256 Mbit AMI EFI 256 Mbit AMI EFI 256 Mbit
Memory Technology DDR4 3200 MHz DDR4 3200 MHz DDR4 3200 MHz DDR4 3200 MHz DDR4 3200 MHz
Memory Max. Capacity 64 GB 64 GB 64 GB 64 GB 64 GB
Memory Socket 2 x 260-pin SO-DIMM 2 x 260-pin SO-DIMM 2 x 260-pin SO-DIMM 2 x 260-pin SO-DIMM 2 x 260-pin SO-DIMM
Memory ECC Support No No No No No
Graphics HDMI 1 1 1 1 1
Graphics VGA 1 1 1 1 1
Graphics Dual Display Yes, VGA + HDMI Yes, VGA + HDMI Yes, VGA + HDMI Yes, VGA + HDMI HDMI1 + HDMI2
Audio Main System Realtek ALC888S, High Definition Audio, Line-out, Mic-in Realtek ALC888S, High Definition Audio, Line-out, Mic-in Realtek ALC888S, High Definition Audio, Line-out, Mic-in Realtek ALC888S, High Definition Audio, Line-out, Mic-in Realtek ALC888S, High Definition Audio, Line-out, Mic-in
Ethernet Controller 3 3 3 3 4
Ethernet LAN1 10/100/1000/2500 Mbps Intel i225 GbE, support Wake On LAN 10/100/1000/2500 Mbps Intel i225 GbE, support Wake On LAN 10/100/1000/2500 Mbps Intel i225 GbE, support Wake On LAN 10/100/1000/2500 Mbps Intel i225 GbE, support Wake On LAN 10/100/1000/2500 Mbps Intel i225 GbE, support Wake On LAN
Ethernet LAN2 10/100/1000 Mbps Intel i219GbE, support Wake On LAN 10/100/1000 Mbps Intel i219GbE, support Wake On LAN 10/100/1000 Mbps Intel i219GbE, support Wake On LAN 10/100/1000 Mbps Intel i219GbE, support Wake On LAN 10/100/1000 Mbps Intel i219GbE, support Wake On LAN
Ethernet LAN3 10/100/1000/2500 Mbps Intel i225 GbE, support Wake On LAN 10/100/1000/2500 Mbps Intel i225 GbE, support Wake On LAN 10/100/1000/2500 Mbps Intel i225 GbE, support Wake On LAN 10/100/1000/2500 Mbps Intel i225 GbE, support Wake On LAN 10/100/1000/2500 Mbps Intel i225 GbE, support Wake On LAN
I/O Interface Serial 4 4 4 4 4
I/O Interface Serial Port 4 x RS-232/422/485 4 x RS-232/422/485 4 x RS-232/422/485 4 x RS-232/422/485 4 x RS-232/422/485
I/O Interface USB Interface 2 x USB3.2, 2 x USB2.0, 1 x internal USB2.0 for security dongle 2 x USB3.2, 2 x USB2.0, 1 x internal USB2.0 for security dongle 2 x USB3.2, 2 x USB2.0, 1 x internal USB2.0 for security dongle 2 x USB3.2, 2 x USB2.0, 1 x internal USB2.0 for security dongle 2 x USB3.2, 2 x USB2.0, 1 x internal USB2.0 for security dongle
I/O Interface USB2.0 1 1 1 1 1
I/O Interface USB3.0 2 2 2 2 2
I/O Interface GPIO 8-bit 8-bit 8-bit 8-bit 8-bit
I/O Interface Optional I/O 1 x CANBus 2.0 (DB9 connector) 1 x CANBus 2.0 (DB9 connector) 1 x CANBus 2.0 (DB9 connector) 1 x CANBus 2.0 (DB9 connector) 1 x CANBus 2.0 (DB9 connector)
Expansion Mini PCI Express 1 1 1 1 1
Expansion Mini PCIe #1 1 x Full-size 1 x Full-size 1 x Full-size 1 x Full-size 1 x Full-size
Expansion M.2 2 2 2 2 2
Expansion CAN Bus 1 1 1 1 1
Storage 2.5" HDD/SSD Supports 1 x SATA III Drive Bay (Compatible with 9.5mm height) Supports 1 x SATA III Drive Bay (Compatible with 9.5mm height) Supports 1 x SATA III Drive Bay (Compatible with 9.5mm height) Supports 1 x SATA III Drive Bay (Compatible with 9.5mm height) Supports 1 x SATA III Drive Bay (Compatible with 9.5mm height)
Storage mSATA 1 x Full-size (support either mSATA or miniPCIe) 1 x Full-size (support either mSATA or miniPCIe) 1 x Full-size (support either mSATA or miniPCIe) 1 x Full-size (support either mSATA or miniPCIe) 1 x Full-size (support either mSATA or miniPCIe)
Others Watchdog timer 255 levels timer interval, setup by software 255 levels timer interval, setup by software 255 levels timer interval, setup by software 255 levels timer interval, setup by software 255 levels timer interval, setup by software
Others TPM Optional AMO-I029 Optional AMO-I029 Optional AMO-I029 Optional AMO-I029 Optional AMO-I029
Software Support Microsoft Windows Windows 10/11 IoT Enterprise LTSC Windows 10/11 IoT Enterprise LTSC Windows 10/11 IoT Enterprise LTSC Windows 10/11 IoT Enterprise LTSC Windows 10/11 IoT Enterprise LTSC
Operating System Ubuntu V V V V V
Software Support Linux Ubuntu 20.04 Ubuntu 20.04 Ubuntu 20.04 Ubuntu 20.04 Ubuntu 20.04
Power Power Type AT/ATX AT/ATX AT/ATX AT/ATX AT/ATX
Power Input Voltage 12 ~ 24 VDC 12 ~ 24 VDC 12 ~ 24 VDC 12 ~ 24 VDC 12 ~ 24 VDC
Power Power Adaptor AC to DC 19V/4.74A 90W (Default) AC to DC 19V/4.74A 90W (Default) AC to DC 19V/4.74A 90W (Default) AC to DC 19V/4.74A 90W (Default) AC to DC 19V/4.74A 90W (Default)
Power Consumption Typical 18W 19.8W 18W 19.8W 19.8W
Power Consumption Max. 30.6W 35.1W 30.6W 35.1W 35.1W
Environment Vibration During Operation With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Environment Shock During Operation With SSD/mSATA: 30G With SSD/mSATA: 30G With SSD/mSATA: 30G With SSD/mSATA: 30G With SSD/mSATA: 30G
Environment Temperature (Operating) -40~60°C -40~60°C -40~60°C -40~60°C -40~60°C
Environment Storage Temperature - 40 ~ 85° C (-40 ~185° F) - 40 ~ 85° C (-40 ~185° F) - 40 ~ 85° C (-40 ~185° F) - 40 ~ 85° C (-40 ~185° F) - 40 ~ 85° C (-40 ~185° F)
Environment Relative Humidity 95% @ 40° C (non-condensing) 95% @ 40° C (non-condensing) 95% @ 40° C (non-condensing) 95% @ 40° C (non-condensing) 95% @ 40° C (non-condensing)
Mechanical Construction Aluminum housing Aluminum housing Aluminum housing Aluminum housing Aluminum housing
Mechanical Mounting DIN-rail/Wall Mount DIN-rail/Wall Mount DIN-rail/Wall Mount DIN-rail/Wall Mount DIN-rail/Wall Mount
Mechanical Dimensions 60 x 173 x 141 mm (2.36 x 6.73 x 5.55 in) 60 x 173 x 141 mm (2.36 x 6.73 x 5.55 in) 60 x 173 x 141 mm (2.36 x 6.73 x 5.55 in) 60 x 173 x 141 mm (2.36 x 6.73 x 5.55 in) 60 x 173 x 141 mm (2.36 x 6.73 x 5.55 in)
Mechanical Weight 1.5 kg (3.3lb) 1.5 kg (3.3lb) 1.5 kg (3.3lb) 1.5 kg (3.3lb) 1.5 kg (3.3lb)
Certification EMC CE, FCC Class B CE, FCC Class B CE, FCC Class B CE, FCC Class B CE, FCC Class B
Certification Safety Certifications UL, CB, CCC UL, CB, CCC UL, CB, CCC UL, CB, CCC UL, CB, CCC
