| ARK-1220F-S6A1 | ||
| Processor | CPU | Intel Atom E3940 Quad Core Soc |
| Processor | Core Number | 4 |
| Processor | Frequency | 1.6 GHz, turbo burst 1.8GHz |
| Processor | BIOS | AMI EFI 128Mbit |
| Memory | Technology | DDR3L 1866 MHz |
| Memory | Max. Capacity | 8 GB |
| Memory | Socket | 2 x 204-pin SO-DIMM, 2 x 4GB or 1 x 8GB memory |
| Memory | ECC Support | No |
| Graphics | Chipset | Intel HD Graphics 500, CPU integrated |
| Graphics | Graphic Engine | Gen9 Low Power; 18 Execution Units Media Codec Supported: H.264, MPEG2, MVC, VC-1, WMV9, H.265 / HEVC, VP8, JPEG / MJPEG, 3D HW Acceleration: OpenGL 4.4, DirectX* 12, OpenCL* 2.0 |
| Graphics | HDMI | 1 |
| Graphics | VGA | 1 |
| Graphics | Dual Display | VGA + HDMI (Std.) or Dual HDMI (by project) |
| Audio | Main System | Realtek ALC888S, High Definition Audio, Line-out, Mic-in |
| Ethernet | Controller | 2 |
| Ethernet | LAN1 | 10/100/1000 Mbps Intel I210-IT GbE, support Wake on LAN |
| Ethernet | LAN2 | 10/100/1000 Mbps Intel I210-IT GbE, support Wake on LAN |
| I/O Interface | Serial Port | 1 x 2.5K VDC Isolated RS-232/422/485 (default RS-485). 1 x 2.5K VDC Isolated RS-422/485 (default RS-485) |
| I/O Interface | Serial | 2 |
| I/O Interface | USB Interface | 4 x USB 3.0, 1 x USB 2.0 |
| I/O Interface | USB2.0 | 1 |
| I/O Interface | USB3.0 | 4 |
| I/O Interface | GPIO | 8-bit |
| Expansion | Mini PCI Express | 1 |
| Expansion | Mini PCIe #1 | 1 x full-size mPCIe for WLAN/WWAN with nano SIM holder |
| Expansion | M.2 | 1 |
| Others | Watchdog timer | 255 levels timer interval, setup by software |
| Others | TPM | Infineon SLB9665XQ 2.0 |
| Storage | mSATA | 1 x Full-size mSATA (*share with mPCIe slot) |
| Storage | 2.5" HDD/SSD | 1 x 2.5" SATAIII Drive bay (compatible with 15mm height) |
| Software Support | Microsoft Windows | Windows 10 |
| Software Support | Linux | Support by project |
| Power | Power Type | AT/ATX |

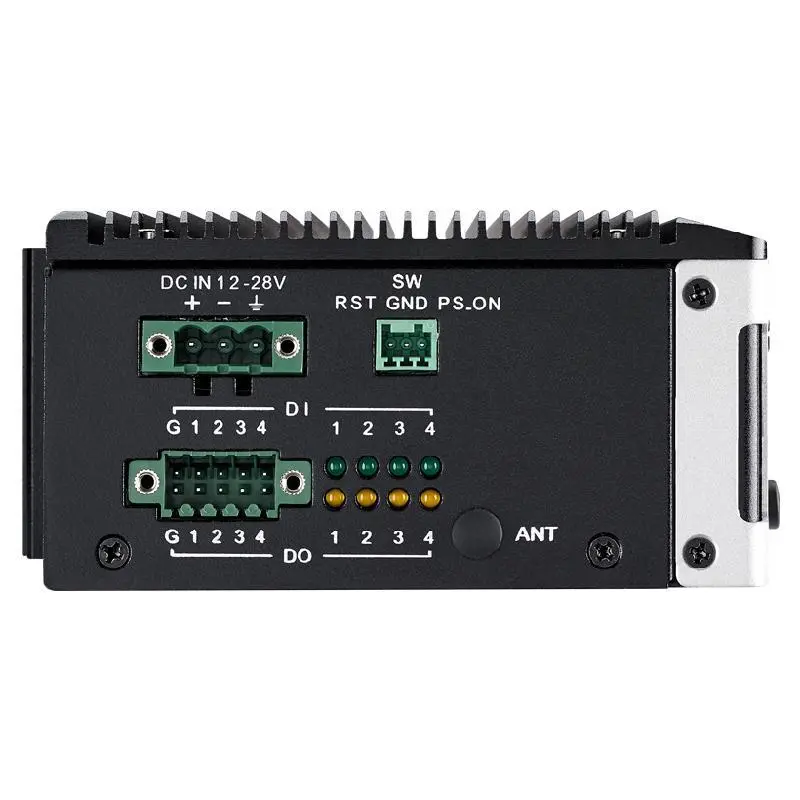

| Power | Input Voltage | 12 ~ 28 VDC |
| Power | Power Adaptor | AC to DC, 60W (Optional) |
| Mechanical | Construction | Aluminum housing |

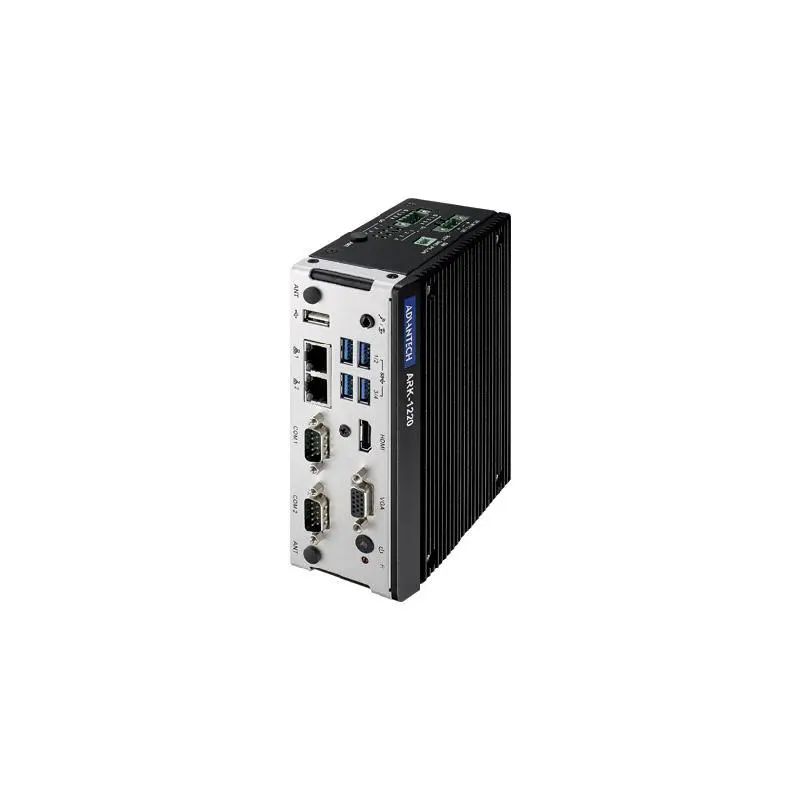

| Mechanical | Mounting | DIN-rail/Wall Mount |
| Mechanical | Dimensions | 60 x 158 x 114 mm (2.34” x 6.22” x 4.49”) |
| Mechanical | Weight | 1.5 kg (3.3lb) |
| Environment | Operational Temperature | With extended temp. peripherals: -30 ~ 60 °C (-22 ~ 140 °F) with 0.7 m/s air flow. With 2.5 inch hard disk: 0 ~ 40 °C (32 ~ 104 °F) with 0.7 m/s air flow |
| Environment | Storage Temperature | -40 ~ 85° C (-40 ~ 185° F) |
| Environment | Relative Humidity | 95% @ 40° C (non-condensing) |
| Environment | Vibration During Operation | With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| Environment | Shock During Operation | With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration |
| Certification | EMC | CE/FCC Class B, CCC, BSMI |
| Certification | Safety Certifications | UL, CB, CCC, BSMI |
| Power | Consumption | TBD |

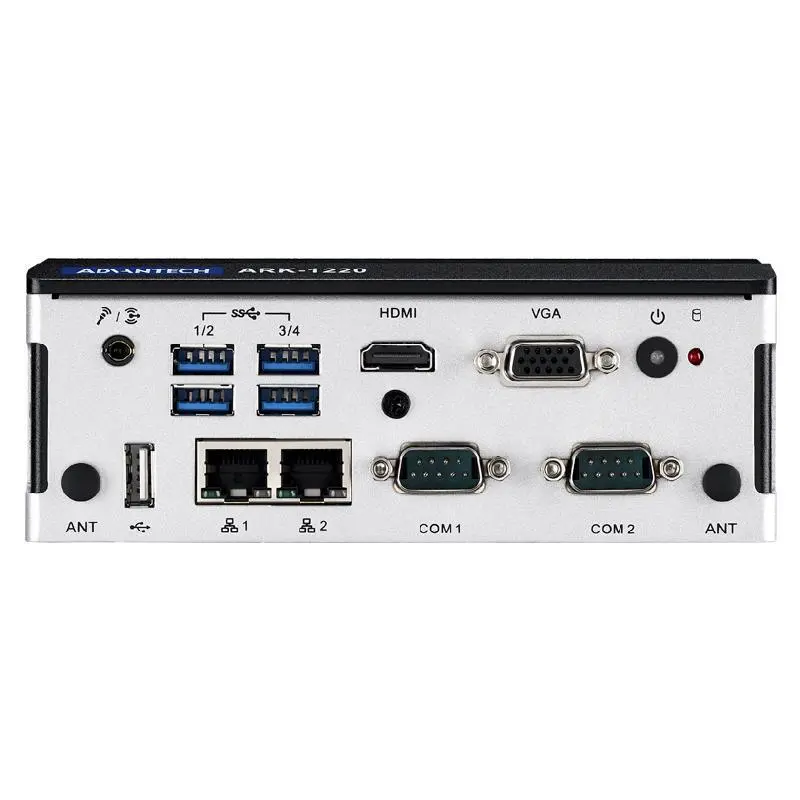

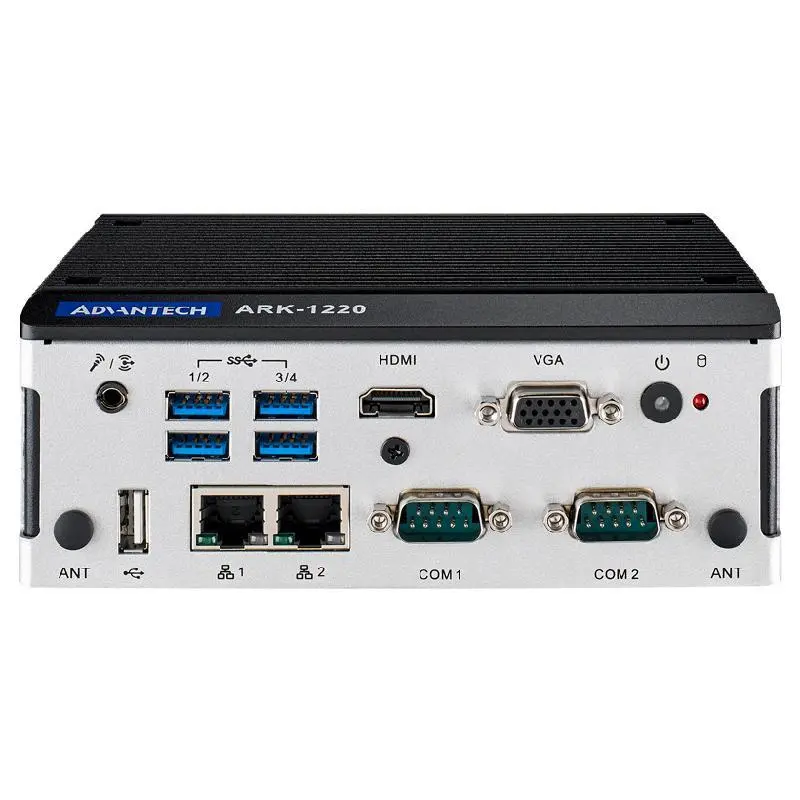

Advantech ARK-1220F Intel Atom E3940 QC SoC with isolated GbE, COM and DIO ports DIN-Rail Fanless Box PC
