| ARK-1220L-S6A2 | ||
| Processor | CPU | Intel Atom E3940 Quad Core Soc |
| Processor | Core Number | 4 |
| Processor | Frequency | 1.6 GHz, turbo burst 1.8GHz |
| Processor | BIOS | AMI EFI 64 Mbit |
| Memory | Technology | DDR3L 1866 MHz |
| Memory | Max. Capacity | 8 GB |
| Memory | Socket | 2 x 204-pin SO-DIMM, 2 x 4GB or 1 x 8GB memory |
| Memory | ECC Support | No |
| Graphics | Chipset | Intel HD Graphics 500, CPU integrated |
| Graphics | Graphic Engine | Gen9 Low Power; 18 Execution Units Media Codec Supported: H.264, MPEG2, MVC, VC-1, WMV9, H.265 / HEVC, VP8, JPEG / MJPEG, 3D HW Acceleration: OpenGL 4.4, DirectX* 12, OpenCL* 2.0 |
| Graphics | HDMI | 2 |
| Graphics | Dual Display | HDMI1 + HDMI2 |
| Audio | Main System | Realtek ALC888S, High Definition Audio, Line-out, Mic-in |
| Ethernet | Controller | 2 |
| Ethernet | LAN1 | 10/100/1000 Mbps Intel i210 GbE, support Wake On Lan |
| Ethernet | LAN2 | 10/100/1000 Mbps Intel I210 GbE, support Wake on LAN |
| I/O Interface | Serial Port | 2 x RS-232/422/485 with auto flow control, COM2 with 5V/12V power supply |
| I/O Interface | Serial | 2 |
| I/O Interface | USB Interface | 4 x USB 3.0 |
| I/O Interface | USB3.0 | 4 |
| I/O Interface | GPIO | 8-bit |
| Expansion | Mini PCI Express | 1 |
| Expansion | Mini PCIe #1 | 1 x Full-size mPCIe with SIM holder |
| Expansion | M.2 | 1 |
| Others | Watchdog timer | 255 levels timer interval, setup by software |
| Others | TPM | By Project |
| Storage | mSATA | 1 x Full-size mSATA (*share with mPCIe slot) |
| Storage | 2.5" HDD/SSD | 1 x 2.5" SATAIII Drive bay (compatible with 15mm height) |
| Software Support | Microsoft Windows | Windows 10 |
| Operating System | Ubuntu | V |
| Power | Power Type | AT/ATX |

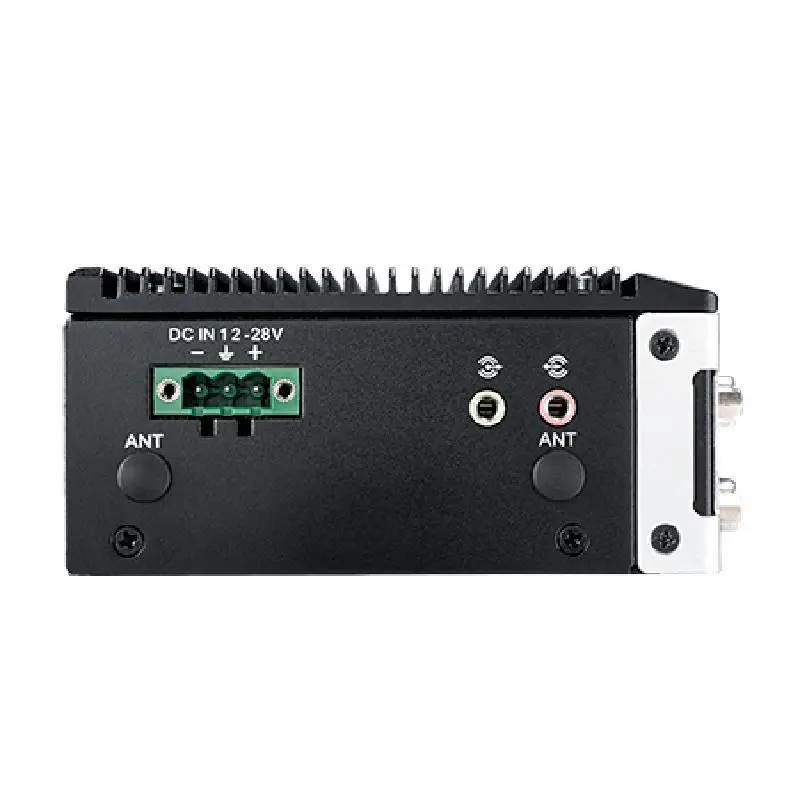

| Power | Input Voltage | 12 ~ 28 VDC |
| Power | Power Adaptor | AC to DC, 60W (Optional) |
| Power | Consumption | TBD |
| Mechanical | Construction | Aluminum housing |
| Mechanical | Mounting | DIN-rail/Wall Mount |
| Mechanical | Dimensions | 53.5 x 158 x 114 mm (2.11" x 6.22" x 4.49") |
| Mechanical | Weight | 0.9kg |
| Environment | Operational Temperature | With extended temp. peripherals: -30 ~ 70 C (-22 ~ 158F) w/ turbo burst off with 0.7 m/s air flow; With 2.5 inch hard disk: 0 ~ 40 °C (32 ~ 104°F) with 0.7 m/s air flow |
| Environment | Storage Temperature | -40 ~ 85° C (-40 ~ 185° F) |
| Environment | Relative Humidity | 95% @ 40° C (non-condensing) |
| Environment | Vibration During Operation | With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| Environment | Shock During Operation | With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration |
| Certification | EMC | CE/FCC Class B, CCC, BSMI |
| Certification | Safety Certifications | UL, CB, CCC, BSMI |

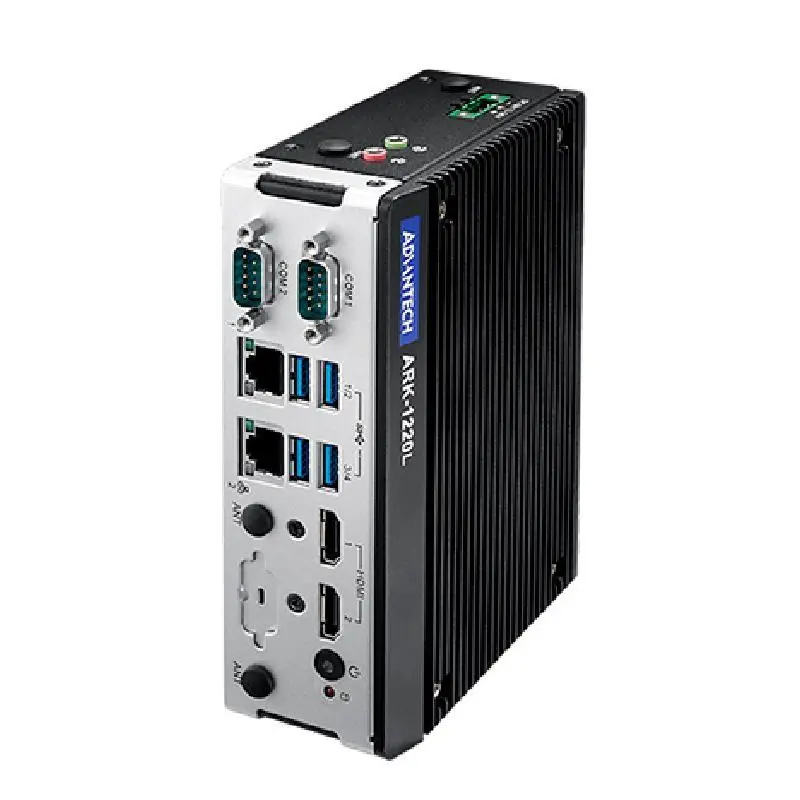

Advantech ARK-1220L Intel Atom E3940 QC SoC with 4K Dual HDMI/Dual LAN/M.2 DIN-Rail Fanless Box PC
