| ARK-1124U-S1A3 | ||
| Processor | CPU | Intel® Celeron® N3350 Dual Core SoC |
| Processor | Core Number | 2 |
| Processor | L2 Cache | 2 MB |
| Processor | Frequency | 1.1 GHz, turbo burst 2.4 GHz |
| Processor | BIOS | AMI EFI 64Mbit |
| Memory | Technology | DDR3L 1866 MHz |
| Memory | Max. Capacity | 8 GB |
| Memory | Socket | 1 x 204-pin SO-DIMM |
| Memory | ECC Support | No |
| Graphics | Chipset | Intel® HD Graphics 500 |
| Graphics | Graphic Engine | 4K Codec Decode& Encode for H.264, MPEG2, MVC, VC-1, WMV9, H.265 / HEVC, VP8, JPEG / MJPEG |
| Graphics | VGA | 1 |
| Ethernet | Controller | 2 |
| Ethernet | LAN1 | 10/100/1000 Mbps Intel i210 GbE, support Wake On Lan |
| Ethernet | LAN2 | 10/100/1000 Mbps Intel I210 GbE, support Wake on LAN |
| Audio | Main System | Realtek ALC888S, High Definition Audio. Line-out, Line-in |
| I/O Interface | Serial Port | 2 x RS-232/422/485 port with auto flow control |
| I/O Interface | Serial | 2 |
| I/O Interface | USB Interface | 4 x USB 3.0 |
| I/O Interface | USB3.0 | 4 |
| Expansion | Mini PCI Express | 1 |
| Expansion | Mini PCIe #1 | 1 x full-size mPCIe for WLAN/WWAN with SIM holder |
| Expansion | M.2 | 1 |
| Expansion | iDoor Module | 1, optional (2nd layer) |
| Others | Watchdog timer | 255 levels timer interval, setup by software |
| Others | TPM | Infineon SLB9665XQ 2.0 |
| Storage | 2.5" HDD/SSD | 1 x 2.5” SATA HDD Bay (Max Height 9.5mm) |
| Software Support | Microsoft Windows | Windows 10 |
| Software Support | Linux | Support by project |
| Power | Power Type | AT/ATX |
| Power | Input Voltage | 12 VDC |
| Power | Power Adaptor | AC to DC, DC12 V/5 A, 60 W with lockable DC Jack |
| Power | Consumption | Typical 5W, Max. 15.73W |
| Power Consumption | Typical | 5W |
| Power Consumption | Max. | 15.73W |
| Mechanical | Construction | Aluminum housing |
| Mechanical | Mounting | DIN-Rail/Wall/VESA Mounting Kits (Optional) |
| Mechanical | Dimensions | 133 x 46.4 x 94.2mm (5.24" x 1.83" x 3.71") |
| Mechanical | Weight | 0.7 kg (1.55 lb) |
| Environment | Operational Temperature | With extended temperature peripherals: -20 ~ 60 °C (-4 ~ 140 °F) with 0.7m/s air flow, With 2.5-inch hard disk 0 ~ 40 °C (32 ~ 104 °F) with 0.7m/s air flow |
| Environment | Storage Temperature | -40 ~ 85° C (-40 ~ 185° F) |
| Environment | Relative Humidity | 95% @ 40° C (non-condensing) |
| Environment | Vibration During Operation | With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis; With HDD: 0.5Grms, IEC 60068-2-64, random, 5~500Hz, 1hr/axis |
| Environment | Shock During Operation | With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration; With HDD: 10G, IEC 60068-2-27, half sine, 11 ms duration |
| Certification | EMC | CE, FCC Class B, CCC, BSMI |
| Certification | Safety Certifications | UL 62368, CB 62368, CCC, BSMI |

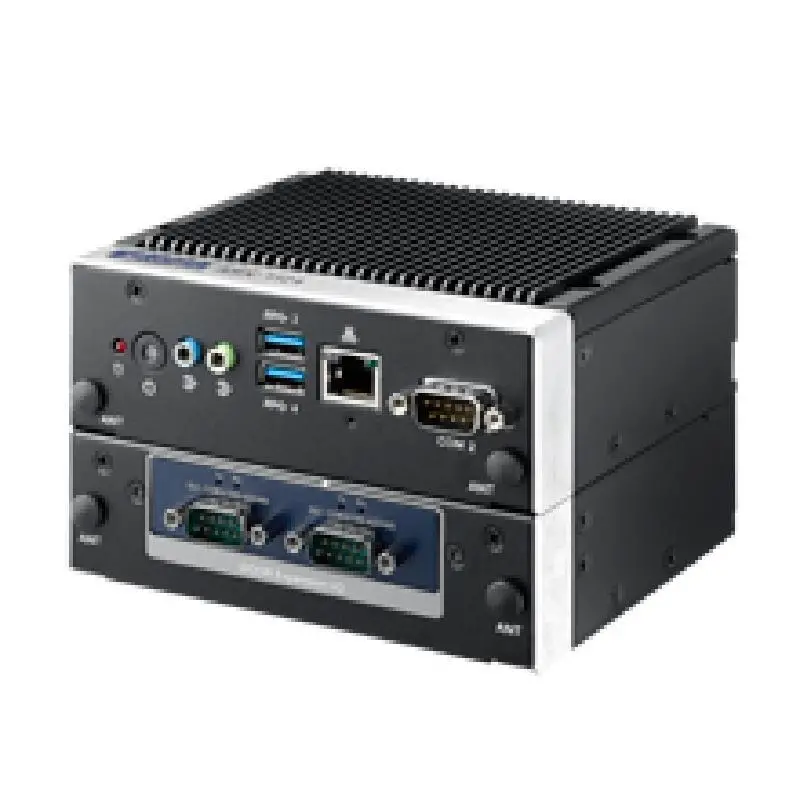

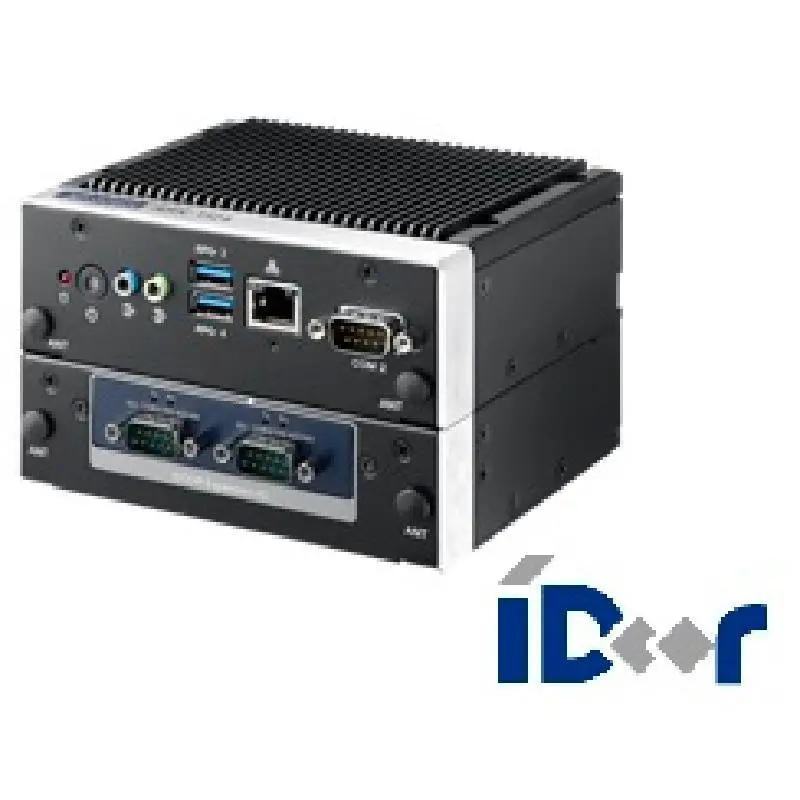

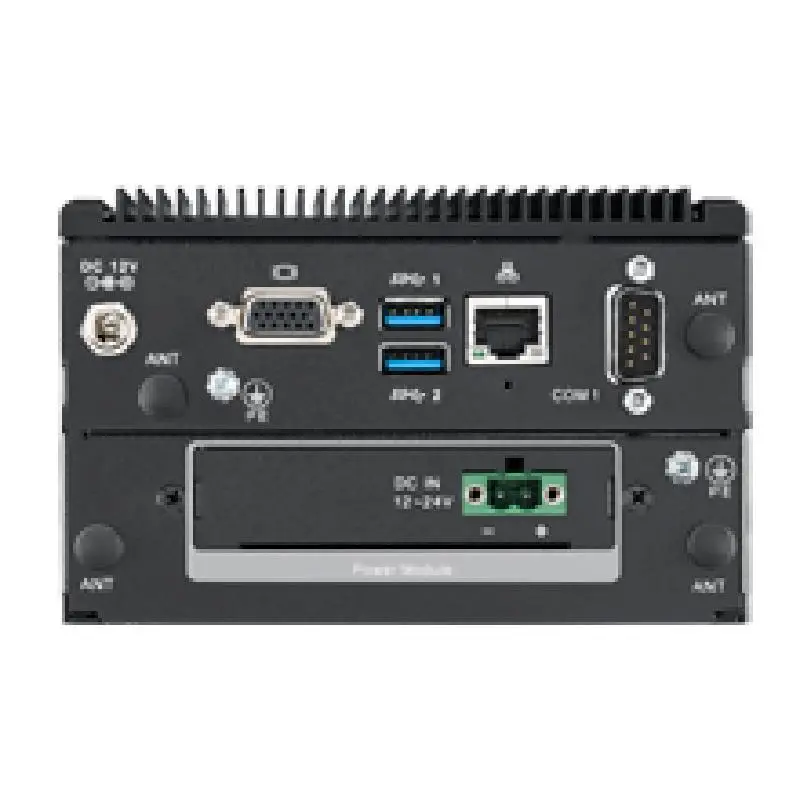

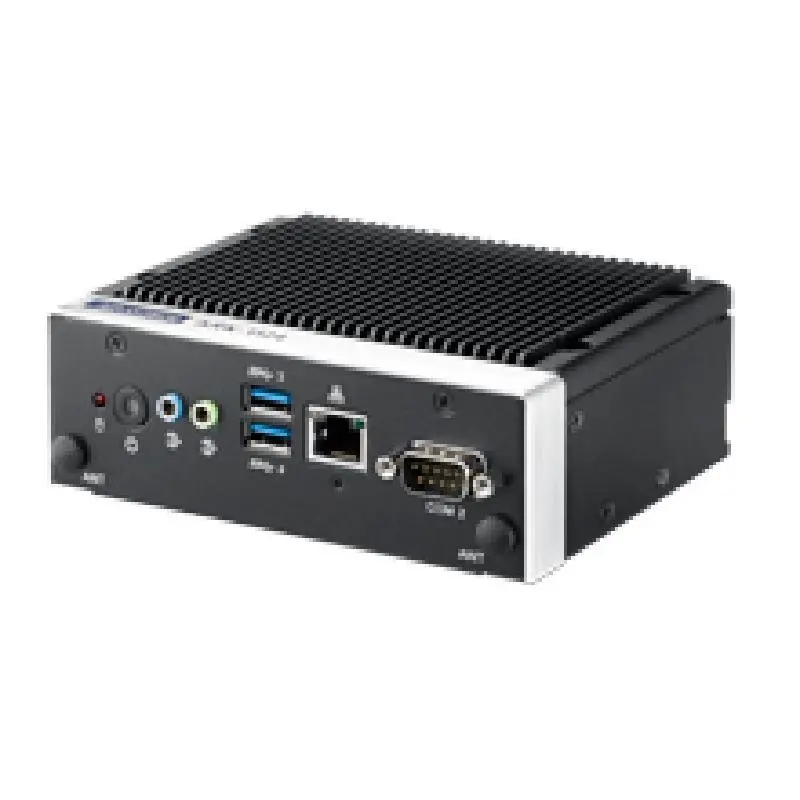

Advantech ARK-1124U Intel Celeron N3350 DC SoC With Dual LAN/ Four USB 3.0/M.2/TPM IoT Gateway Modular Fanless Box PC
