| ARK-2121F-U0A2E | ||
| Processor | CPU | Intel Celeron Processor J1900 Quad Core SoC |
| Processor | Core Number | 4 |
| Processor | L2 Cache | 2 MB |
| Processor | Frequency | 2.0 GHz, turbo boost up to 2.42 GHz |
| Processor | BIOS | AMI EFI |
| Memory | Technology | DDR3L 1333 MHz |
| Memory | Max. Capacity | 8 GB |
| Memory | Socket | 1 x 204-pin SO-DIMM |
| Memory | ECC Support | No |
| Graphics | Chipset | Intel Celeron J1900 SoC integrated, 7th Gen. Intel Graphic core |
| Graphics | Graphic Engine | DirectX 11.1, OCL 1.2, OGL 3.2; Encode: H.264, MPEG2/4, VC1, WMV9; Decode: H.264, MPEG2 |
| Graphics | HDMI | 1 |
| Graphics | VGA | 1 |
| Graphics | Dual Display | Yes, VGA + HDMI |
| Audio | Main System | Realtek ALC888S, High Definition Audio. Line-out,Mic-in,Line-in |
| Ethernet | Controller | 2 |
| Ethernet | LAN1 | 10/100/1000Mbps Intel i210 GbE, support Wake On LAN, |
| Ethernet | LAN2 | 10/100/1000Mbps Intel i210 GbE, support Wake On LAN, |
| Ethernet | LAN3/LAN4 | support by project |
| I/O Interface | Serial Port | 6 x RS232/ 422/ 485 |
| I/O Interface | Serial | 6 |
| I/O Interface | USB Interface | 1 x USB 3.0, 5 x USB 2.0, 1 x internal USB 2.0 for security dongle |
| I/O Interface | USB2.0 | 6 |
| I/O Interface | USB3.0 | 1 |
| I/O Interface | PS/2 | Yes ( by project only) |
| I/O Interface | GPIO | 8-bit |
| Expansion | Mini PCI Express | 2 |
| Expansion | Mini PCIe #1 | 1 x Full-size mPCIe with SIM holder |
| Expansion | Mini PCIe #2 | 1 x Full-size mPCIe |
| Other | Digital IO | 4ch digital input and 4ch digital output with 3kV isolation |
| Others | Watchdog timer | 255 levels timer interval, setup by software |
| Storage | mSATA | 1 x full size mSATA socket, with USB signal co-lay |
| Storage | 2.5" HDD/SSD | 1 x 2.5" SATA Drive bay (Compatible with 12.5mm height) |
| Software Support | Microsoft Windows | WES8, Windows 8, WES7, Windows 7 |
| Software Support | Linux | Support by project |
| Power | Power Type | ATX |
| Power | Input Voltage | 9 ~ 36 VDC |
| Power | Power Adaptor | AC to DC, DC19 V/3.42 A, 65 W (Optional) |
| Power | Consumption | Typical 8.4 W, Max. 16.2 W |
| Power Consumption | Typical | 8.4W |
| Power Consumption | Max. | 16.2W |
| Mechanical | Construction | Aluminum housing |
| Mechanical | Mounting | Din-Rail mounting, Desk/wall-mounting, VESA mounting |
| Mechanical | Dimensions | 264.5 x 68.4 x 133.0 mm (10.41" x 2.69" x 5.24") |
| Mechanical | Weight | 2.3 kg (5.07 lb) |
| Environment | Operational Temperature | With extended temperature peripherals: -20 ~ 70° C (-4 ~ 158° F) with 0.7m/s air flow;With 2.5-inch hard disk 0 ~ 45° C (32 ~ 112° F) with 0.7m/s air flow |
| Environment | Storage Temperature | -40 ~ 85° C (-40 ~ 185° F) |
| Environment | Relative Humidity | 95% @ 40° C (non-condensing) |
| Environment | Vibration During Operation | With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis. |
| Environment | Shock During Operation | With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration |
| Certification | EMC | CE/FCC Class A, CCC, BSMI |
| Certification | Safety Certifications | CB, UL, CCC, BSMI |

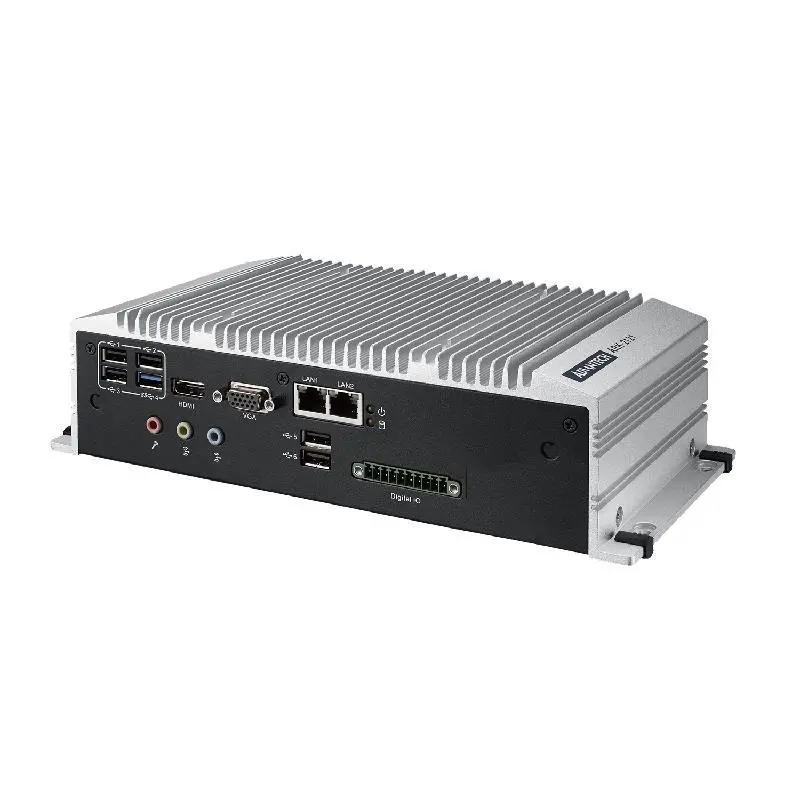

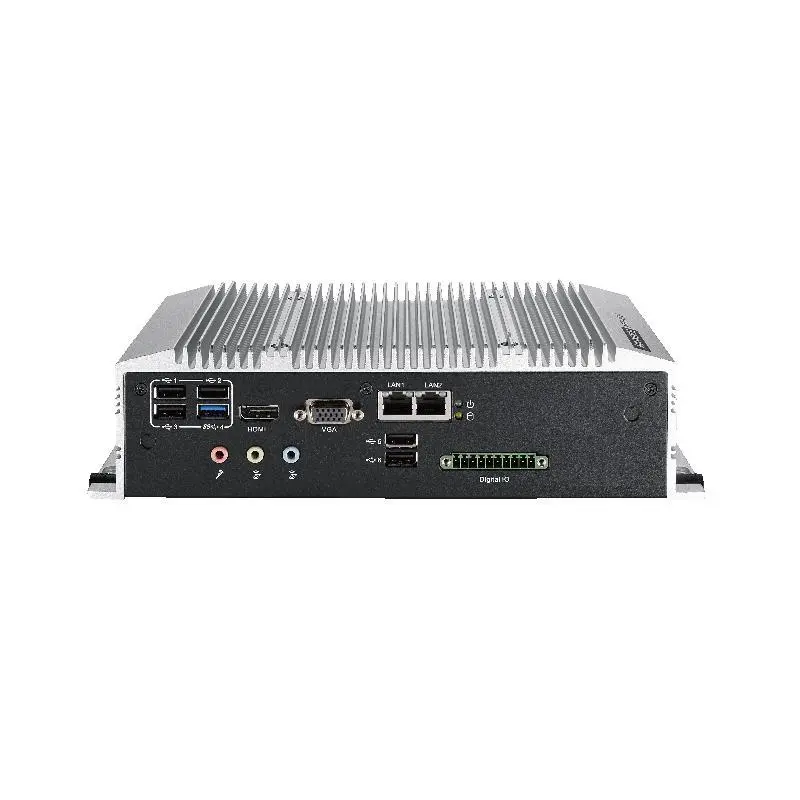

Advantech ARK-2121F Intel® Celeron® Quad Core J1900 SoC with Multiple I/Os Fanless Box PC
