| ARK-3530L-00A1 | ||
| Processor | CPU | E3-1235L V5/ i7-7700 or i7-6700/ i5-7500/ i3-7101E |
| Processor | L3 Cache | 8MB/ 8MB/ 6MB/ 3MB |
| Processor | Frequency | 2.0GHz/ 3.6GHz/3.4GHz /3.4GHz/3.9GHz |
| Processor | CPU TDP | 25W/ 65W/ 65W/ 54W |
| Processor | Chipset | C236 |
| Processor | BIOS | AMI EFI 127Mbit |
| Memory | Technology | DDR4 2133MHz |
| Memory | Max. Capacity | 32 GB |
| Memory | Socket | 2 x 260-pin SO-DIMM |
| Memory | ECC Support | Yes(by processor) |
| Graphics | Chipset | Intel® HD Graphics 630 |
| Graphics | Graphic Engine | Direct x 12, OpenGL 4.4, HW Encode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG and VP8, HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8 and VP9 |
| Graphics | HDMI | 1 |
| Graphics | VGA | 1 |
| Graphics | Triple Display | VGA+HDMI + 3rd display module |
| Graphics | Optional 3rd Display Module | DVI-D / DP / HDMI Display Port |
| Audio | Main System | Realtek ALC888S, High Definition Audio, Line-out, Mic-in |
| Ethernet | Controller | 4 |
| Ethernet | LAN1 | 10/100/1000 Mbps Intel I219-LM GbE, support Wake On Lan |
| Ethernet | LAN2 | 10/100/1000 Mbps Intel I210 GbE, support Wake on LAN |
| Ethernet | LAN3/LAN4 | 10/100/1000 Mbps Intel I210 GbE, support Wake On Lan |
| I/O Interface | Serial Port | 4 x RS-232/422/485 port with auto flow control; COM 1 support 5V/12V power supply (by jumper) |
| I/O Interface | Serial | 4 |
| I/O Interface | USB Interface | 8 x USB 3.0 ports |
| I/O Interface | USB3.0 | 8 |
| I/O Interface | Optional I/O | 16bit DIO or 2 x RS-232 ports |
| I/O | PS/2 | 1 Port support by cable and bracket (Optional) |
| Expansion | Mini PCI Express | 2 |
| Expansion | Mini PCIe #1 | 1 x Full-size mPCIe with SIM holder |
| Expansion | Mini PCIe #2 | 1 x Full-size mPCIe |
| Expansion | M.2 | 1 |
| Expansion | iDoor Module | 1 set (Optional) |
| Expansion | Add-on Card Slot | Maximum card size 110mm (H) x 180mm (L), Suggest maximum power consumption 10W for each slot, 2 Slots PCI (Default), 2 Slots PCIex8 (Option AMO-R026), 1 Slots PCIex16 (Support by project) |
| Others | Watchdog timer | 255 levels timer interval, setup by software |
| Others | TPM | By Project |
| Storage | mSATA | 2 x mSATA socket (Share with Mini PCIe) |
| Storage | 2.5" HDD/SSD | 2 x 2.5" SATAIII Drive bay (compatible with 15mm height) |
| Software Support | Microsoft Windows | Windows 10 (Windows 7 for 6th Gen CPU only) |
| Software Support | Linux | Support by project |
| Power | Power Type | AT / ATX |
| Power | Input Voltage | 12 VDC |
| Power | Power Adaptor | AC to DC, 150W (Optional) |
| Power | Consumption | Typical 25.68W, Max 88.92W |
| Power Consumption | Typical | 25.68W |
| Power Consumption | Max. | 88.92W |
| Mechanical | Construction | Aluminum housing |
| Mechanical | Mounting | Desk mounting |
| Mechanical | Dimensions | 105 x 205 x 230 mm (4.13" x 8.07" x 9.06") (WxHxD) |
| Mechanical | Weight | 5.1 Kg |
| Environment | Operational Temperature | 25W/35W/65W(only 6th Gen) Processor with extended temp peripherals: -20 ~ 60° C with 0.7m/s air flow, Under 73W processor with HDD: 0 ~ 40° C with 0.7m/s air flow |
| Environment | Storage Temperature | -40 ~ 85° C |
| Environment | Relative Humidity | 95% @ 40° C (non-condensing) |
| Environment | Vibration During Operation | With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| Environment | Shock During Operation | With SSD/mSATA:30Grms, IEC 60068-2-27, half sine, 11ms duration |
| Certification | EMC | CE/FCC Class B, CCC, BSMI |
| Certification | Safety Certifications | CB, UL, CCC, BSMI |

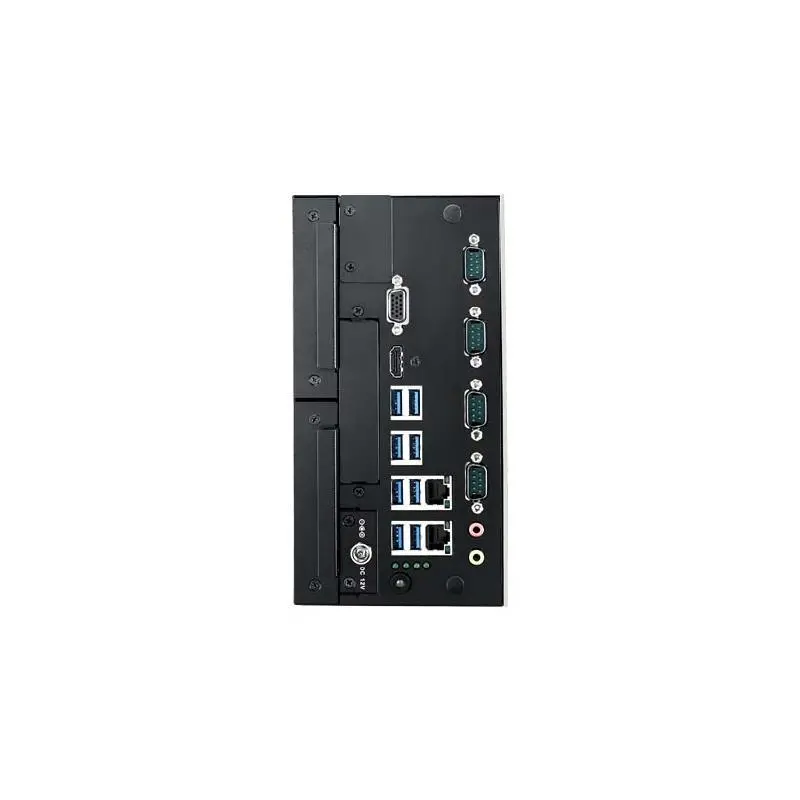

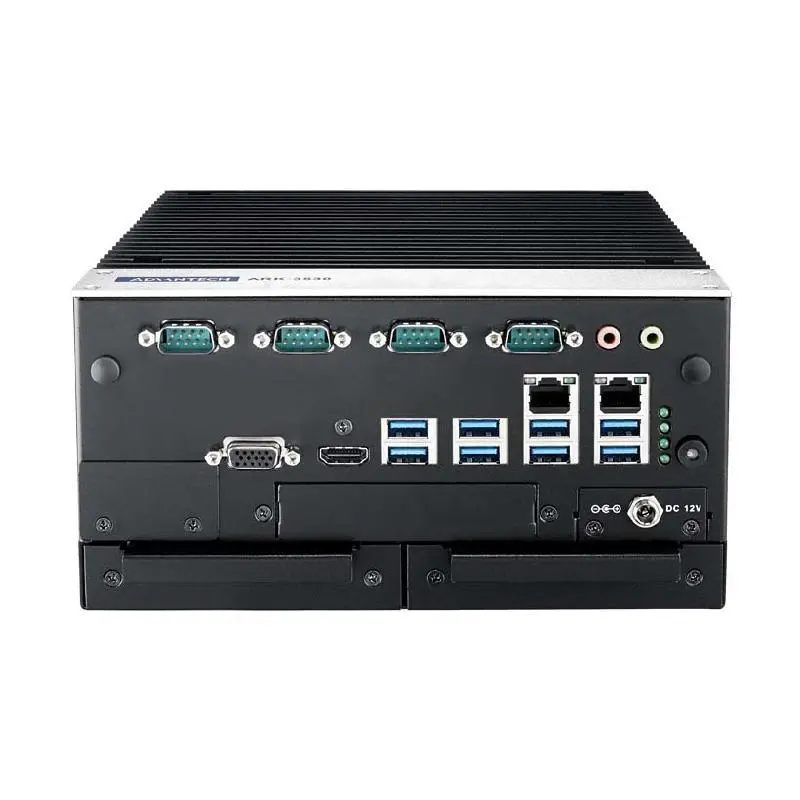

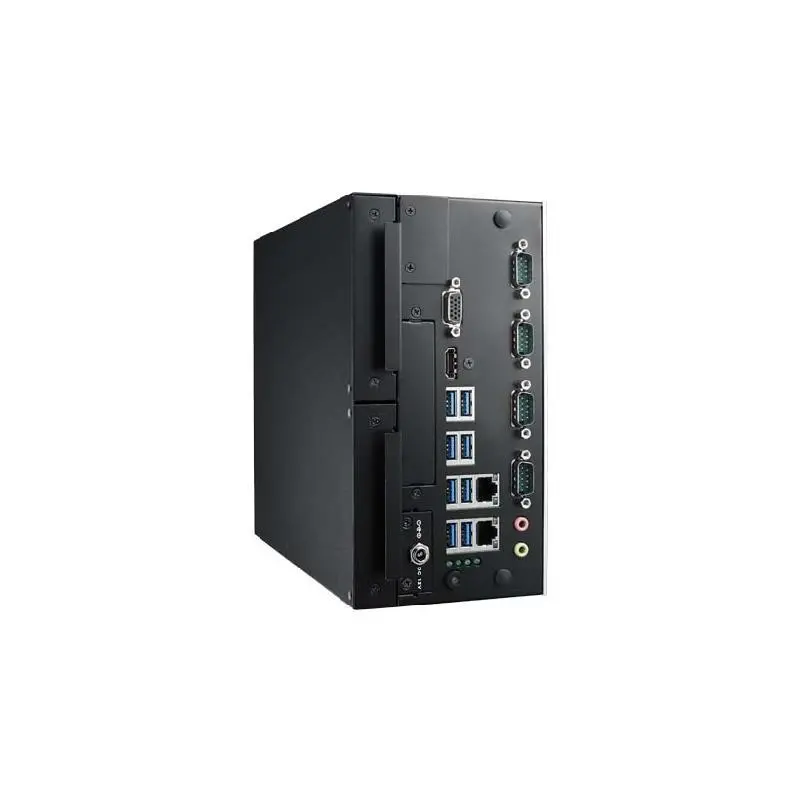

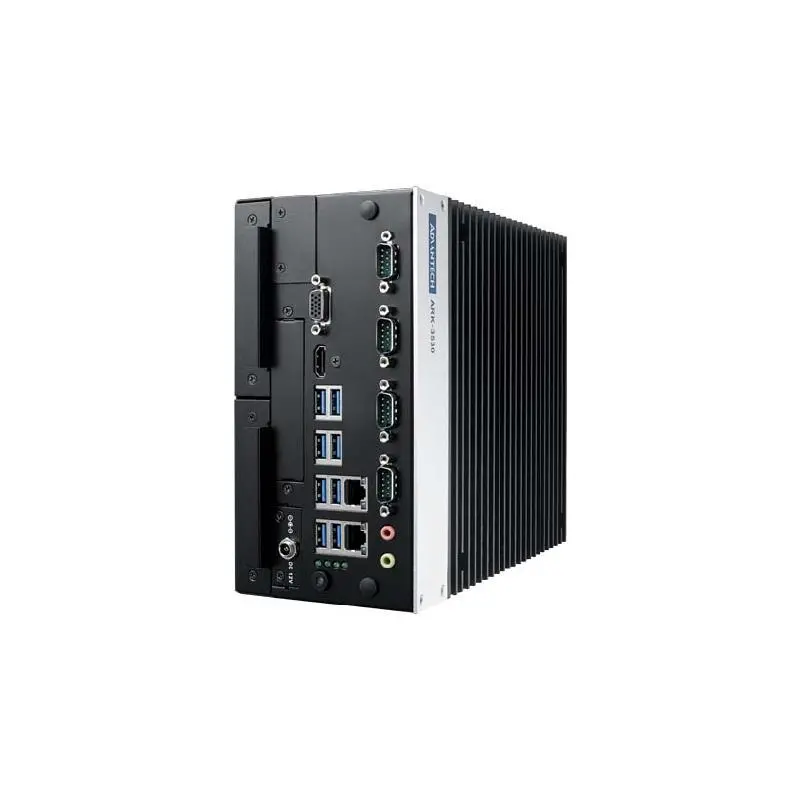

Advantech ARK-3530L Intel®Xeon® E3 / Core™ i3/i5/i7 LGA1151 Modular Expansion Fanless Box PC
