| ARK-3532D-00A1 | ||
| Processor | CPU | Intel Xeon W-1290TE/Intel Core i9 10900E/Intel Core i7 10700E/Intel Core i5 10500E/Intel Core i3 10100E/Intel Celeron G5900E |
| Processor | Core Number | 10/ 10/ 8/ 6/ 4/ 2 |
| Processor | L3 Cache | 20MB/ 20MB /16MB/ 12MB/ 6MB/ 2MB |
| Graphics | Chipset | Intel UHD Graphics 630 |
| Memory | Technology | DDR4 2933MHz SO-SIMM |
| Memory | Max. Capacity | 64 GB |
| Memory | Socket | 2 x 260 pin SO-DIMM |
| Memory | ECC Support | Yes(by processor) |
| Processor | Chipset | W480E |
| Graphics | Graphic Engine | Direct x 12, OpenGL 4.4, HW Encode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG and VP8, HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8 and VP9 |
| Graphics | HDMI | 1 |
| Graphics | VGA | 1 |
| Audio | Main System | Realtek ALC888S, High Definition Audio, Line-out, Mic-in |
| Ethernet | Controller | 4 |
| Ethernet | LAN1 | 10/100/1000 Mbps Intel I219-LM GbE, support Wake On Lan |
| Ethernet | LAN2 | 10/100/1000 Mbps Intel I210 GbE, support Wake on LAN |
| Ethernet | LAN3/LAN4 | 10/100/1000 Mbps Intel I210 GbE, support Wake On Lan |

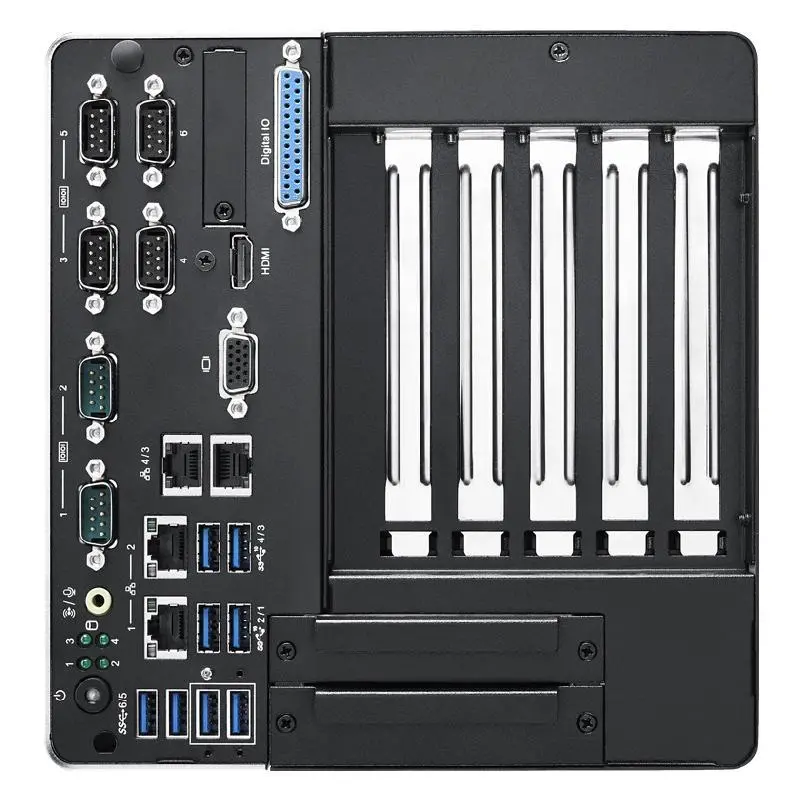

| I/O Interface | Serial Port | 2 x RS232, 4 x RS232/422/485 |
| I/O Interface | Serial | 6 |
| I/O Interface | USB Interface | 4 x USB 3.2 (10Gbs),2 x USB 3.0, 2 x Independent USB 3.0 |
| I/O Interface | USB3.0 | 8 |
| Expansion | Mini PCI Express | 1 |
| Expansion | Mini PCIe #1 | 1 x Full-size Mini PCIe (1 x support mSATA, 1 x support SIM holder) #1 |
| Expansion | M.2 | 1 |
| Expansion | PCI | 2 |
| Expansion | PCI Express x 4 | 1 |
| Expansion | PCI Express x 16 | PCI-E x16 graphics card slot |
| Others | Watchdog timer | 255 levels timer interval, setup by software |
| Storage | mSATA | 1 x mSATA socket (Share with Mini PCIe) |
| Storage | 2.5" HDD/SSD | 2 x 2.5" SATAIII Drive bay (compatible with 15mm height) |
| Software Support | Microsoft Windows | Windows 10/11 IoT Enterprise LTSC |
| Software Support | Linux | Support by project |
| I/O Interface | GPIO | 16-bit |
| Software Development Kit | Operating System | Windows 10 (64bit) |
| Power | Power Type | AT/ATX |

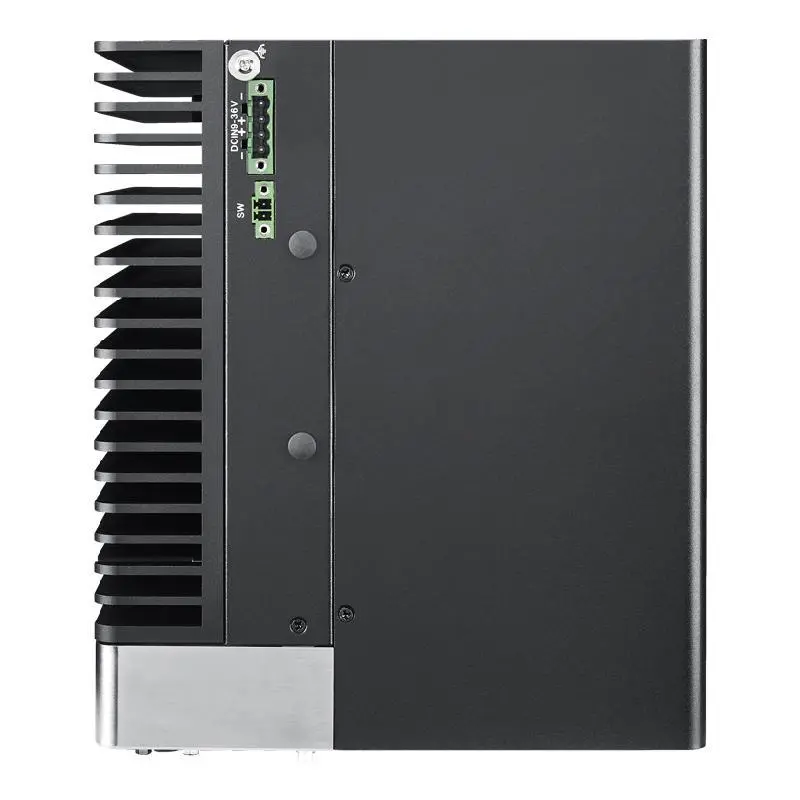

| Power | Input Voltage | 9 ~ 36 VDC |
| Power Consumption | Typical | 30W |
| Power Consumption | Max. | 64.8W |
| Software Development Kit | Linux | by Project support |
| Environment | Temperature (Storage) | - 40 ~ 85° C (-40 ~185° F) |
| Environment | Relative Humidity | 95% @ 40° C (non-condensing) |
| Environment | Vibration During Operation | With mSATA/SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| Environment | Shock During Operation | With CompactFlash disk: 30Grms, IEC 60068-2-27 , half sine, 11 ms duration |
| Certification | EMC | CE/FCC Class B, CCC, BSMI |
| Certification | Safety Certifications | CB, UL, CCC, BSMI |
| Environment | Operational Temperature | With extended temp peripherals: -20 ~ 60° C with 0.7m/s air flow, with HDD: 0 ~ 40° C with 0.7m/s air flow |

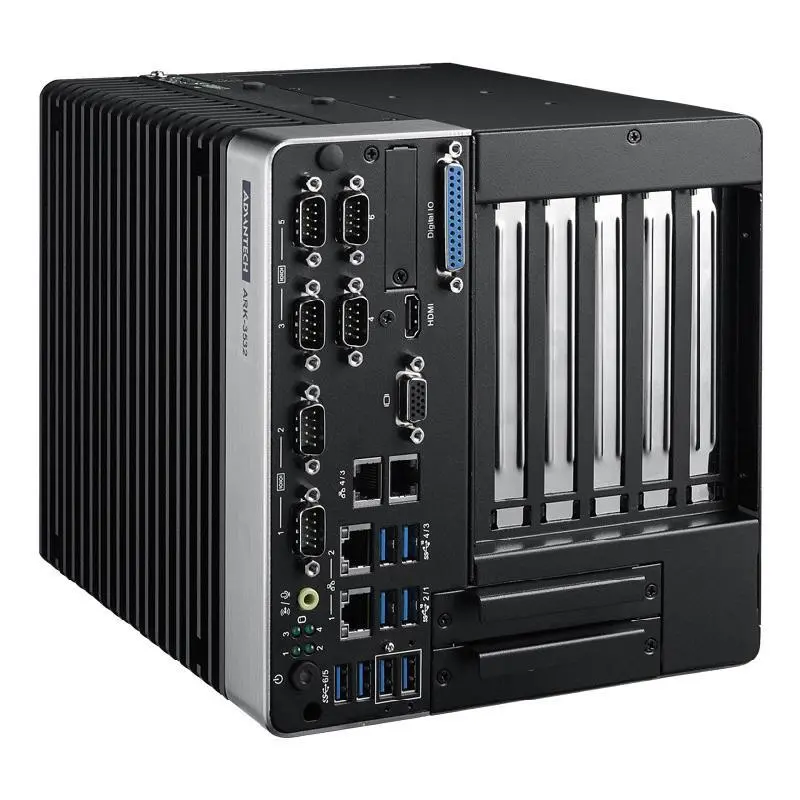

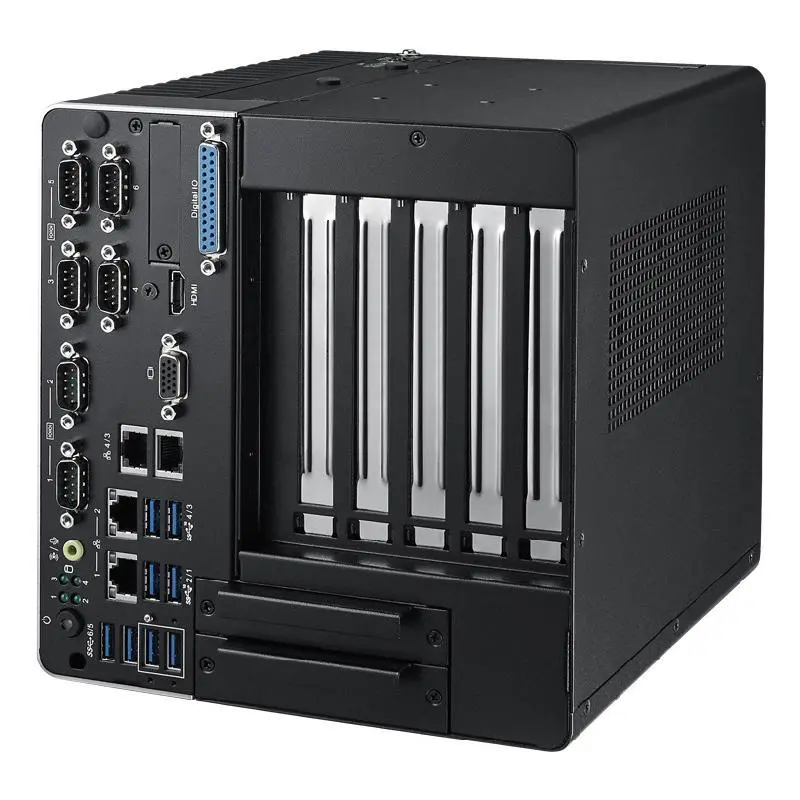

Advantech ARK-3532D Intel® 10th Gen Xeon® W / Core™ i LGA1200 Expansion Fanless Box PC
