| ARK-3534D-00A1 | ||
| Processor | CPU | Intel® 12th generation Core™ I processor/ Pentium®/Celeron® |
| Processor | Chipset | R680E |
| Memory | Technology | DDR5 4800 MHz |
| Memory | Max. Capacity | 64 GB |
| Memory | Socket | 2 x 262 pin DDR5 SO-DIMM |
| Memory | ECC Support | Yes(by processor) |
| Graphics | Graphic Engine | DirectX 12, OpenGL 4.5HW Encode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG and VP8.HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8 and VP9 |
| Graphics | HDMI | 2 |
| Audio | Main System | Realtek ALC888S, High Definition Audio, Line-out, Mic-in |
| Ethernet | Controller | 4 |
| Ethernet | LAN1 | 10/100/1000 Mbps Intel I219-LM GbE, support Wake On Lan |
| Ethernet | LAN2 | 10/100/1000/2500 Mbps Intel i225 GbE, support Wake On LAN |
| Ethernet | LAN3/LAN4 | 10/100/1000/2500 Mbps Intel i225 GbE, support Wake On LAN |
| I/O Interface | Serial Port | 4 x RS-232/422/485 port with auto flow control, 2 x RS-232 (additional COM7/8 2 x RS-232 by optional cable) |
| I/O Interface | USB3.0 | 8 |
| Expansion | M.2 | 1 x B key (Type: 2242, 3042mm) + 1 x E key (Type: 2230mm) |
| Expansion | PCI Express x 4 | 1 |
| Expansion | PCI | 2 |
| Expansion | PCI Express x 16 | 1 |
| Storage | 2.5" HDD/SSD | 2 x 2.5" SATAIII Drive bay (compatible with 15mm height) |
| Other | Watchdog Timer | 255 levels timer interval, setup by software |
| Software Support | Microsoft Windows | Windows 10/11 IoT Enterprise LTSC |
| Certification | EMC | CE/FCC Class B, CCC, BSMI, UKCA |
| Certification | Safety Certifications | CB, UL, CCC, BSMI, UKCA |
| Power Requirement | Power Type | AT/ATX |

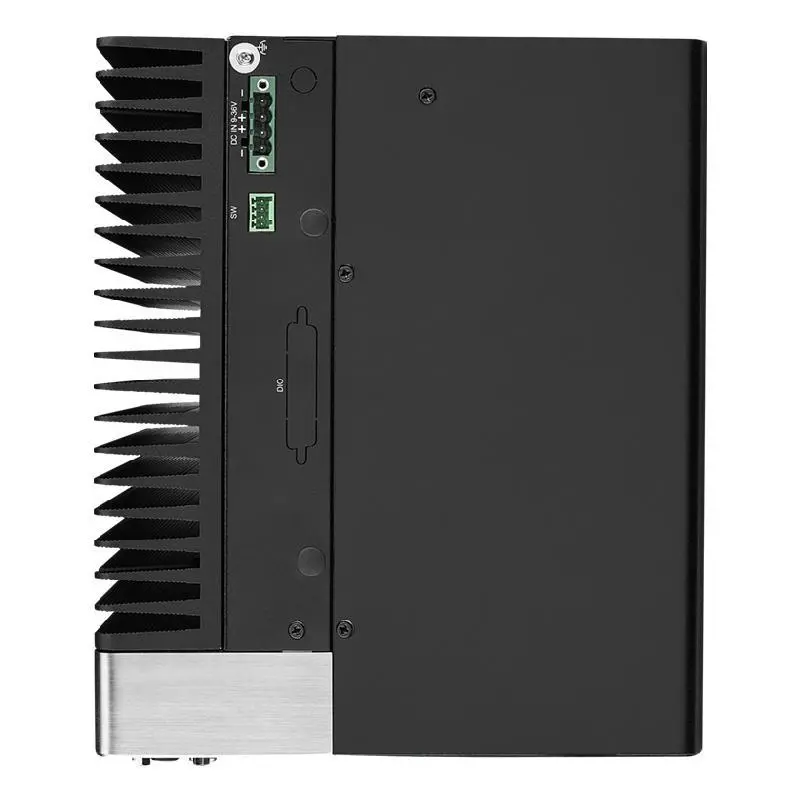

| Power Requirement | Power Input Votage | 9 ~ 36 VDC |

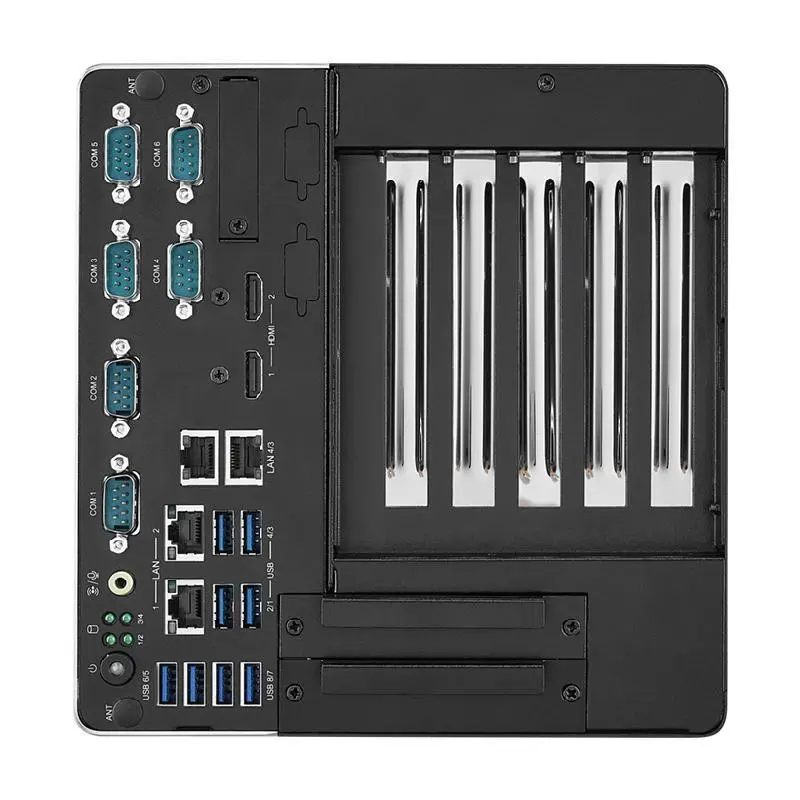

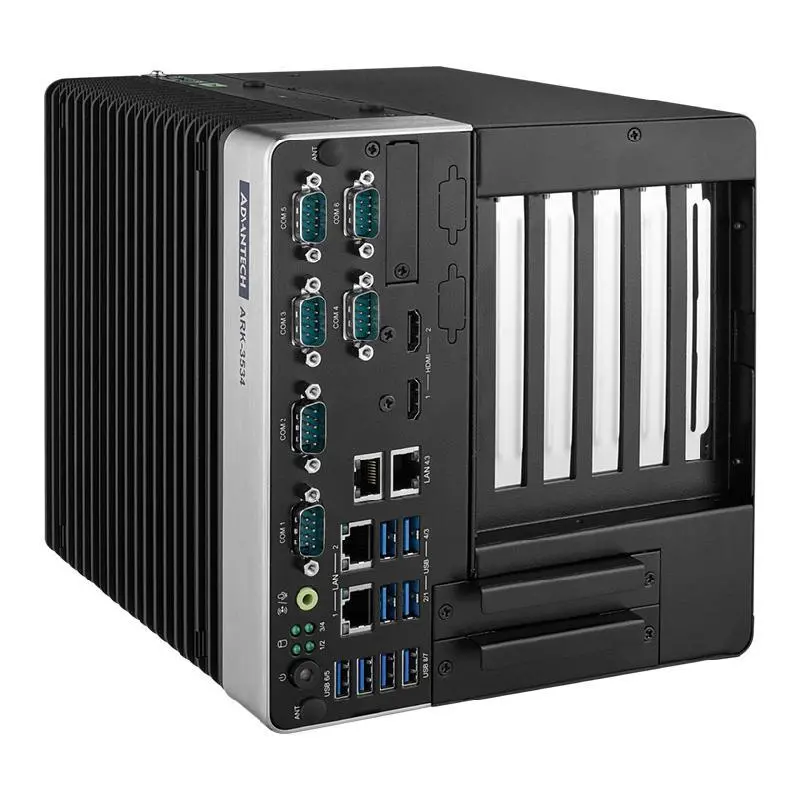

Advantech ARK-3534D Intel® Core™ 12th/13th/14th Gen i3/i5/i7/i9 LGA1700 Expansion Fanless Box PC
