| ARK-3533-00A1 | ARK-3533-00A1U | ||
| Processor | CPU | Intel® 12/13/14th Gen Core™ I Processor | Intel® 12th & 13th Generation Core™ I processor |
| Processor | Frequency | 1.8GHz-3.8GHz/ 2.2GHz-3.6GHz /2.2GHz-3.2GHz/ 3.1GHz /2.9GHz | 1.8GHz-3.8GHz/ 2.2GHz-3.6GHz /2.2GHz-3.2GHz/ 3.1GHz /2.9GHz |
| Processor | Core Number | Up to 24C | Up to 24C |
| Processor | L3 Cache | Up to 36MB | Up to 36MB |
| Processor | CPU TDP | 35 W | 35 W |
| Processor | Chipset | H610E | H610E |
| Processor | BIOS | AMI EFI 256 Mbit | AMI EFI 256 Mbit |
| Memory | Technology | DDR5 4800 MHz | DDR5 4800 MHz |
| Memory | Socket | 2 x 262 pin DDR5 SO-DIMM | 2 x 262 pin DDR5 SO-DIMM |
| Graphics | Chipset | Intel® UHD Graphics 770 | Intel® UHD Graphics 770 |
| Graphics | Graphic Engine | DirectX 12, OpenGL 4.5HW Encode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG and VP8.HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8 and VP9 | DirectX 12, OpenGL 4.5HW Encode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG and VP8.HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8 and VP9 |
| Graphics | HDMI | 2 | 2 |
| Graphics | Dual Display | HDMI + HDMI (DP support by project) | HDMI + HDMI (DP support by project) |
| Ethernet | LAN1 | 10/100/1000 Mbps Intel i219 GbE, support Wake On Lan | 10/100/1000 Mbps Intel i219 GbE, support Wake On Lan |
| Ethernet | LAN2/LAN3/LAN4 | 10/100/1000/2500 Mbps Intel i225-V GbE, support Wake On Lan | 10/100/1000/2500 Mbps Intel i225-V GbE, support Wake On Lan |
| Audio | Main System | Realtek ALC888S, High Definition Audio, Line-out, Mic-in | Realtek ALC888S, High Definition Audio, Line-out, Mic-in |
| I/O Interface | Serial Port | 4 x RS-232 ports, 4 x RS-232/422/485 port with auto flow control | 4 x RS-232 ports, 4 x RS-232/422/485 port with auto flow control |
| I/O Interface | USB Interface | 4 x USB 3.2 (2 x Gen2, 2 x Gen1), 4 x USB 2.0 | 4 x USB 3.2 (2 x Gen2, 2 x Gen1), 4 x USB 2.0 |
| Expansion | CAN Bus | 2 ports (by optional cable) | 2 ports (by optional cable) |
| I/O Interface | GPIO | 16-bit DIO (by optional cable) | 16-bit DIO (by optional cable) |
| Expansion | Add-on Card Slot | 2 Slot PCI (by optional AMO-R040) | 2 Slot PCI (by optional AMO-R040) |
| Expansion | M.2 | 2 | 2 |
| Others | TPM | TPM 2.0 (by optional AMO-I029) | TPM 2.0 (by optional AMO-I029) |
| Others | Watchdog timer | 255 levels timer interval, setup by software | 255 levels timer interval, setup by software |
| Storage | 2.5" HDD/SSD | 2 x 2.5" SATAIII Drive bay (compatible with 9mm height) | 2 x 2.5" SATAIII Drive bay (compatible with 9mm height) |
| Storage | NVMe | 1 x PCIex2 (Share with M.2 2280 B key) | 1 x PCIex2 (Share with M.2 2280 B key) |
| Software Support | Microsoft Windows | Windows 10/11 IoT Enterprise LTSC | Windows 10/11 IoT Enterprise LTSC |
| Operating System | Ubuntu | V | V |
| Power | Power Type | AT / ATX | AT / ATX |
| Power | Input Voltage | 9 ~ 36 VDC | 9 ~ 36 VDC |
| Mechanical | Construction | Aluminum housing | Aluminum housing |
| Mechanical | Mounting | Desk mounting | Desk mounting |
| Mechanical | Dimensions | 200 x 75 x 215 mm | 200 x 75 x 215 mm |
| Mechanical | Weight | 3.2 Kg | 3.2 Kg |
| Environment | Operational Temperature | 35W Processor with extended temp peripherals: -20 ~ 60° C with 0.7m/s air flow | 35W Processor with extended temp peripherals: -20 ~ 60° C with 0.7m/s air flow |
| Environment | Storage Temperature | -40 ~ 85℃ | -40 ~ 85℃ |
| Environment | Relative Humidity | 95% @ 40° C (non-condensing) | 95% @ 40° C (non-condensing) |
| Environment | Vibration During Operation | With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis | With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| Environment | Shock During Operation | With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration | With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration |
| Certification | EMC | CE/FCC Class B, CCC, BSMI, UKCA | CE/FCC Class B, CCC, BSMI, UKCA |
| Certification | Safety Certifications | CB, UL, CCC, BSMI, UKCA | CB, UL, CCC, BSMI, UKCA |

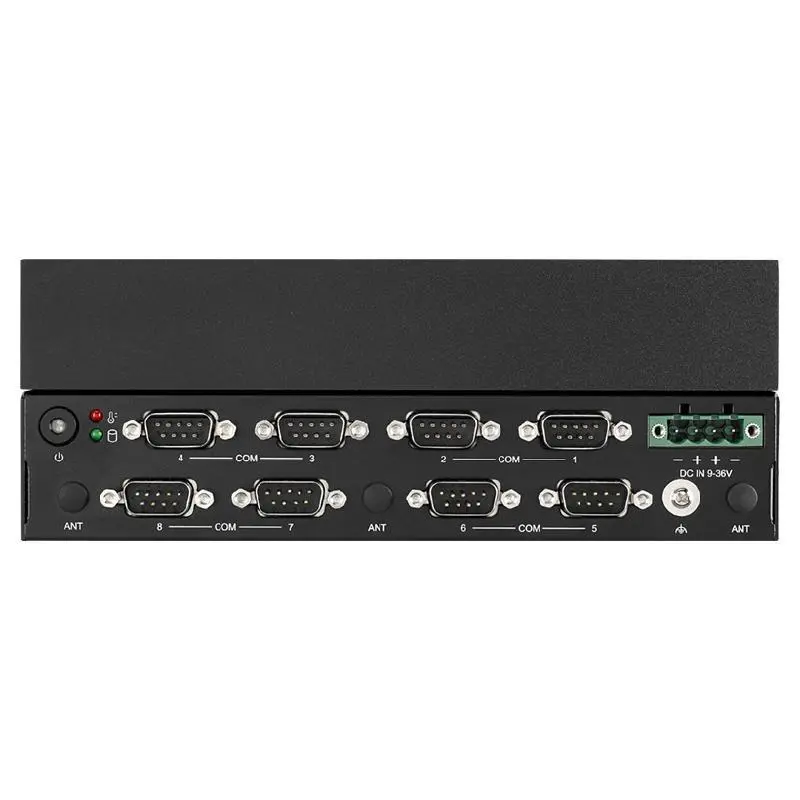

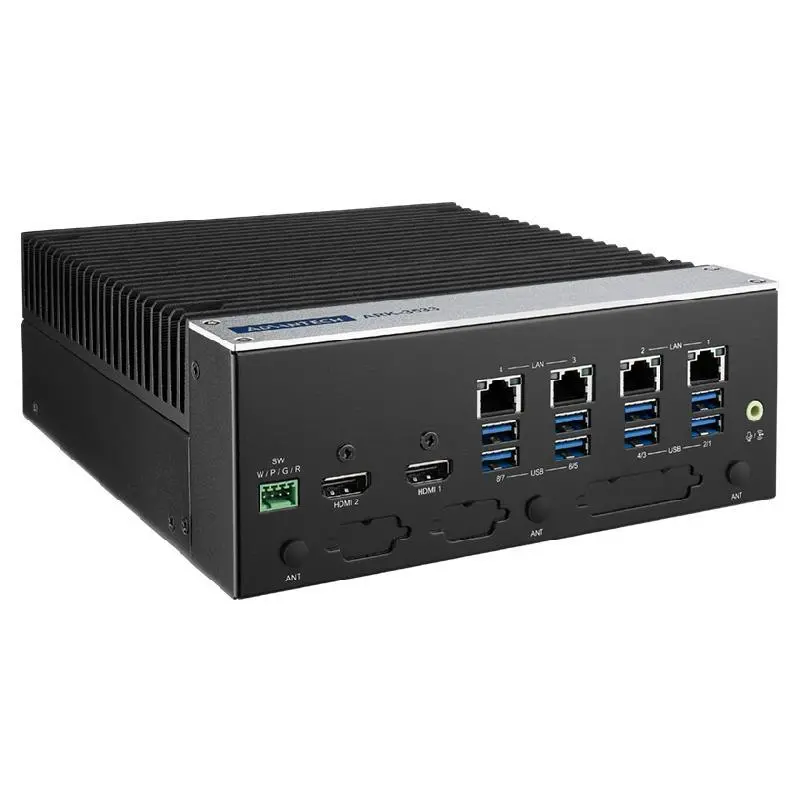

Advantech ARK-3533 Intel® Core™ 12th/13th/14th gen processors i3/i5/i7/i9 LGA1700 Expansion Fanless Box PC
