| ARK-7060-U0A1 | ARK-7060-U4A1 | ||
| Processor | CPU | Intel Xeon D-1746TER | Intel Xeon D-1715TER |
| Processor | Core Number | 10 | 4 |
| Processor | L3 Cache | 15MB | 10MB |
| Processor | CPU TDP | 67W | 50W |
| Memory | Technology | DDR4 2933MHz SO-SIMM | DDR4 2933MHz SO-SIMM |
| Memory | Max. Capacity | 128GB | 128GB |
| Memory | Socket | 4x 260-pin SODIMM | 4x 260-pin SODIMM |
| Memory | ECC Support | Yes | Yes |
| Ethernet | LAN1 | 10/100/1000 Mbps Intel i210 GbE, support Wake On Lan | 10/100/1000 Mbps Intel i210 GbE, support Wake On Lan |
| Ethernet | LAN2 | 10/100/1000 Mbps Intel I210 GbE, support Wake on LAN | 10/100/1000 Mbps Intel I210 GbE, support Wake on LAN |
| Ethernet | LAN3/LAN4 | 10GbE via Intel X550 (support by optional AMO-I031) | 10GbE via Intel X550 (support by optional AMO-I031) |
| Graphics | VGA | 1 | 1 |
| I/O Interface | USB Interface | 4 x USB 3.0 | 4 x USB 3.0 |
| I/O Interface | USB3.0 | 4 | 4 |
| I/O Interface | Others | 1 x GbE management port, 1 x console port | 1 x GbE management port, 1 x console port |
| I/O Interface | Video | 1 x VGA via Aspeed AST2500 BMC | 1 x VGA via Aspeed AST2500 BMC |
| Expansion | M.2 | 2 | 2 |
| Expansion | PCI | 1 | 1 |
| Expansion | PCI Express x 4 | 1 | 1 |
| Expansion | PCI Express x 16 | PCI-E x16 graphics card slot | PCI-E x16 graphics card slot |
| Cooling | Fan | 1 x system fan 120(W) x 120(H) x 38(D)mm, 1 x CPU cooler | 1 x system fan 120(W) x 120(H) x 38(D)mm, 1 x CPU cooler |
| Others | Watchdog timer | 255 levels timer interval, setup by software | 255 levels timer interval, setup by software |
| Others | TPM | Optional AMO-I029 | Optional AMO-I029 |
| Storage | 2.5" HDD/SSD | 2 x 2.5" SATAIII Drive bay (compatible with 15mm height) | 2 x 2.5" SATAIII Drive bay (compatible with 15mm height) |
| Software Support | Microsoft Windows | Windows Server, Wimdows 10 | Windows Server, Wimdows 10 |
| Software Support | Linux | Ubuntu 20.04 | Ubuntu 20.04 |
| Power | Power Type | ATX | ATX |
| Power | Input Voltage | 100-240V AC | 100-240V AC |
| Power Consumption | Typical | TBD | 62.7W |
| Power Consumption | Max. | TBD | 83.6W |
| Mechanical | Construction | Aluminum housing | Aluminum housing |
| Mechanical | Dimensions | 230 x 205 x 390 mm (9.05" x 8.07 x 15.35") | 230 x 205 x 390 mm (9.05" x 8.07 x 15.35") |
| Mechanical | Mounting | Wall mounting kit | Wall mounting kit |
| Mechanical | Weight | 9.7kg | 9.7kg |
| Environment | Temperature (Storage) | - 40 ~ 85° C (-40 ~185° F) | - 40 ~ 85° C (-40 ~185° F) |
| Environment | Relative Humidity | 95% @ 40° C (non-condensing) | 95% @ 40° C (non-condensing) |
| Environment | Vibration During Operation | With SSD: 5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis. | With SSD: 5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis. |
| Environment | Shock During Operation | With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration | With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration |
| Environment | Operational Temperature | With extended temp peripherals: -10~50°C with 0.7m/s air flow | With extended temp peripherals: -10~50°C with 0.7m/s air flow |
| Certification | EMC | CE/FCC Class B, CCC, BSMI, UKCA | CE/FCC Class B, CCC, BSMI, UKCA |
| Certification | Safety Certifications | CB, UL, CCC, BSMI, UKCA | CB, UL, CCC, BSMI, UKCA |

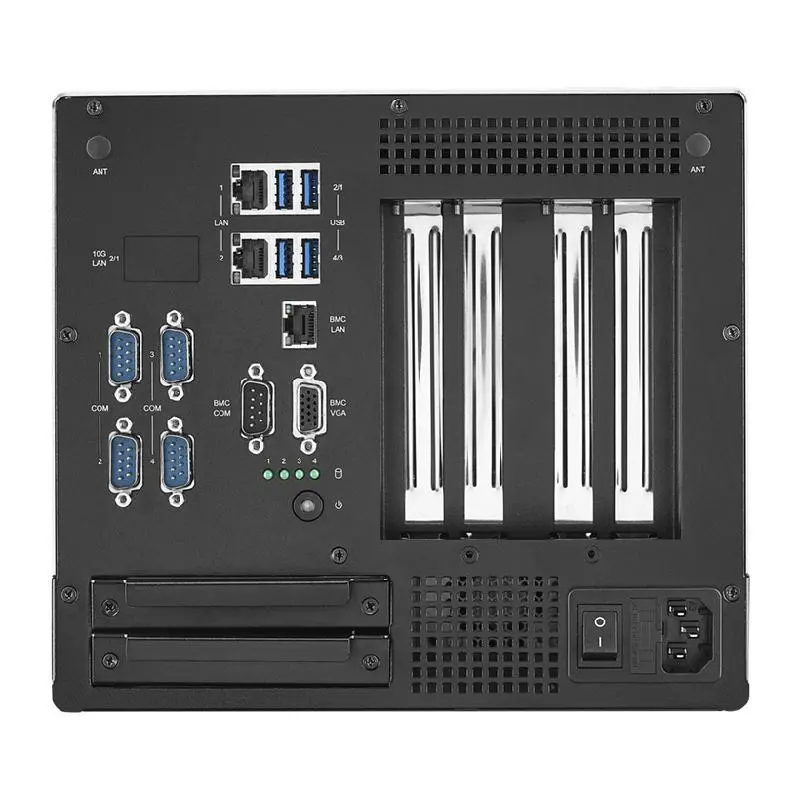

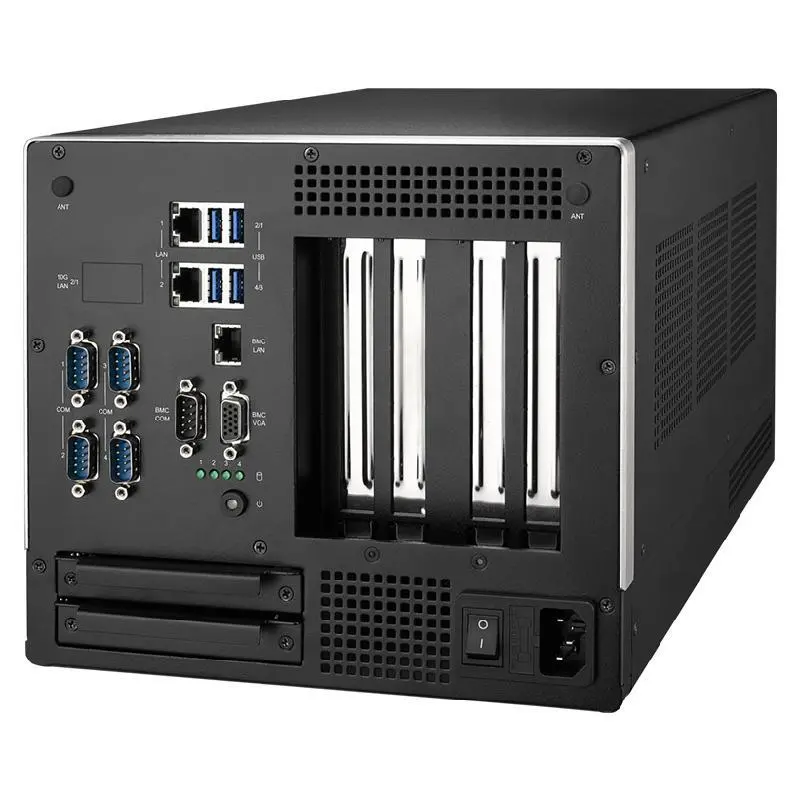

Advantech ARK-7060 Intel® 2nd Gen. Xeon® D-1700 Extreme Performance Box PC with 3 Expansion Slots
