| DPX-S451-9THA1 | DPX-S451-9FHA1 | DPX-S451-9FLA1 | ||
| Processor | CPU | AMD Ryzen™ Embedded R2544 SoC with AMD Radeon™ Graphics | AMD RyzenTM Embedded R2514 SoC with AMD Radeon™ Graphics | AMD RyzenTM Embedded R2314 SoC with AMD Radeon™ Graphics |
| Processor | Frequency | 3.35 (3.7) GHz | 2.1 (3.7) GHz | 2.1 (3.5) GHz |
| Memory | Max. Capacity | 32GB (16GB per SO-DIMM) | 32GB (16GB per SO-DIMM) | 32GB (16GB per SO-DIMM) |
| I/O | COM Port | 10 (5 x RS232, 2 x CCTalk/RS232, 1 x TTL/RS232, 1 x ID003/RS232, 1 x RS485/RS232) | 10 (5 x RS232, 2 x CCTalk/RS232, 1 x TTL/RS232, 1 x ID003/RS232, 1 x RS485/RS232) | 10 (5 x RS232, 2 x CCTalk/RS232, 1 x TTL/RS232, 1 x ID003/RS232, 1 x RS485/RS232) |
| I/O | Digital I/O | 32 input / 32 output | 32 input / 32 output | 32 input / 32 output |
| I/O | Video Output | 4 x DP++ | 4 x DP++ | 4 x DP++ |
| I/O | USB | 11 x USB (8 x USB 2.0, 3 x USB 3.0/2.0) | 11 x USB (8 x USB 2.0, 3 x USB 3.0/2.0) | 11 x USB (8 x USB 2.0, 3 x USB 3.0/2.0) |
| Ethernet | LAN | 2 x GbE | 2 x GbE | 2 x GbE |
| Audio | Interface | HD 5.1 audio (line level). Amplified outputs 15W/ch (FL, FR, LFE) with bass boost. SPDIF OUT x 2, SPDIF IN, MIC IN | HD 5.1 audio (line level). Amplified outputs 15W/ch (FL, FR, LFE) with bass boost. SPDIF OUT x 2, SPDIF IN, MIC IN | HD 5.1 audio (line level). Amplified outputs 15W/ch (FL, FR, LFE) with bass boost. SPDIF OUT x 2, SPDIF IN, MIC IN |
| Expansion | PCIe | Full speed Gen 3 PCI-E graphics expansion slot x16 slot (x8 PCI-E) | Full speed Gen 3 PCI-E graphics expansion slot x16 slot (x8 PCI-E) | Full speed Gen 3 PCI-E graphics expansion slot x16 slot (x8 PCI-E) |
| Display | Controller | AMD Integrated Radeon VEGA graphics engine | AMD Integrated Radeon VEGA graphics engine | AMD Integrated Radeon VEGA graphics engine |
| Security | SRAM | 8MB | 8MB | 8MB |
| Security | Intrusion inputs | 8 | 8 | 8 |
| Security | TPM | 2.0 | 2.0 | 2.0 |
| Security | EEPROM | Y | Y | Y |

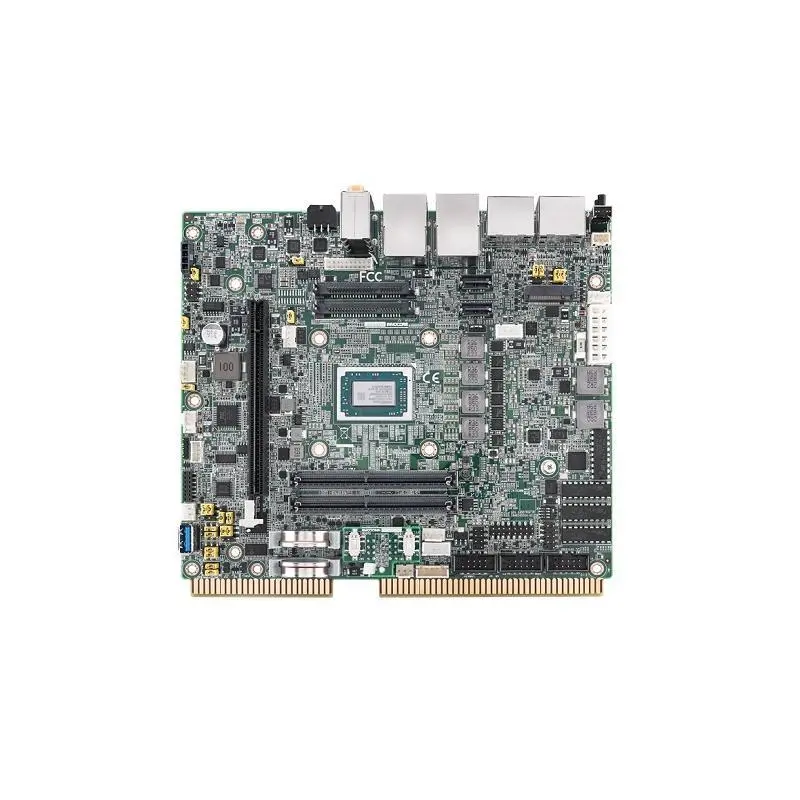

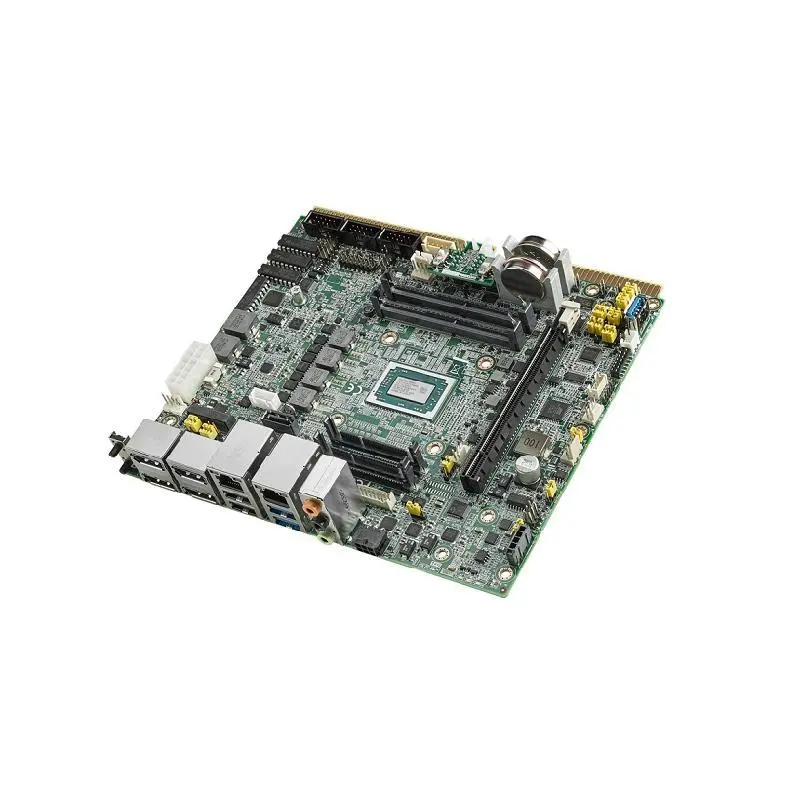

Advantech DPX-S451 The DPX®-S451 is based on the AMD Ryzen™ Embedded R2000 Series platform. . Four DisplayPort ports and graphics card are supported
