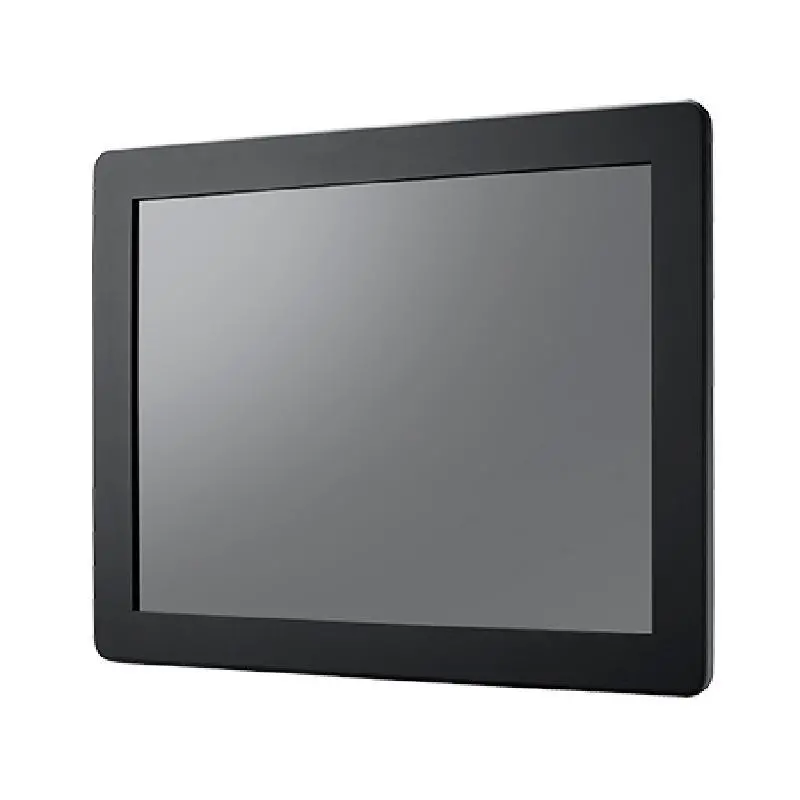

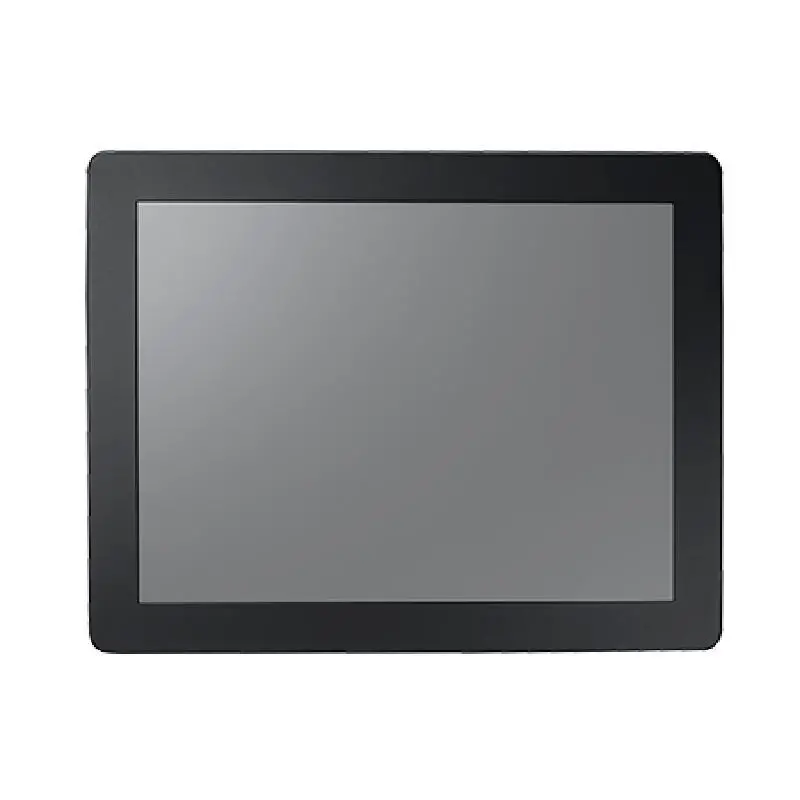

Advantech IDS-3315 15" 1024 x 768, VGA/DVI/HDMI interface, Front IP65 Monitor

    Front IP65 for waterproof and dustproof

    15" XGA LCD panel with LED backlight for 20% power saving and environmental protection

    -20 ~ +60 °C wide range operating temperature

    5-wire resistive and P-cap touchscreen solution or tempered smudge resistant protected glass

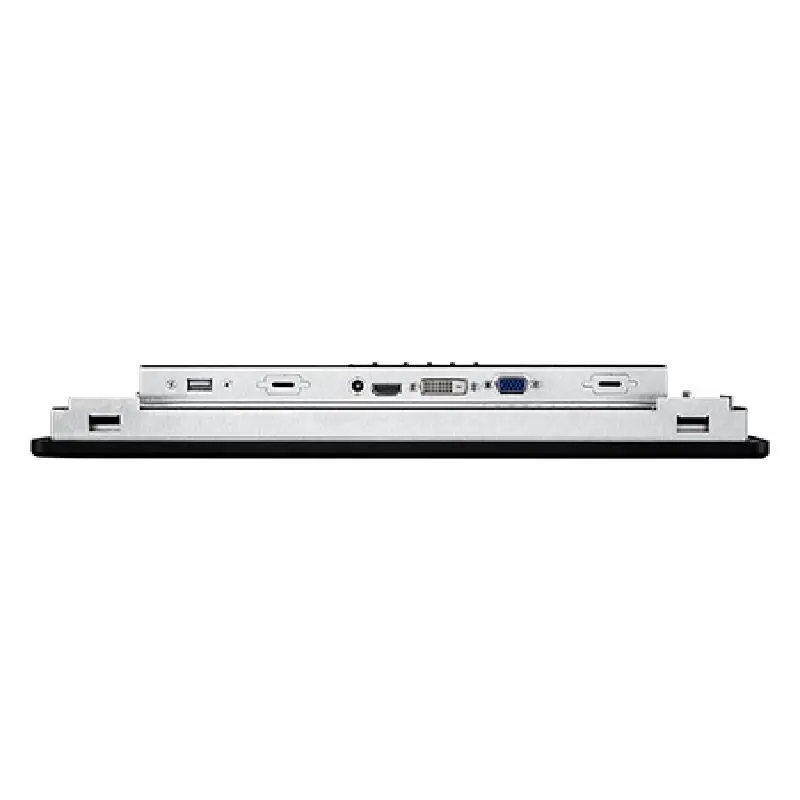

    Multiple signal interfaces with HDMI, VGA & DVI

    Standard integrated frame

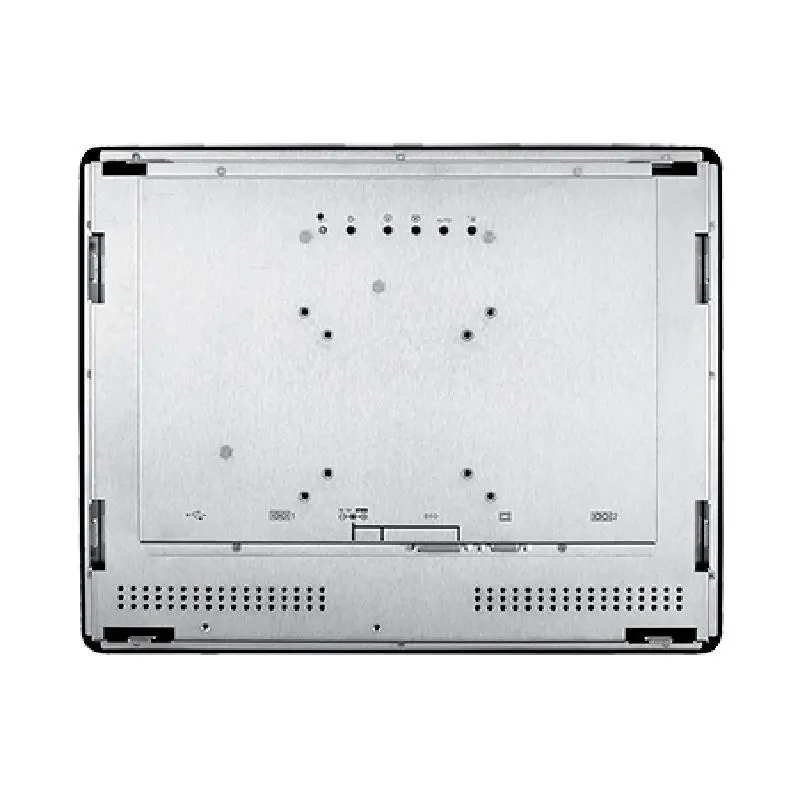

    Versatile mounting methods for rear mounting and VESA mounting

    Anti-Reflective treatment (optional)

    Ultra high brightness solution of 1200 cd/m2 for outdoor applications (optional)

IDS-3315G-1KXGA1 IDS-3315G-50XGA1 IDS-3315P-1KXGA1 IDS-3315P-50XGA1 IDS-3315R-1KXGA1 IDS-3315R-50XGA1
LCD Display Size 15" 15" 15" 15" 15" 15"
LCD Display Resolution 1024 x 768, XGA 1024 x 768, XGA 1024 x 768, XGA 1024 x 768, XGA 1024 x 768, XGA 1024 x 768, XGA
LCD Display Viewing Angle (H/V°) 176/176 176/176 176/176 176/176 176/176 176/176
LCD Display Brightness 1200 nits 500 nits 1200 nits 500 nits 1200 nits 500 nits
LCD Display Colors 262K/16.2M 262K/16.7M 262K/16.2M 262K/16.7M 262K/16.2M 262K/16.7M
LCD Display Contrast Ratio 2000 : 1 2500 : 1 2000 : 1 2500 : 1 2000 : 1 2500 : 1
LCD Display Response Time (ms) 23 23 23 23 23 23
LCD Display Backlight Type LED LED LED LED LED LED
LCD Display Backlight Life (hrs) 50,000 50,000 50,000 50,000 50,000 50,000
LCD Display Touch Screen Tempered Glass Tempered Glass Projective Capacitive Touch Projective Capacitive Touch 5-wire Resistive touch 5-wire Resistive touch
Environment Operational Temperature -20 ~ 60° C -20 ~ 60° C Mohs 5 Mohs 5 3H 3H
Environment Storage Temperature -30 ~ 70° C -30 ~ 70° C - - 10 million touches 10 million touches
Environment Humidity 10 ~ 90% @ 40° C, non-condensing 10 ~ 90% @ 40° C, non-condensing 89% 89% 80% 80%
LCD Display Signal Interface VGA x 1; DVI-D x 1; HDMI x 1; 12VDC Jack x 1; VGA x 1; DVI-D x 1; HDMI x 1; 12VDC Jack x 1; -20 ~ 60° C -20 ~ 60° C -20 ~ 60° C -20 ~ 60° C
LCD Display Dimension 365 x 291 x 46 mm 365 x 291 x 46 mm -30 ~ 70° C -30 ~ 70° C -30 ~ 70° C -30 ~ 70° C
LCD Display Weight 4.5kg 4.5kg 10 ~ 90% @ 40° C, non-condensing 10 ~ 90% @ 40° C, non-condensing 10 ~ 90% @ 40° C, non-condensing 10 ~ 90% @ 40° C, non-condensing
LCD Display Signal Interface VGA x 1; DVI x 1; HDMI x1; 12V DC Jack x 1; USB x 1; ( USB is reserved for the connection to enable touch usage only) VGA x 1; DVI x 1; HDMI x1; 12V DC Jack x 1; USB x 1; ( USB is reserved for the connection to enable touch usage only) VGA x1; DVI-D x1; HDMIx1;12 VDC Jack x1; USB x1; RS-232 x1(USB & RS-232 are reserved for the connection to enable touch only) VGA x1; DVI-D x1; HDMIx1;12 VDC Jack x1; USB x1; RS-232 x1(USB & RS-232 are reserved for the connection to enable touch only)
LCD Display Dimension 365 x 291 x 46 mm 365 x 291 x 46 mm 365 x 291 x 46 mm 365 x 291 x 46 mm
LCD Display Weight 4.5kg 4.5kg 4.5kg 4.5kg
