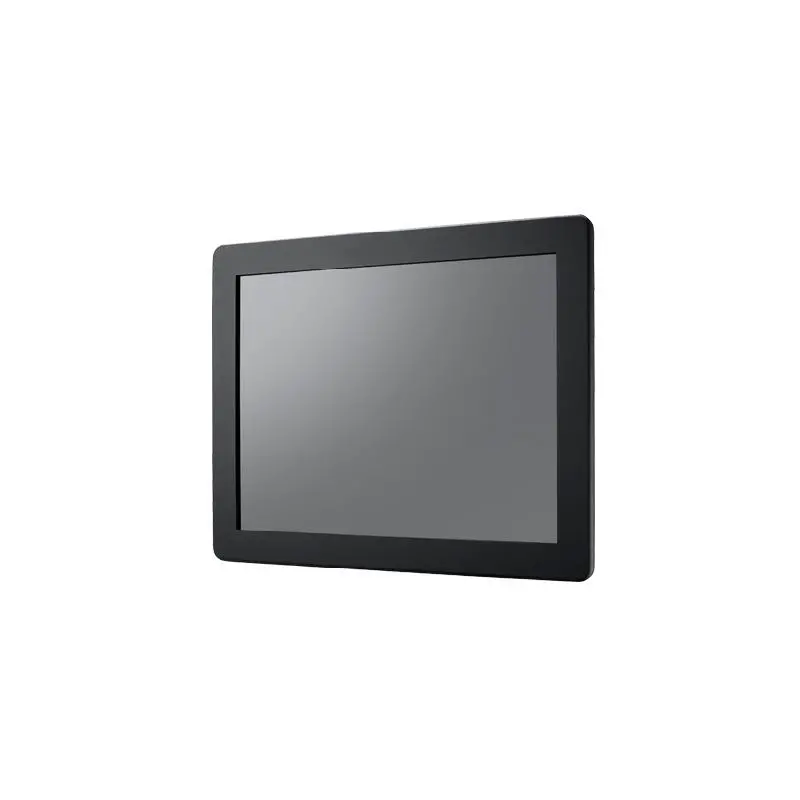

Advantech IDS-3319 19", 1280 x 1024, VGA/DVI/HDMI interface, Front IP65 Monitor

Front IP65 for waterproof and dustproof

19" SXGA LCD panel with LED backlight

-20 ~ +60 °C wide range operation temperature

5-wire resistive and P-cap touchscreen solution or tempered smudge resistant protected glass

Multiple signal interfaces with HDMI, VGA & DVI

Standard integrated frame

Versatile mounting methods for rear mounting and VESA mounting

Anti-Reflective treatment (optional)

Ultra high brightness solution of 1200 cd/m2 for outdoor applications (optional)

		IDS-3319G-35SXA1	IDS-3319P-35SXA1	IDS-3319R-35SXA1
LCD Display	Size	19"	19"	19"
LCD Display	Resolution	1280 x 1024	1280 x 1024	1280 x 1024
LCD Display	Viewing Angle (H/V°)	170/160	170/160	170/160
LCD Display	Brightness	350nits	350nits	350nits
LCD Display	Contrast Ratio	1000 : 1	1000 : 1	1000 : 1
LCD Display	Colors	16.7 M	16.7 M	16.7 M
LCD Display	Response Time (ms)	7	7	7
LCD Display	Backlight Life (hrs)	70000	70000	70000
LCD Display	Touch Screen	N/A	Projected Capacitive	5-Wire Resistive
Touchscreen	Surface Hardness	-	-20 ~ 60° C	-
Touchscreen	Durability	-	-30 ~ 70° C	-
Touchscreen	Transparency	-	10 ~ 90% @ 40° C, non-condensing	-
Environment	Operational Temperature	-20 ~ 60° C	VGA x1; DVI-D x1; HDMIx1;12 VDC Jack x1; USB x1; RS-232 x1(USB & RS-232 are reserved for the connection to enable touch only)	-20 ~ 60° C
Environment	Storage Temperature	-30 ~ 70° C	-30 ~ 70° C
Environment	Humidity	10 ~ 90% @ 40° C, non-condensing	10 ~ 90% @ 40° C, non-condensing
LCD Display	Signal Interface	VGA x1; DVI-D x1; HDMIx1;12 VDC Jack x1; USB x1; RS-232 x1(USB & RS-232 are reserved for the connection to enable touch only)	VGA x1; DVI-D x1; HDMIx1;12 VDC Jack x1; USB x1; RS-232 x1(USB & RS-232 are reserved for the connection to enable touch only)
