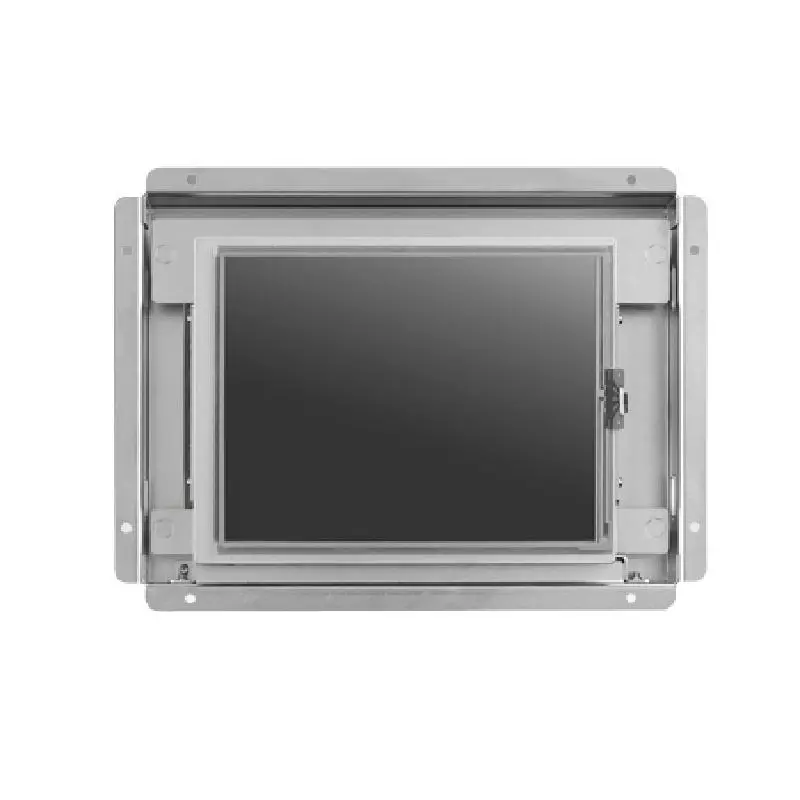

Advantech IDS-3106 6.5" 640 x 480, VGA/DVI interface, Ultra Slim Touch Open Frame Monitor

6.5" 640 x 480 VGA panel with LED backlight for 20% power saving and environmental protection

0~50° C wide operating temperature support

4-wires resistive touchscreen solution

USB touch interface

Dual signal interface with VGA and DVI

Integrated bracket for easy installation

Versatile mounting methods for Rear mounting and VESA mounting

Anti-Reflective surface treatment for sunlight readable enhancement (optional)

		IDS-3106N-80VGA1E	IDS-3106R-80VGA1E
LCD Display	Size	6.5"	6.5"
LCD Display	Resolution	640x480, VGA	640x480, VGA
LCD Display	Viewing Angle (H/V°)	160/140	160/140
LCD Display	Brightness	800nits	800nits
LCD Display	Colors	262K/16.2M	262K/16.2M
LCD Display	Contrast Ratio	600 : 1	600 : 1
LCD Display	Response Time (ms)	25	25
LCD Display	Backlight Type	LED	LED
LCD Display	Backlight Life (hrs)	50,000	50,000
Environment	Operational Temperature	0 ~ 50° C	4-Wire Resistive
Environment	Storage Temperature	-20 ~ 60° C	3H
Environment	Humidity	5 ~ 95% @ 40° C, non-condensing	1 million touches
LCD Display	Signal Interface	VGA x 1; DVI x 1; 12V DC Jack x 1; OSD keys (Auto-tune, menu, decrease, increase)	80%
LCD Display	Dimension	215 x 160 x 32.1 mm	0 ~ 50° C
LCD Display	Weight	0.8 kg	-20 ~ 60° C
Environment	Humidity	5 ~ 95% @ 40° C, non-condensing
LCD Display	Signal Interface	VGA x 1; DVI x 1; 12V DC Jack x 1; OSD keys (Auto-tune, menu, decrease, increase)
LCD Display	Dimension	215 x 160 x 35 mm
LCD Display	Weight	0.8 kg
