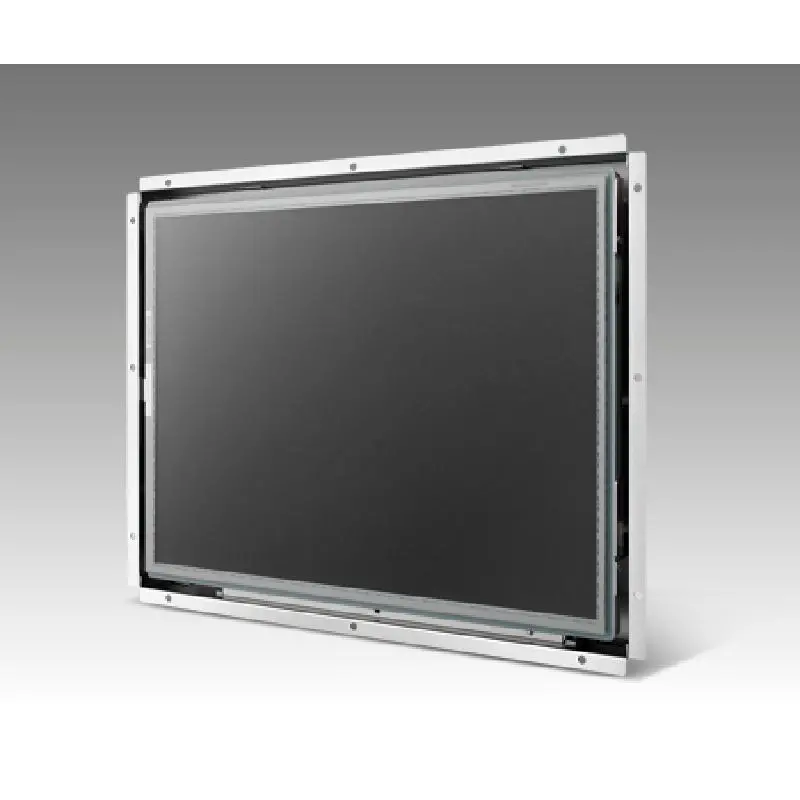

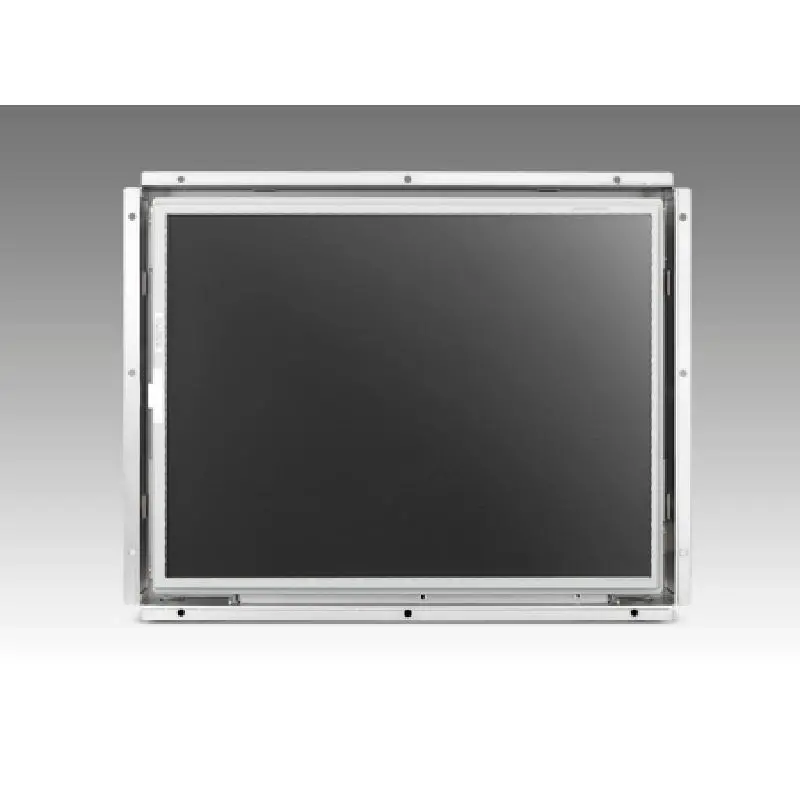

Advantech IDS-3112 12.1" 1024 x 768 & 800 x 600, VGA/DVI interface, Ultra Slim Open Frame Touch Monitor

    12.1" 1024 x 768 XGA, 800 x 600 SVGA panel with LED backlight for 20% power saving and environmental protection

    -20°C~+60°C wide operating temperature support

    5-wires resistive touchscreen solution

    Combo touch interface of RS-232 and USB

    Dual signal interface with VGA and DVI

    Integrated bracket for easy installation

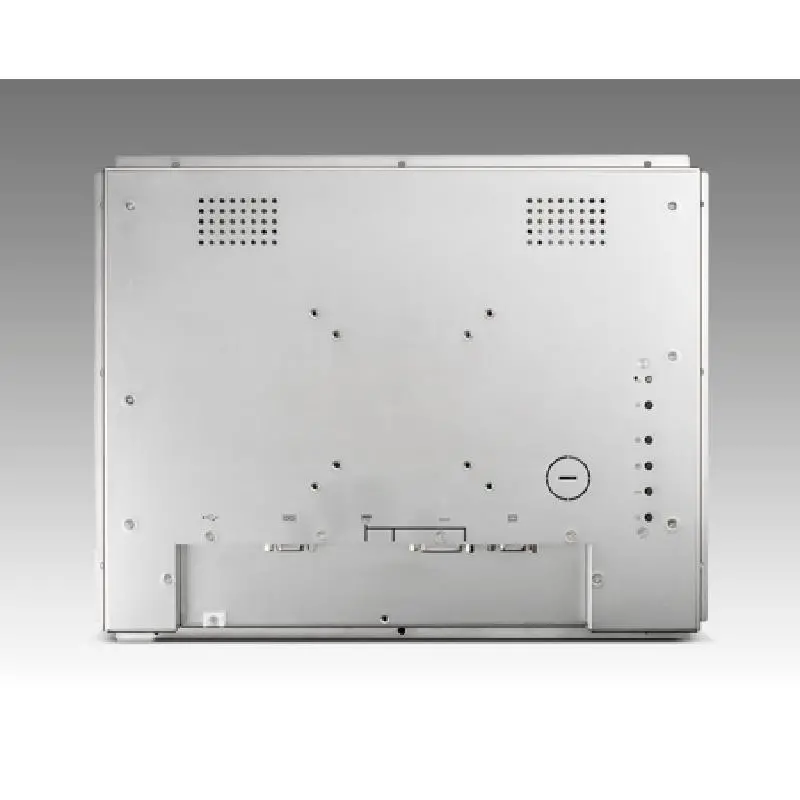

    Versatile mounting methods for Rear mounting and VESA mounting

    Anti-Reflective surface treatment for sunlight readable enhancement (optional)

    Ultra high brightness solution of 1200 nits for outdoor application (optional)

IDS-3112EN-45SVA1E IDS-3112ER-45SVA1E IDS-3112N-45SVA1E IDS-3112N-60XGA1E IDS-3112P-60XGA1 IDS-3112R-45SVA1E IDS-3112R-60XGA1E
LCD Display Size 12.1" 12.1" 12.1" 12.1" 12.1" 12.1" 12.1"
LCD Display Resolution 800x600, SVGA 800x600, SVGA 800x600, SVGA 1024x768, XGA 1024x768, XGA 800x600, SVGA 1024x768, XGA
LCD Display Viewing Angle (H/V°) 160/140 160/140 160/140 160/140 178/178 160/140 160/140
LCD Display Brightness 450nits 450nits 450nits 600nits 600nits 450nits 600nits
LCD Display Colors 262K/16.2M 262K/16.2M 262K/16.2M 262K/16.2M 262K/16.2M 262K/16.2M 262K/16.2M
LCD Display Contrast Ratio 700 : 1 700 : 1 700 : 1 700 : 1 1000 : 1 700 : 1 700 : 1
LCD Display Response Time (ms) 35 35 35 16 25 35 16
LCD Display Backlight Type LED LED LED LED LED LED LED
LCD Display Backlight Life (hrs) 50,000 50,000 50,000 50,000 50,000 50,000 50,000
Environment Operational Temperature 0 ~ 45° C 5-Wire Resistive -20 ~ 60° C -20 ~ 60° C Projected Capacitive 5-Wire Resistive 5-Wire Resistive
Environment Storage Temperature -20 ~ 60° C 3H -30 ~ 70° C -30 ~ 70° C 7H 3H 3H
Environment Humidity 5 ~ 95% @ 40° C, non-condensing 10 million touches 5 ~ 95% @ 40° C, non-condensing 5 ~ 95% @ 40° C, non-condensing - 10 million touches 10 million touches

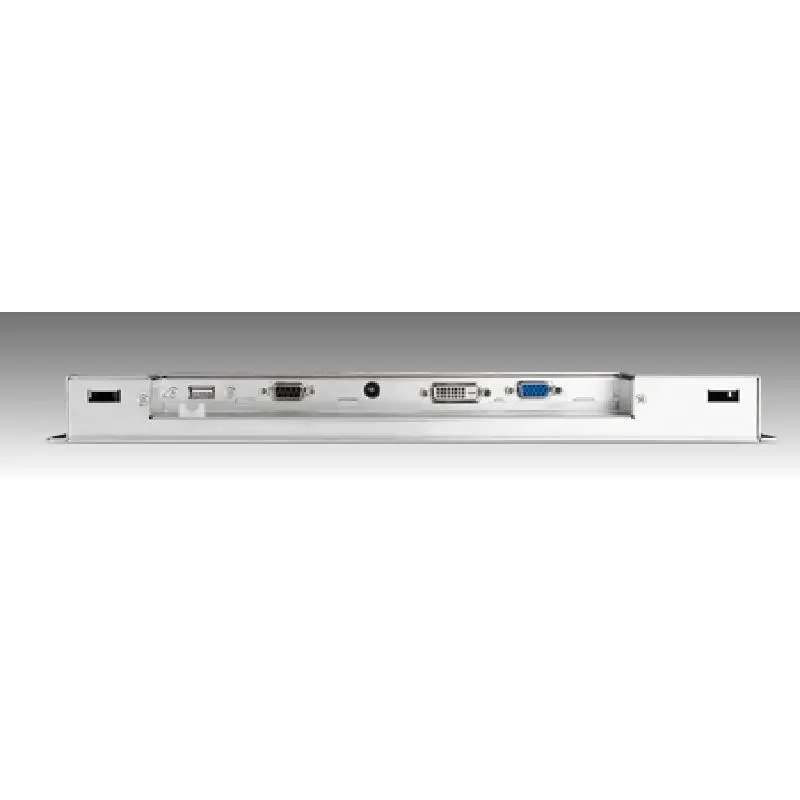

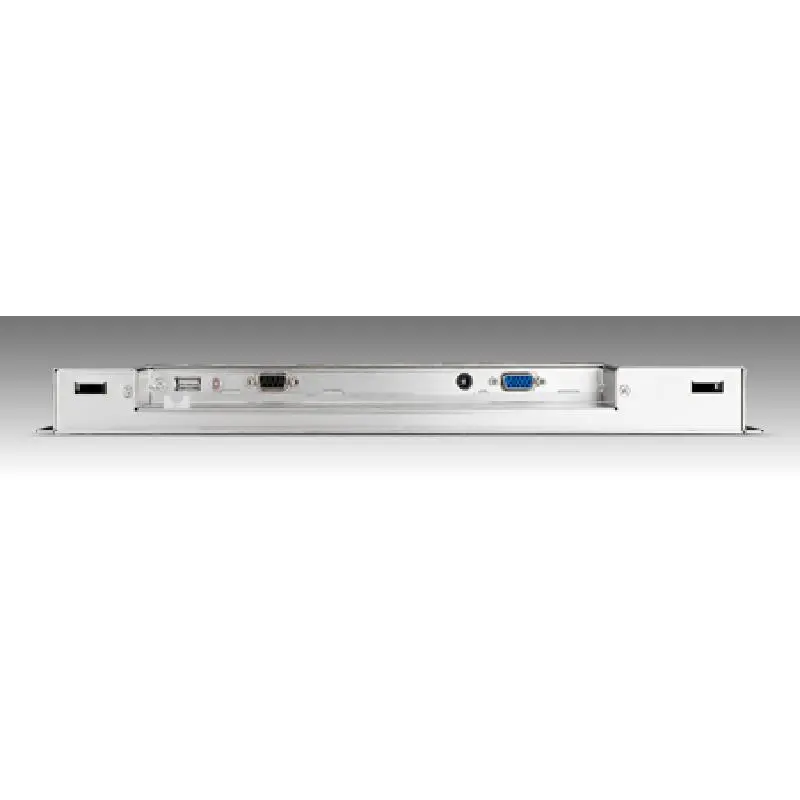

LCD Display Signal Interface VGA x 1; 12V DC Jack x 1; OSD keys (Auto-tune, menu, decrease, increase) 80% VGA x 1; DVI x 1; 12V DC Jack x 1; OSD keys (Auto-tune, menu, decrease, increase) VGA x 1; DVI x 1; 12V DC Jack x 1; OSD keys (Auto-tune, menu, decrease, increase) 90% 80% 80%
LCD Display Dimension 320 x 252 x 30.7mm 0 ~ 45° C 320 x 252 x 30.7mm 320 x 252 x 30.7mm -20 ~ 60° C -20 ~ 60° C -20 ~ 60° C
LCD Display Weight 1.6kg -20 ~ 60° C 1.6kg 1.58kg -30 ~ 70° C -30 ~ 70° C -30 ~ 70° C
Environment Humidity 5 ~ 95% @ 40° C, non-condensing 5 ~ 95% @ 40° C, non-condensing 5 ~ 95% @ 40° C, non-condensing 5 ~ 95% @ 40° C, non-condensing
LCD Display Signal Interface VGA x 1; 12V DC Jack x 1; USB x 1; RS-232 x 1 (USB & RS-232 are reserved for the connection to enable touch usage only); OSD keys (Auto-tune, menu, decrease, increase) VGA x 1; DVI x 1; 12V DC Jack x 1; USB x 1 (USB is reserved for the connection to enable touch usage only); OSD keys (Auto-tune, menu, decrease, increase) VGA x 1; DVI x 1; 12V DC Jack x 1; USB x 1; RS-232 x 1 ( USB & RS-232 are reserved for the connection to enable touch usage only); OSD keys (Auto-tune, menu, decrease, increase) VGA x 1; DVI x 1; 12V DC Jack x 1; USB x 1; RS-232 x 1 ( USB & RS-232 are reserved for the connection to enable touch usage only); OSD keys (Auto-tune, menu, decrease, increase)
LCD Display Dimension 320 x 252 x 33.6mm 320.2 x 252 x 34.2 320 x 252 x 33.6mm 320 x 252 x 33.6mm
LCD Display Weight 2.18kg 2.5kg 2.18kg 2.13kg
