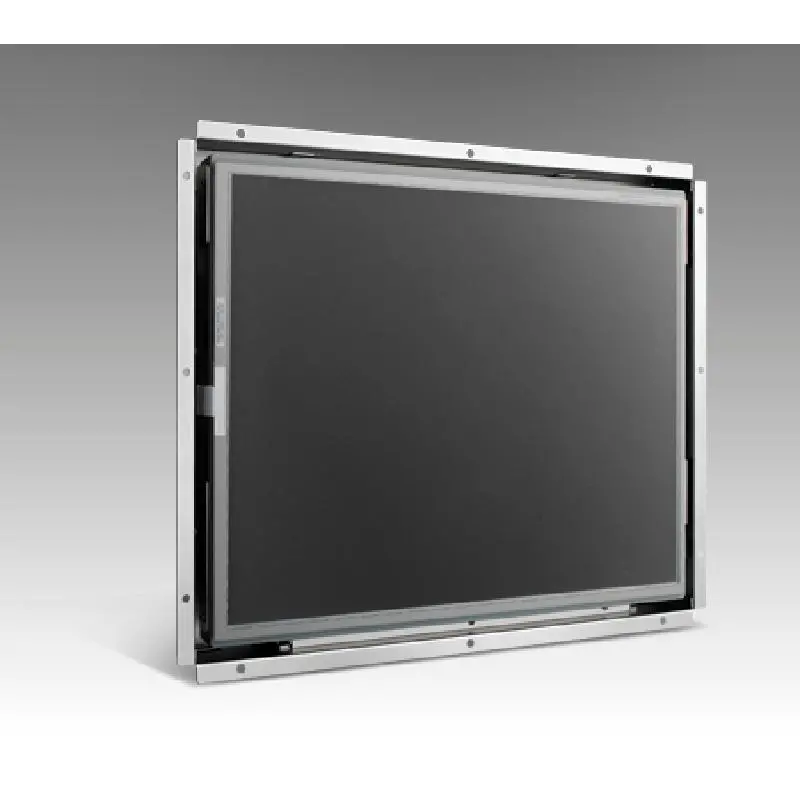

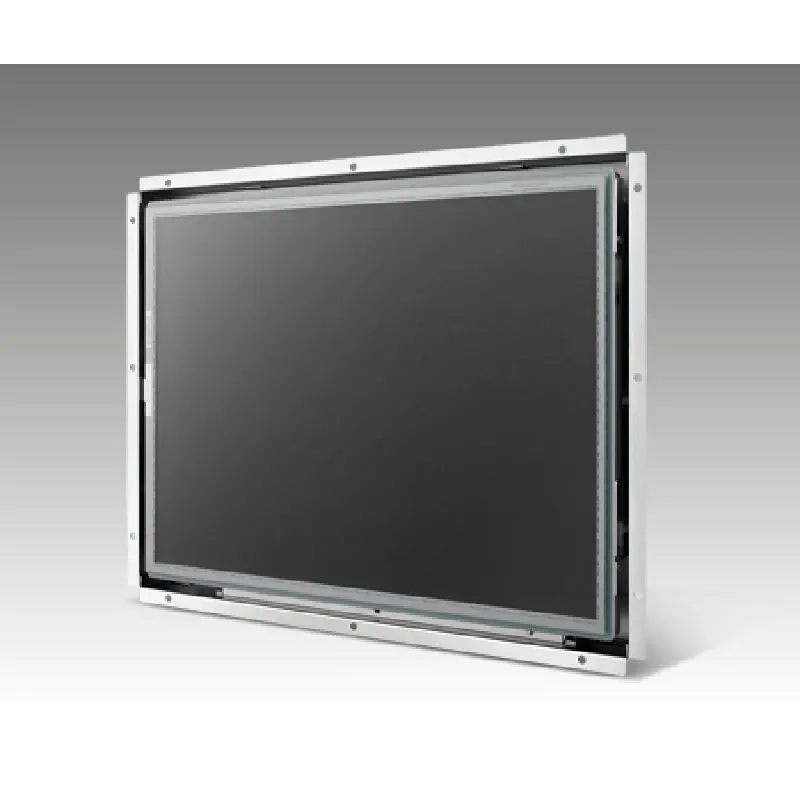

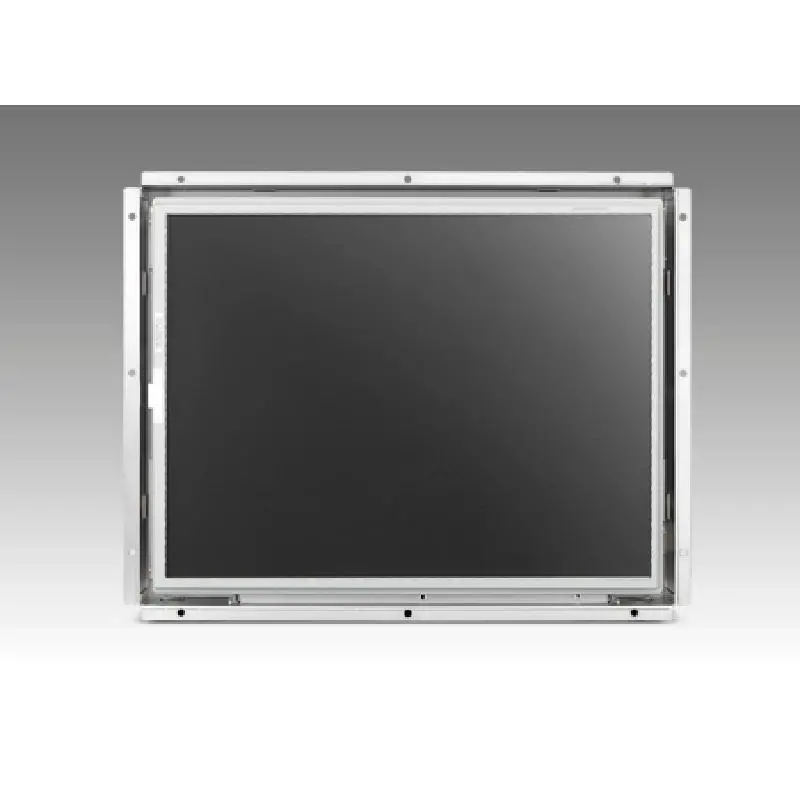

Advantech IDS-3117 17" 1280 x 1024, VGA/DVI interface, Ultra Slim Touch Open Frame Monitor

    17" 1280 x 1024 SXGA LCD panel with LED backlight for 20% power saving and environmental protection

    -20°C~+60°C wide operating temperature support

    5-wires resistive touchscreen solution

    Combo touch interface RS-232 and USB

    Dual signal interface with VGA and DVI (on selected models)

    Integrated bracket for easy installation

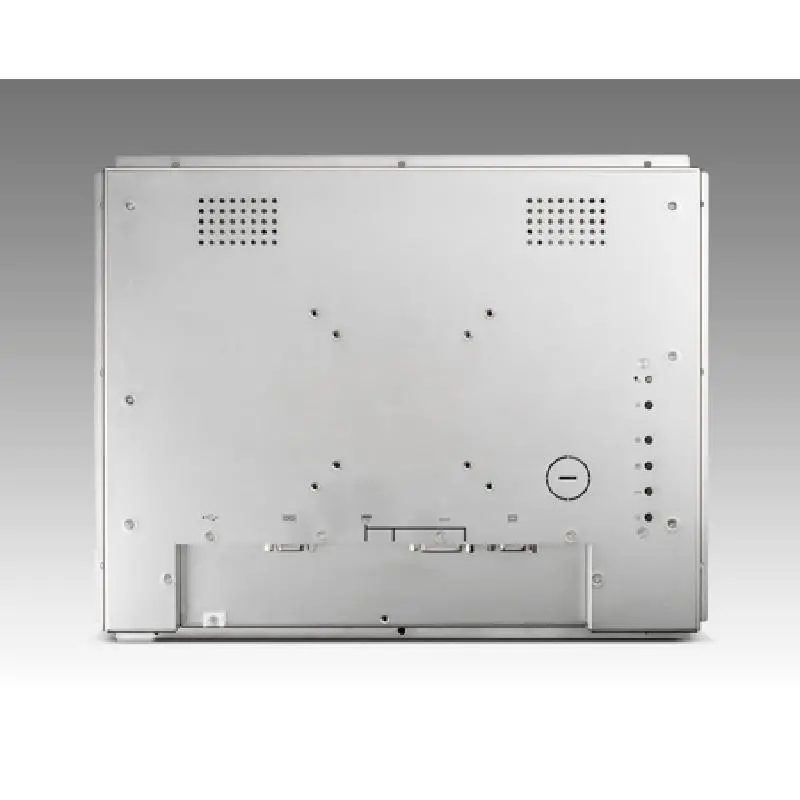

    Versatile mounting methods for Rear mounting and VESA mounting

    Anti-Reflective surface treatment for sunlight readable enhancement (optional)

    Ultra high brightness solution of 1200 nits for outdoor application (optional)

IDS-3117EN-25SXA1E IDS-3117ER-25SXA1E IDS-3117N-35SXA1E IDS-3117R-35SXA1E
LCD Display Size 17" 17" 17" 17"
LCD Display Resolution 1280 x 1024, SXGA 1280 x 1024, SXGA 1280x1024, SXGA 1280x1024, SXGA
LCD Display Viewing Angle (H/V°) 170/160 170/160 170/160 170/160
LCD Display Brightness 250nits 250nits 350nits 350nits
LCD Display Colors 16.2M 16.2M 16.7 M 16.7 M
LCD Display Contrast Ratio 1000 : 1 1000 : 1 800 : 1 800 : 1
LCD Display Response Time (ms) 5 5 30 30
LCD Display Backlight Type LED LED LED LED
LCD Display Backlight Life (hrs) 40,000 40,000 50,000 50,000
LCD Display Touch Screen N/A 5-Wire Resistive -20 ~ 60° C 5-Wire Resistive
Touchscreen Surface Hardness N/A 3H -30 ~ 70° C 3H
Touchscreen Durability N/A 10 million touches 10 ~ 90% @ 40° C, non-condensing 10 million touches
Touchscreen Transparency N/A 80% VGA x 1; DVI x 1; 12V DC Jack x 1; OSD keys (Auto-tune, menu, decrease, increase) 80%
Environment Operational Temperature 0 ~ 45° C 0 ~ 45° C 400 x 344.7 x 33.4mm -20 ~ 60° C
Environment Storage Temperature -20 ~ 60° C -20 ~ 60° C 3.45kg -30 ~ 70° C
Environment Humidity 10 ~ 90% @ 40° C, non-condensing 10 ~ 90% @ 40° C, non-condensing 10 ~ 90% @ 40° C, non-condensing

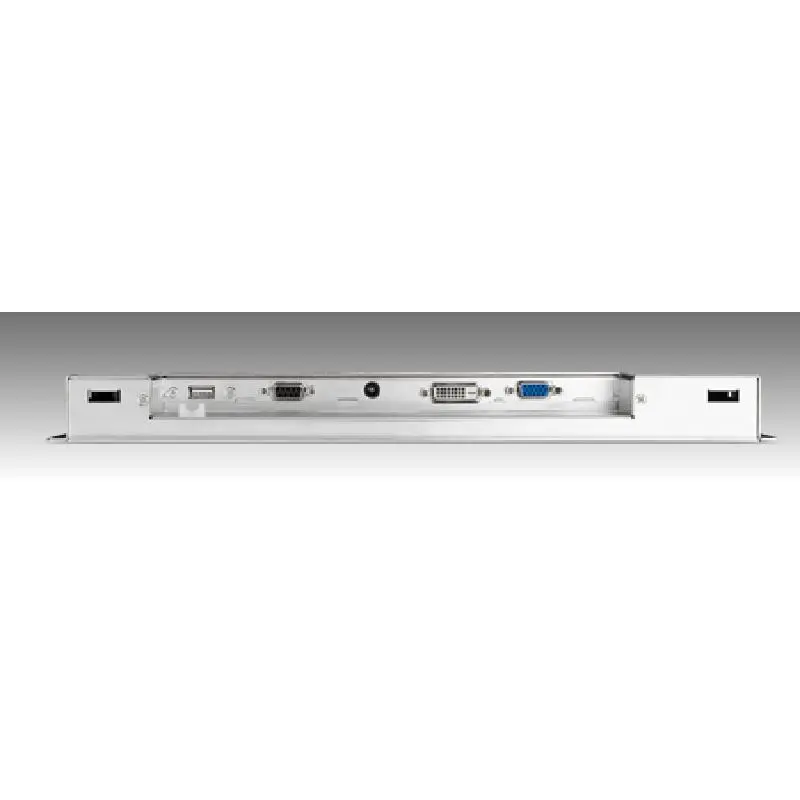

LCD Display Signal Interface VGA x 1; 12V DC Jack x 1; USB x 1; RS-232 x 1 (USB & RS-232 are reserved for the connection to enable touch usage only); OSD keys (Auto-tune, menu, decrease, increase) VGA x 1; 12V DC Jack x 1; USB x 1; RS-232 x 1 (USB & RS-232 are reserved for the connection to enable touch usage only); OSD keys (Auto-tune, menu, decrease, increase) VGA x 1; DVI x 1; 12V DC Jack x 1; USB x 1; RS-232 x 1 ( USB & RS-232 are reserved for the connection to enable touch usage only); OSD keys (Auto-tune, menu, decrease, increase)
LCD Display Dimension 400 x 344.7 x 33.4mm 400 x 344.7 x 36.3mm 400 x 344.7 x 36.3mm
LCD Display Weight 4.1kg 4.7kg 4.05kg
