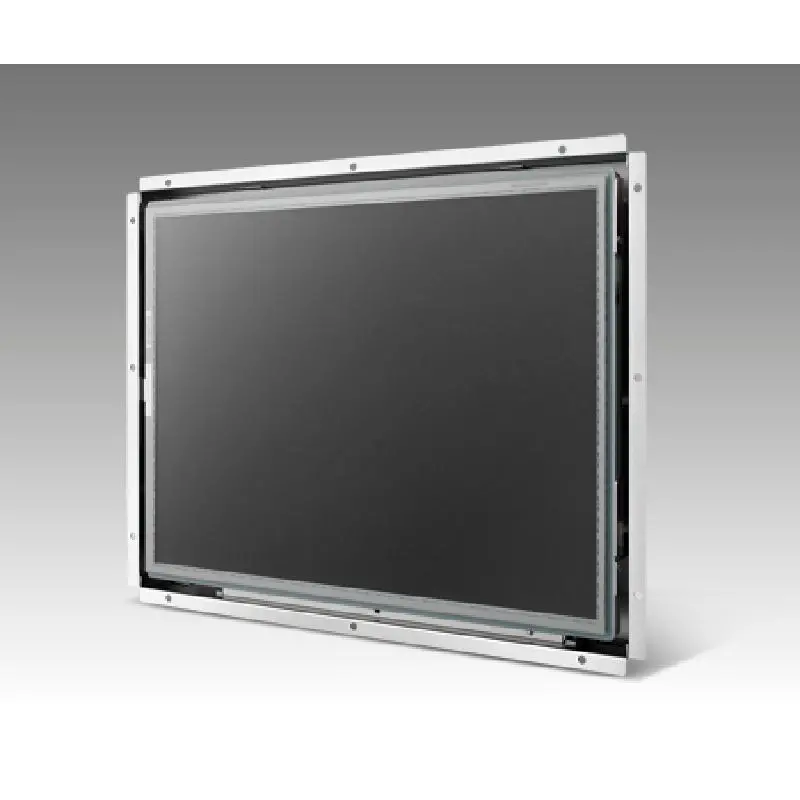

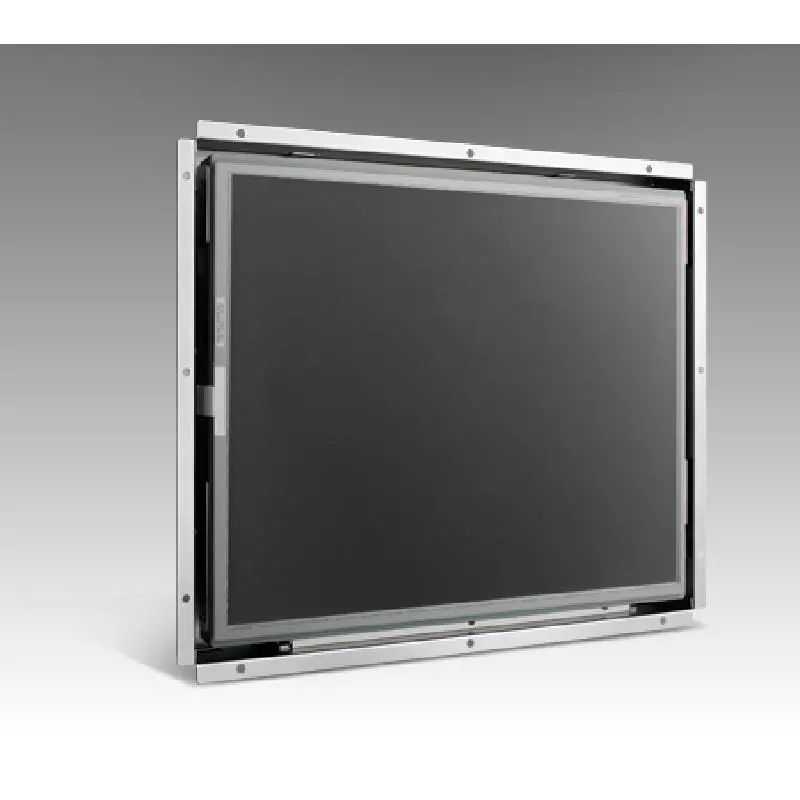

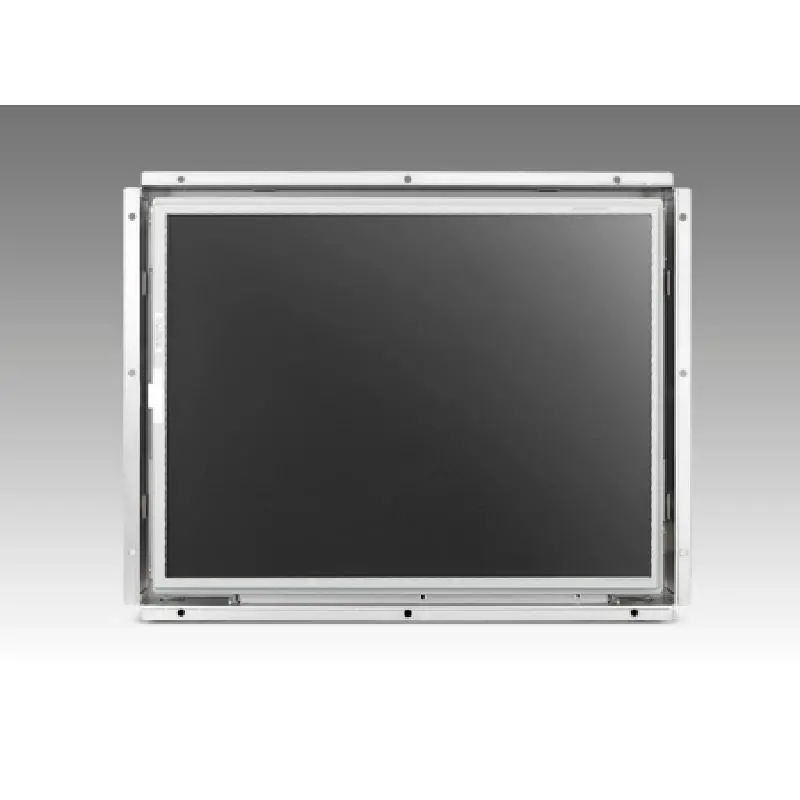

Advantech IDS-3119 19" 1280 x 1024, VGA/DVI interface, Ultra Slim Touch Open Frame Monitor

19" 1280 x 1024 SXGA panel with LED backlight for 20% power saving and environmental protection

0~ 45° C operating temperature support

5-wires resistive touchscreen solution

Combo touch interface of RS-232 and USB

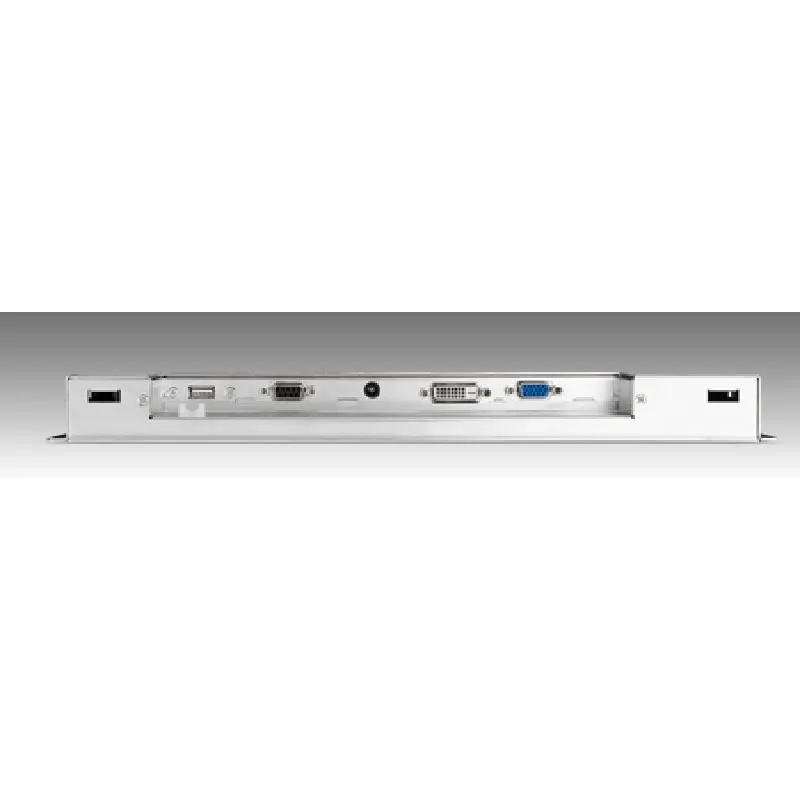

Dual signal interface with VGA and DVI

Integrated bracket for easy installation

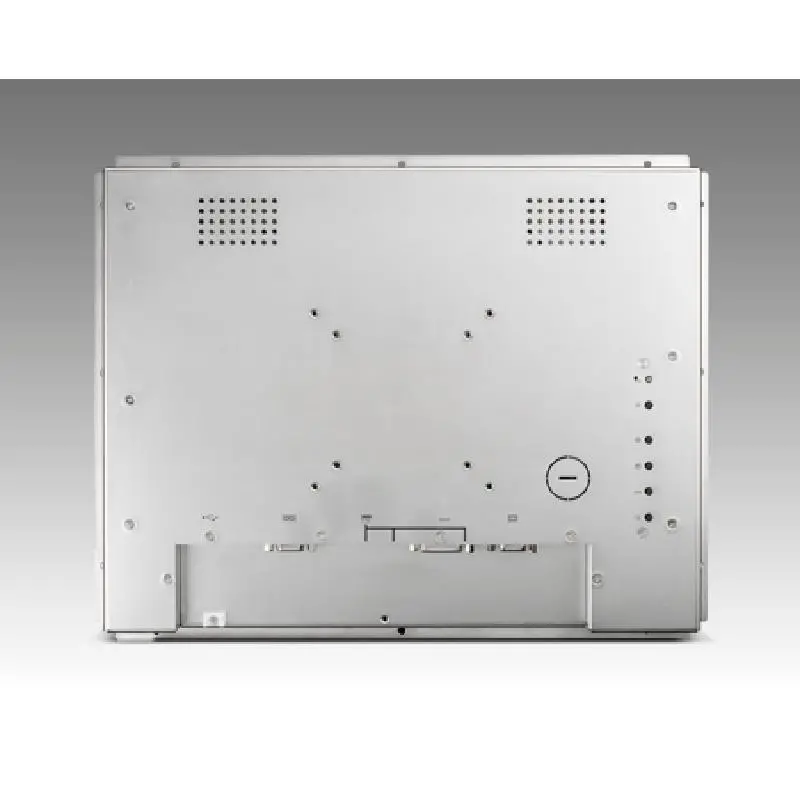

Versatile mounting methods for Rear mounting and VESA mounting

Anti-Reflective surface treatement for sunlight readable enhancement (optional)

Ultra high brightness solution of 1200 nits for outdoor applicatoin (optional)

		IDS-3119N-35SXA1E	IDS-3119R-35SXA1E
LCD Display	Size	19"	19"
LCD Display	Resolution	1280x1024, SXGA	1280x1024, SXGA
LCD Display	Viewing Angle (H/V°)	170/160	170/160
LCD Display	Brightness	350nits	350nits
LCD Display	Colors	16.7 M	16.7 M
LCD Display	Contrast Ratio	1000 : 1	1000 : 1
LCD Display	Response Time (ms)	5	5
LCD Display	Backlight Type	LED	LED
LCD Display	Backlight Life (hrs)	50,000	50,000
Environment	Operational Temperature	0 ~ 45° C	5-Wire Resistive
Environment	Storage Temperature	-20 ~ 60° C	3H
Environment	Humidity	5 ~ 90% @ 40° C, non-condensing	10 million touches
LCD Display	Signal Interface	VGA x 1; DVI x 1; 12V DC Jack x 1; OSD keys (Auto-tune, menu, decrease, increase)	80%
LCD Display	Dimension	438 x 369.7 x 34.3mm	0 ~ 45° C
LCD Display	Weight	4.5kg	-20 ~ 60° C
Environment	Humidity	5 ~ 90% @ 40° C, non-condensing
LCD Display	Signal Interface	VGA x 1; DVI x 1; 12V DC Jack x 1; USB x 1; RS-232 x 1 ( USB & RS-232 are reserved for the connection to enable touch usage only); OSD keys (Auto-tune, menu, decrease, increase)
LCD Display	Dimension	438 x 369.7 x 35.8mm
LCD Display	Weight	5.14kg
