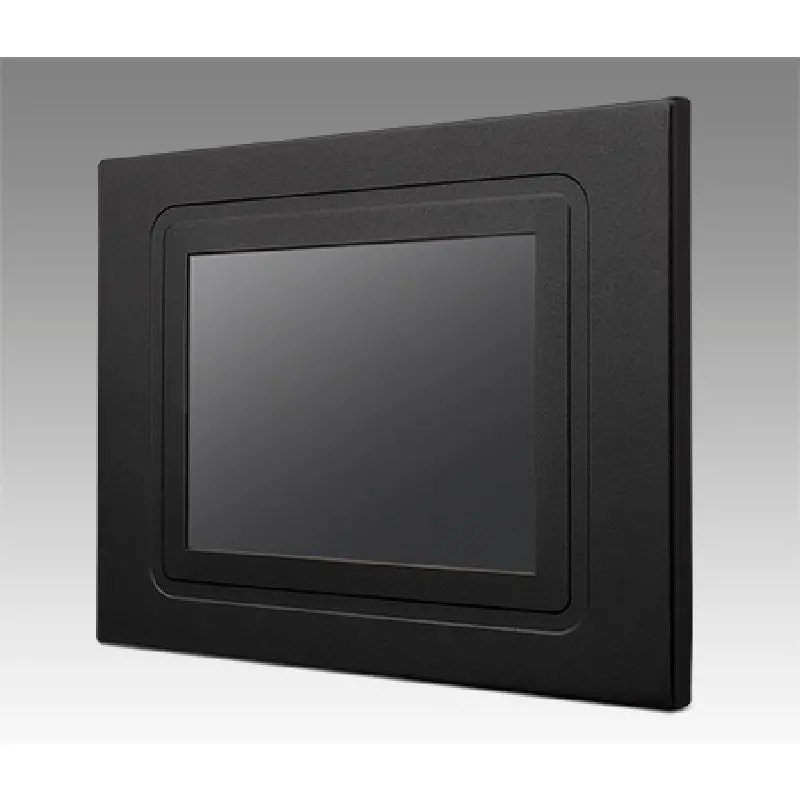

Advantech IDS-3206 6.5" VGA Industrial Panel Mount Monitor

6.5" VGA LCD panel with LED backlight for 20% power saving and environmental protection

0° C ~ +50° C range operating temperature

4-wire resistive touchscreen solution or 3mm tempered smudge resistant protected glass

USB touch interface

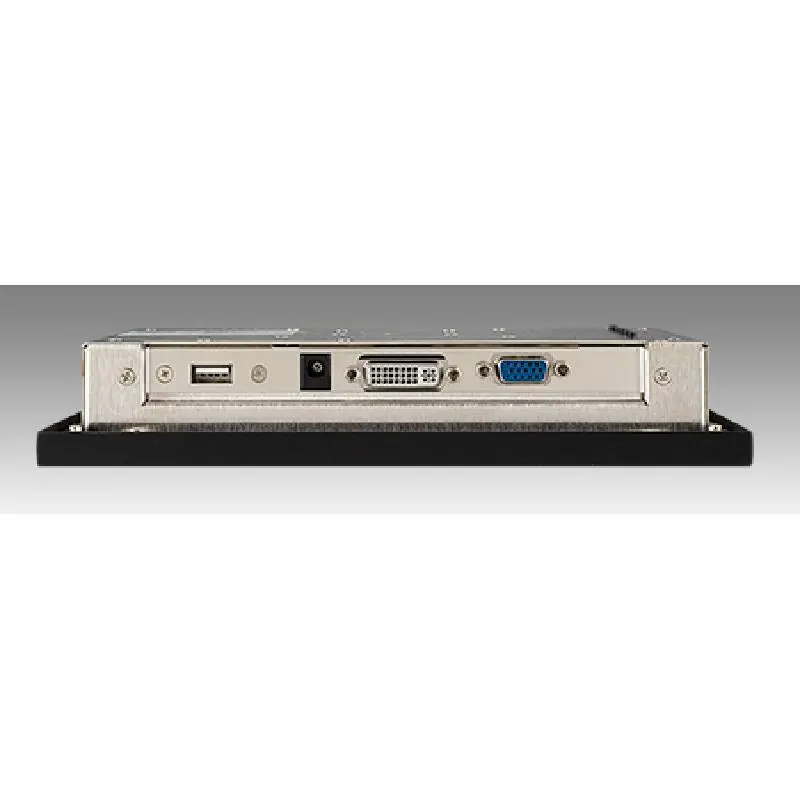

Dual signal interface with VGA & DVI

Standard integrated frame

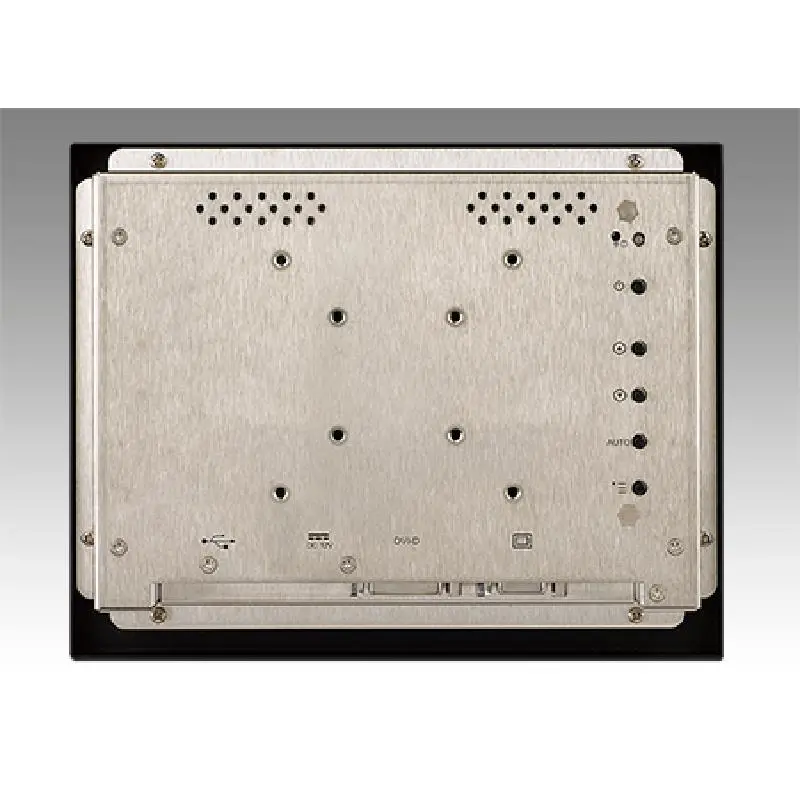

Versatile mounting method for rear mounting and VESA mounting

Anti-reflective treatment for sunlight readable enhancement (optional)

		IDS-3206G-80VGA1E	IDS-3206R-80VGA1E
LCD Display	Size	6.5"	6.5"
LCD Display	Resolution	640x480, VGA	640 x 480
LCD Display	Brightness	800nits	800nits
LCD Display	Viewing Angle (H/V°)	160/140	160/140
LCD Display	Colors	262K/16.2M	262K/16.2M
LCD Display	Contrast Ratio	600 : 1	600 : 1
LCD Display	Response Time (ms)	25	25
LCD Display	Backlight Type	LED	LED
LCD Display	Backlight Life (hrs)	50,000	50,000
LCD Display	Touch Screen	Tempered Glass	4-Wire Resistive
Touchscreen	Durability	N / A	3H
Touchscreen	Transparency	90%	1 million touches
Environment	Operational Temperature	0 ~ 50° C	80%
Environment	Storage Temperature	-20 ~ 60° C	0 ~ 50° C
Environment	Humidity	5 ~ 95% @ 40° C, non-condensing	-20 ~ 60° C
LCD Display	Signal Interface	VGA x 1; DVI x 1; 12V DC Jack x 1; USB x 1 (USB is reserved for the connection to enable touch usage only); OSD keys (Auto-tune, menu, decrease, increase)	5 ~ 95% @ 40° C, non-condensing
LCD Display	Dimension	219 x 171.8 x 37.66	VGA x 1; DVI x 1; 12V DC Jack x 1; USB x 1 (USB is reserved for the connection to enable touch usage only); OSD keys (Auto-tune, menu, decrease, increase)
LCD Display	Weight	1.2 kg	219 x 171.8 x 37.66
LCD Display	Weight	1.2 kg
