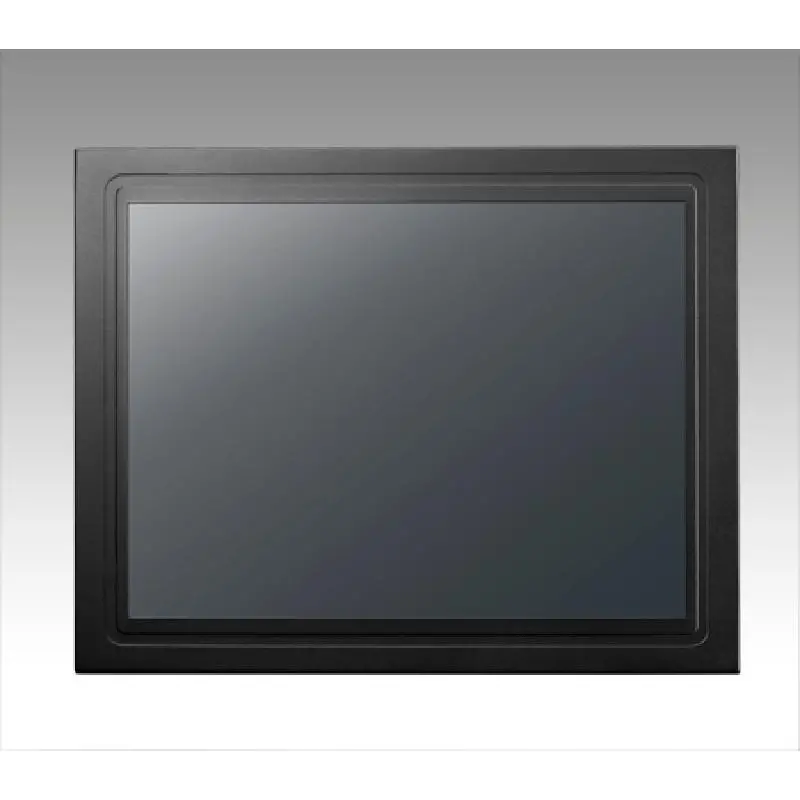

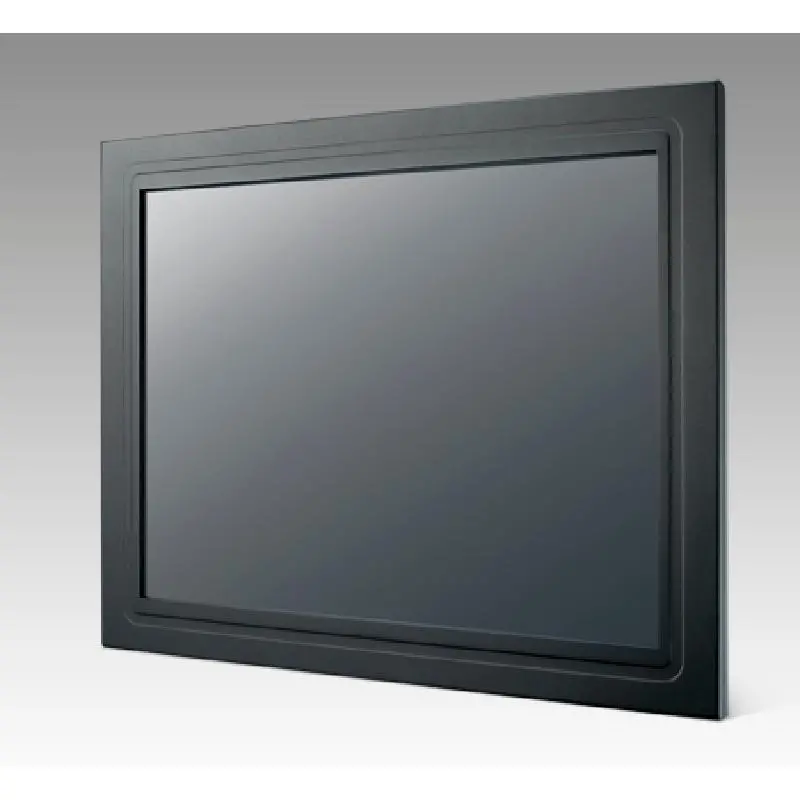

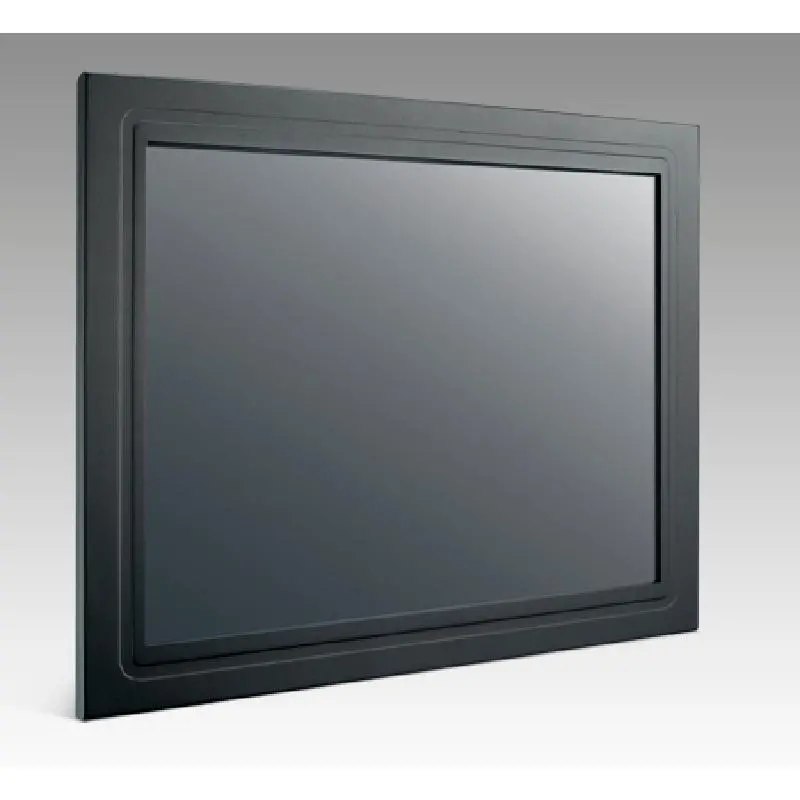

Advantech IDS-3210 10.4" SVGA / XGA Industrial Panel Mount Monitor

    10.4" SVGA LCD panel with LED backlight for 20% power saving and environmental protection

    -20° C ~ +60° C wide range operating temperature

    5-wire resistive touchscreen solution or tempered smudge resistant protected glass

    Combo touch interface: RS-232 and USB

    Dual signal interface with VGA & DVI

    Standard integrated frame

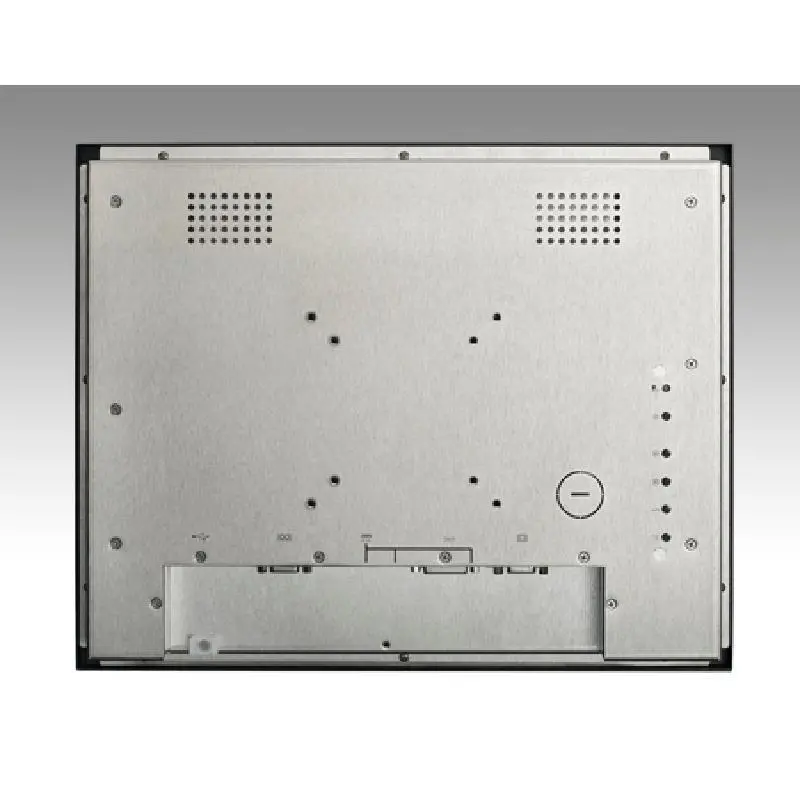

    Versatile mounting methods for rear mounting and VESA mounting

    Anti-Reflective treatment (optional)

    Ultra high brightness solution of 1200 cd/m 2 for outdoor application (optional)

IDS-3210EG-23SVA1E IDS-3210ER-23SVA1E IDS-3210G-40SVA1E IDS-3210G-50XGA1 IDS-3210R-40SVA1E IDS-3210R-50XGA1 IDS-3210P-50XGA1
LCD Display Size 10.4" 10.4" 10.4" 10.4" 10.4" 10.4" 10.4"
LCD Display Resolution 800x600, SVGA 800x600, SVGA 800x600, SVGA 1024 x 768, XGA 800x600, SVGA 1024 x 768, XGA 1024 x 768, XGA
LCD Display Viewing Angle (H/V°) 160/130 160/130 160/130 176/176 160/140 176/176 176/176
LCD Display Brightness 230nits 230nits 230nits 500 nits 400nits 500 nits 500 nits
LCD Display Colors 262K/16.2M 262K/16.2M 262K/16.2M 16.2M 262K/16.2M 16.2M 16.2M
LCD Display Contrast Ratio 500 : 1 500 : 1 500 : 1 1000 : 1 700 : 1 1000 : 1 1000 : 1
LCD Display Response Time (ms) 35 35 35 25 30 25 25
LCD Display Backlight Type LED LED LED LED LED LED LED
LCD Display Backlight Life (hrs) 30000 30,000 30,000 50,000 50,000 50,000 50,000
LCD Display Touch Screen Tempered Glass 5-Wire Resistive Tempered Glass Tempered Glass 5-Wire Resistive 5-Wire Resistive Projected Capacitive
Touchscreen Surface Hardness - 3H - - 3H 3H Mohs 5

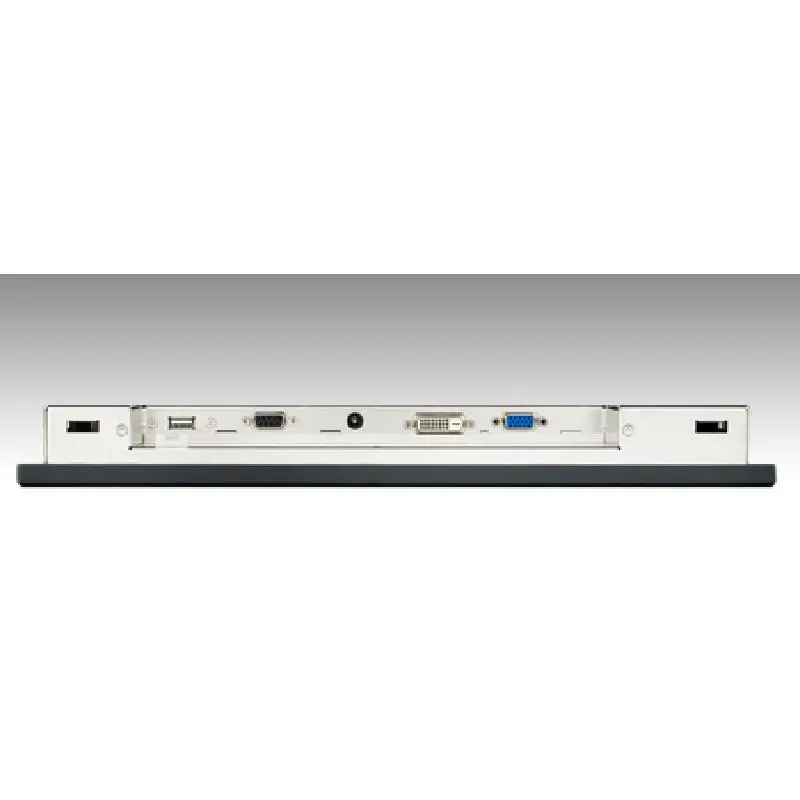

LCD Display Signal Interface VGA x 1; 12V DC Jack x 1; OSD keys (Auto-tune, menu, decrease, increase) VGA x 1; 12V DC Jack x 1; USB x 1; RS-232 x 1 (USB & RS-232 are reserved for the connection to enable touch usage only); OSD keys (Auto-tune, menu, decrease, increase) VGA x 1; 12V DC Jack x 1; OSD keys (Auto-tune, menu, decrease, increase) VGA x 1; DVI x 1; 12V DC Jack x 1; OSD keys (Auto-tune, menu, decrease, increase) VGA x 1; DVI x 1; 12V DC Jack x 1; USB x 1; RS-232 x 1 ( USB & RS-232 are reserved for the connection to enable touch usage only); OSD keys (Auto-tune, menu, decrease, increase) VGA x 1; DVI x 1; 12V DC Jack x 1; USB x 1; RS-232 x 1 ( USB & RS-232 are reserved for the connection to enable touch usage only); OSD keys (Auto-tune, menu, decrease, increase) VGA x 1; 12V DC Jack x 1; OSD keys (Auto-tune, menu, decrease, increase)
LCD Display Dimension 290.2 x 237.64 x 35.1mm 290.2 x 237.64 x 35.1mm 290.2 x 237.64 x 35.1mm 290.2 x 237.64 x 35.1mm 290.2 x 237.64 x 35.1mm 290.2 x 237.64 x 35.1mm 290.2 x 237.64 x 35.6mm
LCD Display Weight 1.45kg 2.05kg 1.45kg 2.1kg 2.1kg 2.1kg 2.1kg
Environment Operational Temperature 0 ~ 45° C 0 ~ 45° C 0 ~ 45° C -20 ~ 60° C -20 ~ 60° C -20 ~ 60° C -20 ~ 60° C
Environment Storage Temperature -20 ~ 60° C -20 ~ 60° C -20 ~ 60° C -30 ~ 70° C -30 ~ 70° C -30 ~ 70° C -30 ~ 70° C
Environment Humidity 10 ~ 90% @ 40° C, non-condensing 10 ~ 90% @ 40° C, non-condensing 10 ~ 90% @ 40° C, non-condensing 10 ~ 90% @ 40° C, non-condensing 10 ~ 90% @ 40° C, non-condensing 10 ~ 90% @ 40° C, non-condensing 10 ~ 90% @ 40° C, non-condensing
Touchscreen Durability N / A 36 million touches N / A N / A 36 million touches 36 million touches -
Touchscreen Transparency 90% 82% 90% 90% 82% 82% 90%
