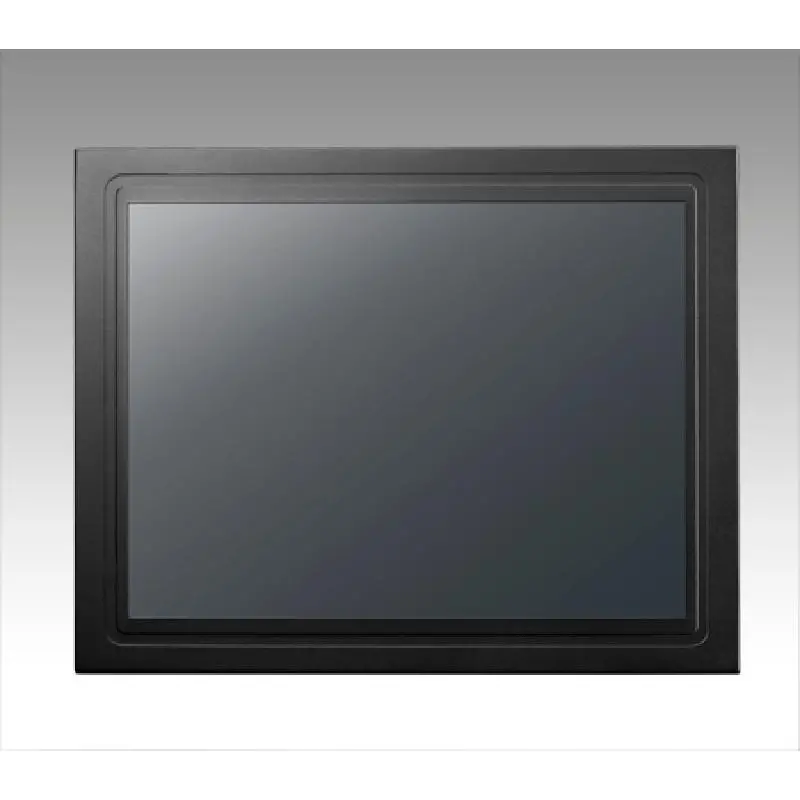

Advantech IDS-3212 12" SVGA / XGA Industrial Panel Mount Monitor

    12.1" SVGA / XGA LCD panel with LED backlight for 20% power savings, and environmental protection

    -20° C ~ +60° C wide range operating temperature

    5-wire resistive touch screen solution or 3mm tempered smudge resistantprotected glass

    Combo touch interface, both RS-232 and USB

    Dual signal interface with VGA & DVI

    Standard integrated frame

    Versatile mounting method for rear mounting and VESA mounting

    Anti-Reflective treatment (optional)

    Ultra high brightness solution of 1200 cd/m2 for utdoor applications (optional)

IDS-3212ER-45SVA1E IDS-3212G-45SVA1E IDS-3212G-60XGA1E IDS-3212R-45SVA1E IDS-3212R-60XGA1E IDS-3212P-60XGA1
LCD Display Signal Interface VGA x 1; 12V DC Jack x 1; USB x 1; RS-232 x 1 (USB & RS-232 are reserved for the connection to enable touch usage only); OSD keys (Auto-tune, menu, decrease, increase) VGA x 1; DVI x 1; 12V DC Jack x 1; OSD keys (Auto-tune, menu, decrease, increase) VGA x 1; DVI x 1; 12V DC Jack x 1; OSD keys (Auto-tune, menu, decrease, increase) VGA x 1; DVI x 1; 12V DC Jack x 1; USB x 1; RS-232 x 1 ( USB & RS-232 are reserved for the connection to enable touch usage only); OSD keys (Auto-tune, menu, decrease, increase) VGA x 1; DVI x 1; 12V DC Jack x 1; USB x 1; RS-232 x 1 ( USB & RS-232 are reserved for the connection to enable touch usage only); OSD keys (Auto-tune, menu, decrease, increase) VGA x 1; DVI x 1; 12V DC Jack x 1; USB x 1 (USB is reserved for the connection to enable touch usage only); OSD keys (Auto-tune, menu, decrease, increase)
LCD Display Resolution 800 x 600, SVGA 800 x 600, SVGA 1024 x 768, XGA 800 x 600, SVGA 1024 x 768, XGA 1024 x 768, XGA
LCD Display Colors 262K/16.2M 262K/16.2M 262K/16.2M 262K/16.2M 262K/16.2M 262K/16.2M
LCD Display Viewing Angle (H/V°) 160/140 160/140 160/140 160/140 160/140 178/178
LCD Display Backlight Life (hrs) 50,000 50,000 50,000 50,000 50,000 50,000
LCD Display Contrast Ratio 700 : 1 700 : 1 700 : 1 700 : 1 700 : 1 1000 : 1
LCD Display Size 12.1" 12.1" 12.1" 12.1" 12.1" 12.1"
LCD Display Brightness 450nits 450nits 600nits 450nits 600nits 600nits
LCD Display Touch Screen 5-Wire Resistive Tempered Glass Tempered Glass 5-Wire Resistive 5-Wire Resistive Projected Capacitive
LCD Display Response Time (ms) 35 35 16 35 16 25
LCD Display Backlight Type LED LED LED LED LED LED
LCD Display Dimension 323.7 x 262.4 x 36.5mm 323.7 x 262.4 x 36.5mm 323.7 x 262.4 x 36.5mm 323.7 x 262.4 x 36.5mm 323.7 x 262.4 x 36.5mm 323.7 x 262.4 x 36.5mm
LCD Display Weight 2.5kg 2.5kg 2.5kg 2.5kg 2.5kg 2.5kg
Environment Operational Temperature 0 ~ 45° C -20 ~ 60° C -20 ~ 60° C -20 ~ 60° C -20 ~ 60° C -20 ~ 60° C
Environment Storage Temperature -20 ~ 60° C -30 ~ 70° C -30 ~ 70° C -30 ~ 70° C -30 ~ 70° C -30 ~ 70° C
Environment Humidity 5 ~ 95% @ 40° C, non-condensing 5 ~ 95% @ 40° C, non-condensing 5 ~ 95% @ 40° C, non-condensing 5 ~ 95% @ 40° C, non-condensing 5 ~ 95% @ 40° C, non-condensing 5 ~ 95% @ 40° C, non-condensing
Touchscreen Durability 10 million touches N / A N / A 10 million touches 10 million touches -
Touchscreen Surface Hardness 3H 90% 90% 3H 3H 7H
Touchscreen Transparency 80% 80% 80% 90%
