Advantech IDS-3217 17" SXGA Industrial Panel Mount Monitor

    17" SXGA LCD panel with LED backlight for 20% power saving and environmental protection

    -20 ~ +60° C wide range operating temperature

    5-wire resistive touchscreen solution or 3mm tempered smudge resistant protected glass

    Combo touch interface: RS-232 and USB

    Dual signal interface with VGA & DVI (on selected models)

    Standard integrated frame

    Versatile mounting methods for front mounting and VESA mounting

    Anti-Reflective treatment (optional)

    Ultra high brightness solution of 1200 cd/m2 for outdoor applications (optional)

IDS-3217EG-25SXA1E IDS-3217ER-25SXA1E IDS-3217G-35SXA1E IDS-3217R-35SXA1E
LCD Display Size 17" 17" 17" 17"
LCD Display Resolution 1280 x 1024, SXGA 1280 x 1024, SXGA 1280x1024, SXGA 1280x1024, SXGA
LCD Display Viewing Angle (H/V°) 170/160 170/160 170/160 170/160
LCD Display Brightness 250nits 250nits 350nits 350nits
LCD Display Colors 16.2M 16.2M 16.7M 16.7M
LCD Display Backlight Life (hrs) 40,000 40,000 40,000 / 50,000 40,000 / 50,000
LCD Display Contrast Ratio 1000 : 1 1000 : 1 800 : 1 800 : 1
LCD Display Response Time (ms) 5 5 30 30
LCD Display Touch Screen N/A 5-Wire Resistive N/A 5-Wire Resistive / -
LCD Display Backlight Type LED LED LED LED
LCD Display Dimension 425.0 x 357.5 x 39.0 mm 425.0 x 357.5 x 39.0 mm 425.0 x 357.5 x 39.0 mm 425.0 x 357.5 x 39.0 mm
LCD Display Weight 4.5kg 4.7kg 4.5kg 4.7kg
Environment Operational Temperature 0 ~ 45° C 0 ~ 45° C -20 ~ 60° C -20 ~ 60° C
Environment Storage Temperature -20 ~ 60° C -20 ~ 60° C -30 ~ 70° C -30 ~ 70° C
Environment Humidity 10 ~ 90% @ 40° C, non-condensing 10 ~ 90% @ 40° C, non-condensing 10 ~ 90% @ 40° C, non-condensing 10 ~ 90% @ 40° C, non-condensing
Touchscreen Durability N/A 10 million touches N / A 10 million touches
Touchscreen Surface Hardness N/A 3H N/A 3H
Touchscreen Transparency N/A 80% N/A 80%

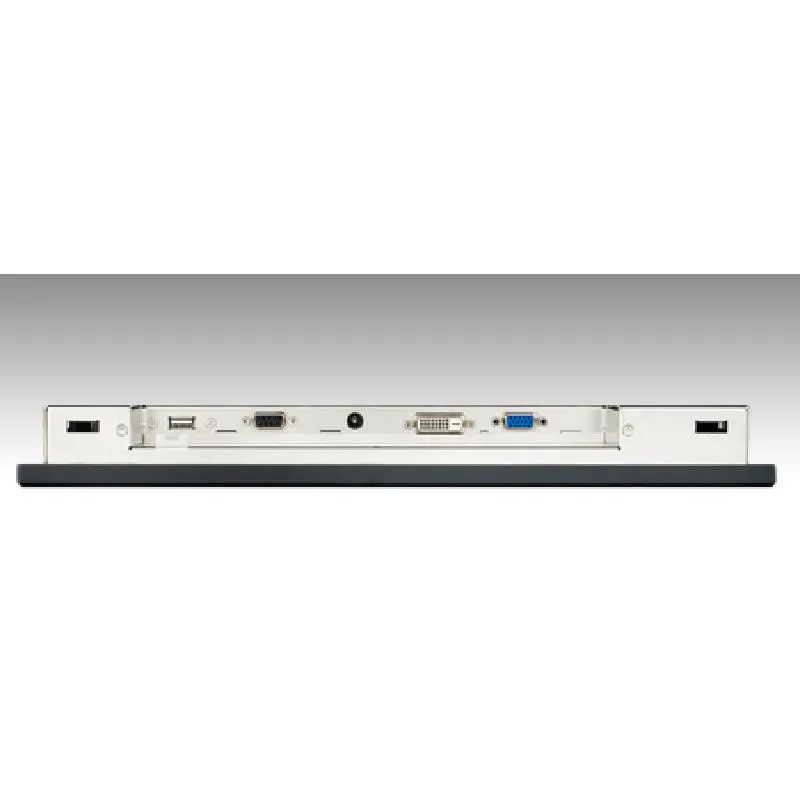

LCD Display Signal Interface VGA x 1; 12V DC Jack x 1; OSD keys (Auto-tune, menu, decrease, increase) VGA x 1; 12V DC Jack x 1; USB x 1; RS-232 x 1 (USB & RS-232 are reserved for the connection to enable touch usage only); OSD keys (Auto-tune, menu, decrease, increase) VGA x 1; DVI x 1; 12V DC Jack x 1; OSD keys (Auto-tune, menu, decrease, increase) VGA x 1; DVI x 1; 12V DC Jack x 1; USB x 1; RS-232 x 1 ( USB & RS-232 are reserved for the connection to enable touch usage only); OSD keys (Auto-tune, menu, decrease, increase)
