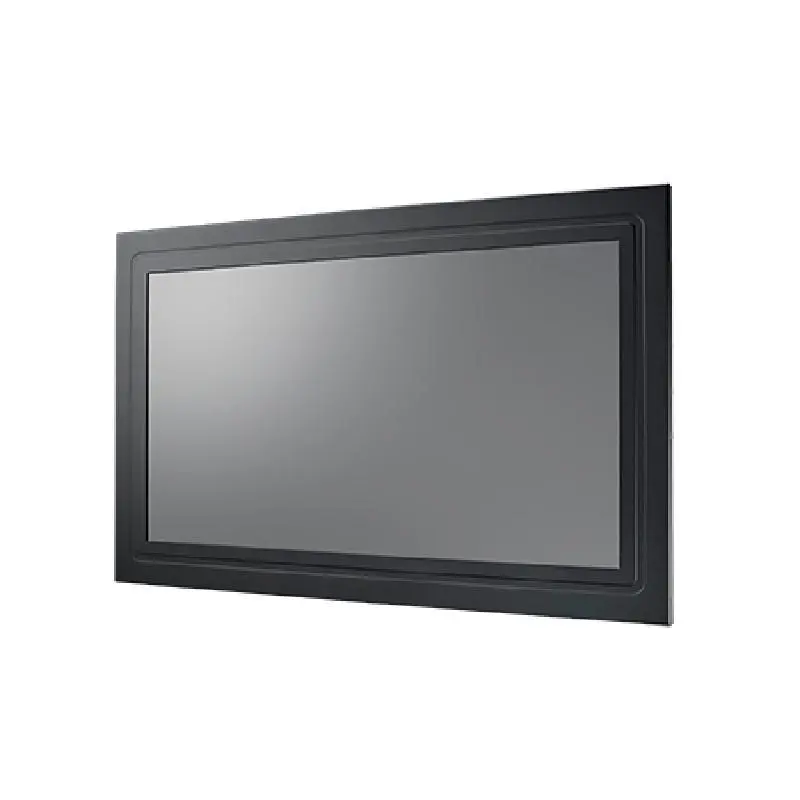

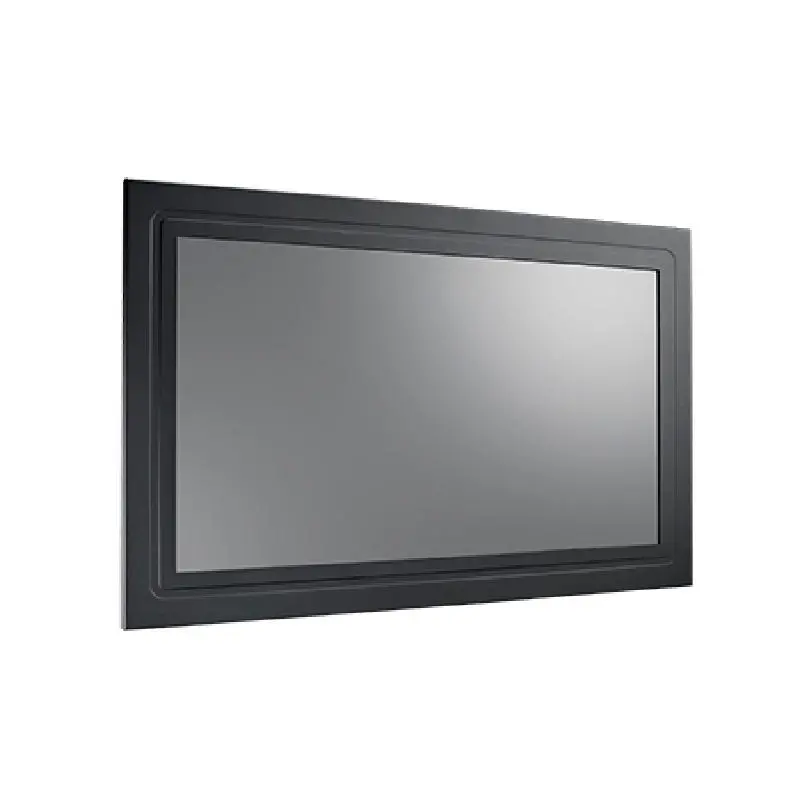

Advantech IDS-3218W 18.5" HD, 1366 x 768, VGA/DVI/HDMI interface, Panel Mount Monitor

18.5" 1366x768 HD LCD panel with LED backlight for 20% power saving

0° ~ 55° C wide range operating temperature

With 5-wire resistive or P-cap touchscreen solution (optional)

Touch interface: USB and RS-232

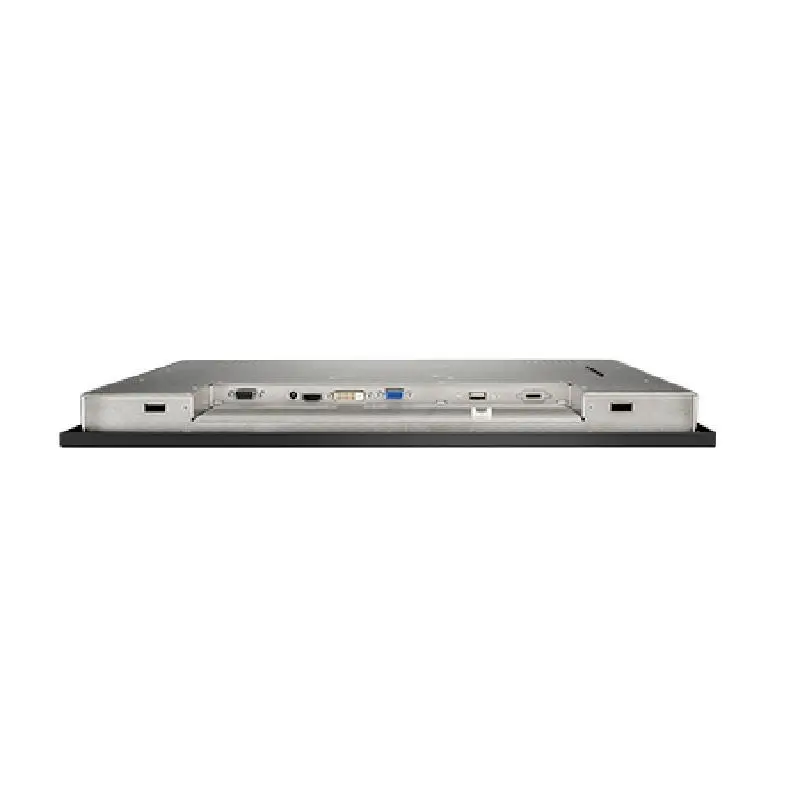

Multiple signal interface with VGA, DVI and HDMI

Integrated bracket for easy installation

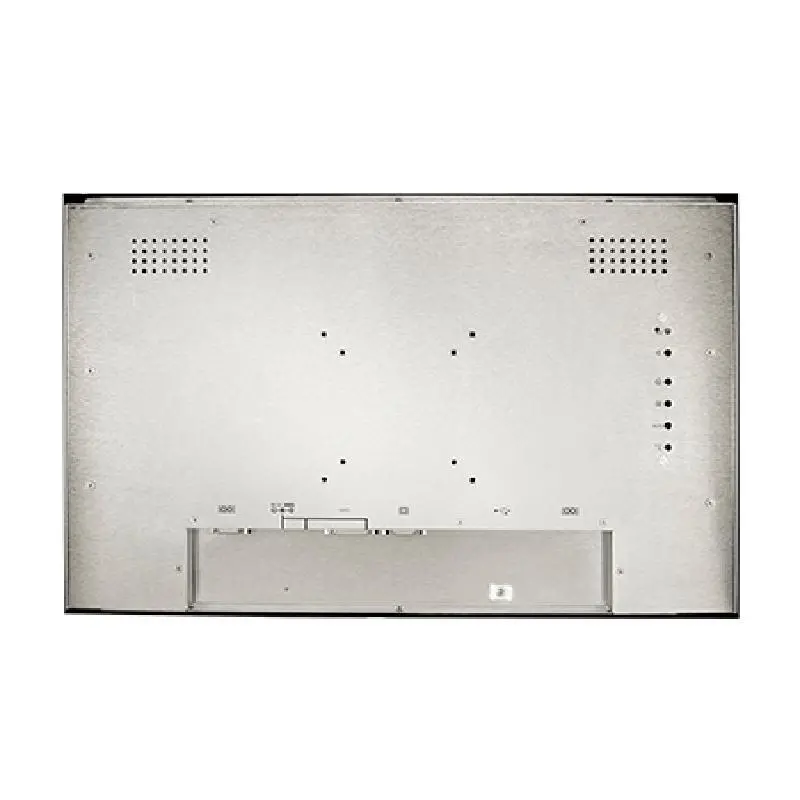

Versatile mounting methods for rear mounting and VESA mounting

Anti-Reflective treatment (optional)

Optical bonding (optional)

		IDS-3218WG-30HDA1	IDS-3218WP-30HDA1	IDS-3218WR-30HDA1
LCD Display	Size	18.5"	18.5"	18.5"
LCD Display	Resolution	1366 x 768, HD	1366 x 768, HD	1366 x 768, HD
LCD Display	Viewing Angle (H/V°)	170/160	170/160	170/160
LCD Display	Brightness	300 nits	300 nits	300 nits
LCD Display	Colors	16.7 M	16.7 M	16.7 M
LCD Display	Contrast Ratio	1000 : 1	1000 : 1	1000 : 1
LCD Display	Response Time (ms)	5 ms	5 ms	5 ms
LCD Display	Backlight Type	LED	LED	LED
LCD Display	Backlight Life (hrs)	50,000	50,000	50,000
LCD Display	Touch Screen	N/A	Projected Capacitive	5-Wire Resistive
Touchscreen	Surface Hardness	8H	6H	3H
Touchscreen	Durability	-	-	10 million touches
Touchscreen	Transparency	90%	86%	80%
Environment	Operational Temperature	0 ~ 55° C	0 ~ 55° C	0 ~ 55° C
Environment	Storage Temperature	-20 ~ 60° C	-20 ~ 60° C	-20 ~ 60° C
Environment	Humidity	90% @ 40° C, non-condensing	90% @ 40° C, non-condensing	90% @ 40° C, non-condensing
LCD Display	Signal Interface	VGA x 1; DVI-D x 1; HDMI x 1; 12VDC Jack x 1;	VGA x 1; DVI x 1; HDMI x1; 12V DC Jack x 1; USB x 1; ( USB is reserved for the connection to enable touch usage only)	VGA x1; DVI-D x1; HDMIx1;12 VDC Jack x1; USB x1; RS-232 x1(USB & RS-232 are reserved for the connection to enable touch only)
