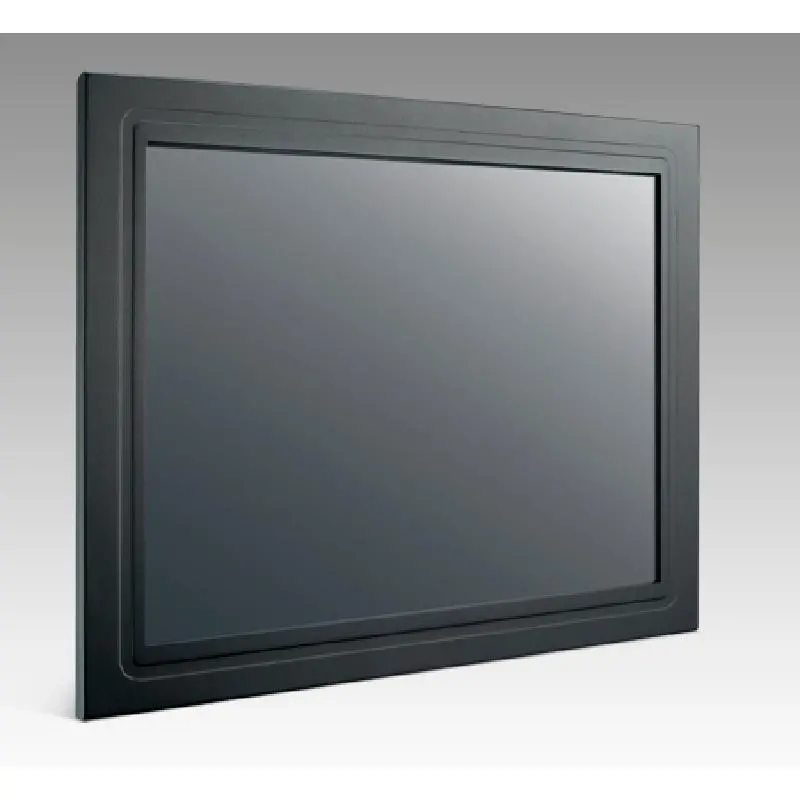

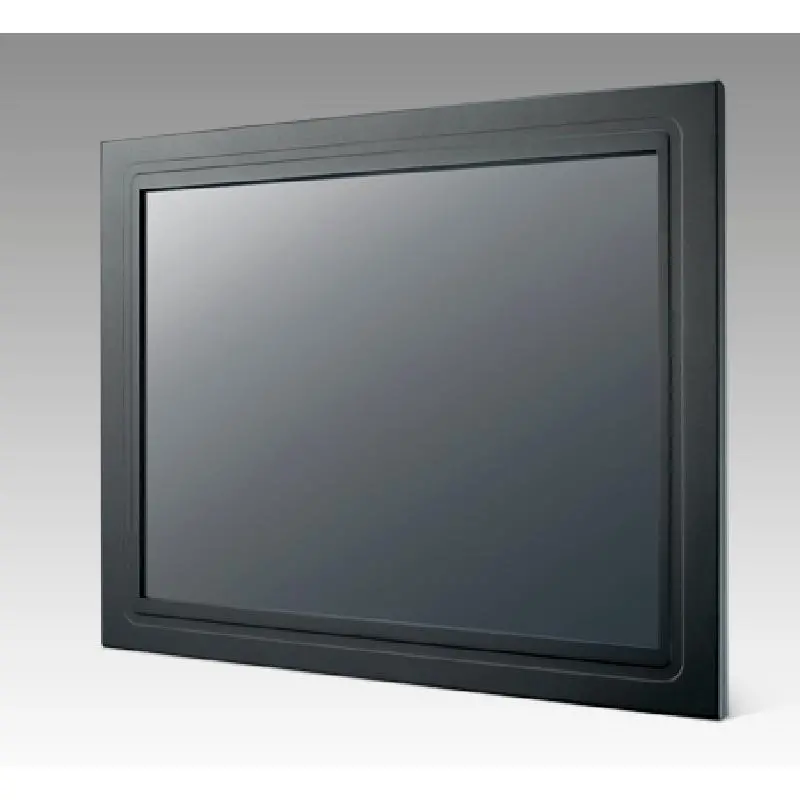

Advantech IDS-3219 19" SXGA Industrial Panel Mount Monitor

19" SXGA LCD panel with LED backlight for 20% power saving and environmental protection

0° ~ +45° C operating temperature

5-wire resistive touchscreen solution or 3mm tempered smudge resistant protected glass

Combo touch interface: RS-232 and USB

Dual signal interface with VGA & DVI

Standard integrated frame

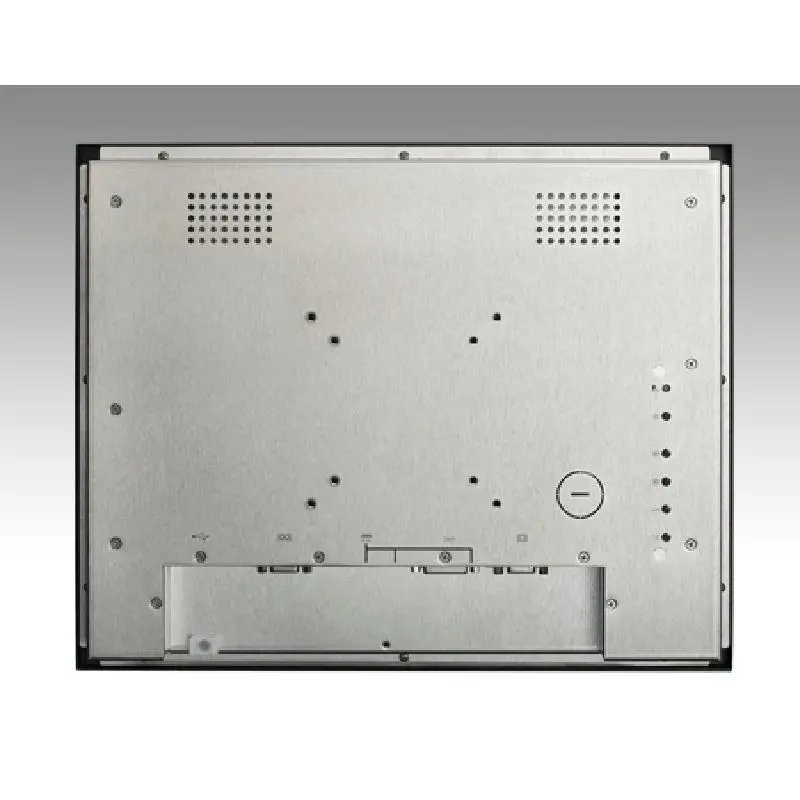

Versatile mounting methods for front mounting and VESA mounting

Anti-Reflective treatment (optional)

Ultra high brightness solution of 1200 cd/m2 for outdoor applications (optional)

		IDS-3219G-35SXA1E	IDS-3219R-35SXA1E

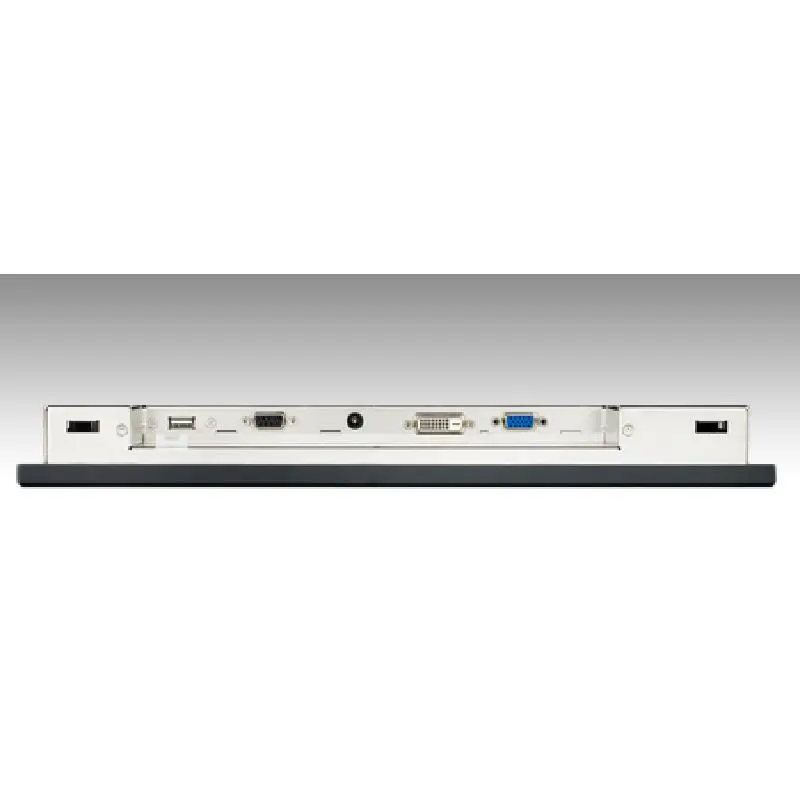

LCD Display	Signal Interface	VGA x 1; DVI x 1; 12V DC Jack x 1; OSD keys (Auto-tune, menu, decrease, increase)	VGA x 1; DVI x 1; 12V DC Jack x 1; USB x 1; RS-232 x 1 ( USB & RS-232 are reserved for the connection to enable touch usage only); OSD keys (Auto-tune, menu, decrease, increase)
LCD Display	Resolution	1280 x 1024, SXGA	1280 x 1024, SXGA
LCD Display	Colors	16.7 M	16.7 M
LCD Display	Viewing Angle (H/V°)	170/160	170/160
LCD Display	Backlight Life (hrs)	50,000	50,000
LCD Display	Contrast Ratio	1000 : 1	1000 : 1
LCD Display	Size	19"	19"
LCD Display	Brightness	350nits	350nits
LCD Display	Touch Screen	N/A	5-Wire Resistive
LCD Display	Response Time (ms)	5	5
LCD Display	Backlight Type	LED	LED
LCD Display	Dimension	449.7 x 374.4 x 40.4 mm	449.7 x 374.4 x 40.4 mm
Environment	Operational Temperature	0 ~ 45° C	0 ~ 45° C
Environment	Storage Temperature	-20 ~ 60° C	-20 ~ 60° C
Environment	Humidity	90% @ 40° C, non-condensing	90% @ 40° C, non-condensing
Touchscreen	Durability	-	10 million touches
Touchscreen	Surface Hardness	-	3H
Touchscreen	Transparency	-	80%
