| IDP31-150P50HIB1 | IDP31-150P50HIA1 | IDP31-150PK2HIA1 | ||

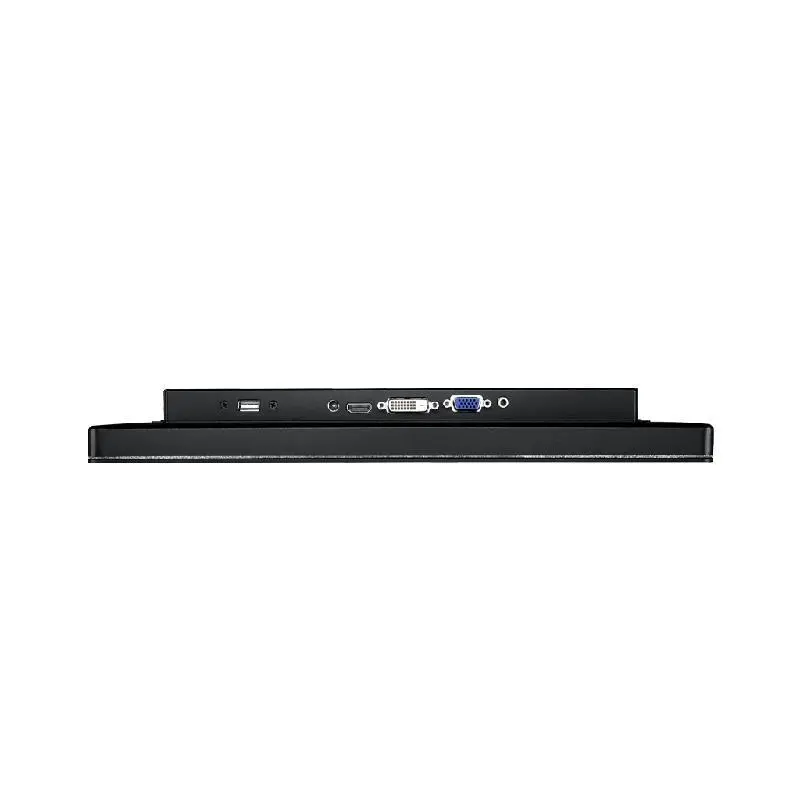

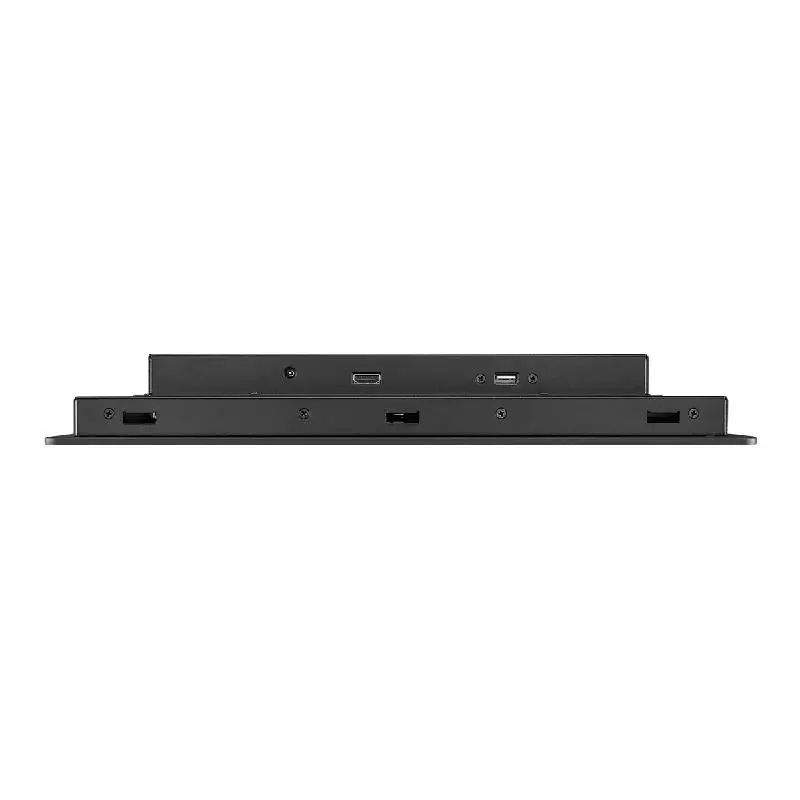

| LCD Display | Signal Interface | HDMI/DVI/VGA | 1xHDMI, 1x12V DC Jack, 1xUSB | 1xHDMI, 1x12V DC Jack, 1xUSB |
| LCD Display | Resolution | 1024 x 768, XGA | 1024 x 768, XGA | 1024 x 768, XGA |
| LCD Display | Colors | 16.7 M | 16.7 M | 16.7 M |
| LCD Display | Viewing Angle (H/V°) | 176/176 | 176/176 | 176/176 |
| LCD Display | Backlight Life (hrs) | 50,000 | 50,000 | 50,000 |
| LCD Display | Contrast Ratio | 2500 : 1 | 2500 : 1 | 2500 : 1 |
| LCD Display | Size | 15" | 15" | 15" |
| LCD Display | Brightness | 500 nits | 500 nits | 1200 nits |
| LCD Display | Touch Screen | Projective Capacitive Touch | Projective Capacitive Touch | Projective Capacitive Touch |
| LCD Display | Response Time (ms) | 23 | 23 | 23 |
| LCD Display | Backlight Type | LED | LED | LED |
| LCD Display | Dimension | 356 x 280 x 42.5 mm | 356 x 280 x 42.5 mm | 356 x 280 x 42.5 mm |
| LCD Display | Weight | 4kg | 4kg | 4kg |
| Environment | Operational Temperature | -20 ~ 60° C | -20 ~ 60° C | -20 ~ 60° C |
| Environment | Storage Temperature | -30 ~ 70° C | -30 ~ 70° C | -30 ~ 70° C |
| Environment | Humidity | 10 ~ 90% @ 40° C, non-condensing | 10 ~ 90% @ 40° C, non-condensing | 10 ~ 90% @ 40° C, non-condensing |
| Touchscreen | Durability | - | - | - |
| Touchscreen | Transparency | 86% | 86% | 86% |
| Touchscreen | Surface Hardness | 6H | 6H | 6H |

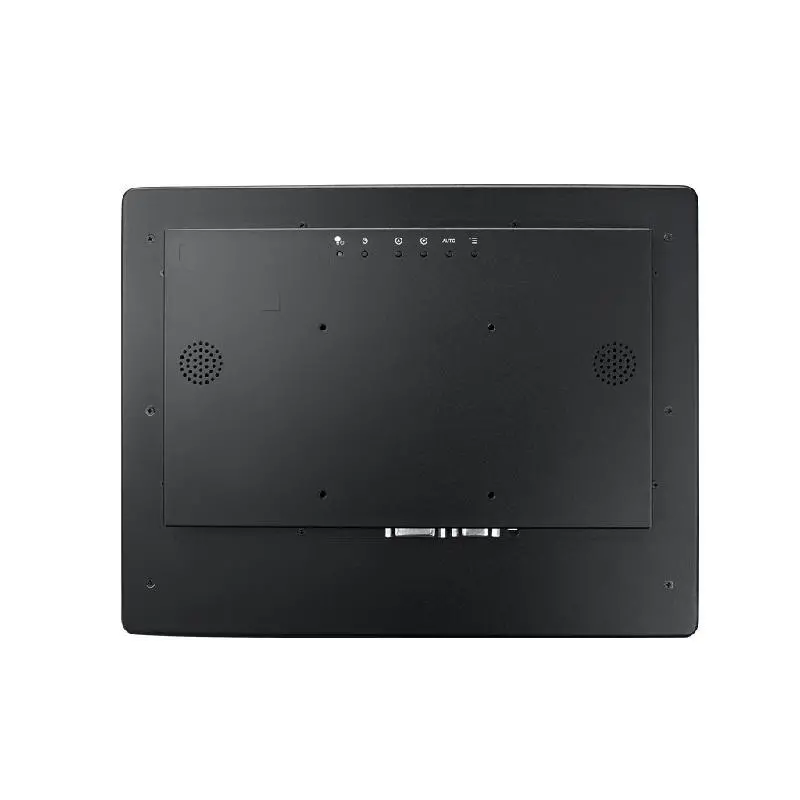

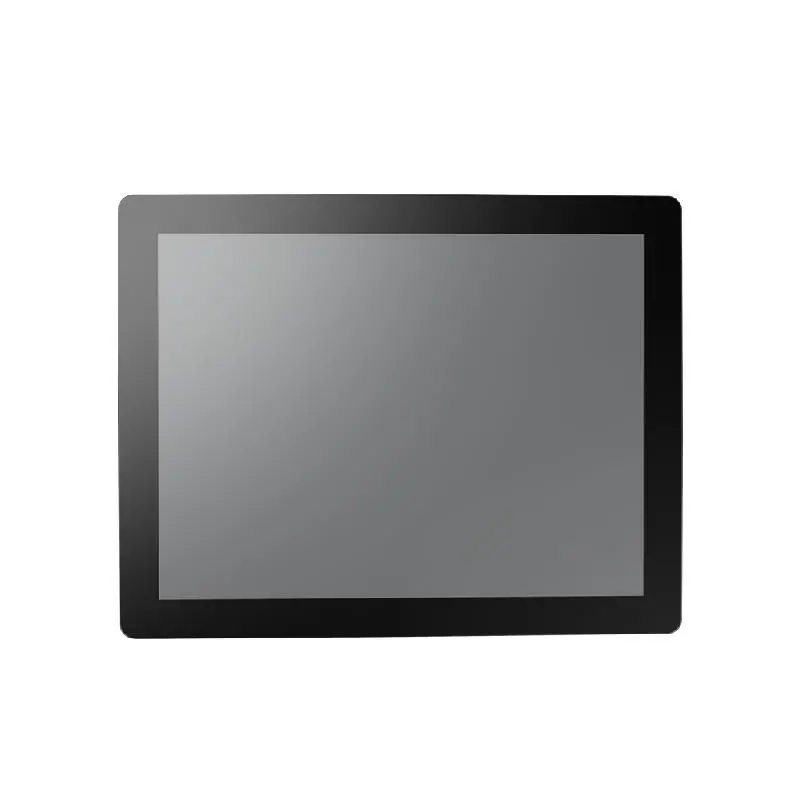

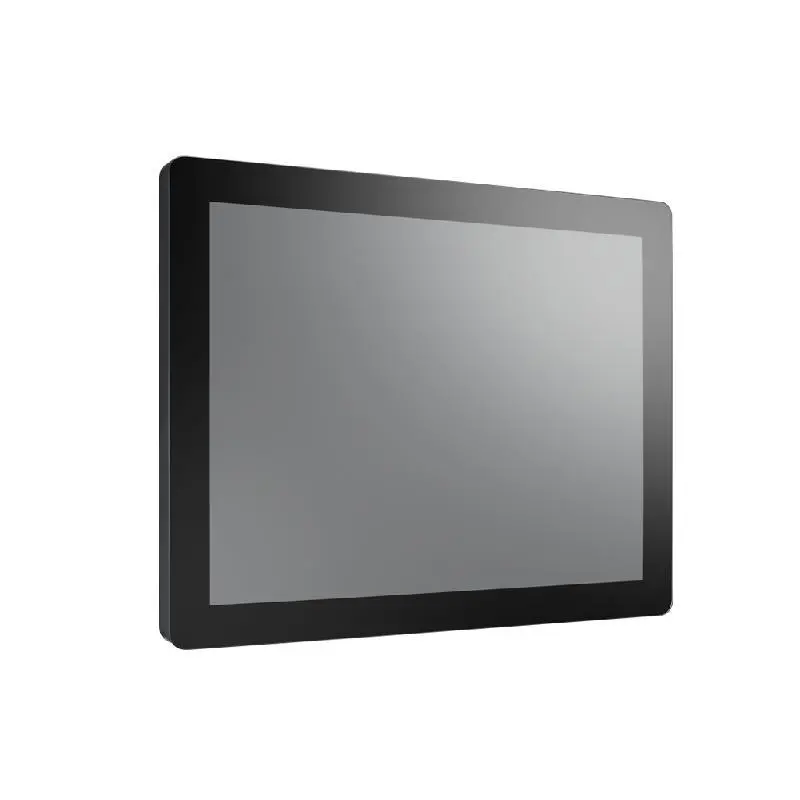

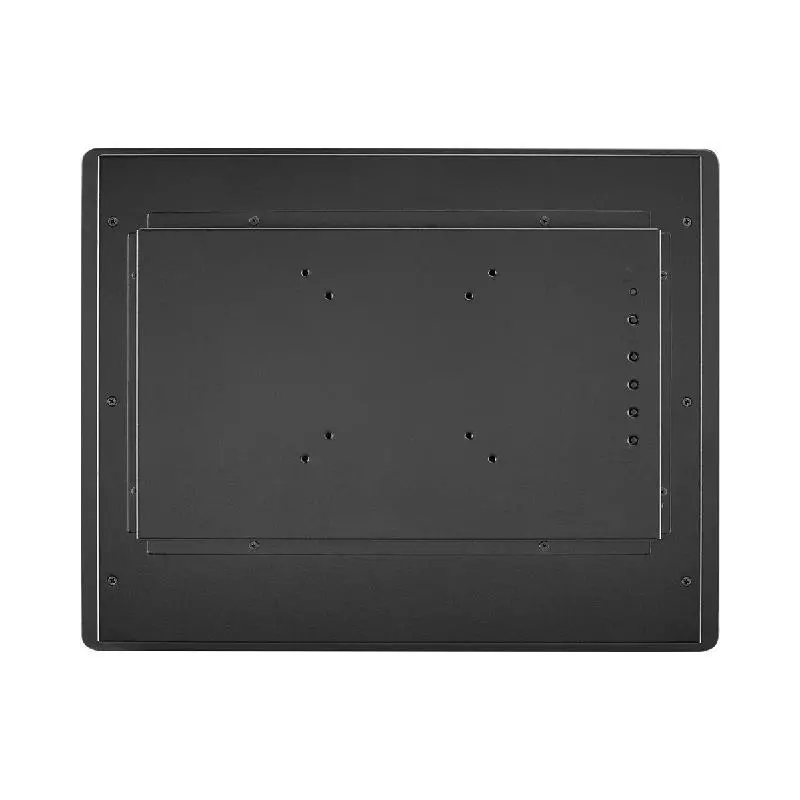

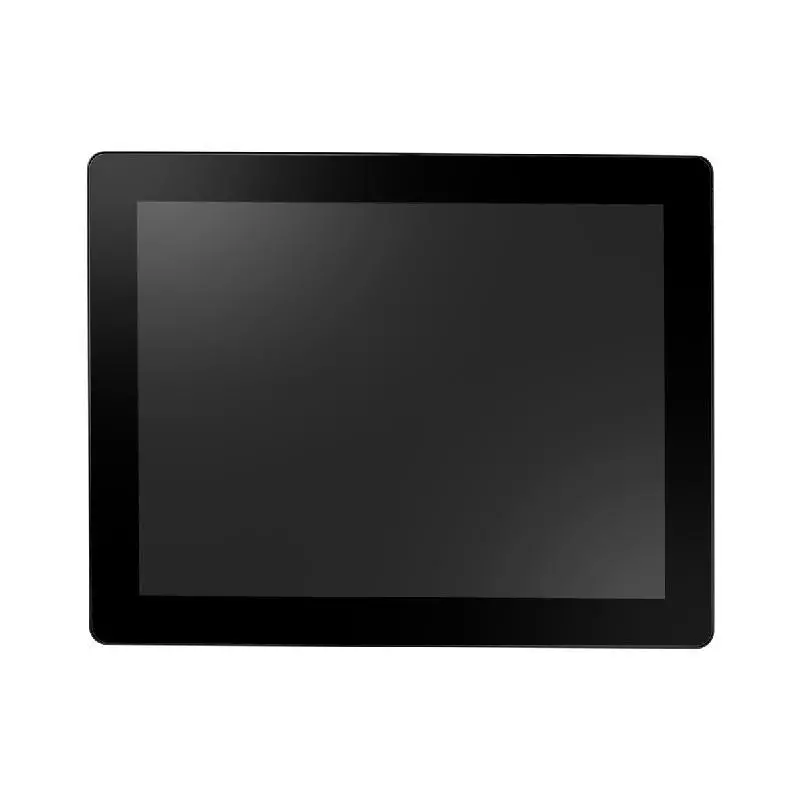

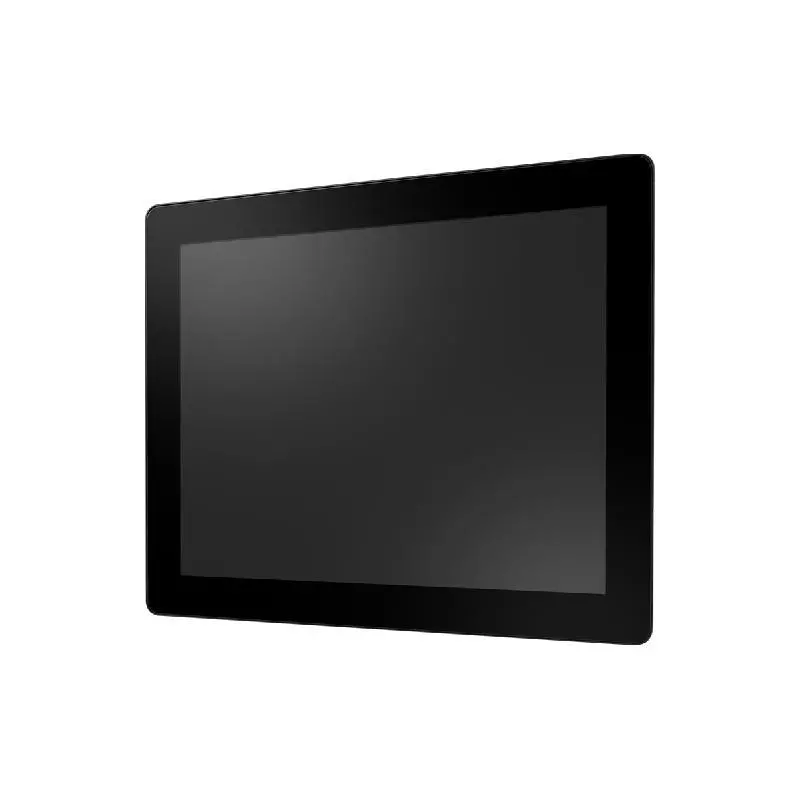

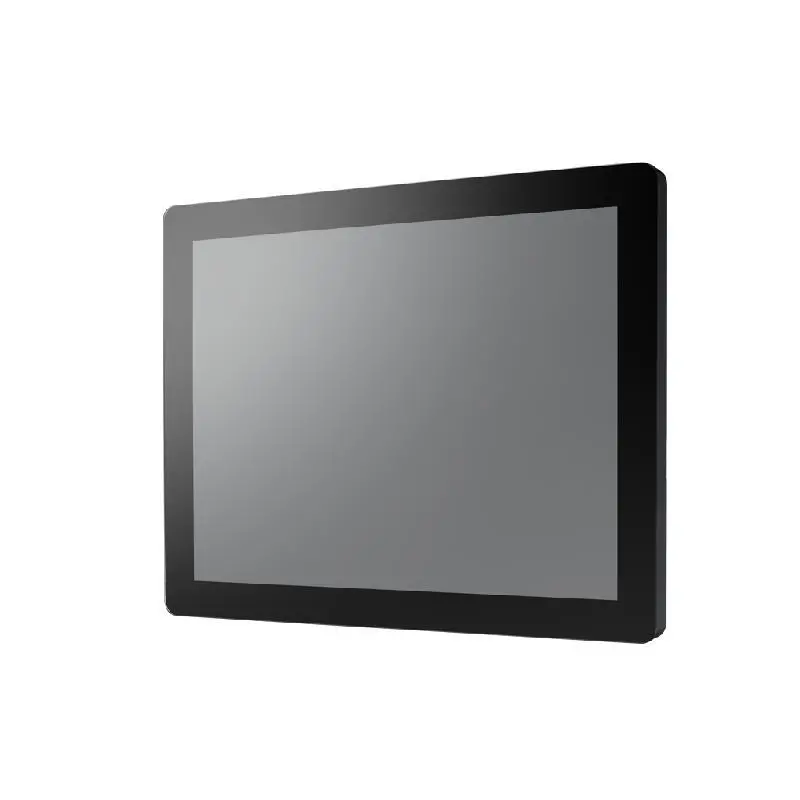

Advantech IDP31-150 100% flat fronted touch 15" Industrial grade monitors. Ultra thin profile, smooth rounded corners and rugged glass fronted for a totally contemporary outlook.
