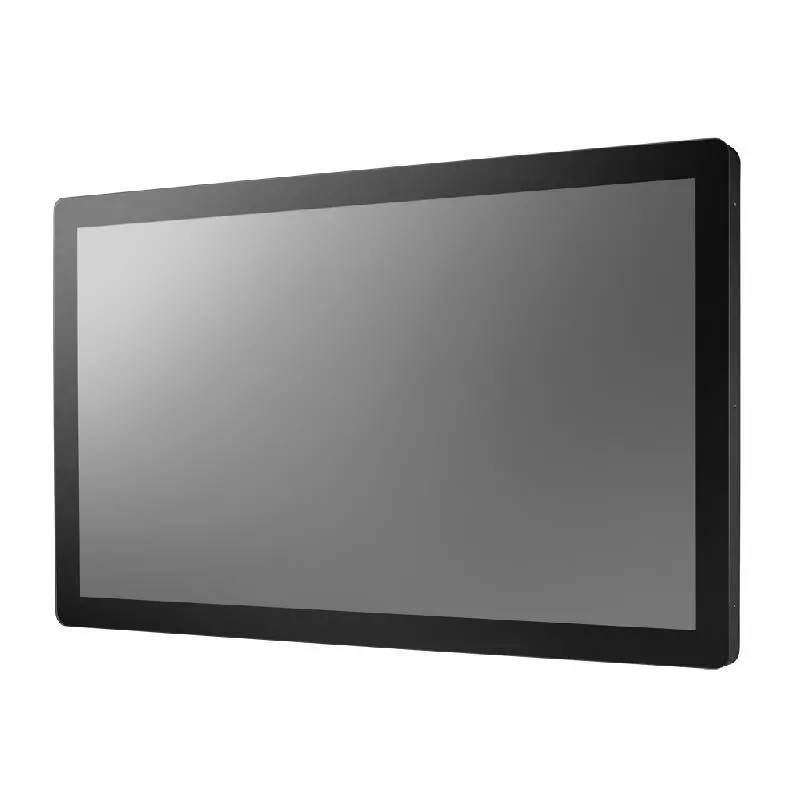

Advantech IDP31-215W 100% flat fronted touch and 21.5" Industrial grade monitors. Ultra thin profile, smooth rounded corners and rugged glass fronted for a totally contemporary outlook.

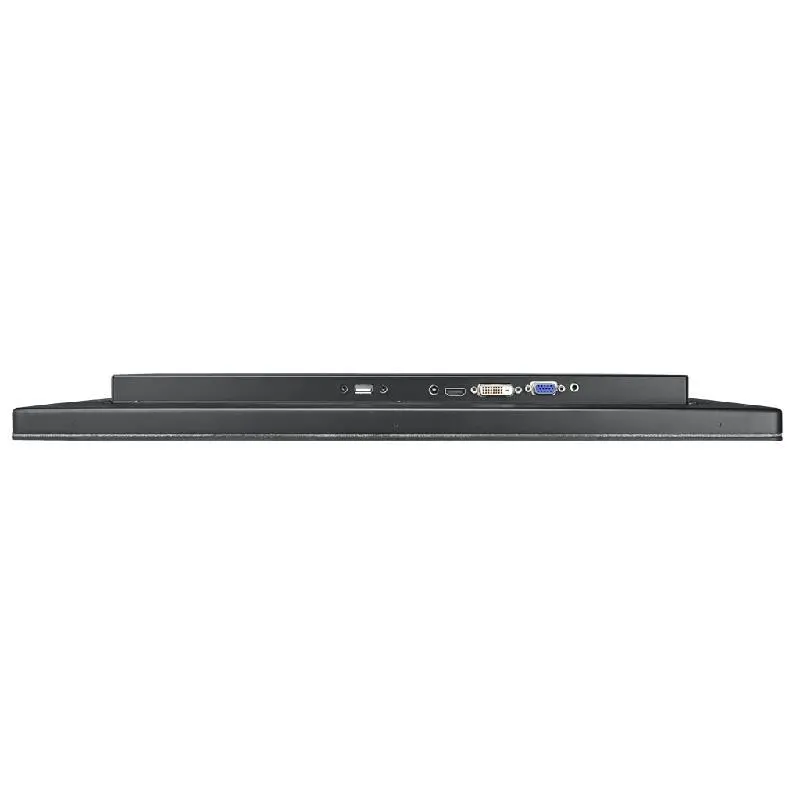

Multiple signal interface with HDMI, VGA and DVI

Multi-touch PCT touch overlay

Thin profile, enclosure – no need for additional enclosures or metalwork

Built-in audio and speakers (optional)

Wide view-angle 89°/89°/89°/89° for portrait and landscape mode

True flat surface – contemporary Proflat style

Wide operating temperature

21.5" LCD panel with LED backlight for long service lifeWide

IP rated front panel design

		IDP31-215WP25HIB2	IDP31-215WP25HIC1	IDP31-215WPK2HIC1
LCD Display	Signal Interface	HDMI x 1, VGA x 1, DVI x 1, Audio x 1, 12V Jack, USB x 1 (for enable touch only)	1xHDMI, 1x12V DC Jack, 1xUSB	1xHDMI, 1x12V DC Jack, 1xUSB
LCD Display	Resolution	1920 x 1080	1920 x 1080	1920 x 1080
LCD Display	Colors	16.7 M	16.7 M	16.7 M
LCD Display	Viewing Angle (H/V°)	178/178	178/178	178/178
LCD Display	Backlight Life (hrs)	30,000	50,000	50,000
LCD Display	Contrast Ratio	1000 : 1	1000 : 1	1000 : 1
LCD Display	Size	21.5"	21.5"	21.5"
LCD Display	Brightness	250nits	250nits	1200nits
LCD Display	Touch Screen	Projective Capacitive Touch	Projective Capacitive Touch	Projective Capacitive Touch
LCD Display	Response Time (ms)	14	22ms	22ms
LCD Display	Backlight Type	LED	LED	LED
LCD Display	Dimension	521 x 315 x 42.6 mm	521 x 315 x 42.6 mm	521 x 315 x 42.6 mm
LCD Display	Weight	4.8Kg	5.4kg	5.4kg
Environment	Operational Temperature	0 ~ 45° C	0 ~ 60°C	0 ~ 60°C
Environment	Storage Temperature	-20 ~ 60° C	-20 ~ 60° C	-20 ~ 60° C
Environment	Humidity	10 ~ 90% @ 40° C, non-condensing	80% @ 50° C, non-condensing	80% @ 50° C, non-condensing
Touchscreen	Durability	-	-	-
Touchscreen	Surface Hardness	6H	7H	7H
Touchscreen	Transparency	86%	85%	85%
