| EMIO-100P-MPU01E | ||
| Embedded I/O Modules | Type | USB to 1-Ch Parallel port |
| Embedded I/O Modules | Communication Interface | Combo USB (Internal/ External) |
| Embedded I/O Modules | Interface Connector | Internal USB port: MiniPCIe thru USBExternal USB port: 2.0 mm, 1x4-pin, male type wafer box |
| Embedded I/O Modules | Channel Connector | 1 |
| Embedded I/O Modules | Protocol | Parallel |
| Embedded I/O Modules | According to | IEEE 1284-coompliant ECP |
| Embedded I/O Modules | Operating Temperature | 0 ~ +70°C |
| Embedded I/O Modules | Storage Temperature | -40 ~ +85°C |
| Embedded I/O Modules | Supported Voltage and Current | +5.0 V, 100mA |
| Embedded I/O Modules | LED Status | Module Ready: Red LED |
| Embedded I/O Modules | MTBF | 10,400,000 hours |
| Embedded I/O Modules | Dimensions (L*W*H) | 50.95 x 30 x 10 mm |

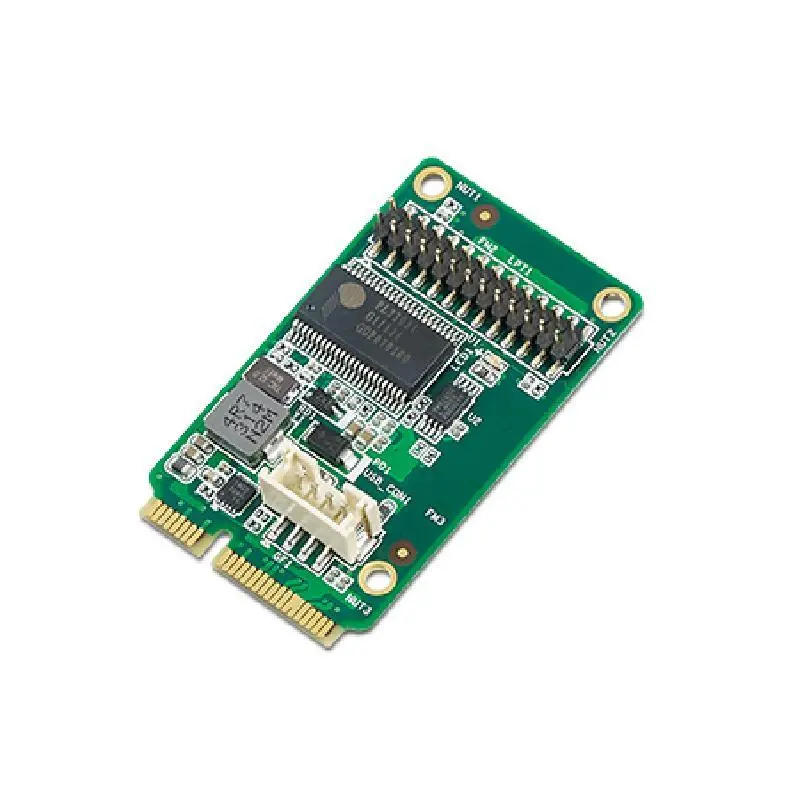

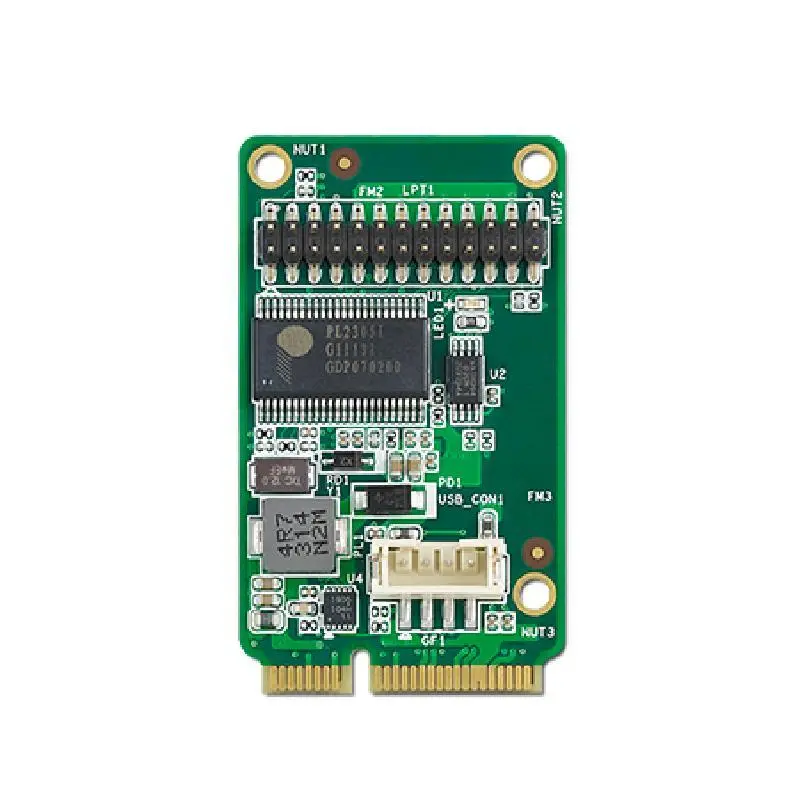

Advantech EMIO-100P Parallel module, 1-Ch, USB I/F
