| AIMB-522G4-00A1 | AIMB-522G2-00A1 | ||
| Form Factor | Form Factor | Micro ATX | Micro ATX |
| Processor | CPU TDP | 105W/65W | 105W/65W |
| Processor | Core Number | Up to 16C | Up to 16C |
| Processor | Frequency | 3.4GHz~3.9GHz | 3.4GHz~3.9GHz |
| Processor | L3 Cache | 16MB~64MB | 16MB~64MB |
| Processor | BIOS | AMI EFI 256 Mbit | AMI EFI 256 Mbit |
| Processor | Chipset | AMD X570 | AMD X570 |
| Memory | Max. Capacity | 128GB | 128GB |
| Memory | Technology | Dual Channel DDR4 3200MHz UDIMM | Dual Channel DDR4 3200MHz UDIMM |
| Memory | ECC Support | No | No |
| Memory | Socket | 4 x 288-pin DIMM | 4 x 288-pin DIMM |
| Display | DDI (HDMI/DVI/DisplayPort) | HDMI/DP/VGA | HDMI/DP/VGA |
| Display | Multiple Display | Dual/ Triple | Dual/ Triple |
| Expansion | PCI Express x 16 | 1 | 1 |
| Expansion | PCI Express x 4 | 2 | 2 |
| Ethernet | Controller | 2 x INTEL LAN i225LM, 2 x Realtek 8119i | 2 x INTEL LAN i225LM, 2 x Realtek 8119i |
| Ethernet | Speed | Up to 2.5GbE | Up to 2.5GbE |
| Audio | CODEC | Realtek ALC888S | Realtek ALC888S |
| Audio | Connector | 2 (Line out, Mic-in) | 2 (Line out, Mic-in) |
| Ethernet | Connector | RJ45 x 4 | RJ45 x 2 |
| Watchdog Timer | WatchDog Timer | Yes | Yes |
| Storage | SATA | 4 x SATA III (Max. Data Transfer Rate600 MB/s) | 4 x SATA III (Max. Data Transfer Rate600 MB/s) |
| Storage | RAID | Software RAID 0, 1, 5, 10 | Software RAID 0, 1, 5, 10 |
| I/O | GPIO | 8-bit GPIO | 8-bit GPIO |
| I/O | USB3.0 | 8 | 8 |
| I/O | USB2.0 | 3 | 3 |
| I/O | COM Port | 6 ( 5 x RS232, 1 x RS232/ 422/ 485) | 6 ( 5 x RS232, 1 x RS232/ 422/ 485) |
| I/O | TPM | 1 | 1 |
| Power | Power Type | ATX | ATX |
| Power | Connector | ATX24P | ATX24P |
| Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) | 0 ~ 60° C (32 ~ 140° F) |
| Environment | Non-Operational Temperature | -40 ~ 85° C and 60° C @ 95% RH Non-Condensing | -40 ~ 85° C and 60° C @ 95% RH Non-Condensing |
| Environment | Vibration Resistance | 3.5 Grm (Non-Operation Mode) | 3.5 Grm (Non-Operation Mode) |
| Physical | Dimension (mm) | 244 x 244 mm | 244 x 244 mm |
| Physical | Weight | 1.2 kg (2.64 lb), weight of total package | 1.2 kg (2.64 lb), weight of total package |
| Operating System | Microsoft Windows | Yes | Yes |
| Operating System | Linux | Yes | Yes |
| Operating System | SUSIAccess | Yes | Yes |
| Certification | EMC | CE, FCC | CE, FCC |
| Operating System | Ubuntu | V | V |

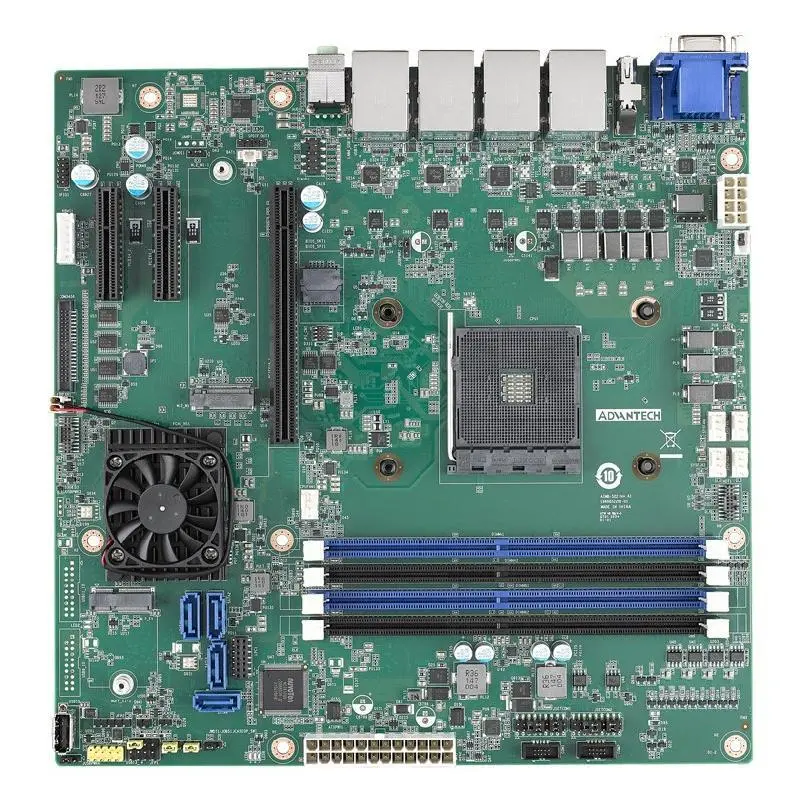

Advantech AIMB-522 Micro-ATX Motherboard AMD Ryzen™ Embedded 5000 Series processors
