| AIMB-506G2-00A2E | AIMB-506F-00A2E | ||
| Form Factor | Form Factor | Micro ATX | Micro ATX |
| Processor | CPU | Intel Core i7/ i5/ i3/ Pentium/ Celeron | Intel Core i7/ i5/ i3/ Pentium/ Celeron |
| Processor | CPU TDP | 65W/54W/35W | 65W/54W/35W |
| Processor | BIOS | AMI EFI 128Mbit | AMI EFI 128Mbit |
| Processor | Core Number | Up to 8 | Up to 8 |
| Processor | Frequency | Up to 3.6GHz | Up to 3.6GHz |
| Memory | Max. Capacity | 64GB (up to 32GB per DIMM) | 64GB (up to 32GB per DIMM) |
| Processor | L3 Cache | 2 ~ 12MB | 2 ~ 12MB |
| Processor | Chipset | Intel H310 | Intel H310 |
| Memory | Technology | DDR4 2666MHz | DDR4 2666MHz |
| Display | Controller | Intel HD Graphics | Intel HD Graphics |
| Display | Graphic Engine | DirectX11.1, Open GL 4.0 | DirectX11.1, Open GL 4.0 |
| Display | VGA | Up to 1920 x 1200 at 60 Hz | Up to 1920 x 1200 at 60 Hz |
| Memory | ECC Support | No | No |
| Display | LCD (TTL/LVDS/eDP) | Option: 1 header | eDP: support 3840x2160@ 60Hz / LVDS: support 48bits 1920x1200 (optional) |
| Memory | Socket | 2 x 288 pin DIMM | 2 x 288 pin DIMM |
| Display | DDI (HDMI/DVI/DisplayPort) | DP: max resolution 4096 x 2304 @ 60Hz | DP: max resolution 4096 x 2304 @ 60Hz |
| Display | Multiple Display | Dual | Dual |
| Expansion | PCI Express x 16 | 1 | 1 |
| Expansion | PCI | 2 | 2 |
| Expansion | PCI Express x 1 | 1 | 1 |
| Expansion | SMBus | 1 | 1 |
| Ethernet | Controller | LAN 1: Realtek RTL8119i, LAN 2: Realtek RTL8119i | LAN 1: Realtek RTL8119i, LAN 2: Realtek RTL8119i |
| Ethernet | Speed | 10/ 100/ 1000 Mbps | 10/ 100/ 1000 Mbps |
| Audio | Audio Interface | HD Audio | HD Audio |
| Audio | CODEC | Realtek ALC888S, High Definition Audio (HD) | Realtek ALC888S, High Definition Audio (HD) |
| Audio | Connector | 2 (Line out, Mic-in) | 2 (Line out, Mic-in) |
| Ethernet | Connector | RJ45 x 2 | RJ45 x 2 |
| Watchdog Timer | WatchDog Timer | Yes | Yes |
| Storage | RAID | None | None |
| Storage | SATA | 3 x SATA III (Max. Data Transfer Rate 600 MB/s) | 3 x SATA III (Max. Data Transfer Rate 600 MB/s) |
| I/O | GPIO | 16-bit GPIO | 16-bit GPIO |
| I/O | USB3.0 | 4 | 8 |
| I/O | USB2.0 | 8 | 12 |
| I/O | COM Port | 10 ( 8 x RS232, 2 x RS232/ 422/ 485) | 14 (12x RD 232, 2x RS232/422/485) |
| I/O | TPM | TPM 2.0 | TPM 2.0 |
| Power | Power Type | ATX | ATX |
| Power | Connector | ATX24P | ATX24P |
| Power | Battery | Lithium 3 V / 200 mAh | Lithium 3 V / 200 mAh |
| Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) | 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) |
| Power | Power Consumption (Full Load) | 0.7A @ +5V/ 0.78A @ +3.3V/ 3.462A @ 12V_4P/ 0.303A @ 12V/ 0.53 @ 5VSB | 0.7A @ +5V/ 0.78A @ +3.3V/ 3.462A @ 12V_4P/ 0.303A @ 12V/ 0.53 @ 5VSB |
| Environment | Non-Operational Temperature | -20 ~ 70° C (-4 ~ 158F) and 60° C @ 95% RH Non-Condensing | -20 ~ 70° C (-4 ~ 158F) and 60° C @ 95% RH Non-Condensing |
| Environment | Vibration Resistance | 3.5 Grm (Non-Operation Mode) | 3.5 Grm (Non-Operation Mode) |
| Physical | Dimension (mm) | 244 x 244 mm | 244 x 244 mm |
| Physical | Weight | 1.2 kg (2.64 lb), weight of total package | 1.2 kg (2.64 lb), weight of total package |
| Operating System | Microsoft Windows | Windows 10 (64-bit) | Windows 10 (64-bit) |
| Operating System | Linux | Yes | Yes |
| Operating System | SUSIAccess | Yes | Yes |
| Operating System | Ubuntu | V | V |
| Certification | EMC | CE, FCC | CE, FCC |

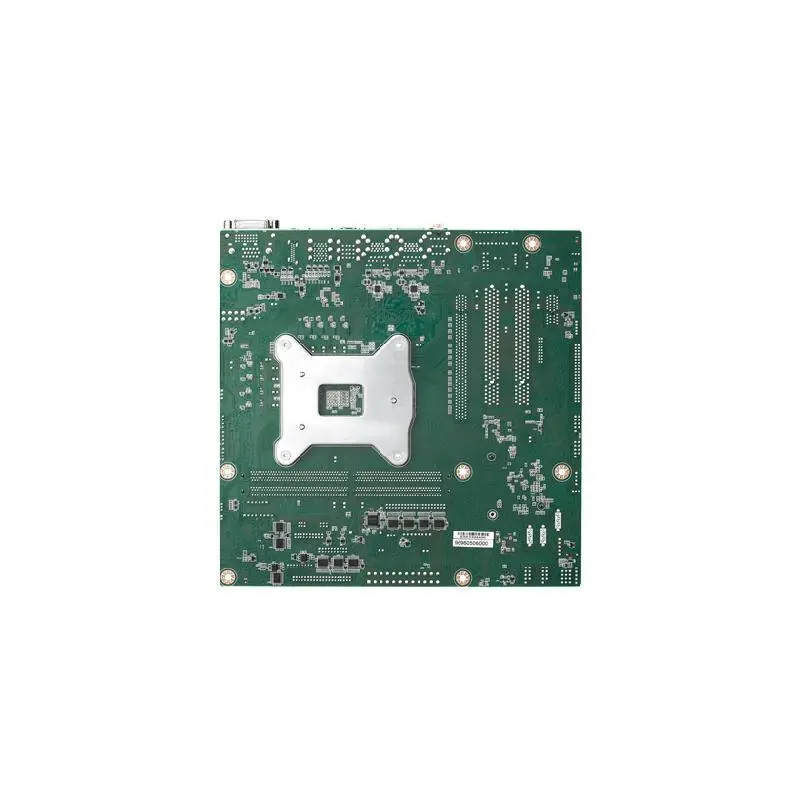

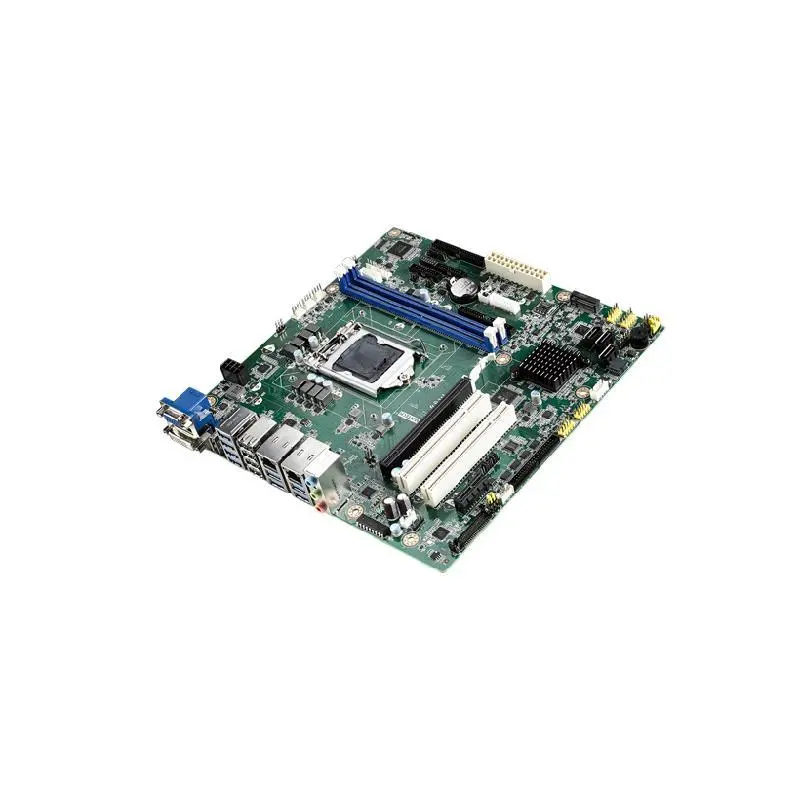

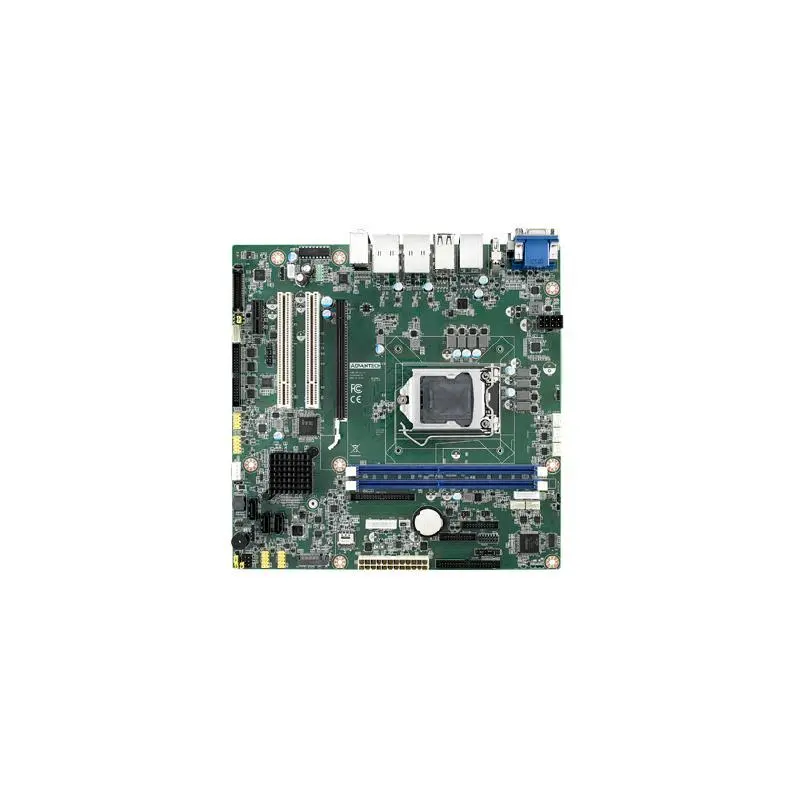

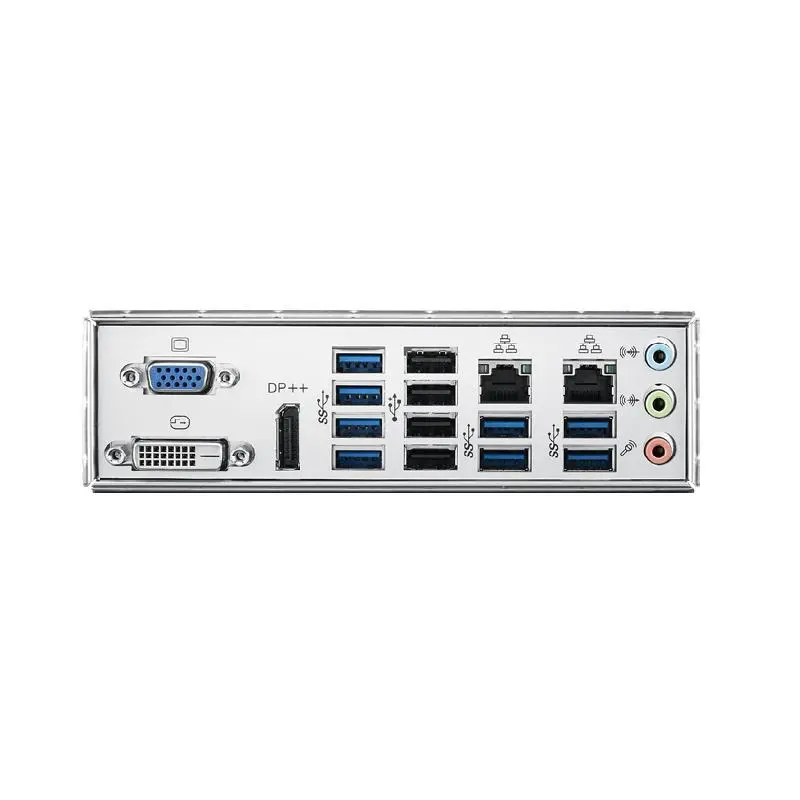

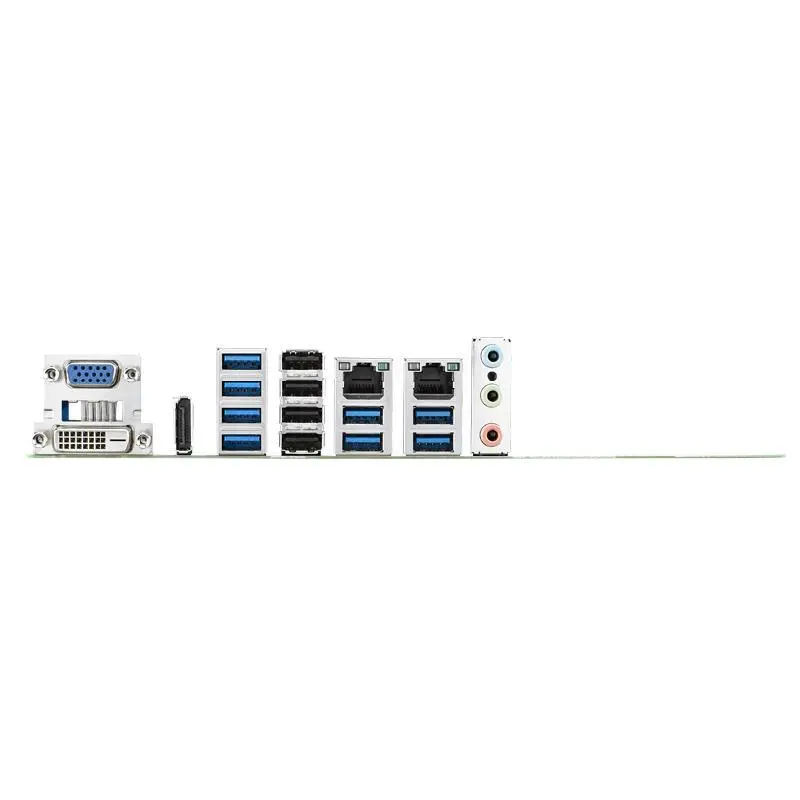

Advantech AIMB-506 Micro-ATX Motherboard 8th/9th Gen Intel® Core™ Processor LGA1151
