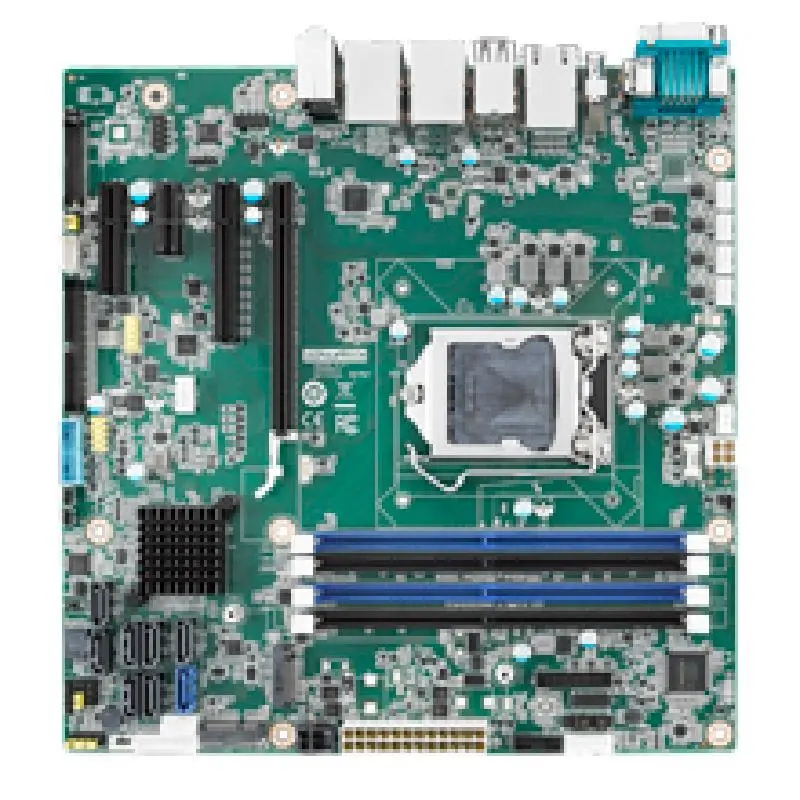

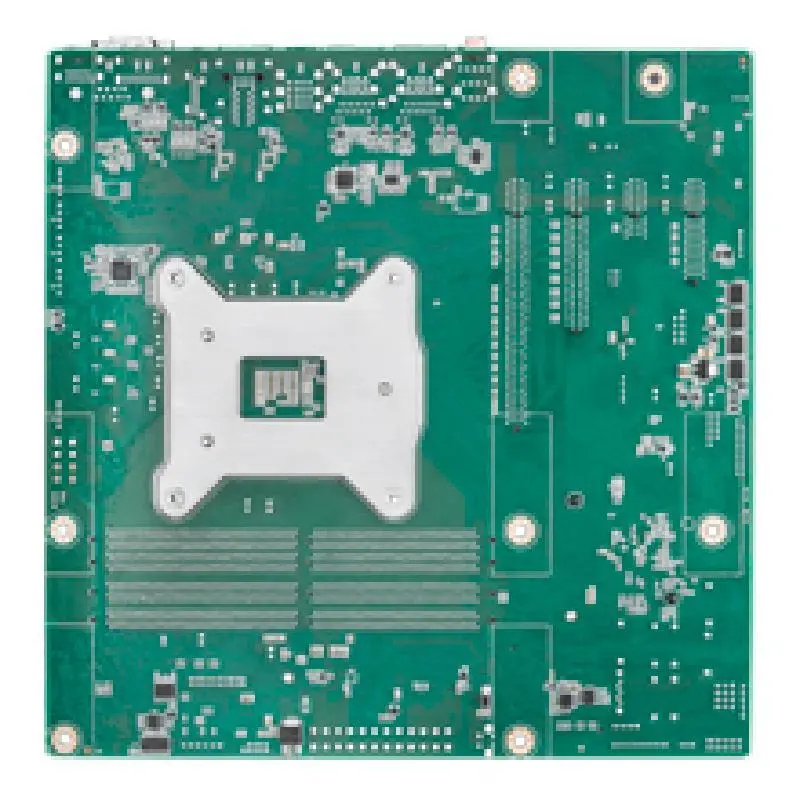

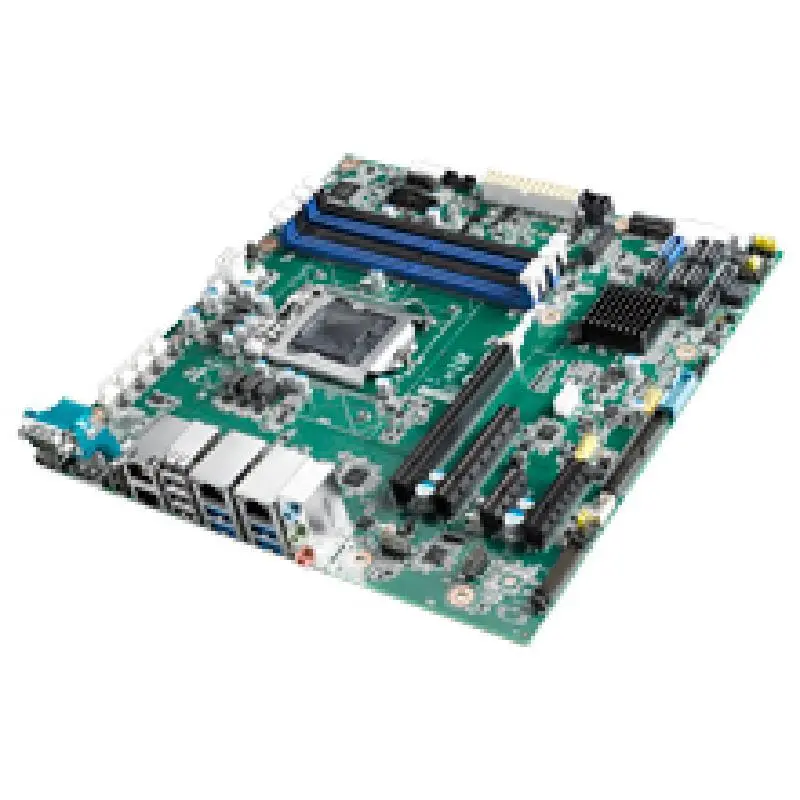

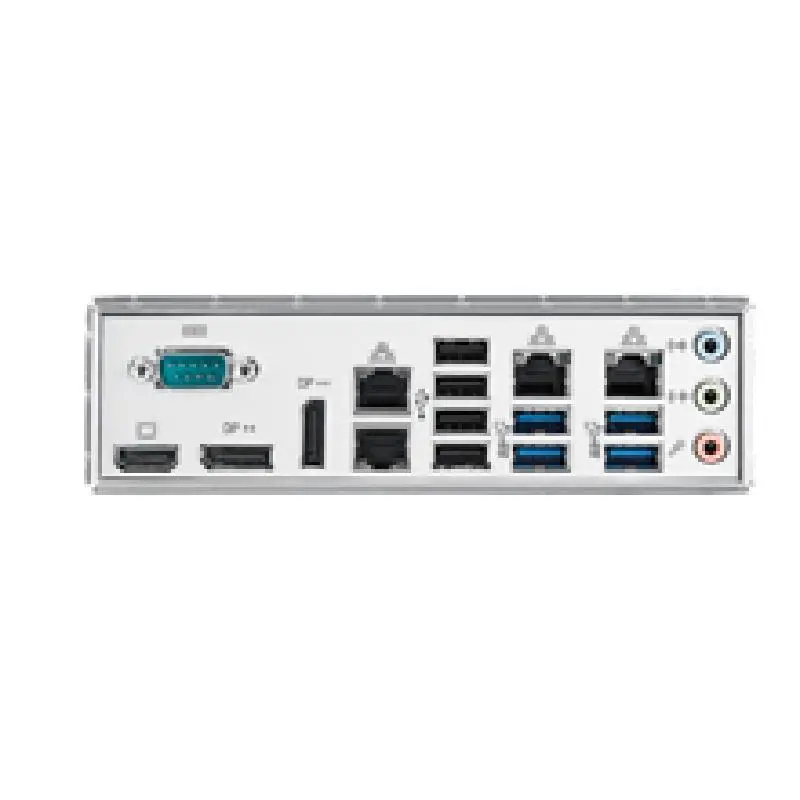

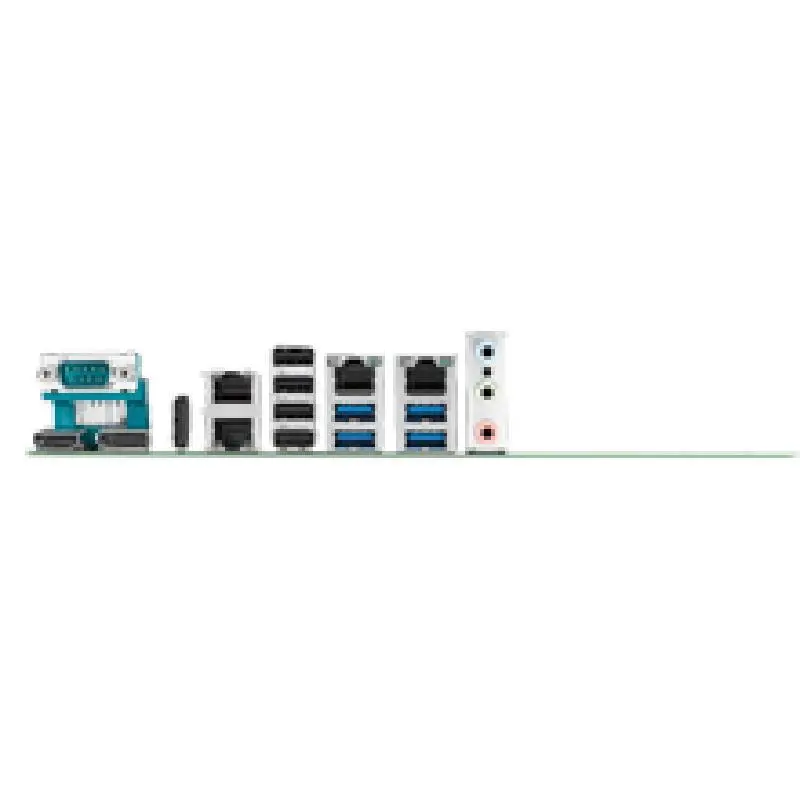

Advantech AIMB-586 Micro-ATX Motherboard 8th/9th Gen Intel® Xeon® E3 Processor LGA1151

    Supports Intel® 8th/ 9th Gen Xeon/ Core™ i7/i5/i3 processor with Q370/C246/H310 chipset

    Four U-DIMM sockets support up to 128GB DDR4 2400/2666 MHz SDRAM

    Supports HDMI2.0a(option),2 DP++,eDP/LVDS(option) display

    Supports Intel AMT 12.0 and Intel vPro competent

    Supports PCIE Gen3, 4 USB3.1, 10 x USB2.0/USB 3.0, upto 4 x SATAIII and quad GbE LAN, M.2(M-key),M.2(E-key)

    Supports Software RAID 0, 1, 5, 10, TPM 1.2/2.0 (optional)

    Supports SUSI, WISE-DeviceOn and Edge AI Suite.

AIMB-586WG2-00A1E AIMB-586QG2-00A1E AIMB-586L-00A1E
Form Factor Form Factor Micro ATX Micro ATX Micro ATX
Processor CPU Intel Xeon/ Core i7/ i5/ i3/ Pentium/ Celeron Intel Core i7/ i5/ i3/ Pentium/ Celeron Intel Core i7/ i5/ i3/ Pentium/ Celeron
Processor CPU TDP 80W/65W/35W 65W / 35W 65W / 35W
Processor BIOS AMI EFI 128Mbit AMI EFI 128Mbit AMI UEFI 128 Mbit
Processor Core Number 2 / 4 / 6 2 / 4 / 6 2 / 4 / 6
Processor Frequency 2.2GHz ~ 3.8GHz 2.2GHz ~ 3.8GHz 2.2GHz ~ 3.8GHz
Memory Max. Capacity 128GB 128GB 128GB
Processor L3 Cache 2 ~ 8MB 2 ~ 8MB 2 ~ 8MB
Processor Chipset Intel C246 Intel Q370 Intel H310
Memory Technology Dual Channel DDR4, 2400/2666MHz ECC/Non-ECC with 288 pin U-DIMM Dual Channel DDR4, 2400/2666MHz Non-ECC with 288 pin U-DIMM Dual Channel DDR4, 2400/2666MHz Non-ECC with 288 pin U-DIMM
Display Controller Intel HD Graphics Intel HD Graphics Intel HD Graphics
Display Graphic Engine DirectX 11.2, OpenGL 5.0, OpenCL 2.1 DirectX11.1, Open GL 4.0 DirectX11.1, Open GL 4.0
Display Graphic Memory 1GB maximum shared memory with 2GB and above system memory installed 1GB maximum shared memory with 2GB and above system memory installed 1GB maximum shared memory with 2GB and above system memory installed
Memory ECC Support Yes No No
Display LCD (TTL/LVDS/eDP) eDP: support to 3840 x 2160 @ 60 Hz eDP: support to 3840 x 2160 @ 60 Hz N/A
Memory Socket 4 x 288-pin DIMM 4 x 288-pin DIMM 4 x 288-pin DIMM
Display DDI (HDMI/DVI/DisplayPort) HDMI: upto 4096x2160@60Hz ; DP:3840x2160@60Hz HDMI: upto 4096x2160@60Hz ; DP:3840x2160@60Hz HDMI: upto 4096x2160@60Hz ; DP:3840x2160@60Hz
Display Multiple Display Dual/ Triple Dual/ Triple Dual
Expansion PCI Express x 16 Option 1 1
Expansion PCI Express x 8 2 option 0
Expansion PCI Express x 1 1 1 0
Expansion SMBus 1 1 1
Expansion PCI Express x 4 1 1 1
Audio Audio Interface HD Audio HD Audio HD Audio
Ethernet Controller LAN1: Intel i219LM / LAN2: Intel i210AT LAN1: Intel i219LM / LAN2: Intel i210AT Intel i219LM
Ethernet Speed 10/ 100/ 1000 Mbps 10/ 100/ 1000 Mbps 10/100/1000Mbps
Audio CODEC Realtek ALC888S, High Definition Audio (HD) Realtek ALC888S, High Definition Audio (HD) Realtek ALC888S, High Definition Audio (HD)
Audio Connector 2 (Line out, Mic-in) 2 (Line out, Mic-in) 2 (Line-out, Mic-in)
Ethernet Connector RJ45 x 2 RJ45 x 2 RJ45 x 1
Watchdog Timer WatchDog Timer Yes Yes Yes
Storage SATA 8 x SATAIII (Max. Data Transfer Rate 600 MB/s) 6 x SATAIII (Max. Data Transfer Rate 600 MB/s) 4 x SATA III (Max. Data Transfer Rate600 MB/s)
Storage RAID Software RAID 0, 1, 5, 10 Software RAID 0, 1, 5, 10 Software RAID 0, 1, 5, 10
I/O GPIO 16-bit GPIO 16-bit GPIO 16-bit GPIO
I/O USB3.0 6 6 4
I/O USB2.0 6 6 6
I/O COM Port 6(5 x RS-232, 1 x RS-232/422/485) 6 ( 5 x RS232, 1 x RS232/ 422/ 485) 2 ( 1 x RS232, 1 x RS232/ 422/ 485)
I/O Keypad 1 1 1
I/O TPM Optional Optional Optional
I/O Smart Fan 5 5 5
Power Power Type ATX ATX ATX
Power Connector ATX24P ATX24P ATX24P
Power Power Consumption (Full Load) 3.66A @ 5V / 1.05A @ 3.3V / 6.02A @12V / 0.29A @ 5Vsb / 0A @ -12V /2.88A @ 5V / 1.06A @ 3.3V / 3.3A @12V / 0.36A @ 5Vsb / 0.01A @ -12V 3.66A @ 5V / 1.05A @ 3.3V / 6.02A @12V / 0.29A @ 5Vsb / 0A @ -12V /2.88A @ 5V / 1.06A @ 3.3V / 3.3A @12V / 0.36A @ 5Vsb / 0.01A @ -12V 3.66A @ 5V / 1.05A @ 3.3V / 6.02A @12V / 0.29A @ 5Vsb / 0A @ -12V /2.88A @ 5V / 1.06A @ 3.3V / 3.3A @12V / 0.36A @ 5Vsb / 0.01A @ -12V
Power Battery Lithium 3 V / 200 mAh Lithium 3 V / 200 mAh Lithium 3 V / 200 mAh
Environment Operational Temperature 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)
Environment Non-Operational Temperature -40 ~ 85° C and 60° C @ 95% RH Non-Condensing -40 ~ 85° C and 60° C @ 95% RH Non-Condensing -40 ~ 85° C and 60° C @ 95% RH Non-Condensing
Environment Vibration Resistance 3.5 Grm (Non-Operation Mode) 3.5 Grm (Non-Operation Mode) 3.5 Grm (Non-Operation Mode)
Physical Dimension (mm) 244 x 244 mm 244 x 244 mm 244 x 244 mm
Physical Weight 1.2 kg (2.64 lb), weight of total package 1.2 kg (2.64 lb), weight of total package 1.2 kg (2.64 lb), weight of total package
Operating System Microsoft Windows Yes Yes Yes
Operating System Linux Yes Yes Yes
Operating System SUSIAccess Yes Yes Yes
Certification EMC CE, FCC CE, FCC CE, FCC
