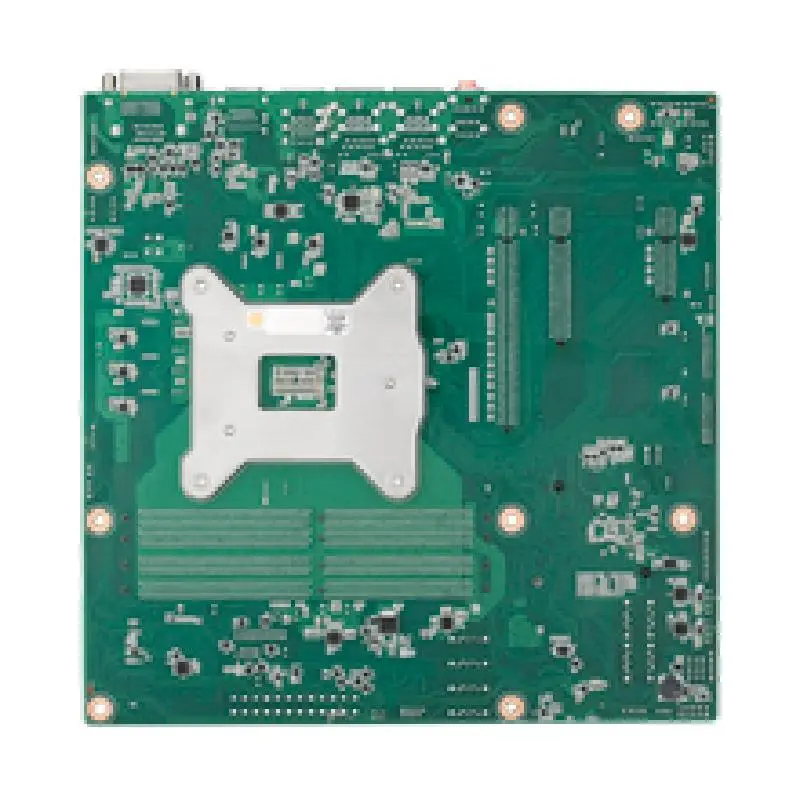

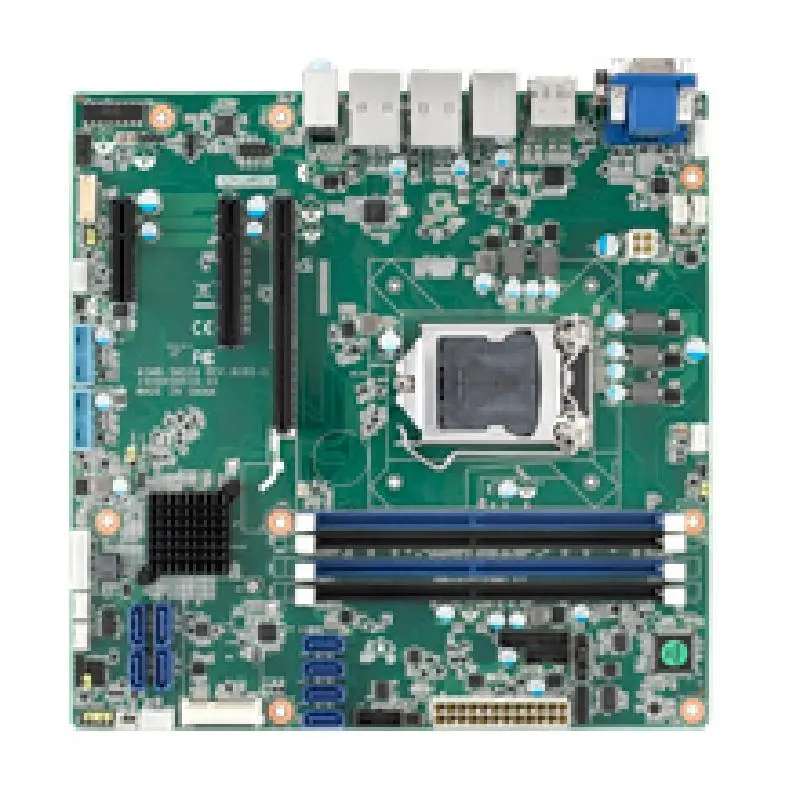

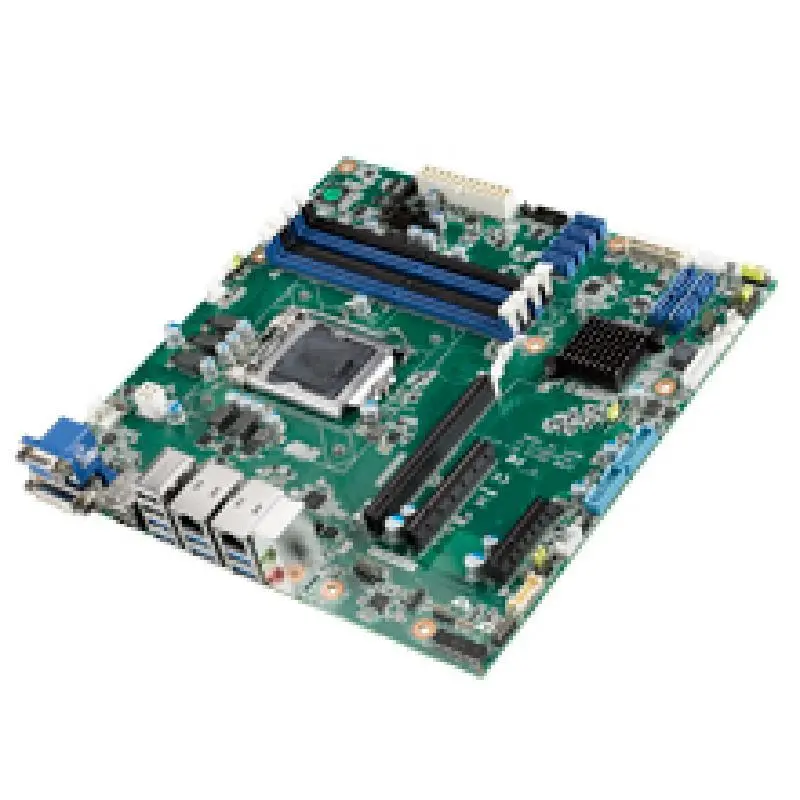

Advantech AIMB-585SV Micro-ATX Motherboard 6th/7th Gen Intel® Xeon® E3 Processor LGA1151

    Supports SUSI, WISE-DeviceOn and Edge AI Suite

    Supports Software RAID 0, 1, 5, 10, TPM 1.2/2.0 (optional)

    Supports PCIE Gen3, 10 x USB 3.0, 2 USB 2.0, 8 x SATAIII, 1 miniPCIe(mSATA) and dual GbE LAN

    Supports Intel AMT 11.0 and Intel vPro competent

    Supports DVI-D,HDMI2.0 ,DP++,eDP,VGAdisplay

    Four DIMM sockets support up to 64GB DDR4 2133/2400 MHz SDRAM

    Supports Intel® Xeon®/ 6th & 7th Gen Core™ i7/i5/i3 processor with C236 chipset

AIMB-585WG2-SVA1E
Form Factor Form Factor Micro ATX
Processor CPU Intel® Core™ i7/i5/i3/Pentium
Processor CPU TDP 80W/65W/35W
Processor BIOS AMI EFI 128Mbit
Processor Core Number 2 / 4
Processor Frequency 2.3GHz ~ 3.6GHz
Memory Max. Capacity 64 GB
Processor L3 Cache 2 ~ 8MB
Processor Chipset Intel C236
Memory Technology DDR4 2133MHz
Display Controller Intel HD Graphics
Display Graphic Engine DirectX11.1, Open GL 4.0
Display Graphic Memory 1GB maximum shared memory with 2GB and above system memory installed
Memory ECC Support Yes/NO
Display LCD (TTL/LVDS/eDP) eDP: support to 3840 x 2160 @ 60 Hz
Display VGA Up to 1920 x 1200 at 60 Hz
Memory Socket 4 x 288-pin DIMM
Display DDI (HDMI/DVI/DisplayPort) HDMI: upto 4096x2160 @60Hz / DVI: 1920x1080 @60Hz / DP: 4096x2304 @60HZ
Display Multiple Display Dual/ Triple
Expansion PCI Express x 16 1
Expansion PCI Express x 8 option
Expansion PCI Express x 1 0
Expansion PCI Express x 4 1
Expansion SMBus 1
Audio Audio Interface HD Audio
Ethernet Controller LAN1: Intel i219LM / LAN2: Intel i211AT
Audio CODEC Realtek ALC892, High Definition Audio (HD)
Audio Connector 2 (Line out, Mic-in)
Ethernet Speed 10/ 100/ 1000 Mbps
Ethernet Connector RJ45 x 2
Watchdog Timer WatchDog Timer Yes
Storage SATA 8 x SATAIII + 1mSATA
Storage RAID Software RAID 0, 1, 5, 10
I/O GPIO 16-bit GPIO
I/O USB3.0 10
I/O USB2.0 2
I/O COM Port 2(2 x RS232, 1 x RS232/ 422/ 485)
I/O Keypad 1
I/O TPM Optional
I/O Smart Fan 5
Power Power Type ATX
Power Connector ATX24P
Power Power Consumption (Full Load) 3.66A @ 5V / 1.05A @ 3.3V / 6.02A @12V / 0.29A @ 5Vsb / 0A @ -12V /2.88A @ 5V / 1.06A @ 3.3V / 3.3A @12V / 0.36A @ 5Vsb / 0.01A @ -12V
Power Battery Lithium 3 V / 200 mAh
Environment Operational Temperature 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)
Environment Non-Operational Temperature -20 ~ 70° C (-4 ~ 158F) and 60° C @ 95% RH Non-Condensing
Environment Vibration Resistance 3.5 Grm (Non-Operation Mode)
Physical Dimension (mm) 244 x 244 mm
Physical Weight 1.2 kg (2.64 lb), weight of total package
Operating System Microsoft Windows Yes
Operating System Linux Yes
Operating System SUSIAccess Yes
Certification EMC CE, FCC
