| AIMB-523BK-PAA1 | ||
| Form Factor | Form Factor | Micro ATX |
| Processor | CPU TDP | 105W/65W |
| Processor | Core Number | 12/8/6 |
| Processor | Frequency | 3.7GHz~4.7GHz |
| Processor | L3 Cache | 32MB~64MB |
| Processor | BIOS | AMI EFI 256 Mbit |
| Processor | Chipset | B650 |
| Memory | Max. Capacity | 128GB |
| Memory | Technology | DDR5 |
| Memory | ECC Support | No |
| Memory | Socket | 4 x 288-pin DIMM |
| Display | DDI (HDMI/DVI/DisplayPort) | DP/HDMI |
| Display | Multiple Display | Dual/ Triple |
| Expansion | PCI Express x 16 | 1 |
| Expansion | PCI Express x 4 | 1 |
| Expansion | PCI Express x 1 | 1 |
| Ethernet | Controller | Intel i226LM |
| Ethernet | Speed | 10/100/1000/2500 Mbps |
| Audio | CODEC | Realtek ALC888S |
| Audio | Connector | 2 (Line out, Mic-in) |
| Ethernet | Connector | RJ45 x 6 |
| Watchdog Timer | WatchDog Timer | Yes |
| Storage | SATA | 4 x SATA III (Max. Data Transfer Rate600 MB/s) |
| Storage | RAID | RAID 0, 1, 10 |
| I/O | GPIO | 8-bit GPIO |
| I/O | USB 3.2 | 8 |
| I/O | COM Port | 4(2 x RS232, 2 x RS232/ 422/ 485) |
| I/O | USB2.0 | 1 (internal type A connector) |
| I/O | TPM | TPM Module (optional) |
| Power | Power Type | ATX |
| Power | Connector | ATX24P |
| Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) |
| Environment | Non-Operational Temperature | -40 ~ 85° C and 60° C @ 95% RH Non-Condensing |
| Environment | Vibration Resistance | 3.5 Grm (Non-Operation Mode) |
| Physical | Dimension (mm) | 244 x 244 mm |
| Physical | Weight | 1.2 kg (2.64 lb), weight of total package |
| Operating System | Microsoft Windows | Yes |
| Operating System | Linux | Yes |
| Operating System | SUSIAccess | Yes |
| Certification | EMC | CE, FCC |
| Operating System | Ubuntu | V |

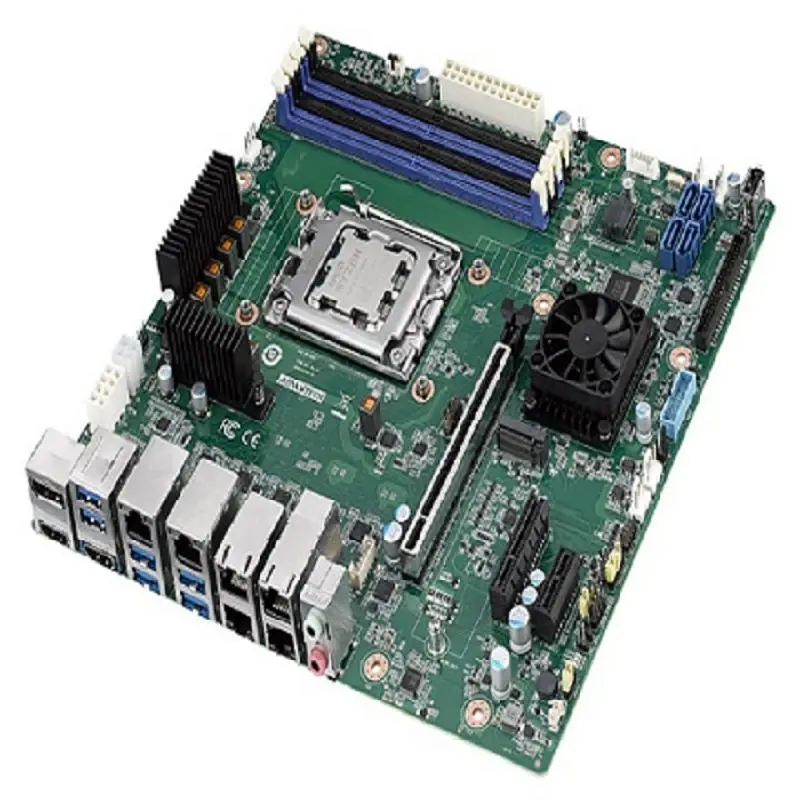

Advantech AIMB-523 Micro-ATX Motherboard AMD Ryzen™ Embedded 7000 Series processors
